Sida 1/32

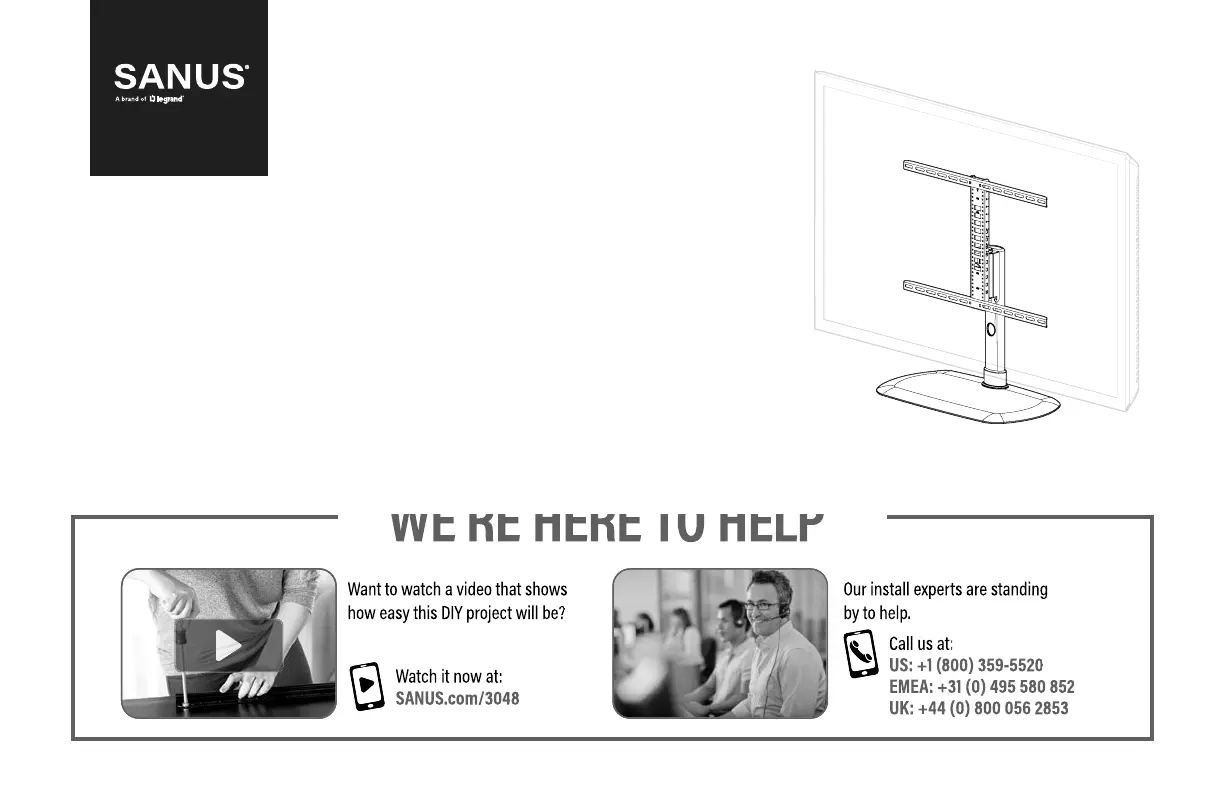

WE’RE HERE TO HELP
MFTVB1
SWIVEL TV BASE
Compatible with Amazon Fire TV 4-series
and Fire TV Omni Series up to 65"
Fits VESA patterns 100 x 100 - 600 x 400
INSTRUCTION MANUAL
2
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
Before getting started, let’s make sure this mount is perfect for you!
60 lbs
(27.2 kg)
Level Screwdriver
Does your TV
(including
accessories) weigh
more than 60 lbs
(27.2 kg)?
Do you have
the tools needed?
Ready to begin?
1
2
3Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV owner’s
manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service.
CAUTION: Avoid potential personal injuries and property damage! Manufacturer is not responsible for damage or injury caused by incorrect
assembly or use.
WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to
make sure the weight of the display (including accessories) does not exceed 60 lbs (27.2 kg). Use with heavier televisions may result in instability
causing tip over resulting in death or serious injury!
WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended
by the manufacturer.
WARNING: Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys
placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over onto the child.
WARNING: Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video equipment may
result in death or serious injury due to the furnishing collapsing or overturning onto a child.
NOTE: This product has no user serviceable parts.
No
—
Perfect!
Yes
—
This mount is NOT compatible. Visit SANUS.com or customer service
to find a compatible mount.
Texto en español, página 16 Deutscher Text Seiten 20 Svensk text sida 24
中文文字说明请参见第 28 页
Texte français page 18 Nederlandse tekst op pagina 22
Русский текст: стр. 30
日本語は 26 ページ
3
Dimensions
75mm
2.95in
75mm
2.95in
400mm
15.75in
600mm
23.62in
644.2mm
25.36in
278.1mm
10.95in
726.4mm
28.60in
CABLE MANAGEMENT
THROUGH TUBE
35deg
35deg
CABLE MANAGEMENT
THROUGH TUBE
522.6mm
20.58in
71.7mm
2.82in
16mm
.63in
522.6mm
20.58in
198.9mm
7.83in
137.6mm
5.42in
335.3mm
13.20in
644.2mm
25.36in
16mm
.63in
722.6mm
28.45in
TV INTERFACE
FRONT VIEW - MAXIMUM HEIGHT
FRONT VIEW - MINIMUM HEIGHT
TOP VIEW - SWIVEL
TOP VIEW - MAX DIMENSIONS
SIDE VIEW - MAXIMUM HEIGHT
SIDE VIEW - MINIMUM HEIGHT
3-D
