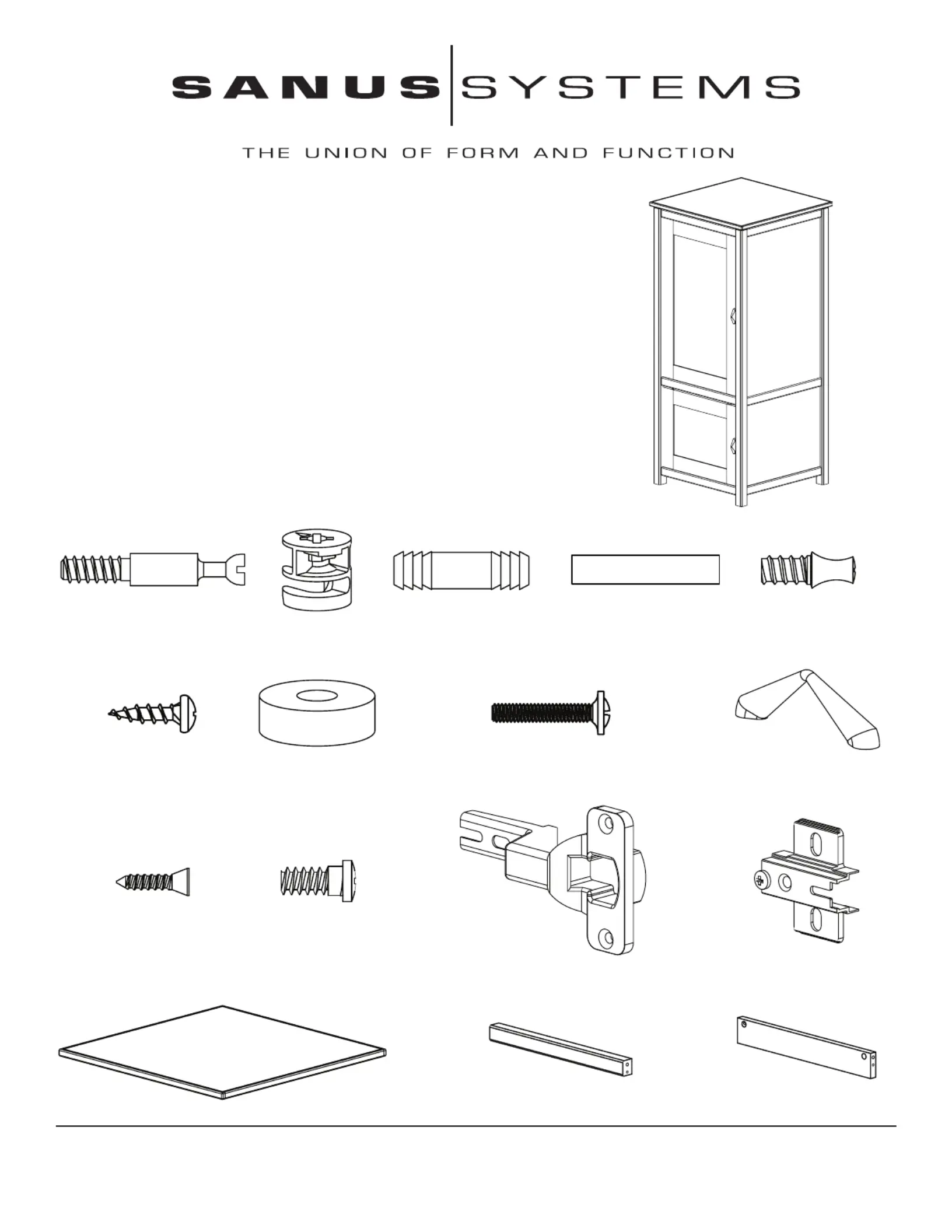

Hardware: Shown as actual size
(12) Cam Pin - a (4) Dowel Pin - c (12) Dowel - d (24) Shelf Pin - e
(12) Cam - b
(4) Wood Screw - f
(4) Spacer - g (4) Phillips Bolt - h (2) Door Handle - i*
(8) Hinge Screw - j (8) Hinge Plate Screw - k
Parts: Not Shown as actual size (4) Hinge - l* (4) Hinge Plate - m*
(3) Front Stretcher - o (3) Back Stretcher - p
(1) Top - n
Assembly Instructions for Model: WFA54
Thank you for choosing Sanus Systems Woodbrook Furniture. The Woodbrook Furniture is
constructed of real hardwood and resonance dampening MDF.
Safety Warning: If you do not understand these directions, or have any doubts about the
safety of the installation, please call a qualied contractor or contact Sanus at 800.359.5520 or
www.sanus.com. Check carefully to make sure that there are no missing or defective parts. Our
customer service representatives can quickly assist you with installation questions and missing
or damaged parts. Replacement parts for products purchased through authorized dealers will be
shipped directly to you. Never use defective parts. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specied by Sanus
Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or
incorrect use. Please call Sanus Systems before returning products to the point of purchase.
Required Tools: Phillips screw driver
Supplied Parts and Hardware: Some parts may be pre-assembled together*
Sanus Systems 2221 Hwy 36 West, St. Paul, MN 55113 12.28.05
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Parts List (Cont)
(2) Bottom Shelf - q (4) Mid Shelf - r
(1) Small Door - s
(1) Wood Panel - x
(1) Large Door - w
(1) Left Side Panel - t (1) Right Side Panel - u (1) Back Panel - v
Step 1: Prepare the Side Panels
Thread a Cam Pin (a) into each of the smaller holes in the Side Panels (t,u). Tighten each Cam Pin with a Phillips screw driver. Insert a
Dowel (d) into the larger adjacent hole in the Side Panels. See Diagram 1 for assistance.
Detailed View Diagram 1
t
a
d
Step 2: Prepare Stretchers
Add a Cam (b) to each Front Stretcher (o) and Back Stretcher (p). Make sure the arrow in each Cam faces the hole on the side of the
Stretchers. See Diagram 2 for assistance.
Diagram 2
Detailed View
o
a
arrow
p
Step 3: Add Stretchers
Add the Front and Back Stretchers (o,p) to the Side Panel (t), by aligning the Cam Pin (a) with the hole which the Cams (b) point to
and the Dowel (d) goes into the adjacent hole. Make sure the stretchers are oriented so the Cams face inward. Tighten each Cam closest
to the Side Panel in a clockwise motion until the stretchers are secured. Note: Front stretchers attach to the same side as the
hinge holes are on.
Diagram 3
Detailed View
t
d
b
a
hinge
holes
p
