Sanwa Blazer Sport Bruksanvisning
Läs nedan 📖 manual på svenska för Sanwa Blazer Sport (2 sidor) i kategorin Radio. Denna guide var användbar för 12 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/2

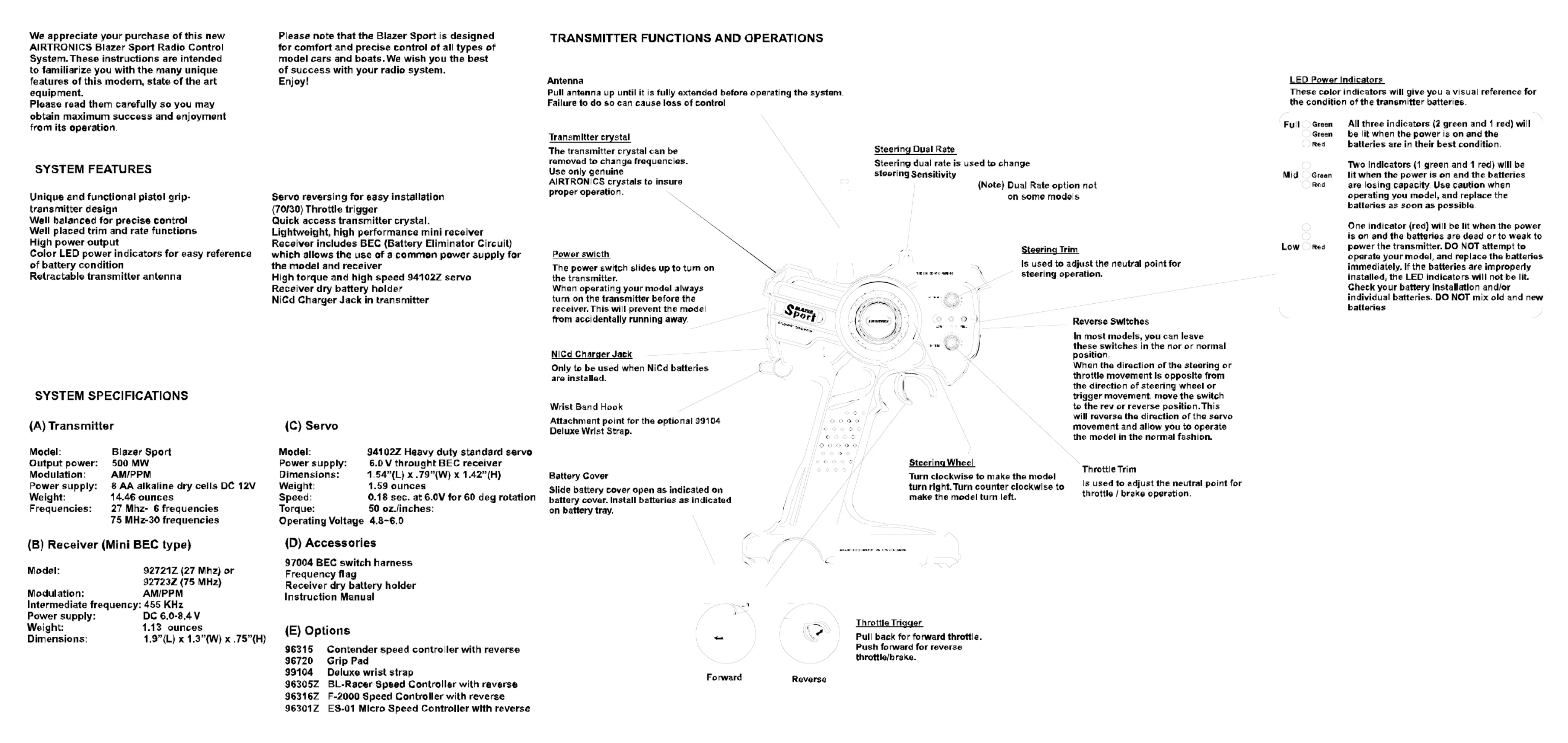

2 Channel Systems Manual
1185 Stanford Court, Anaheim, CA. 92805
Tel:(714) 978-1895 Fax:(714) 978-1540
www.Airtronics.net
TRANSMITTER BATTERY INSTALLATION
RECEIVER AND SERVO CONNECTIONS
WARNINGS
DO NOT OPERATE YOUR SYSTEM IF SOMEONE
ELSE IS ON YOUR FREQUENCY AT THE SAM
TIME.
YOUR MODEL CAN CAUSE SERIOUS
DAMAGE OR INJURY SO PLEASE USE CAUTION
AND COURTESY AT ALL TIMES.
DO NOT EXPOSE THE RADIO SYSTEM TO WATER OR
EXCESSIVE MOISTURE.
PLEASE WATER PROOF THE RECEIVER AND SERVOS
BY PLACING THEM IN PLASTIC BAGS OR A WATER
TIGHT RADIO BOX WHEN OPERATING R/C BOAT MODELS.
IF YOU HAVE LITTLE OR NO EXPERIENCE OPERATING
R/C MODELS< WE STRONGLY RECOMMEND YOU SEEK
THE ASSISTANCE OF EXPERIENCED MODELERS OR
YOUR LOCAL HOBBY SHOP FOR GUIDANCE.
Troubleshooting Guide
If your radio system does not operate properly, please
check the following items:
1. Make sure the batteries are properly installed and
check the polarity (+ and -) again.
2. Check that both the transmitter and receiver power
switches are in the ON position.
3. Check the LED Power Indicators and make certain
that all three are on. If not, replace the batteries.
4. Make sure all the receiver and servo connections
are tight.
5. Make sure that the proper frequency crystals are
installed in the transmitter and receiver.
1. Press down on the battery cover and slide
in the direction of the arrow to remove.
2. Install 8 pieces “AA” size alkaline batteries as
indicated on the battery tray. Make sure to match
the polarity (+ and -) as shown in the battery
compartment or the transmitter will not function.
3. Install the battery cover in place and slide to close.
WARNING: Improper installation of transmitter batteries
can cause serious damage to your system.
Your Blazer or Blazer Sport R/C system is equipped
with a BEC receiver to eliminate the need for a
separate battery receiver pack, but you can use a
separate power supply if desired for your particular
model. The following diagram shows a typical
connection for the servos and receiver.
Note that the receiver antenna should be located at
least 2” (50 mm) away from any servo leads and
switches. In electric cars, we recommend that it be
at least 4” (100mm) from the electric motor.
Extend the receiver antenna to the full length. Failure
to do so will cause loss of control. Do not cut or bend the
receiver antenna.
Be careful to avoid any metal parts coming in contact
with the servo connectors as this will affect the
performance. Insulate the connectors with tape or use tie
wraps to avoid contact with metal car chassis.
Please follow the model manufactures recommendations
for the correct installation of your radio system in your
car or boat.
To Open slide cover Install Batteries To Close slide cover
A B
NP-ADJ
ST
NOR REV NOR REV
TH
Steering Reverse Switch
Throttle Reverse Switch
Throttle Trigger Adjustment
Trigger Set Screw must be
loosened before adjusting
Throttle Trigger Position Gauge
Trigger set
Screw
AIRTRONICS
Get The Advantage
®
AIRTRONICS
Get The Advantage
®
OPEN
PE
ON
OFF
ON
92621
AIRTRONICS
92621
AIRTRONICS
Steering Servo
Contender
Speed Controller
Steering Servo
Throttle Servo
AA Dry Cell Battery Holder
Switch
To Battery
To Motor
Switch
B
#1
#2 Speed Controller
To Battery
To Motor
#2
#1
BLAZER
Sport
Spor
Spor
Spor
Sport
t
t
t
THE C HOICE OF CHAMPIONS
ST-TRIM
TM-TRIM
LOW FULL
ADVA NCED TECHNOLOGY F OR NEW GEN ERAT ION
ERG
ONOMIC CONCEPTION
AIRTRONICS
S
por
t
