MX-3
M
X
-
3
MX-3
Get The Advantage
3 Channel Computer
Radio System
MODEL
BATT
REV
ARC
SUB-T
MODEL
EPAD/R
TH
H
L
L R ST
B/
DSC
1
2
3
Super Micro
3 CH. Receiver
92836 75 FM
Mhz
#1 #2 #3
Steering Throttle AUX
B/DSC
Switch AA Dry Cell Battery Holder
Mechanical Speed Controller
B/
DSC
1
2
3
Super Micro
3 CH. Receiver
92836 75 FM
Mhz
#2
Electronic Speed Controller
ESC

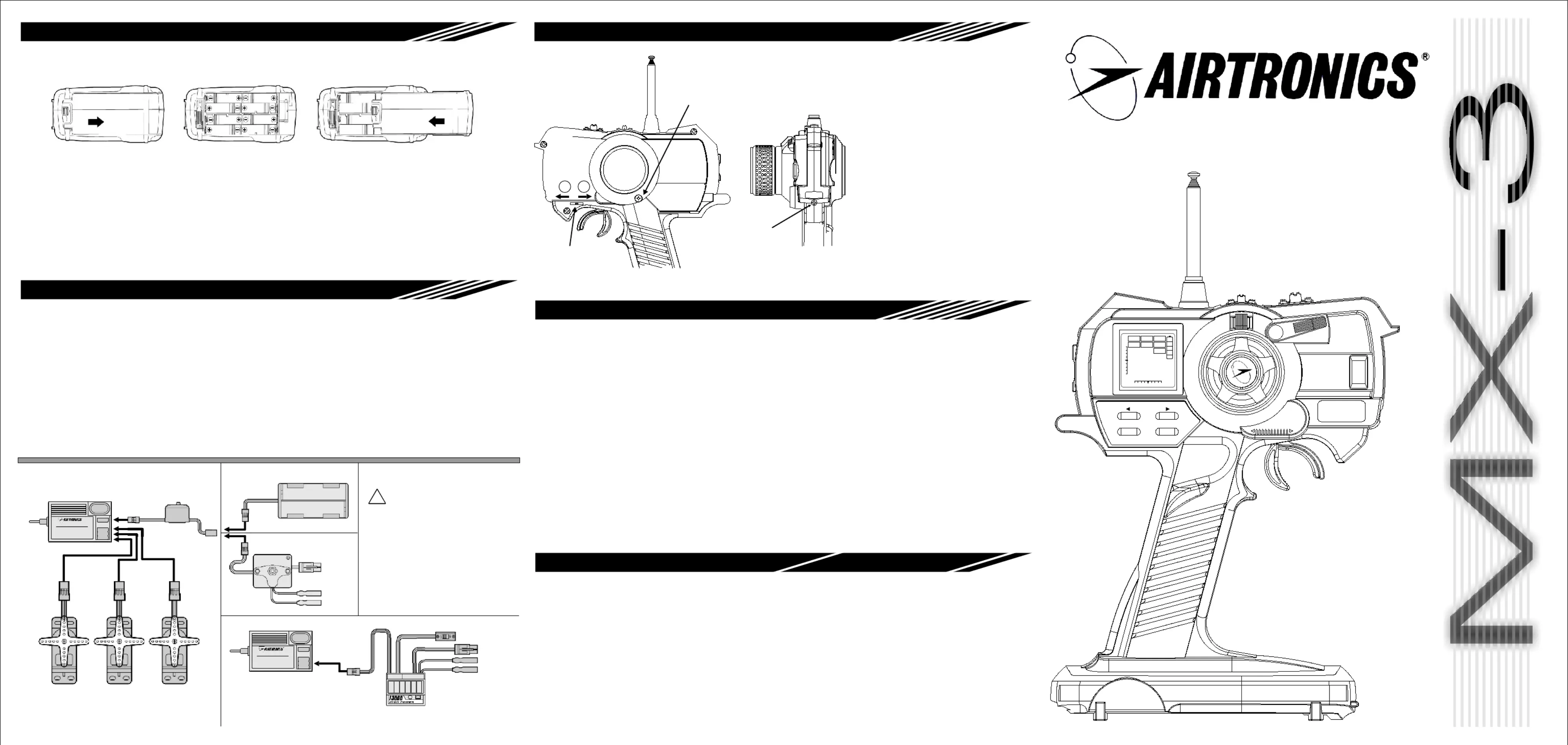

TRANSMITTER BATTERY INSTALLATION
RECEIVER AND SERVO CONNECTIONS
Your MX-3 Computer R/C system receiver is NOT
equipped with BEC circuitry. DO NOT use more
than 6.0 volts to power the receiver. Anything higher
than 6.0 volts will burn-up or destroy your receiver.
Only use a 4.8~6.0 volt battery pack or a speed
controller that is designed to lower the voltage to
the receiver. The following diagram shows a typical
connection for the servos and receiver.
Note that the receiver antenna should be located at
least 2” (50mm) away from any servo leads and
switches. In electric cars, we recommend that it be
at least 4” (100mm) from the electric motor.
Extend the receiver antenna to the full length. Failure
to do so will cause loss of control. Do not cut or bend the
receiver antenna.
Insulate the connectors with tape or use tie wraps to
avoid contact with metal car chassis.
Please follow the model manufactures recommendations
for the correct installation of your radio system in your
car or boat.
Switch
To Battery
To Motor
!CAUTION
When installing your MX-3 radio
system in your model, always
make sure to set your model on
a stand so the wheels are free
from any traction before turning
on your radio and or connecting
your motor for the first time.
TRIGGER POSITION ADJUSTMENT
Throttle Trigger Set
Screw
Throttle Trigger Position Gauge
A B
Throttle Trigger Adjustment screw
NOTE:
Trigger Set Screw must be
loosened before adjusting
The Throttle Trigger can be adjusted to
give you a more natural feel of the throttle.
To Adjust:
1. Loosen the Throttle Trigger set screw
by turning counter clock-wise.
2. Turning the adjustment screw clock-wise
will move the trigger out or in the (A)
direction.
3. Turning the adjustment screw counter
clock-wise will move the trigger in or
towards the (B) direction.
4. After adjustment is made, re-tighten
the Trigger Set Screw.
5. Total adjustment for the trigger is 10mm.
Do Not over tighten adjustment screw,
it may damage the adjuster and or
the threads.
TROUBLESHOOTING GUIDE and WARNINGS
If your radio system does not operate properly, please
check the following items:
1. Make sure the batteries are properly installed and
fully charged. With alkaline batteries, make certain
the batteries are installed in the correct direction.
2. Check that both the transmitter and receiver power
switches are in the ON position.
3. Check the battery voltage by turning on the transmitter
and pushing both menu bottons at the same time
and releasing.
4. Make sure that the proper frequency crystals are
installed in both the transmitter and receiver.
5. Make sure all the receiver and servo connections
are tight.
WARNINGS:
DO NOT OPERATE YOUR SYSTEM IF SOMEONE
ELSE IS ON YOUR FREQUENCE AT THE SAME TIME.
YOUR MODEL CAN CAUSE SERIOUS DAMAGE OR
INJURY SO PLEASE USE CAUTION AND COURTESY
AT ALL TIMES.
DO NOT EXPOSE THE RADIO SYSTEM TO WATER
OR EXCESSIVE MOISTURE.
PLEASE WATER PROOF THE RECEIVER AND SERVOS
BY PLACING THEM IN A WATER TIGHT RADIO BOX
WHEN OPERATING R/C BOAT MODELS.
IF YOU HAVE LITTLE OR NO EXPERIENCE OPERATING
R/C MODELS, WE STRONGLY RECOMMEND YOU SEEK
THE ASSISTANCE OF EXPERIENCED MODELERS OR
YOUR LOCAL HOBBY SHOP FOR GUIDANCE.
To Open slide Cover Install Batteries To Close slide cover
Press down on the battery cover and slide
in the direction of the arrow to remove.
Install 8 pieces “AA” size alkaline batteries as
indicated on the battery tray. Make sure to match
the polarity (+ and -) as shown in the battery
compartment or the transmitter will not function.
Install the battery cover in place and slide to close.
1.
2.
3.
WARNING: Improper installation of transmitter batteries
can cause serious damage to your system.
To Battery
To Motor
DIGITAL CONTROL SYSTEM
+-
INC / DEC
MENU
ESC
REGISTRATION NUMBER
The abbreviation, IC, before the registration number signifies that registration was performed based on a
Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not
imply that Industry Canada approved the equipment.
SYSTEM FEATURES
MODEL
BATT
REV
ARC
SUB-T
MODEL
EPAD/R
TH
H
L
L R ST
We appreciate your purchase of this new Airtronics
MX-3 Radio Control System. These instructions are
intended to familiarize you with the many unique
features of this modern, state of the art equipment.
Please read them carefully so you may obtain
maximum success and enjoyment from
its operation.
Please note that the MX-3 is designed for comfort and
precise control of all types of model cars and boats.
We wish you the best of success with your
radio system. Enjoy and have fun.
MX-3
Unique and functional pistol grip transmitter design
Well balanced for precise control
Non-slip rubber steering wheel
Well placed digital trim levers
Optimum third channel switch location
Big LCD display
Adjustable (70/30) Throttle trigger
Low Battery warning
Quick access transmitter crystal
High performance micro 3 channel receiver
High torque / high speed 94102Z servo
Receiver dry battery holder
Switch harness
NiCd charger jack in transmitter
Wrist strap holder (optional wrist strap part # 99104 )
Sound Beep ( On / Off )
Digital Trim indicators (throttle and steering)
Battery Fuel Tank
Dual Rate Steering
EPA Steering, Throttle, AUX
ARC Steering, Throttle
Model Memory (5)
Sub-Trim Steering, Throttle
Servo Rev Steering, Throttle, AUX
Battery Voltage Display
Audio On / Off
Screen Display
SYSTEM SPECIFICATIONS
Model:
Output power:
Modulation:
Power supply:
Weight:
Frequencies:
MX-3
200 MW
FM/PPM
8 AA alkaline dry cells DC 12V or
8 cell NiCd Pack.
14.46 ounces
27 MHz (6) frequencies
75 Mhz (30) frequencies
Transmitter
Model:
Modulation:
Intermediate frequency:
Power supply:
Weight:
Dimensions:
92837Z (27 MHz) or
92836Z (75 MHz)
FM/PPM
455 KHz
DC 4.8 ~6.0V
0.67 ounces
1.65”(L) x 1.06”(W) x 0.57”(H)
Receiver
Model:
Power supply:
Dimensions:
Weight:
Speed:
Torque:
94102Z Heavy duty standard servo
DC 4.8 ~ 6.0V
1.54”(L) x 0.79”(W) x 1.42”(H)
1.59 ounces
0.16 sec. At 6.0V for 60 deg rotation
53 in/oz at 6.0V
Servo
97001Z switch harness
Frequency flag
Receiver dry battery holder
instruction manual
Accessories
95046Z Transmitter NiCd Battery Pack ( 700mah )
95033Z NiCd Dual Battery Charger TX and RX
96317Z F3000 speed controller (no reverse)
99104 Deluxe wrist strap
Options
MODEL
BATT
REV
ARC
SUB-T
MODEL
EPAD/R
TH
H
L
L R ST
5
9.8 V
MODEL
BATT
REV
ARC
SUB-T
MODEL
EPAD/R
TH
H
L
L R ST
ST TH AUX
5
NOR
Battery
Servo Reverse
MODEL
BATT
REV
ARC
SUB-T
MODEL
EPAD/R
TH
H
L
L R ST
ST TH
5
0
Sub Trim
MODEL
BATT
REV
ARC
SUB-T
MODEL
EPAD/R
TH
H
L
L R ST
5
5
MODEL
BATT
REV
ARC
SUB-T
MODEL
EPAD/R
TH
H
L
L R ST
ST TH
5
0
Model Select
Arc
MODEL
BATT
REV
ARC
SUB-T
MODEL
EPAD/R
TH
H
L
L R ST
ST
5
%
90
MODEL
BATT
REV
ARC
SUB-T
MODEL
EPAD/R
TH
H
L
L R ST
ST TH AUX
5
%
100
End Point Adjustment
MODEL
BATT
REV
ARC
SUB-T
MODEL
EPAD/R
TH
H
L
L R ST
ST TH AUX
5
%
100L
Steering Dual Rate

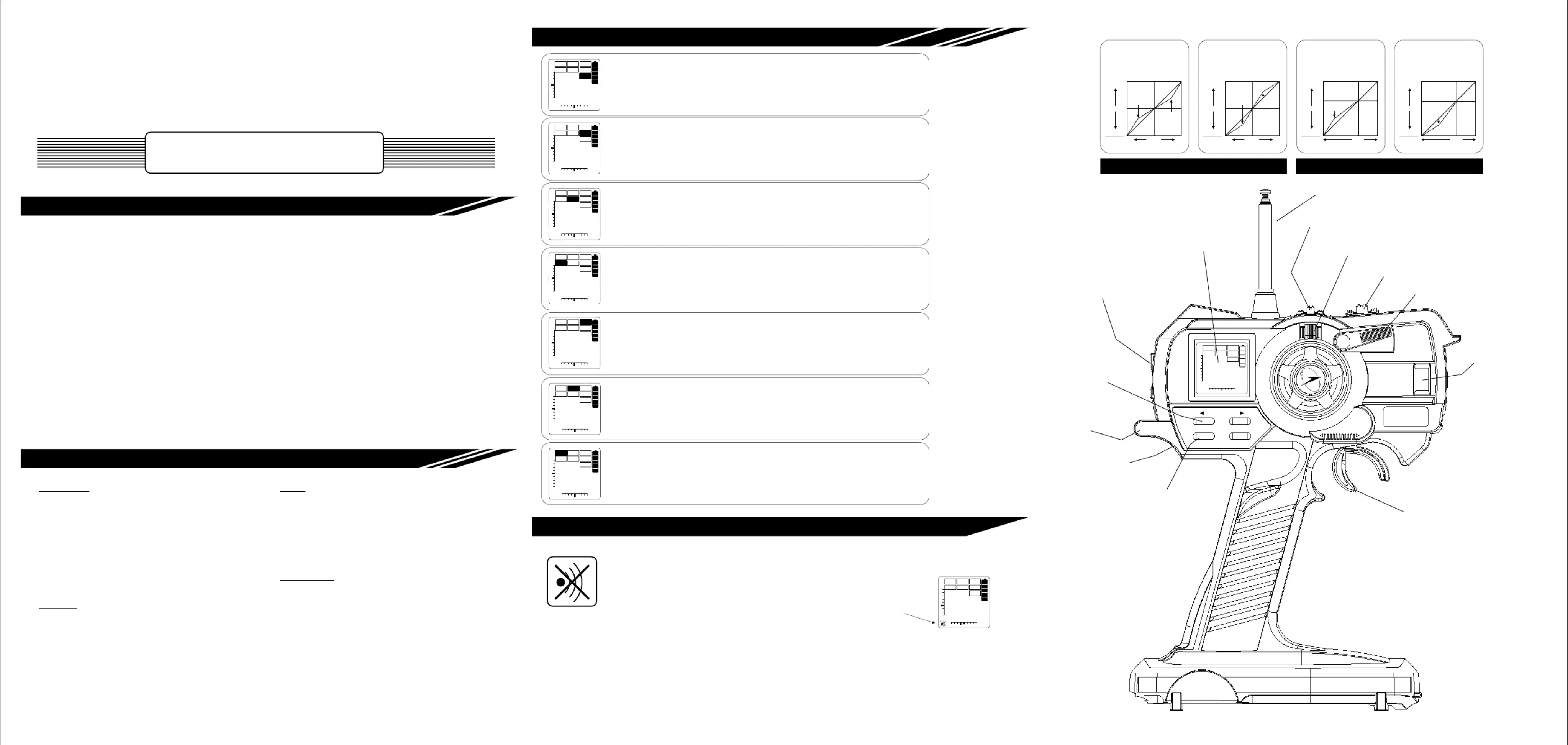

LCD DISPLAY SCREENS
Pressing both menu buttons simultaneously, will
automatically move the cursor to the battery voltage screen.
Low battery warning beep will come on when battery reaches
9.1V
Press the left menu key to move the cursor to the REV
screen. The screen will now display AUX. Change the servo
direction by pressing key for the AUX channel.(INC or DEC)
By pressing the left menu key again, you can change the
TH and ST directions.
Press the left menu key to move the cursor to the SUB-T
screen. The screen will now display TH. Adjust the sub-trim
by using the key. Press the left menu key to(INC or DEC)
display the ST and adjust using the (INC or DEC) key.
Press the left menu key to move the cursor to MODEL.
The screen will now display the model number you are
currently using. To change models, press the (INC or DEC)
key to select model 1 ~ 5.
Press the left menu key to move the cursor to ARC.
The screen will now display TH. Adjust the ARC by pressing
the key. Press the left menu key to adjust the(INC or DEC)
ST. (NOTE) Steering ARC will work in both left and right
directions. Throttle ARC only works in forward direction.
Press the left menu key to move the cursor to EPA. The screen
will now display AUX (L) or (R). Buy moving the AUX channel
lever, you will see the (L or R) change. EPA can be set for
both directions. To set TH, move trigger forward or back
to see (H or L). Move steering wheel to see (L or R)
Press the left menu key to move the cursor to EPA.
The screen will now display ST. This will display your current
Steering Dual Rate setting. You can change this setting by
using the ( ) keys or, by moving the D/R lever locatedINC or DEC
above the steering wheel.
Default
ST
TH
AUX
NOR
NOR
NOR
Default
ST
TH
0
0
Default
ST
TH
0
0
Default
ST
TH
AUX
100%
100%
100%
Default
ST 100%
Range 0% ~ 120%
ST: Range 0% ~ 120%
Range - 100 ~ 100
Range 1 ~ 5
Range +15 ~ -15
AUDIO ON / OFF Beep
By default the audio sound beep is in the on position. This beep will sound out every time
you press any of the input or trim keys. You can turn the audio off by:
1. Turn radio power switch to the off position
2. Press the INC key down and hold.
3. Turn power switch to the on position
4. Release the INC key.
To turn the audio sound on, repeat steps 1 ~ 4.
NOTE: When audio sound is “ON”, there will be no icon displayed in the lower left of the display screen.
Audio off
icon
Audio off icon
0
R 100
L 100
Servo Movement
Negative Steering ARC
Faster servo movement
in center, slower after
ARC percentage
Stick Movement
0
R -100
L -100
0
R 100
L 100
Servo Movement
Stick Movement
0
Positive Steering ARC
Slower servo movement
in center, faster after
ARC percentage
R -100
L -100 0
L 100
H 100
Servo Movement
Negative Throttle ARC
Faster servo movement
in center, slower after
ARC percentage
Stick Movement
0
H -100
0
L 100
H 100
Servo Movement
Stick Movement
Positive Throttle ARC
Slower servo movement
in center, faster after
ARC percentage
H 100
0
Antenna
Fully extend antenna before operating
Steering Dual Rate
Move lever left to increase and right to decrease
Digital Steering Trim
Digital Throttle Trim
Channel 3 (AUX)
Crystal
Power Switch
LCD Display
Wrist Strap Support
NiCd Charging Inlet
Menu Keys
Increase / Decrease Keys
Trigger 70,30
70% High, 30% Low. Adjustable
ARC Steering ARC Throttle
MX-3
DIGITAL CONTROL SYSTEM
+-
INC / DEC
MENU
TH-L: Range 0% ~ 160%
AUX: Range 0% ~ 150%
TH-H: Range 0% ~ 140%
Produktspecifikationer
| Varumärke: | Sanwa |
| Kategori: | Radio |
| Modell: | MX-3 |
Behöver du hjälp?
Om du behöver hjälp med Sanwa MX-3 ställ en fråga nedan och andra användare kommer att svara dig
Radio Sanwa Manualer
17 September 2024
17 September 2024
17 September 2024
17 September 2024
Radio Manualer
- Radio Sony
- Radio Xiaomi
- Radio Bosch
- Radio AEG
- Radio Philips
- Radio Panasonic
- Radio Daewoo
- Radio DeWalt
- Radio Garmin
- Radio Grundig
- Radio JVC
- Radio JBL
- Radio Kenwood
- Radio Karcher
- Radio Motorola
- Radio Medion
- Radio Quigg
- Radio Topcom
- Radio Yamaha
- Radio Adler
- Radio Aiwa
- Radio Albrecht
- Radio Akai
- Radio Acoustic Energy
- Radio Argon
- Radio OneConcept
- Radio Lexibook
- Radio Sharp
- Radio Telefunken
- Radio Silvercrest
- Radio Makita
- Radio Hitachi
- Radio Nedis
- Radio Thomson
- Radio Tristar
- Radio Lenco
- Radio Pyle
- Radio Vonroc
- Radio Audizio
- Radio Stanley
- Radio Manta
- Radio GPO
- Radio Caliber
- Radio Timex
- Radio OK
- Radio Hyundai
- Radio Sonoro
- Radio Renkforce
- Radio ECG
- Radio Moulinex
- Radio Ryobi
- Radio Bush
- Radio Clatronic
- Radio Lowrance
- Radio Sencor
- Radio GPX
- Radio Festool
- Radio Blaupunkt
- Radio Metabo
- Radio Logik
- Radio Milwaukee
- Radio Telestar
- Radio Salora
- Radio Denver
- Radio Imperial
- Radio Schneider
- Radio Sanyo
- Radio Vitek
- Radio Einhell
- Radio Hama
- Radio Soundmaster
- Radio Brigmton
- Radio Denon
- Radio Sunstech
- Radio Sennheiser
- Radio Maginon
- Radio Midland
- Radio GlobalTronics
- Radio Technisat
- Radio GoGEN
- Radio Rockford Fosgate
- Radio Marquant
- Radio Nordmende
- Radio AudioAffairs
- Radio Krüger And Matz
- Radio Binatone
- Radio Steren
- Radio Kicker
- Radio Bose
- Radio Audiosonic
- Radio Clarion
- Radio Proline
- Radio Coby
- Radio Crosley
- Radio Envivo
- Radio Muse
- Radio Teufel
- Radio Bigben Interactive
- Radio Kathrein
- Radio Olympia
- Radio Pure
- Radio Powerplus
- Radio Porter-Cable
- Radio Uniden
- Radio Audiovox
- Radio Ion
- Radio Roberts
- Radio Yaesu
- Radio Tesco
- Radio Artsound
- Radio Dual
- Radio Boss
- Radio Terris
- Radio Oricom
- Radio Camry
- Radio Cobra
- Radio MB Quart
- Radio Switel
- Radio Bigben
- Radio Auna
- Radio Alba
- Radio Clas Ohlson
- Radio Naxa
- Radio Lexon
- Radio Sven
- Radio Ricatech
- Radio Konig
- Radio Icom
- Radio Mpman
- Radio Trevi
- Radio Sogo
- Radio JL Audio
- Radio Zebra
- Radio Technaxx
- Radio Nikkei
- Radio PerfectPro
- Radio Peaq
- Radio Freecom
- Radio Jensen
- Radio Roadstar
- Radio Gira
- Radio Scott
- Radio Jung
- Radio Sangean
- Radio Basetech
- Radio Dnt
- Radio Balance
- Radio Audio Pro
- Radio HQ
- Radio Be Cool
- Radio Noveen
- Radio Karcher Audio
- Radio CRUX
- Radio Fusion
- Radio IHome
- Radio August
- Radio Infinity
- Radio AIC
- Radio Ruarkaudio
- Radio Tivoli Audio
- Radio Go Green
- Radio Victrola
- Radio Linn
- Radio Elta
- Radio Iluv
- Radio Monitor Audio
- Radio TELEX
- Radio Multiplex
- Radio Tangent
- Radio SPC
- Radio Stabo
- Radio Clint
- Radio Soundstream
- Radio Xoro
- Radio Sagemcom
- Radio Woxter
- Radio Xhdata
- Radio Monacor
- Radio Noxon
- Radio Orava
- Radio Geneva
- Radio Ferguson
- Radio Wet Sounds
- Radio DAP Audio
- Radio Reflexion
- Radio Duronic
- Radio Scansonic
- Radio TFA Dostmann
- Radio Audisse
- Radio ETON
- Radio Lenoxx
- Radio H-Tronic
- Radio Equity
- Radio Intertechno
- Radio Schwaiger
- Radio EKO
- Radio Pinell
- Radio Aquatic AV
- Radio Digitalbox
- Radio Ruark Audio
- Radio NUVO
- Radio Narex
- Radio Tiny Audio
- Radio Klein Tools
- Radio E-bench
- Radio Peha
- Radio Sailor
- Radio SSV Works
- Radio Microlab
- Radio QFX
- Radio Voxx
- Radio SACK It
- Radio BasicXL
- Radio Roth
- Radio Majestic
- Radio Ices Electronics
- Radio AmpliVox
- Radio Memphis Audio
- Radio AMX
- Radio Elbe
- Radio GBS Elettronica
- Radio Sang
- Radio Gewiss
- Radio Lutron
- Radio Axxess
- Radio Majority
- Radio Retekess
- Radio Wintal
- Radio Acoustic Solutions
- Radio Atlantis Land
- Radio Ranger
- Radio BLUEPALM
- Radio Weather X
- Radio Data-Tronix
- Radio Aconatic
- Radio Mebby
- Radio Yamazen
Nyaste Radio Manualer
27 Oktober 2024
26 Oktober 2024
24 Oktober 2024
24 Oktober 2024
24 Oktober 2024
23 Oktober 2024
22 Oktober 2024
20 Oktober 2024
19 Oktober 2024
18 Oktober 2024
