Saris Cycle-On Pro Bruksanvisning
Saris
Cykelhållare
Cycle-On Pro
Läs nedan 📖 manual på svenska för Saris Cycle-On Pro (4 sidor) i kategorin Cykelhållare. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/4
20" wheel
tray mount
Standard wheel
tray mount
USER MANUAL
C
C
C
C
Cy
y
y
y
yc
c
c
c
cl
l
l
l
le
e
e
e
e-
-
-
-
-O
O
O
O
On
n
n
n
n
P
P
P
P
Pr
r
r
r
ro
o
o
o
o
Please READ and FOLLOW all instructions carefully.
4017 (1 1/4” RECEIVER) OR 4018 (2” RECEIVER)

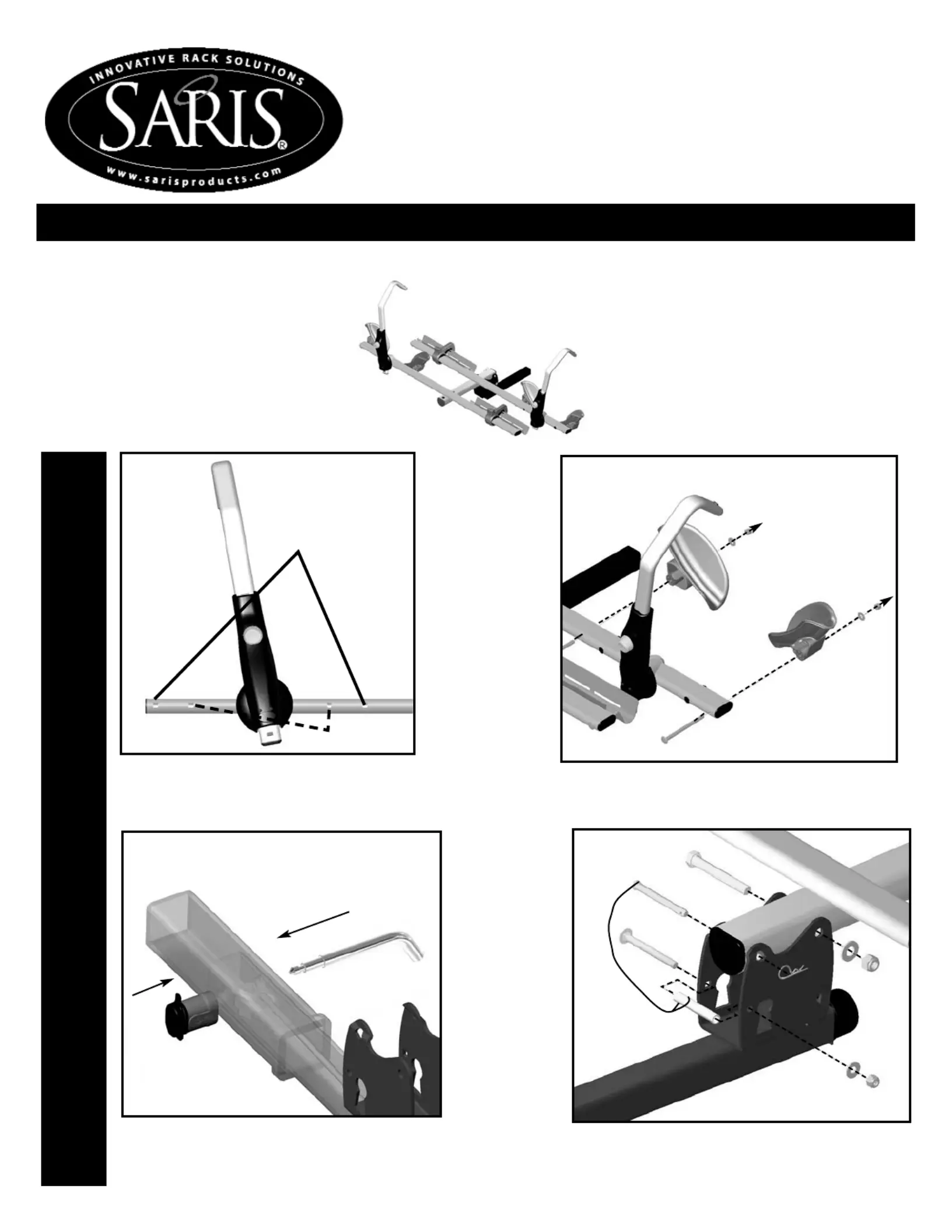

ASSEMBLE FRONT WHEEL TRAYS - Determine which holes you
will use to mount the front wheel trays (Fig. 1A). For 20” tires inner-
most holes must be used(20” tire bikes cannot be mounted on the
#4012 add on kit).
Tube
Bolt
Front Wheel
Tray
Washer
Nut
Insert bolt through tube, slide wheel tray on, fasten with washer
and nut (Fig. 1B). Tighten nut until it is snug, where wheel tray
pivots freely. Repeat for each of the 2 front wheel trays.
Next attach the rack to the tilt bracket. Assemble in stepped
order (step 1, 2, 3) as shown above. Tighten knob at end of
bracket until bracket is tight in receiver.
1
2
3
Insert plugs into
unused holes.
1A 1B
2B
MUST use 2 wheel trays per wheel.
See Picture 4B.
Front Wheel
Tray
Washer
Nut
Bolt
Tube
Insert hitch pin and lock into place as shown above. (Note:
Do not stick locking cable through hole, only hitch pin.)
Steel Pin
Pin with
Lanyard Knob
1
2
12-15”
3
4
5

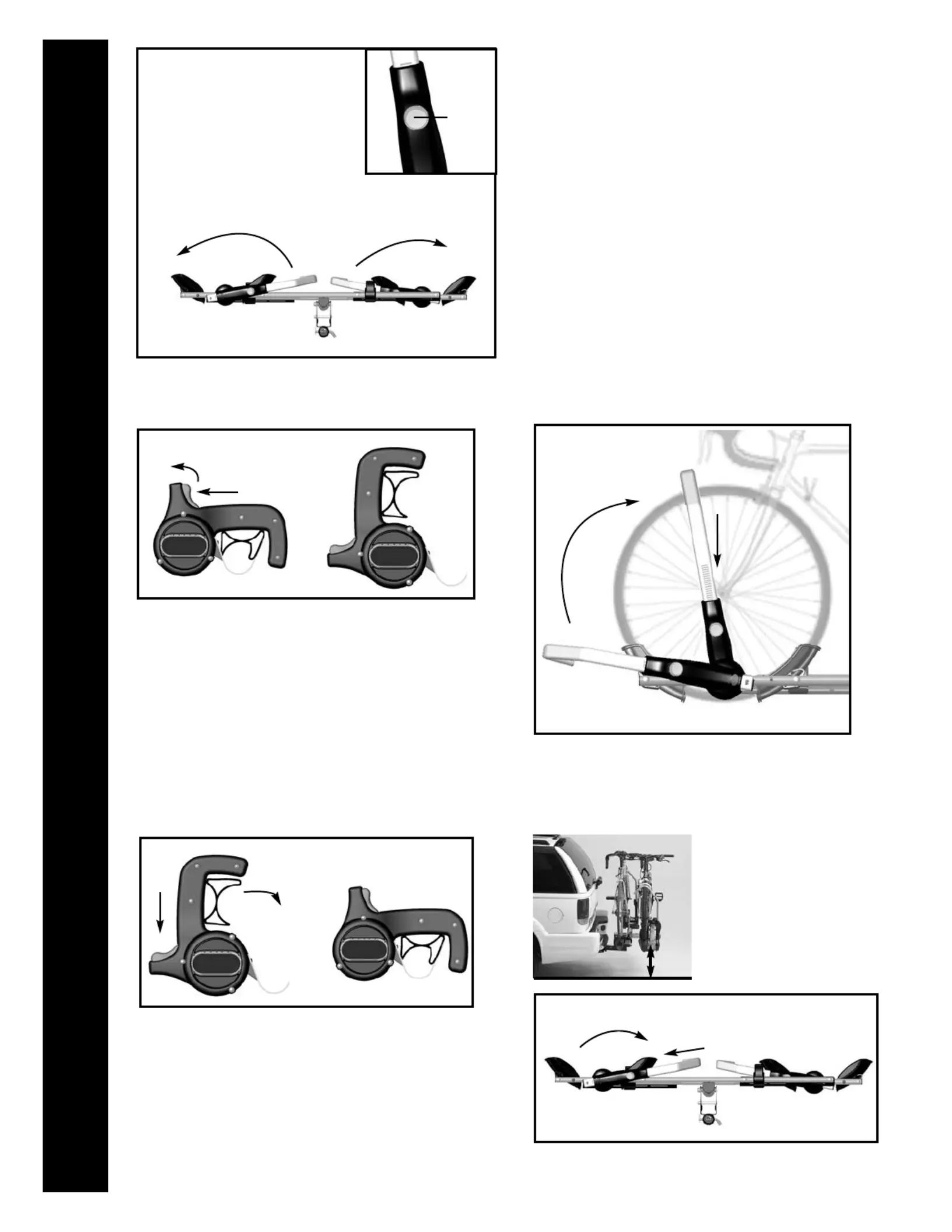

Depress the rear wheel clamp lever, and rotate to open position.
Upright Arm
Press
Rotate
Open
Position
Push button on upright arm and rotate arm away from
center of rack.
Set bike into trays. Front wheel should be set into the front wheel
trays. Extend and rotate upright arm to vertical position. Push down
on upright arm to contact top of wheel's front tire. Once contact is
achieved, press down on upright arm for additional "clicks", until
wheel is held securely.
Rotate wheel so the largest gap is centered under wheel hub.
Align rear wheel clamp with largest gap in spokes of rear wheel.
Rotate clamp between spokes closing onto rear wheel tray.
Front Wheel Trays
Upright Arm
Upright Arm
(vertical position)
Push
***Note: For bicycles with odd rims or 40 spoke or greater
wheels, additional straps (available through Saris) should
be used in replace of the rear wheel clamp. Thread strap
into rear wheel tray slots and secure bicycle.
***Note: Bicycles with 20” wheels should be loaded
closest to vehicle.
Press
Rotate
Closed
Position
Removal of Bicycles: Reverse instructions 3-5 to
remove bicycle from rack.
Check clearance. It is the responsi-
bility of the user to ensure the nec-
essary clearance (dependent on
vehicle, load, driving territory, etc.) is
given from load to ground.
Generally, 12-15” is adequate. Load
smallest bicycle closest to the
vehicle. Lock bikes to rack with
locking cable provided. Lock must
pass through bikes and rack for total
security.
Slide arm
into base
Always stow arms in this position.
Push
Rotate
4B
4A
3
5A
5B

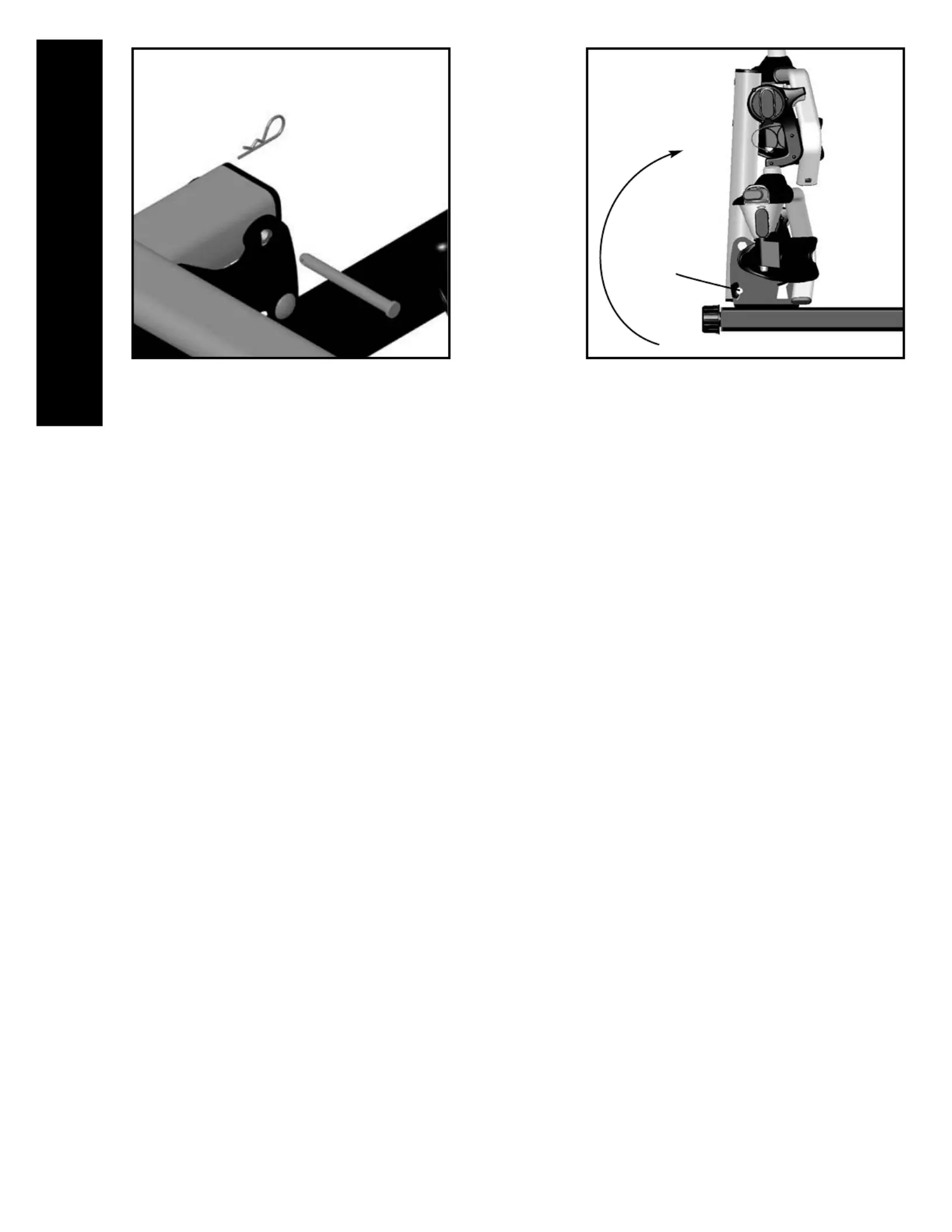

Pull cotter pin from clevis pin, remove clevis pin.
Note: Rack arms must be in stowed position
Remove clevis pin
Rotate rack up to stop position, insert pin into lower hole,
and insert cotter pin into clevis pin. Rack is now stowed.
STOWED POSTION
Rotate rack and
replace clevis pin
