Scosche TA2052BLKB Bruksanvisning
Läs nedan 📖 manual på svenska för Scosche TA2052BLKB (1 sidor) i kategorin Bilsats. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/1
DIN
RADIO
DIN
RADIO
RADIO’S
SLEEVE
OPTIONAL ISO
DIN TRIM
BEND TABS
OUTWARD
IN-DASH INSTALLATION KIT FOR
If you have any further questions call:
TECH HELP 1-800-621-3695x3
© 2007 SCOSCHE INDUSTRIES, INC. TA2052B 3/07 (3000464)
TA2052B
For Factory Wiring Codes go to: www.scosche-cars.com
LIABILITY DISCLAIMER
This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness/codes
and information pertaining to installation of this kit in the listed vehicles. Scosche Industries, Inc. cannot be held responsible for
discrepancies/inconsistencies that may occur due to the automobile manufacturing changes or options, or damage that may occur in
the automobile during the installation of components while using this booklet.
NOTES:
• See your vehicle’s instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo/cassette player for proper wiring and
mounting instructions.
Thank you for purchasing the Scosche TA2052B Kit. This Kit was manufactured with the highest
of quality standards.
2005-UP TOYOTA TACOMA DIN KIT
FACTORY WIRING CODES
INTRODUCTION / PRELIMINARY
2005-UP TOYOTA TACOMA
1. Using a pick tool carefully pry out the A/C controls.
2. Remove (4) 10mm bolts securing the radio to the dash. Disconnect radio and remove.
RADIO REMOVAL

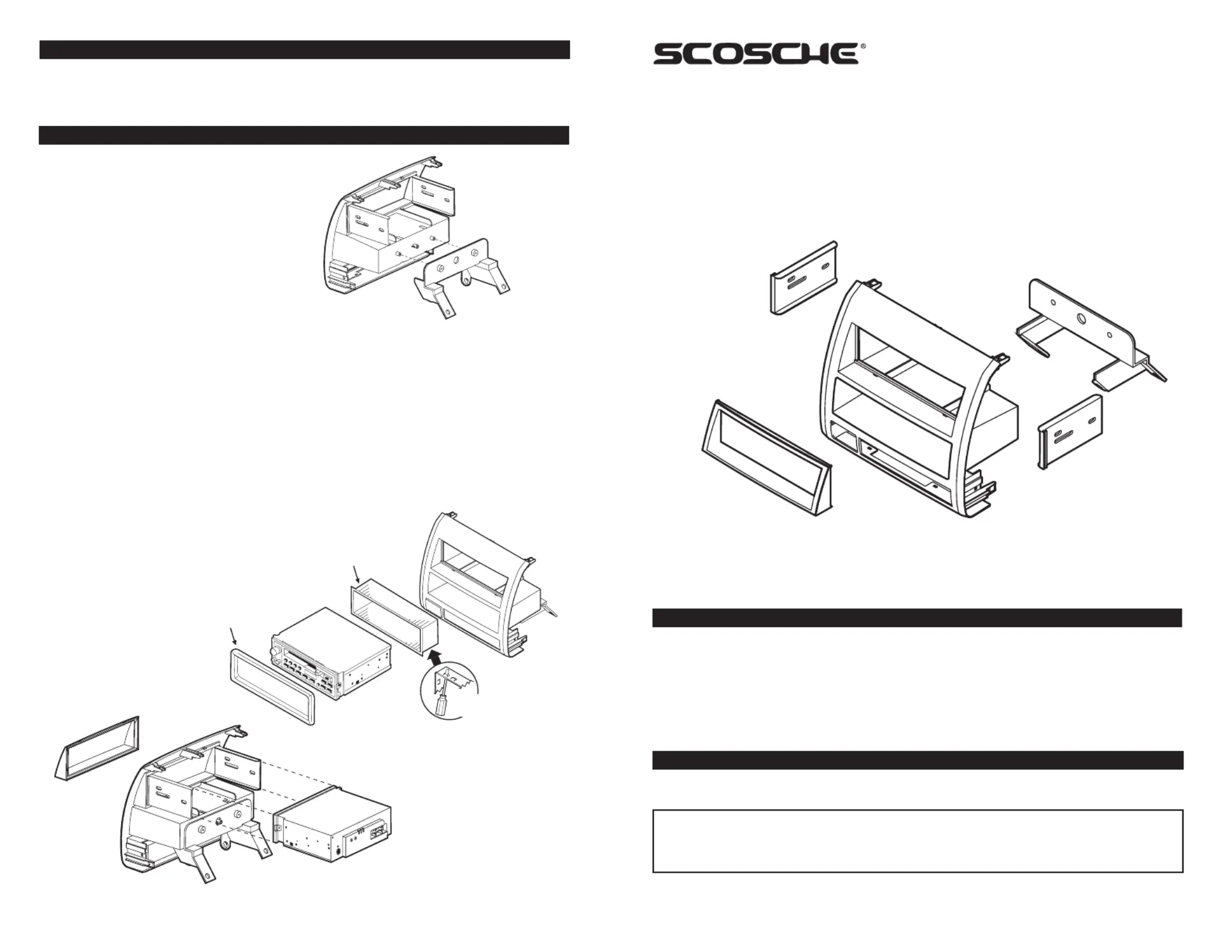

KIT PANEL ASSEMBLY
A. ATTACHING THE REAR BRACKETS
1. Align the two (2) screw hole locations to the
matching locations on pocket. When aligned,
slide the bracket together. Screw the two (2)
supplied screws to screw hole locations.
B. HAZARD / CLOCK DISPLAY REMOVAL INSTRUCTIONS AND REATTACHMENT
1. Remove the (2) small Phillips screws from each side of the factory radio that secure the radio to the
rear of the radio face and pull the radio assembly away from the back of the face of the radio and
set aside with the screws that were removed.
2. Using a small flat blade screwdriver, carefully remove the hazard / clock display panel by prying the
thin plastic strip from around the instrument housing outward to release the hazard / clock display
from the housing. There are (2) retaining snaps on the top side and the bottom side and (1) on each
edge.
3. Once the module is removed, carefully remove all plastic mounting clips from the factory panel and
reattach them to the corresponding mounting clips on the 5886 panel.
4. Slide the hazard / clock display panel into the housing on the 5886 panel until it snaps and locks
into place.
2
C. DIN AND ISO INSTALLATION
1. For DIN mount application, slide into radio
opening.
2. For ISO installation, attach ISO brackets by
sliding into sides of DIN opening wall.
5894 TRIM RING
5886
MOUNTING
PANEL
5742 LEFT
BRACKET
5742 RIGHT
BRACKET
5892
MOUNTING
SUPPORT
BRACKET
