VO4150B
IN-DASH DIN RADIO INSTALLATION KIT FOR
2003-05 VOLVO XC90
LIABILITY DISCLAIMER
This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness/
codes and information pertaining to installation of this kit (VO4150B) in 2003-05 Volvo Xc90 Kit Vehicles. Scosche Industries,
Inc. can not be held responsible for discrepancies/inconsistencies that may occur due to the automobile manufacturing changes
or options, or damage that may occur in the automobile during the installation of components while using this booklet.
INTRODUCTION / PRELIMINARY
2
For Factory Wiring Codes go to: www.scosche-cars.com
FACTORY WIRING CODES
CAR STEREO CONNECTORS
PROVIDE EASY CONNECTION OF YOUR CAR
STEREO TO FACTORY WIRING HARNESS.

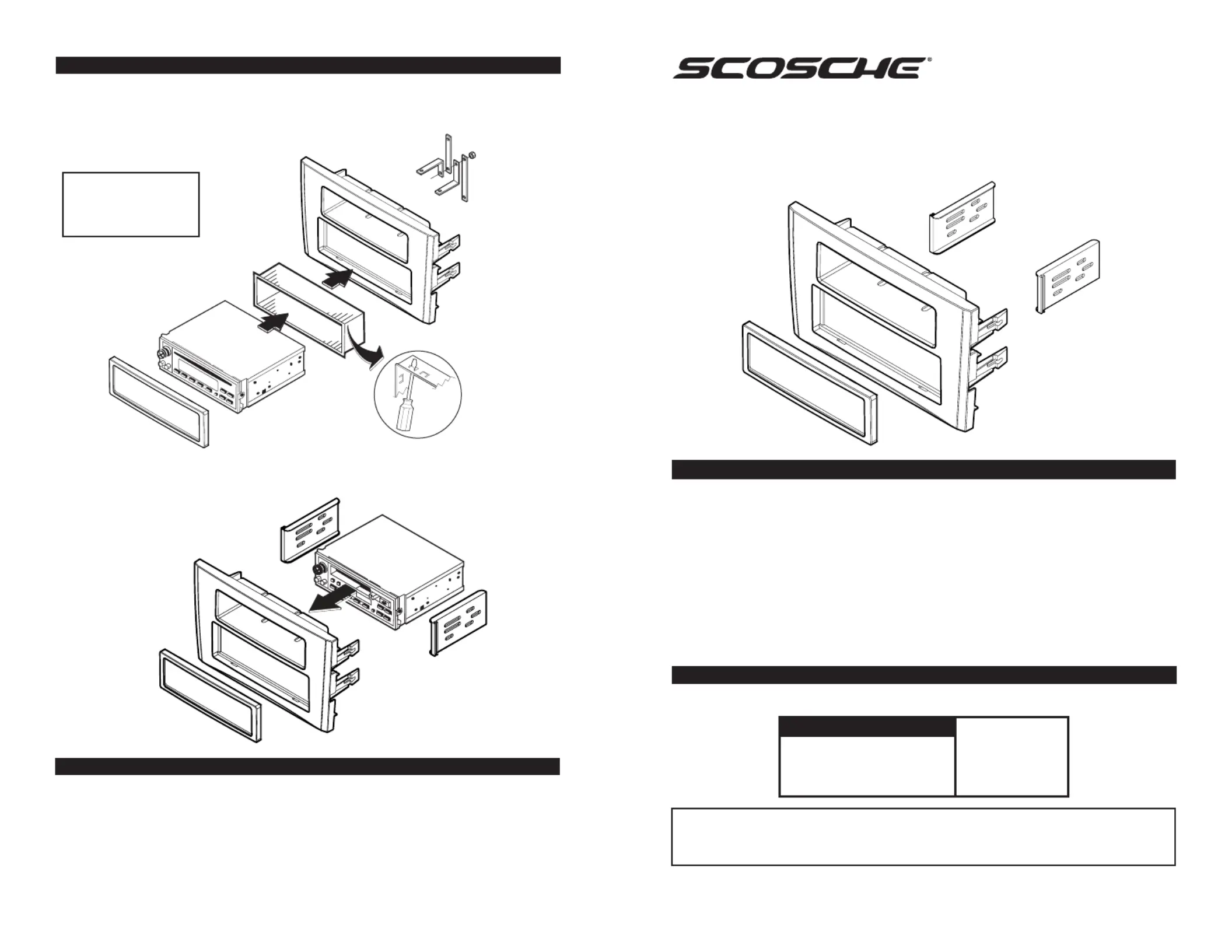

MOUNTING THE RADIO
DIN MOUNT
1. Slide DIN sleeve into Kit panel from the front.
2. Bend all available mounting tabs outward to lock the assembly to the panel.
3. Slide radio into DIN sleeve until snaps into place.
4. Snap trim ring into place.
RADIO REMOVAL
This premium installation kit is for 2003-05 Volvo XC90 vehicles. Included are all the parts you need
to mount your car stereo/cassette or CD player into your vehicle's dash. Refer to the individual
instruction in this manual to remove your vehicle's factory radio and assemble the kit.
CAUTION:
DISCONNECT YOUR VEHICLE'S NEGATIVE BATTERY TERMINAL BEFORE THE INSTALLATION TO HELP
PREVENT ELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A VOLT/OHN METER OVER A TEST LIGHT
TO CHECK WIRING. A TEST LIGHT OR GROUNDED WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S
COMPUTER AND/OR DIAGNOSTIC SYSTEMS. AVOID ALL FACTORY AIRBAG WIRING - AIRBAGS CAN
ACCIDENTALLY DEPLOY CAUSING SERIOUS INJURY OR DEATH.
NOTES:
• See your vehicle's instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo/cassette player for proper wiring and mounting
instructions.
6199
MOUNTING
PANEL
6200
TRIM
RING
6199
MOUNTING
PANEL
CAUTION:
REAR SUPPORT AVAILABLE
SEPARATELY. REAR
SUPPORTING THE RADIO
ADDS TO THE INSTALLATION’S
STRUCTURAL INTEGRITY.
VARIOUS REAR
SUPPORT
BRACKETS
RADIO'S
MOUNTING
SLEEVE
6200
TRIM RING
2003-05 VOLVO XC90
Radio Removal
1. Move the Shifter to its rearmost position.
2. Using a panel removal tool, remove the trim around the shifter and move to the side.
3. Extract two (2) screws from the bottom of factory radio/AC unit.
4. With factory radio/AC unit out extract four (4) screws holding radio/AC unit to the brackets,
disconnect clips and remove the radio.
DIN RADIO
N/A N/A
ISO MOUNT
1. Snap the Left and Right brackets to the 6199 kit panel.
2. Align, position, and mount the aftermarket
DIN radio.
3. Snap trim ring into place
5742R
BRACKET
5742L
BRACKET
DIN RADIO
5742L
BRACKET
5742R
BRACKET
