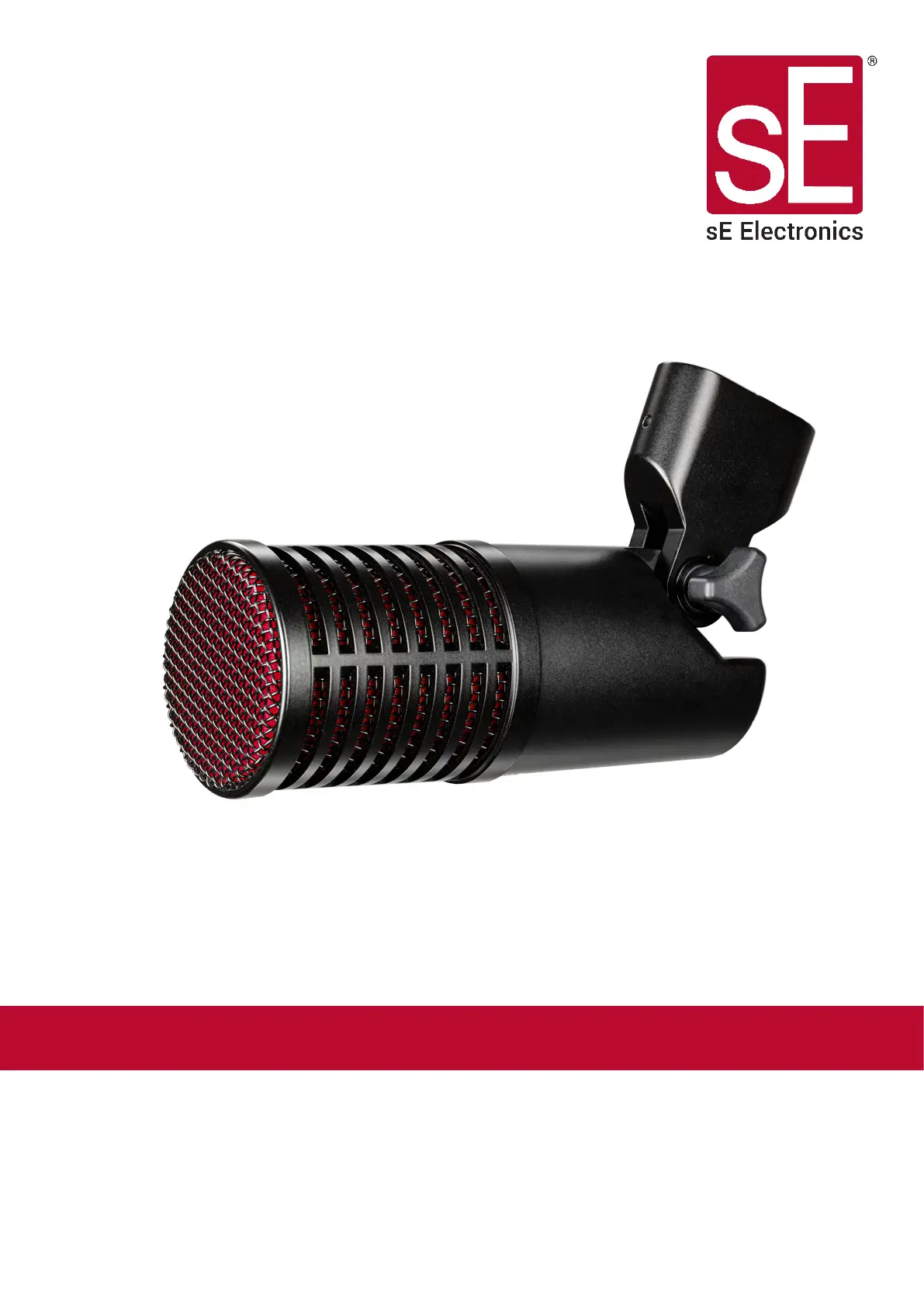

D y n a C a s

D y n a C a sD y n a C a s t e r

t e r

t e rt e r

U s e r M a n u a l

U s e r M a n u a lU s e r M a n u a l

User Manual - EN

Thank you

Thank you for choosing an sE microphone! In addition to some basic safety precautions, this manual

includes details and specifications to help you get the most out of your DynaCaster. Please take a few

minutes to read through it.

Capturing excellent audio is our passion. We sincerely hope you’ll enjoy the sound of this mic as much as

we’ve enjoyed designing and building it for you.

Happy Broadcasting,

The sE Team

Brief Description

The DynaCaster has been designed from scratch to set a new standard for broadcast-style microphones. Its

brand new DMC8 capsule and integrated DYNAMITE preamp provide better sonic reproduction, more -

sensitivity, and less noise than the standards of decades past. The capsule has a patented shock absorption

system built into its body, preventing the need for a bulky external shockmount. Best of all, the three

recessed switches on the rear of the microphone allow you to tune the DynaCaster to your specific tonal

needs.

The DynaCaster is compatible with all broadcast boom arms. Furthermore, the XLR jack is integrated into

the stand mounting point for unobtrusive cabling and a low profile for on-camera applicatons. The internal

three-layer pop filter is removable for cleaning, and designed to offer enough plosive protection to be used

without an external “chunky“ pop filter. However, we’ve included an external windscreen, just in case that

suits your preference.

The DynaCaster is not just a speaking microphone. It can be used for singing, acoustic instruments, and

miking amplifiers. All of the features that make it great for broadcast applications double as tone-tailoring

options when recording and performing music!

What’s in the box

• DynaCaster microphone

• External windscreen

• Microphone stand thread adapter

Controls

The DynaCaster has three switches. The middle switch toggles the internal DYNAMITE preamp on and off.

On the left and right are acoustic trim switches, allowing you to fine-tune the overall voicing of the

microphone.

DYNAMITE I/O Switch

When the DYNAMITE I/O Switch [middle] is in the “on” position, the

DynaCaster’s internal DYNAMITE preamp provides 30 dB of additional gain,

ideal for speech and softer sources. This requires Phantom power.

In the “off” position, the DynaCaster functions as a completely passive

microphone, not requiring any external or Phantom power.

Low Frequency Trim

The microphone’s Low Frequency Trim [left] switch gives you three

different options for it low-end character. The center position is flat, or unaffected. The downward

position attenuates the lows to reduce boominess, also known as the proximity effect. In the upward

position, the lows are slightly boosted, giving the microphone’s sound some extra richness. This can be

helpful when speaking from a farther distance, or miking an instrument that sounds a bit thin.

High Frequency Trim

The microphone’s High Frequency Trim [right] switch gives you three different options for its presence

character. The downward position is flat, or unaffected. The center position creates a slight high-

frequency boost to add clarity, and help your voice cut through a busy background. The fully upward

position boosts the highs through the presence range, helping to correct for rooms where acoustic

treatment has absorbed too much treble.

The Three-Layer Pop Filter

Broadcast microphones are a staple of social media channels that are distributed as video, in addition to

audio. One of the issues we tried to address in designing the DynaCaster is the visual disruption of external

windscreens and pop filters. To keep your video looking clean, the DynaCaster has an internal three-layer

pop filter. This concept has been extensively tested to stand up to plosives, without the need for any external

protection.

The three-layer pop filter and microphone grille can be

easily removed and cleaned as needed. Simply turn the

speaking surface of the microphone counter clockwise to -

remove it. From there, the pop filter will easily lift out. Use

a soft cloth, moistened with water only. Do not use any

cleaning agents or aggressive liquids. Once clean,

reassemble the mic and turn the speaking surface

clockwise until tight. You’re ready to go!
