SE Electronics T1 Bruksanvisning
Läs nedan 📖 manual på svenska för SE Electronics T1 (44 sidor) i kategorin mikrofon. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/44
s 1 T1 E4400 • sE4 00 • T2 •
U s e r M a n u a l
2
User Manual - EN
Thank you
Thank you for choosing an sE product! In addition to some basic safety precautions, this manual includes
details and specifications to help you get the most out of your microphone. Please take a few minutes to
read through it.
Capturing excellent audio is our passion. We sincerely hope you’ll enjoy using this microphone as much as
we’ve enjoyed designing and building it for you.
Happy Tracking,
The sE Team

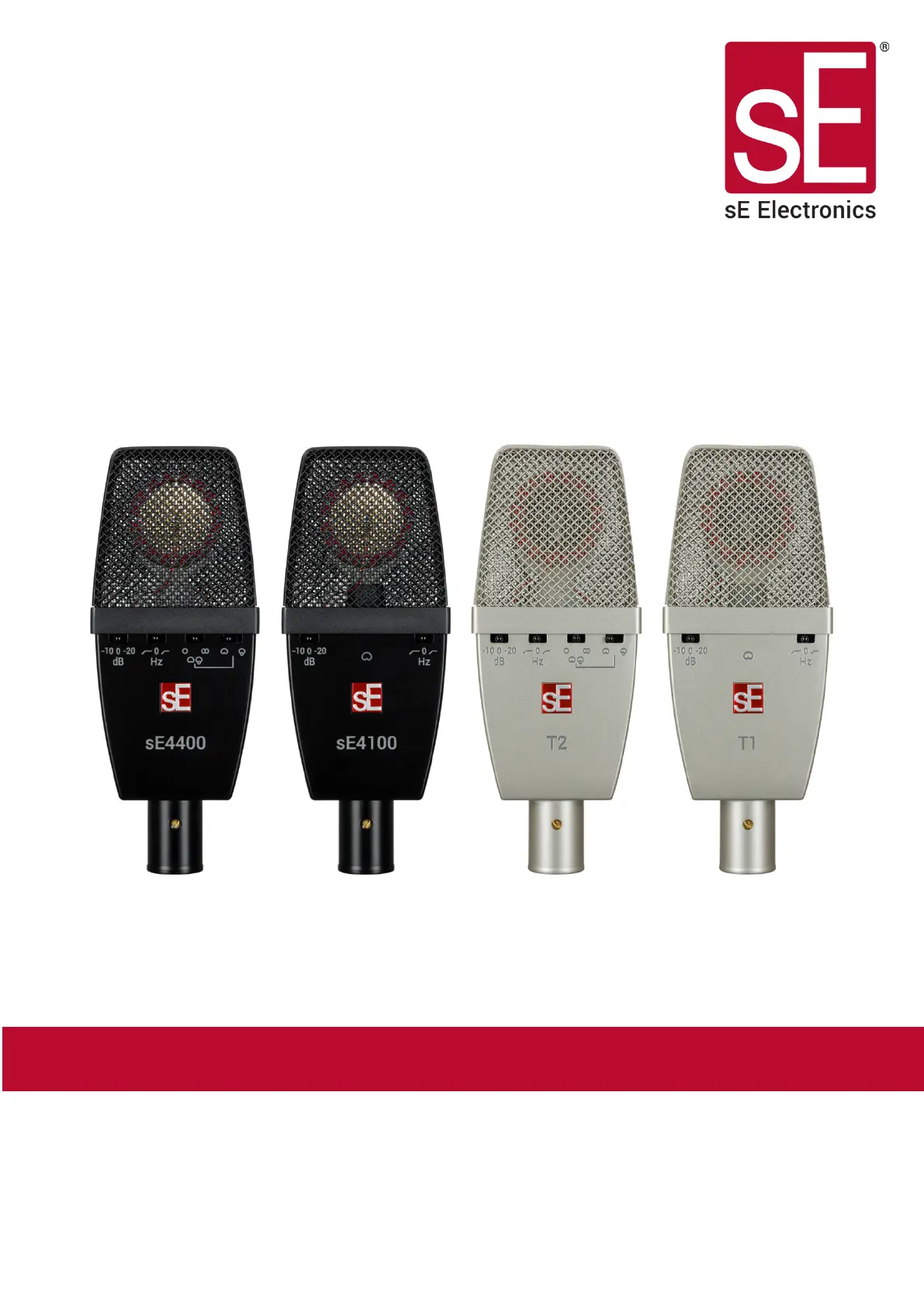

Brief description
sE4400 Multi-Pattern Condenser Microphone
Pure and simple: No thrills, just great sound. The sE4400 is a handcrafted vintage- -meets modern
condenser microphone featuring a handcrafted brass capsule with twin 1“ gold-sputtered Mylar
diaphragms. Its smooth response is reminiscent of classic condensers of decades past. A true studio
workhorse, it offers four distinct polar patterns and delivers incredible results on a wide array of sources.
Vocals, acoustic instruments, grand piano, drum overheads, brass instruments, electric guitar cabinets;
the sE4400 excels on them all. This mic is also available as a factory-matched stereo pair.
sE4100 Cardioid Condenser Microphone
The sE4100 is the younger brother of the sE4400. It features the same stunning performance, utilizing a
single capsule. It has a cardioid polar pattern, the most common choice in both studio and live sound
applications.
T2 Multi-Pattern Condenser Microphone
The T2 is based on the sE4400 featuring a handcrafted brass capsule with twin 1“ titanium-sputtered
Mylar diaphragms. Titanium is 33% stiffer and more than 300% lighter than gold, resulting in a faster
transient response, perfect for capturing sources that thrive on attack: drums, cymbals, hand percussion,
upright bass, etc. The T2 is also available as a factory- matched stereo pair.
T1 Cardioid Condenser Microphone
The T1 is the younger brother of the T2. It features the same stunning performance, utilizing a single
capsule. It has a cardioid polar pattern, the most common choice in both studio and live sound
applications.
What’s in the box
Your packaging should contain the follow items. If anything is missing, please contact your sE Electronics
dealer and let them know.
sE4400 / sE4100 / T2 / T1
• M icrophone
• Shock- mount with thread adapter
sE4400 / sE4100 / T2 / T1 Matched Pair
3
• Two microphones
• Two shock- mounts with thread adapters
• Stereo mounting bar
Controls
These microphones have several switches you , allowing to get the best out of your voice or instrument.
Attenuation Pad
The attenuation switch, on the far left of the microphone allows you to reduce the
microphone’s signal by 10 or 20 decibels, which can be very helpful for loud sources,
preventing overload on your audio interface. When this switch is in its center position,
the microphone output is unaffected.
Low-Cut Filter
The low cut switch, second from the left, allows you to adjust the bass response to your -
source. When engaged to the left, the microphone’s low frequency response is rolled off at
40 Hz. When engaged to the right, the microphone’s low frequency response is rolled off
beginning at 80 Hz. In the center position, the low frequency response is unaffected.
Polar Pattern (sE4400 and T2 only)
The two switches on the right side of the microphone control its polar
pattern. The right-center switch offers three settings. To the left, the
microphone is capturing an omnidirectional pattern. To the right, the
microphone is capturing a figure-8 pattern. In the center, you have two
options: cardioid or hypercardioid. The switch on the far right toggles
between those two polar patterns. Switch to the left for cardioid. Switch
to the right for hypercardioid.
Powering
To ensure proper operation, your sE product requires a Phantom power source that provides 48 Volts
according to IEC 61938.
Risk of damage
Do not connect your sE product to any power supply other than a Phantom power
source (input with Phantom power or external IEC standard Phantom power supply)
with a floating connector, using a balanced cable with studio-grade connectors to
IEC 268- 12 only. This is the only way to ensure safe and reliable operation.
Please be aware that Phantom power cannot pass through TRS connectors. A balanced microphone cable
with XLR connectors at both sides is required to provide Phantom power to your sE product.
Produktspecifikationer
| Varumärke: | SE Electronics |
| Kategori: | mikrofon |
| Modell: | T1 |
