Sida 1/14

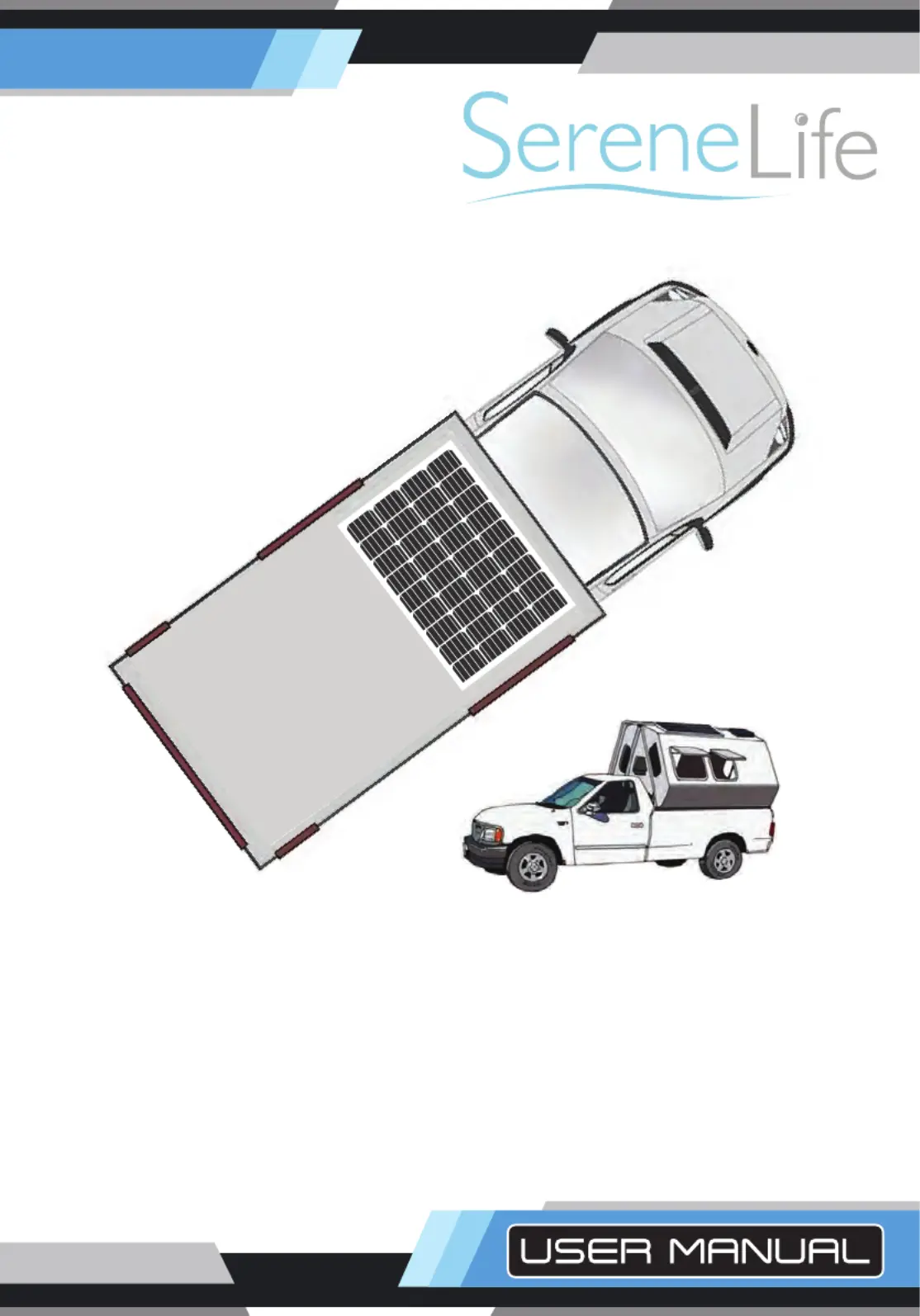

1 Pc. Portable Mono Solar Panel Starter Kit
SLSPSKT100
100W with 3 ft. 11AWG Cable Set
and 30A PWM Controller with LCD Screen
www.SereneLifeHome.com1
Please read the manual carefully before installing or operating the Portable
Mono Solar Panel Starter Kit to prevent personal injury or damage to the
components. Contact Technical support for any questions concerning the
installation.
INTRODUCTION
This manual provides the installation and operation instructions for users:
• Please carefully read this manual before installation, operation and maintenance
of our solar system. This manual includes all the important information and data,
and in order to guarantee the good performance of this system, please strictly
follow the instructions in this manual.
• We are not responsible for any consequences caused by wrong installation or
operation which does not correspond to this manual.
• Please keep this manual for future reference. In case of any questions or need
further assistance, please contact us or our agencies as well.
STORAGE & OPERATING CONDITIONS
Storage
To avoid potential dangers, the following notes must be followed:
• Storage environment should be ventilated and dustless.
• Relative humidity is less than 90%, and no water droplets.
• Keep away from re or any corrosive substances.
Operating Conditions
Operating Temperature
• Controller and inverter: -20°C - 50°C (-4°F - 122°F)
• Solar panel: -40°C - 85°C (-40°F - 185°F)
SAFETY PRECAUTIONS
• Installation stas should use insulating equipment (e.g. insulating shoes, insulating
gloves) to avoid electric shock.
• Solar panel is heavy and should always be handled by two people, and it contains
glass, which can be easily broken if mistreated, such as place heavy loads or drop
objects on its surface. .
• When working at height, appropriate protective safety equipment as recommended
by local safety codes (e.g. hard hat, scaolding, safety rope) should be used.
• Do not install the module if the back sheet or glass is damaged because there is
an electrical and re risk.
• Do not attempt any installation in adverse weather conditions (e.g. high winds,
rain or when ice or snow is present).
www.SereneLifeHome.com 2
PACKING LIST
INSTALLATION WITH ROOF RACK
V
AH
100W Solar Panel *1
Mounting brackets
*1set
Wire xer
*10pcs
Controller
30A*1pc
Extension lead
11AWG * 20ft
Fuse
15A*1pc
Battery lead
11AWG * 8ft
1 2 3
4 5 6
7 8
Z-shape bracket
*4pcs
Double nut
aluminum plate
*4pcs
Ø8 Bolt (M8*16)
*4pcs
Ø8 Nylon lock nut
*4pcs
Ø8 Bolt at mat
*12pcs
Ø8 Bolt (M8*25)
*8pcs
Ø8 Bolt spring washer
*8pcs
Ø8 Big Bolt at mat
*4pcs
