SHELLY MOBILE APPLICATION

FOR

Introduction

Shelly devices can be controlled and managed directly in the lo-

cal network or by using the Shelly cloud service accessible via

the Internet.

Download the Shelly Cloud Application by scanning the QR code

above, or access the devices through the Embedded web inter-

face, explained further down in the user guide.

Shelly devices are compatible with Amazon Echo and Google

Home supported functionalities. See details at

https://shelly.cloud/compatibility/.

Registration

The rst time you load the Shelly Cloud mobile app, you have to

create an account which can manage all your Shelly devices. You

need to use an actual e-mail because that e-mail will be used in

case of а forgotten password!

Forgotten password

In case you forget or lose your password, click the “Forgot Pass-

word?” link on the login screen and type the e-mail you used in

your registration. You will receive an e-mail with а link to а page

where you can reset your password. The link is unique and can

be used only once.

⚠ATTENTION! If you are unable to reset your password, you

have to reset your device (as explained in “Device Inclusion” sec-

tion, Step 1).

First steps

After registering, create your rst room (or rooms), where you

are going to add and use your Shelly devices. Shelly Cloud al-

lows you to create scenes for automatic control of devices at

predened hours or based on other parameters like tempera-

ture, humidity, light, etc. (with available sensors in Shelly Cloud).

Shelly Cloud allows easy control and monitoring using a mobile

phone, а tablet, or a PC. Shelly Pro 2 can be grouped with other

devices in the application, as well as be set to trigger actions

on other Shelly devices. Setting parameters for lights, controlling

blinds, etc., is also supported.

Device inclusion

Step 1

When the installation of Shelly is done and the power is on, Shelly

will create its own Wi-Fi Access Point (AP).

⚠WARNING! In case the device has not created its own AP Wi-Fi

network with SSID like , please check ShellyPro2-F008D1DB58A0

if the device is connected according to the User and Safety Guide,

Installation Instructions. If you still do not see an active Wi-Fi net-

work with SSID like , or you want to ShellyPro2-F008D1DB58A0

add the device to another Wi-Fi network, reset the device. If the

device has been powered on, you have to restart it by powering it

off and then again on. After that you have one minute to press 5

consecutive times the button/switch connected to the SW termi-

nal. You should hear the relay trigger itself. After the trigger sound,

Shelly Pro 2 will return to AP mode. If not, please repeat or contact

our customer support at: .support@shelly.cloud

Step 2

Please keep in mind that Shelly devices’ inclusion is different on

iOS and Android devices.

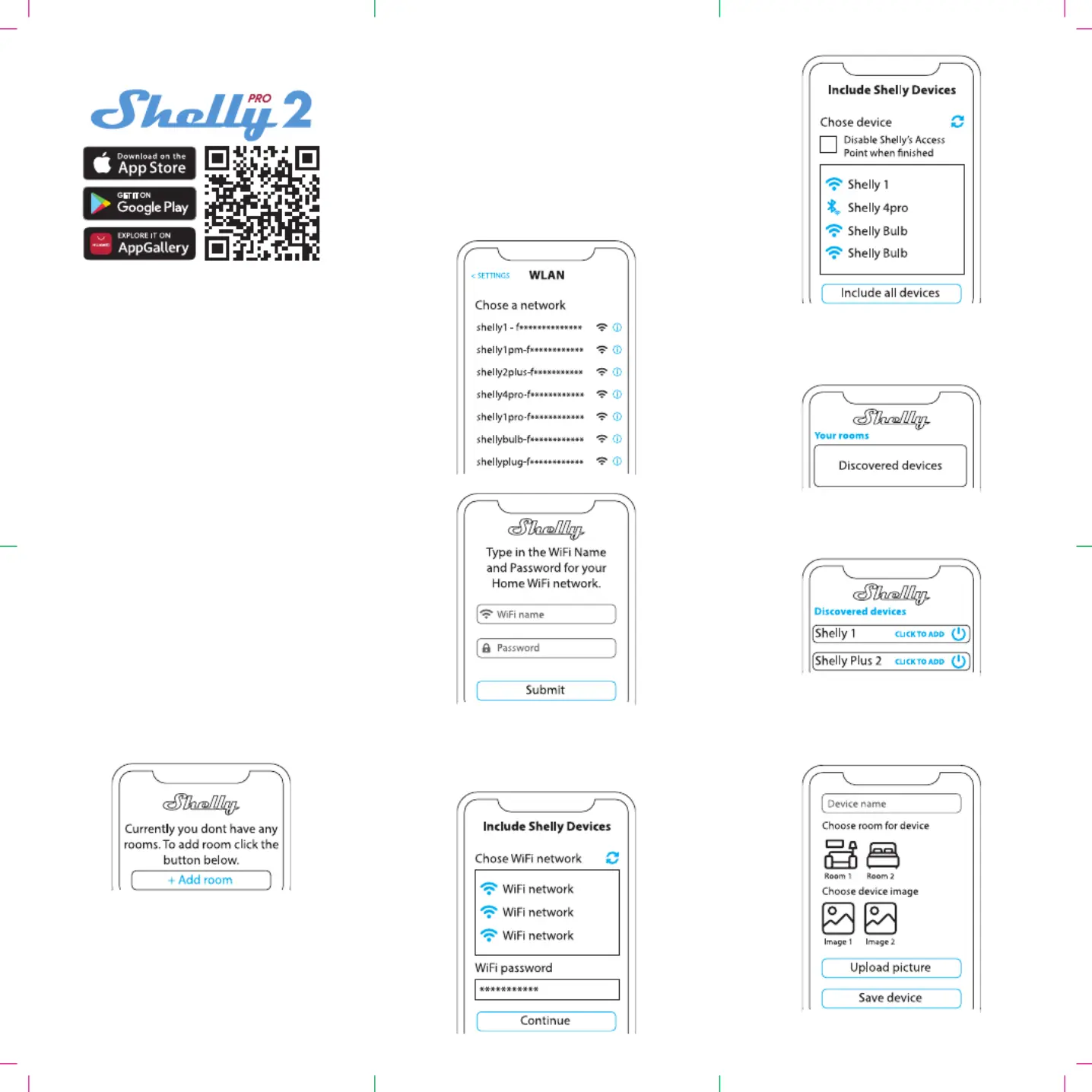

1. iOS inclusion - On your iOS device, open the Settings menu >

WLAN and connect to the Wi-Fi network created by your Shelly

device, i.e. ShellyPro2-F008D1DB58A0 (g. 1). Open your Shelly

app again and type in your home Wi-Fi credentials .(g. 2)

g. 1

g. 2

2. Android inclusion - From the hamburger menu on the main

screen of your Shelly App choose “Add device”. Then choose

your home network and type in your password . After that, (g. 3)

pick the Shelly device you want to include. The name of the de-

vice will be similar to: ShellyPro2-F008D1DB58A0 (g. 4).

g. 3

g. 4

Step 3

Approximately 30 sec. after discovering any new devices оn the

local Wi-Fi network, а list will be displayed in the “Discovered De-

vices” room by default.

Step 4

Select “Discovered devices” and choose the device you want to

include in your account.

Step 5

Enter a name for the device (in the “Device Name” eld). Choose

a “Room” where the device will be positioned and controlled

from. You can choose an icon or add a picture to make it easier

to recognize. Press “Save device”.

Step 6

To control Shelly devices only through the local network, press

“No”.

Device settings

After your Shelly device is added in the application, you can con-

trol it, change its settings, and automate the way it works.

To switch the device on and off, use the ON/OFF button. For de-

vice management, simply click on the device’s name. From there

you may control the device, as well as edit its appearance and

settings.

Timer

Аllows you to manage the power supply automatically. You may

use:

• Auto ON: After turning off, the relay output will be automatical-

ly turned on after a predened time (in seconds).

• Auto OFF: After turning on, the relay output will be automati-

cally turned off after a predened time (in seconds).

Schedule

This function requires a working connection to the Internet.

Shelly may turn on/off automatically at a predened time and

day throughout the week. Additionally, Shelly may turn on/off

automatically at sunrise/sunset, or at a specied time before or

after sunrise/sunset. You may add up to 20 weekly schedules.

Internet

Congure Wi-Fi, AP, Cloud, Bluetooth, MQTT settings.

• Wi-Fi Mode Client: Connect the relay to your Wi-Fi network.

Here, you can also set a static IP address.

• Wi-Fi Client Backup: An option to connect to an alternative

network in case the primary network fails or is too slow.

• Wi-Fi Mode AP: The mode in which the device creates its own

Wi-Fi connection point with the respective name (SSID).

• Ethernet: Connect the Shelly device to a network using an eth-

ernet cable. This requires a device reboot! Here, you can also set

a static IP address.

• Cloud: Connection to the cloud allows you to control your de-

vice remotely and to receive notications and updates.

• Bluetooth: Enable/disable

• MQTT: Congure the Shelly device to communicate over

MQTT.

Application Settings

• Channel Name: Set a name for the chosen channel

• Appliance Type: Choose from a given list what type of appli-

ances your Shelly Pro 2 will be used with. The available options

are “Socket, Lights, Heating, Entertainment”. А custom type can

be set as well.

• PIN lock: Restrict control of the Shelly device through the web

interface by setting a PIN code. Click “Enable” and set the chan-

nel PIN lock, then click “Save”.

• Exclude from Event Log: Do not show events from this device

in the app.

Webhooks

Use events to trigger http endpoints. You can add up to 20 web-

hooks.

Share the control of your device with other users.

Settings

• Button Type: These settings dene the way the attached

switch or button controls the output state. The possible input

modes are “button” and “switch”, and the relay mode can be cho-

sen depending on the preffered usage of the device.

• Invert Switch: When the input is on, the output is off and when

the input is off, the output is on. For the change to be applied,

the physical switch has to be toggled once after ‘invert’ is set

to ‘true’.

• Firmware version: Shows your current rmware version. If a

newer version is available, you can update your Shelly device by

clicking Update.

• Geo Location And Time Zone: Set your time zone and geo-lo-

cation manually, or enable/disable automatic detection.

• Device Reboot: Reboot your Shelly Pro 2.

• Factory Reset: Remove Shelly Pro 2 from your account and

return it to its factory settings.

• Device Information: Here you can view the ID, IP and other set-

tings of your device. Upon clicking “Edit device”, you can change

the room, name or image of the device.

THE EMBEDDED WEB INTERFACE

Shelly can be set and controlled through a web browser.

Abbreviations used

• Shelly ID - the unique name of the device. It consists of 12

hexadecimal characters, the base MAC address of the device. It

may include numbers and letters, for example .F008D1DB58A0

• SSID - the name of the Wi-Fi network, created by the device, for

example .ShellyPro2-F008D1DB58A0

• Access Point (AP) - the mode in which the device creates its

own Wi-Fi connection point with the respective name (SSID).

• Wi-Fi - the mode in which the device is connected to another

Wi-Fi network.

Initial inclusion

Step 1

Install Shelly following the connection diagrams described in the

instructions included with the device, and place it into the junc-

tion box. After turning the power on, Shelly will create its own

Wi-Fi network (AP).

⚠WARNING! If you don’t see the AP, please fоllow step 1 from

the “Device Inclusion” section of this guide.

Step 2

Shelly Pro 2 has created its own Wi-Fi network (AP), with name

(SSID) such as ShellyPro2-F008D1DB58A0. Connect to it with

your phone, а tablet, or а PC.

Step 3

Type 192.168.33.1 into the address eld of your browser to load

the web interface of Shelly.

General - Home page

This is the home page of the embedded web interface. If it has

been set up correctly, you will see information about the state of

the two switches (ON/OFF) and common functionality menus.

For individual functionality menus, choose one of the two chan-

nels.

Channel settings

Click on “Channel Settings”. The general settings about the chan-

nel will be displayed here. You can congure I/O settings, chan-

nel’s state, channel’s name, etc.

• Input/output settings - input mode and relay type dene the

way the attached switch or button controls the output state. The

possible input modes are “button” and “switch”, and the relay

mode can be chosen depending on the preffered usage of the

device. “Set relay power on default” allows you to choose the

default state of the relay when power is on.

• Invert Switch: When the input is on, the output is off and when

the input is off, the output is on. For the change to be applied,

the physical switch has to be toggled once after ‘invert’ is set

to ‘true’.

• Channel Name: Set a name for the chosen channel

• PIN lock - Restrict control of the Shelly device through the web

interface by setting a PIN code. After typing the details in the

respective elds, press “Restrict Shelly”.

Timers

Аllows you to manage the power supply automatically. You may

use:

• Auto ON: After turning off, the relay output will be automatical-

ly turned on after a predened time (in seconds).

• Auto OFF: After turning on, the relay output will be automati-

cally turned off after a predened time (in seconds).

Schedules

This function requires a working connection to the Internet.

Shelly may turn on/off automatically at a predened time and

day throughout the week. Additionally, Shelly may turn on/off

automatically at sunrise/sunset, or at a specied time before or

after sunrise/sunset. You may add up to 20 weekly schedules.

Webhooks

Use events to trigger http endpoints. You can add up to 20 web-

hooks.

Device

Get information about your device’s rmware version and loca-

tion. Perform reboot and factory reset. Set your time zone and

geo-location manually, or enable/disable automatic detection.

• Authentication - you can set credentials to lock your device or

change already existing credentials.

Networks

Congure Wi-Fi, AP, Cloud, Bluetooth, MQTT settings.

Produktspecifikationer

Varumärke:	Shelly
Kategori:	Smarth hem
Modell:	2Pro

Behöver du hjälp?

Om du behöver hjälp med Shelly 2Pro ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Smarth hem Shelly Manualer

Shelly Qubino Wave 1PM Mini Bruksanvisning

1 Oktober 2024

Shelly Wave Shutter Bruksanvisning

23 September 2024

Shelly Wave i4 Bruksanvisning

23 September 2024

Shelly Wave Pro 2 Bruksanvisning

23 September 2024

Shelly Plus Un Bruksanvisning

23 September 2024

Shelly Pro Dimmer 1PM Bruksanvisning

23 September 2024

Shelly Wave Pro 1PM Bruksanvisning

23 September 2024

Shelly Wave Pro 2PM Bruksanvisning

23 September 2024

Shelly Pro Dimmer 2PM Bruksanvisning

23 September 2024

Shelly Wave Pro 1 Bruksanvisning

23 September 2024

Smarth hem Manualer

Nyaste Smarth hem Manualer

Ezviz T33 Bruksanvisning

18 Mars 2025

Sommer SOMweb Bruksanvisning

18 Mars 2025

Philips HSP5200 Bruksanvisning

12 Mars 2025

Delta Dore Tyxia 4940 Bruksanvisning

26 Februari 2025

Somfy TaHoma Premium Bruksanvisning

19 Februari 2025

IKEA VINDRIKTNING 305.493.90 Bruksanvisning

14 Februari 2025

Abus FUMO80000 Bruksanvisning

31 Januari 2025

Abus FUAT80000 Bruksanvisning

31 Januari 2025

WiZ Smart Bruksanvisning

14 Januari 2025

Ezviz DL03 Bruksanvisning

14 Januari 2025
