USER AND SAFETY GUIDE

2 CIRCUIT WI-FI RELAY SWITCH WITH

POWER MEASUREMENT

SHELLY PRO 2PM

Read before use

This document contains important technical and safety infor-

mation about the device, its safety use and installation.

⚠CAUTION! Before beginning the installation, please read this

guide and any other documents accompanying the device care-

fully and completely. Failure to follow the installation procedures

could lead to malfunction, danger to your health and life, violation

of the law or refusal of legal and/or commercial guarantee (if

any). Allterco Robotics EOOD is not responsible for any loss or

damage in case of incorrect installation or improper operation

of this device due to failure of following the user and safety in-

structions in this guide.

Product Introduction

Shelly® is a line of innovative microprocessor-managed devic-

es, which allow remote control of electric appliances through a

mobile phone, tablet, PC, or home automation system. Shelly®

devices can work standalone in a local Wi-Fi network or they

can also be operated through cloud home automation services.

Shelly® devices can be accessed, controlled and monitored

remotely from any place the User has Internet connectivity,

as long as the devices are connected to a Wi-Fi router and the

Internet. Shelly® devices have integrated web servers, through

which the user may adjust, control and monitor them. The cloud

function could be used, if it is activated through the web server

of the device or the settings in the Shelly Cloud mobile applica-

tion. The user can register and access Shelly Cloud using either

Android or iOS mobile application, or with any internet browser

at https://my.shelly.cloud/

Shelly® Devices have two Wi-Fi modes - Access Point (AP) and

Client mode (CM). To operate in Client Mode, a Wi-Fi router

must be located within the range of the device. Devices can

communicate directly with other Wi-Fi devices through HTTP

protocol. An API is provided by Allterco Robotics EOOD.

For more information, please visit:

https://shelly-api-docs.shelly.cloud/#shelly-family-overview

Control your home with your voice

Shelly® devices are compatible with Amazon Echo and Google

Home supported functionalities. Please see our step-by-step

guide on: https://shelly.cloud/support/compatibility/

Shelly® Pro Series

Shelly® Pro series is a line of devices suitable for homes, oc-

es, retail stores, manufacturing facilities, and other buildings.

Shelly® Pro devices are DIN mountable inside the breaker box,

and highly suitable for new building construction. All Shelly®

Pro devices can be controlled and monitored through Wi-Fi and

LAN connections. Bluetooth connection can be used for the

inclusion process.

Shelly® Pro series offers PM products for real-time precise

power measurement.

Legend:

Device terminals:

• O1: Load circuit 1 output terminal

• O2: Load circuit 2 output terminal

• I1: Load circuit 1 input terminal

• I2: Load circuit 2 input terminal

• SW1: Switch (controlling O1*) input terminal

• SW2: Switch (controlling O2*) input terminal

• L: Live (110-240V) terminal

• N: Neutral terminals

• +12: 12V (10.5V to 13.5V) DC power supply terminal

• LAN: Local Area Network RJ 45 connector

Wires:

• N: Neutral wire

• L: Live (110-240V) wire

• +: 12 V DC power supply positive wire

• -: 12 V DC power supply negative wire

* Can be recongured

Installation Instructions

The Shelly Pro 2PM smart relay by Allterco Robotics is intended

to be mounted into a standard switchboard on DIN rail, next to

the circuit breakers. Shelly can work as a standalone device or

as an accessory to a home automation controller. Shelly Pro

2PM is a single-phase relay with two channels that supports

power metering of each channel.

⚠CAUTION! Do not install the device at a place that is possible

to get wet.

⚠CAUTION! Danger of electrocution. Mounting/ Installation of

the Device to the power grid has to be performed with caution, by

a qualied electrician.

⚠CAUTION! Danger of electrocution. Every change in the con-

nections has to be done after ensuring there is no voltage pres-

ent at the Device terminals.

⚠CAUTION! Do not connect the Device to appliances exceed-

ing the given max load!

⚠CAUTION! Use the Device only with a power grid and appli-

ances which comply with all applicable regulations. A short cir-

cuit in the power grid or any appliance connected to the Device

may damage the Device.

⚠CAUTION! Connect the Device only in the way shown in these

instructions. Any other method could cause damage and/or in-

jury.

⚠CAUTION! Тhe Device may be connected to and may control

electric circuits and appliances only if they comply with the re-

spective standards and safety norms.

⚠RECOMMENDATION Connect the Device using solid sin-

gle-core cables with increased insulation heat resistance not

less than PVC T105°C.

Connect the Device to the power grid and install it in the switch-

board as shown in the schemes and following the Safety In-

structions.

Before starting installing/mounting the Device, wire check that

the breakers are turned off and there is no voltage on their ter-

minals. This can be done with a phase meter or multimeter.

When you are sure that there is no voltage, you can proceed to

wiring the cables.

If you are using AC for the Device and the two load circuits

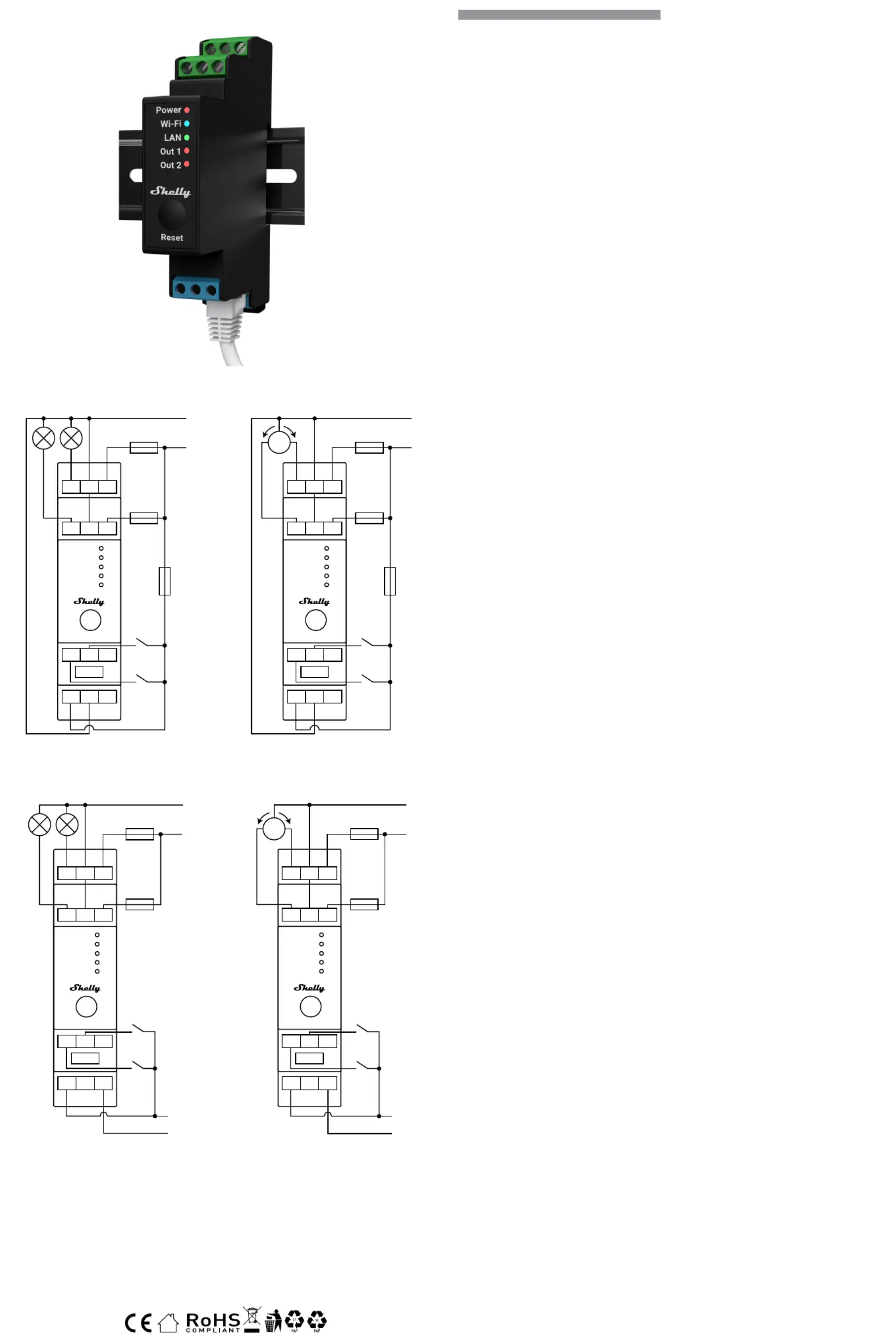

( ), connect all N terminals to the Neutral wire and the L ter-g.1

minal to the Device power supply circuit breaker.

Connect the 2 switch circuits to the S1 and S2 input terminals

and the Device power supply circuit breaker.”

Connect the rst load circuit to the O1 terminal and the Neutral

wire. Connect the I1 terminal to the rst load circuit breaker.

Connect the second load circuit to the O2 terminal and the

Neutral wire. Connect the I2 terminal to the second load circuit

breaker.

If you are using 12 V DC to power the Device (g. 2), connect the

positive wire to the +12 terminal and the negative wire to the L

terminal. Connect the 2 switch circuits to the S1 and S2 input

terminals and the negative wire. Connect the Negative wire to

the N terminals, which are between the I1 and O1 and the I2

and O2 terminals.

⚠CAUTION! Do not connect the Negative wire to the N terminal,

which is between the L and +12 terminals.

Connect the rst load circuit to the O1 terminal and the Neutral

wire. Connect the I1 terminal to the rst load circuit breaker.

Connect the second load circuit to the O2 terminal and the

Neutral wire. Connect the I2 terminal to the second load circuit

breaker.

If you are using AC to power the Device and want to control

an AC bi-directional motor ( ), connect all N terminals to g.3

the Neutral wire and the L terminal to the Device power supply

circuit breaker.

Connect the 2 switch circuits to the S1 and S2 input terminals

and the Device power supply circuit breaker.

Connect the common motor terminal/wire to the Neutral wire.

Connect motor direction terminals/wires to the O1 and O2 ter-

minals**.

If you are using 12 V DC to power the Device and want to control

an AC bi-directional motor ( ), connect the positive wire to g. 4

the +12 terminal and the negative wire to the L terminal. Con-

nect the 2 switch circuits to the S1 and S2 input terminals and

the negative wire. Connect the Negative wire to the N terminals,

which are between the I1 and O1 and the I2 and O2 terminals.

⚠CAUTION! Do not connect the Negative wire to the N terminal,

which is between the L and +12 terminals.

Connect the common motor terminal/wire to the Neutral wire.

Connect motor direction terminals/wires to the O1 and O2 ter-

minals**.

**The Device outputs can be recongured to match the required

rotation direction.

⚠RECOMMENDATION For inductive loads, which cause volt-

age spikes during switching, such as electrical motors, fans, vac-

uum cleaners, refrigerators and similar ones, RC snubber (0.1µF

/ 100Ω / 1/2W / 600V AC) should be wired in parallel with the

load. RC snubbers can purchased at

shop.shelly.cloud/rc-snubber-wi-smart-home-automation

Initial Inclusion

You can choose to use Shelly® with the Shelly Cloud mobile

application and Shelly Cloud service. Instructions on how to

connect your device to the Cloud and control it through the

Shelly App can be found in the “App Guide” included in the box.

You can also familiarize yourself with the instructions for Man-

agement and Control through the embedded Web interface at

192.168.33.1 in the Wi-Fi network, created by the Device.

⚠CAUTION! Do not allow children to play with the button/

switch connected to the Device. Keep the Devices for remote

control of Shelly (mobile phones, tablets, PCs) away from chil-

dren.

Specications

• Mounting - DIN rail

• Dimensions (HxWxL): 68.5x18.5x89.5 mm

• Power supply: 110 - 240 V AC, 50/60 Hz

• 12V DC (10.5 V - 13.5 V), 250 mA “

• Electrical consumption: < 4 W

• Working temperature: 0 °C - 40 °C

• Controlling elements: 2 relays

• Controlled elements: 2 AC circuits

• Max switching voltage: 240 V

• Max current per channel: 16 A

• Total max. current of all outputs: 25 A

• Dry contacts: No

• Temperature Protection - YES

• Wi-Fi - YES

• Bluetooth - YES

• LAN - YES

• Scripting (mjs) - YES

• MQTT - YES

• CoAP - No

• URL Actions - 20

• Scheduling - 50

• Add-on support - YES

• CPU - ESP32

• Flash - 8MB

• Radio protocol: Wi-Fi 802.11 b/g/n

• Radio signal power: 1mW

• Frequency Wi-Fi : 2412-2472 МHz; (Max. 2495 MHz)

• RF output Wi-Fi: <20 dBm

• -Operational range (depending on terrain and building struc

ture): up to 50 m outdoors, up to 30 m indoors

• Frequency Bluetooth: TX/RX: 2402- 2480 MHz (Max.

2483.5MHz)

• RF output Bluetooth: <10 dBm

Led indicators

Power (red): Red light indicator will be on if power is connected.

Wi-Fi (blue): Blue light indicator will be on if the Device is in

AP mode.

Wi-Fi (red): Red light indicator will be on if the Device is in STA

mode and not connected to a local Wi-Fi network.

Wi-Fi (yellow): Yellow light indicator will be on if the Device is in

STA mode and connected to a local Wi-Fi network. Not connect-

ed to Shelly Cloud or Shelly Cloud disabled.

Wi-Fi (green): Green light indicator will be on if the Device is in

STA mode and connected to a local Wi-Fi network and to the

Shelly Cloud.

Wi-Fi (ashing): The light indicator will be ashing Red/Blue if

OTA update is in progress.

LAN (green): Green light indicator will be on if LAN is connect-

ed.

Out1 (red): Red light indicator will be on if the Output 1 rellay

is closed.

Out2 (red): Red light indicator will be on if the Output 2 rellay

is closed.

Declaration of conformity

Hereby, Allterco Robotics EOOD declares that the radio equip-

ment type Shelly Pro 2PM is in compliance with Directive

2014/53/EU, 2014/35/EU, 2014/30/EU, 2011/65/EU. The full

text of the EU declaration of conformity is available at the fol-

lowing internet address

https://shelly.cloud/knowledge-base/devices/shelly-pro-2pm/

Manufacturer: Allterco Robotics EOOD

Address: Bulgaria, Soa, 1407, 103 Cherni vrah Blvd.

Tel.: +359 2 988 7435

E-mail: support@shelly.cloud

Web: http://www.shelly.cloud

Changes in the contact data are published by the Manufactur-

er at the ocial website of the Device http://www.shelly.cloud

All rights to trademark Shelly® and other intellectual rights

associated with this Device belong to Allterco Robotics EOOD.

O1 I1N

NO2 I2

L N +12

SW1 SW2

LAN

Power

Wi-Fi

LAN

Out 1

Out 2

Reset

O1 I1N

NO2 I2

L N +12

SW1 SW2

LAN

Power

Wi-Fi

LAN

Out 1

Out 2

Reset

⎓

12 V +

O1 I1N

NO2 I2

L N +12

SW1 SW2

LAN

Power

Wi-Fi

LAN

Out 1

Out 2

Reset

⎓

12 V +

O1 I1N

O2 I2

L N +12

SW1 SW2

LAN

Power

Wi-Fi

LAN

Out 1

Out 2

Reset

(g.1) (g.3)

(g.2) (g.4)

Produktspecifikationer

Varumärke:	Shelly
Kategori:	Smarth hem
Modell:	2Pro PM

Behöver du hjälp?

Om du behöver hjälp med Shelly 2Pro PM ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Smarth hem Shelly Manualer

Shelly Qubino Wave 1PM Mini Bruksanvisning

1 Oktober 2024

Shelly Wave Shutter Bruksanvisning

23 September 2024

Shelly Wave i4 Bruksanvisning

23 September 2024

Shelly Wave Pro 2 Bruksanvisning

23 September 2024

Shelly Plus Un Bruksanvisning

23 September 2024

Shelly Pro Dimmer 1PM Bruksanvisning

23 September 2024

Shelly Wave Pro 1PM Bruksanvisning

23 September 2024

Shelly Wave Pro 2PM Bruksanvisning

23 September 2024

Shelly Pro Dimmer 2PM Bruksanvisning

23 September 2024

Shelly Wave Pro 1 Bruksanvisning

23 September 2024

Smarth hem Manualer

Nyaste Smarth hem Manualer

Ezviz T33 Bruksanvisning

18 Mars 2025

Sommer SOMweb Bruksanvisning

18 Mars 2025

Philips HSP5200 Bruksanvisning

12 Mars 2025

Delta Dore Tyxia 4940 Bruksanvisning

26 Februari 2025

Somfy TaHoma Premium Bruksanvisning

19 Februari 2025

IKEA VINDRIKTNING 305.493.90 Bruksanvisning

14 Februari 2025

Abus FUMO80000 Bruksanvisning

31 Januari 2025

Abus FUAT80000 Bruksanvisning

31 Januari 2025

WiZ Smart Bruksanvisning

14 Januari 2025

Ezviz DL03 Bruksanvisning

14 Januari 2025
