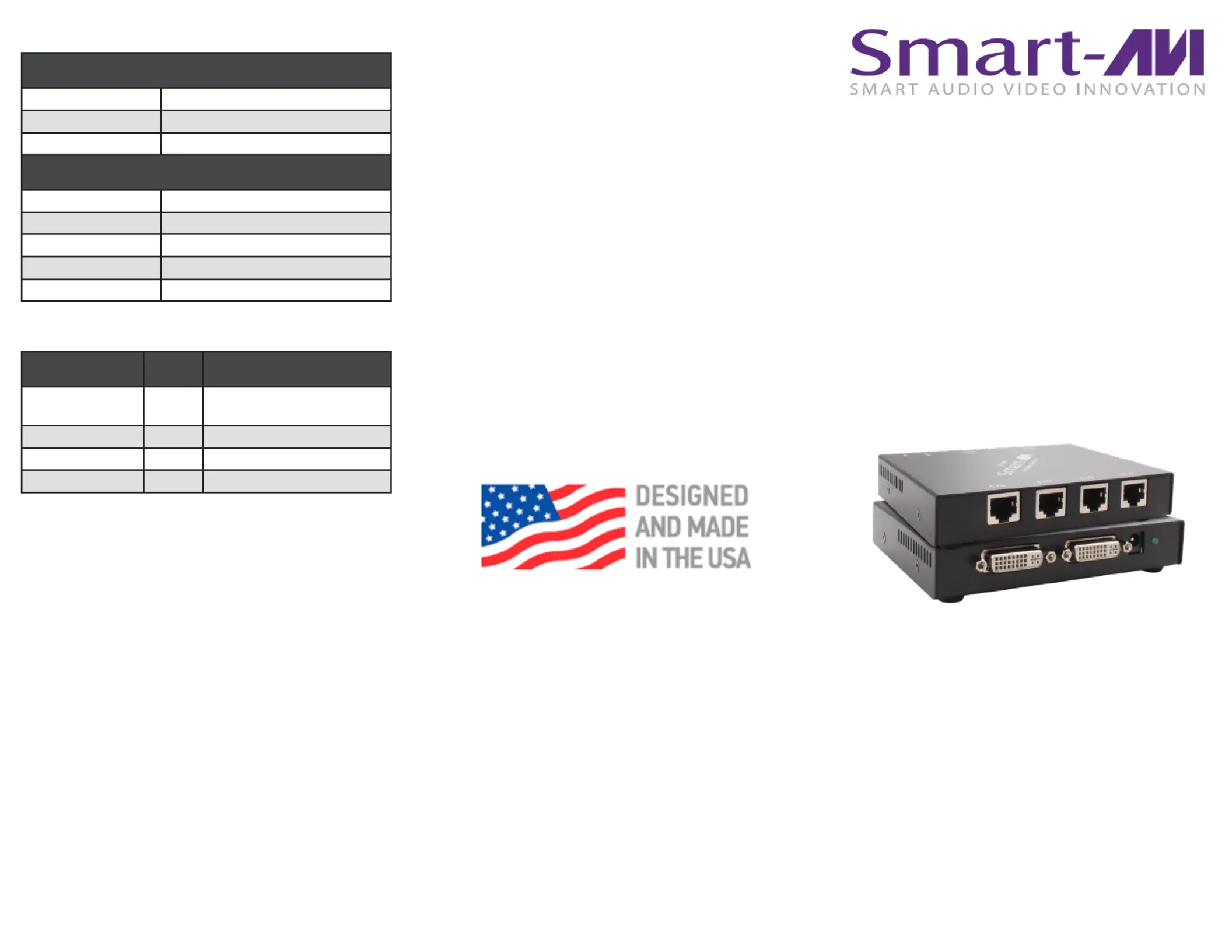

4-Port DVI-D CAT6 STP Extender
4-PORT DVI-D CAT6 STP
EXTENDER
Quick Start Guide
VIDEO
Format DVI (Single Link)
Input Interface (1) DVI, (1) DVI (local monitor)
Resolution Up to 1920 x 1200 @ 60 Hz
OTHER
Power PS5VDC2A
Dimensions 3.75” W x 5” L x .875” H
Operating Temp. +32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity Up to 95% (non-condencing)
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
DVS-400
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
DVS-400 1 4-Port DVI-D CAT6 STP
Extender Transmitter
DVX-RX200 1 DVI-D/PC CAT6 STP Receiver
Power Supply 2 PS5VDC2A
Quick Start Guide 1
OVEVIEW
DVS-400 extends any DVI-D signal up to 220 feet to four
displays and one local screen using Cat6 cabling while
retaining perfect image quality at resolutions up to
1920 x 1200. SmartAVI, Inc.’s DVS-400 allows you to
extend a DVI-D signal to up to four remote displays via one
small unit that also loops a signal back to your computer so
local monitoring is possible and simple.
A great example would be a retail shop running its digital
signage from a computer in its back ofce; using the
DVS-400, a media le or group of les could be broadcast
to up to four screens situated around the store while also
being viewed locally on that computer’s monitor.
Quite simply, the outgoing DVI-D signal from your computer
is plugged into the DVS-400. This box has one input and
four outputs, so that your signal can be sent up to 220 feet
over inexpensive CAT6 cables to display screens anywhere
in your retail shop, lounge, etc. In addition to the four
outgoing signal ports, the unit also has a loop-back port
that goes back to your computer, so that you may monitor
exactly what is being broadcast to the remote screens. This
is all done from a single unit with one power supply.
On power-up, the DVS-400 reads and stores the EDID of
the DVI monitor connected to the local loop-back port. From
that point on, even if the local monitor is not attached to
the unit, its DDC is retained in the ash memory of the
DVS-400 unit and it will operate as if the monitor were
connected, offering unhindered use and simple exibility.
FEATURES
• Local DVI output.
• Perfect Image Quality at all Resoluons
• Video Resoluons up to 1920 x 1200 @ 60Hz
(1280 x 1024 @ 75Hz) on all distances to the
maximum limit
• Automac DDC Learning From Local Monitor
• DDC Tables Stored in Flash Memory for Future Use
• Unit Operates Regardless of Local Monitor
Connecvity
• Distances: up to 220 Feet via STP CAT5e or STP
CAT6 Cable(Best Quality/Distance)
• Compable With all Operang Systems
• Rack Mount Opons(19”): Mount up to Four
DVS400 Units in a 19”/1U Rack Mount Kit, Saving
Expensive Rack Space
• MAC or PC Versions Available
1. Turn off computer and monitor.
2. Connect DVI male to male cable between the computer and the transmitter.
3. Connect monitor or projector to the local loopback DVI port on the transmitter.
4. Turn on the monitor.
5. Plug in one of the power transformers and connect it to the transmitter.
6. Remove the monitor from the local loopback DVI port on the transmitter and connect it to the DVI port on the receiver.
7. Connect a shielded CAT6 cable between port 1 on the transmitter and port 1 on the receiver.
8. Plug in the other power transformer and connect it to the receiver.
9. Turn on the computer.
HARDWARE INSTALLATION
DVS-400 FRONT DVS-400 BACK
DVI IN
DVI OUT
CAT6
220 ft
DVS-400-TX
DVX200-RX DVX200-RX DVX200-RX DVX200-RX
