Smart-AVI HDS-8PS Bruksanvisning
Läs nedan 📖 manual på svenska för Smart-AVI HDS-8PS (2 sidor) i kategorin Splitter. Denna guide var användbar för 7 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

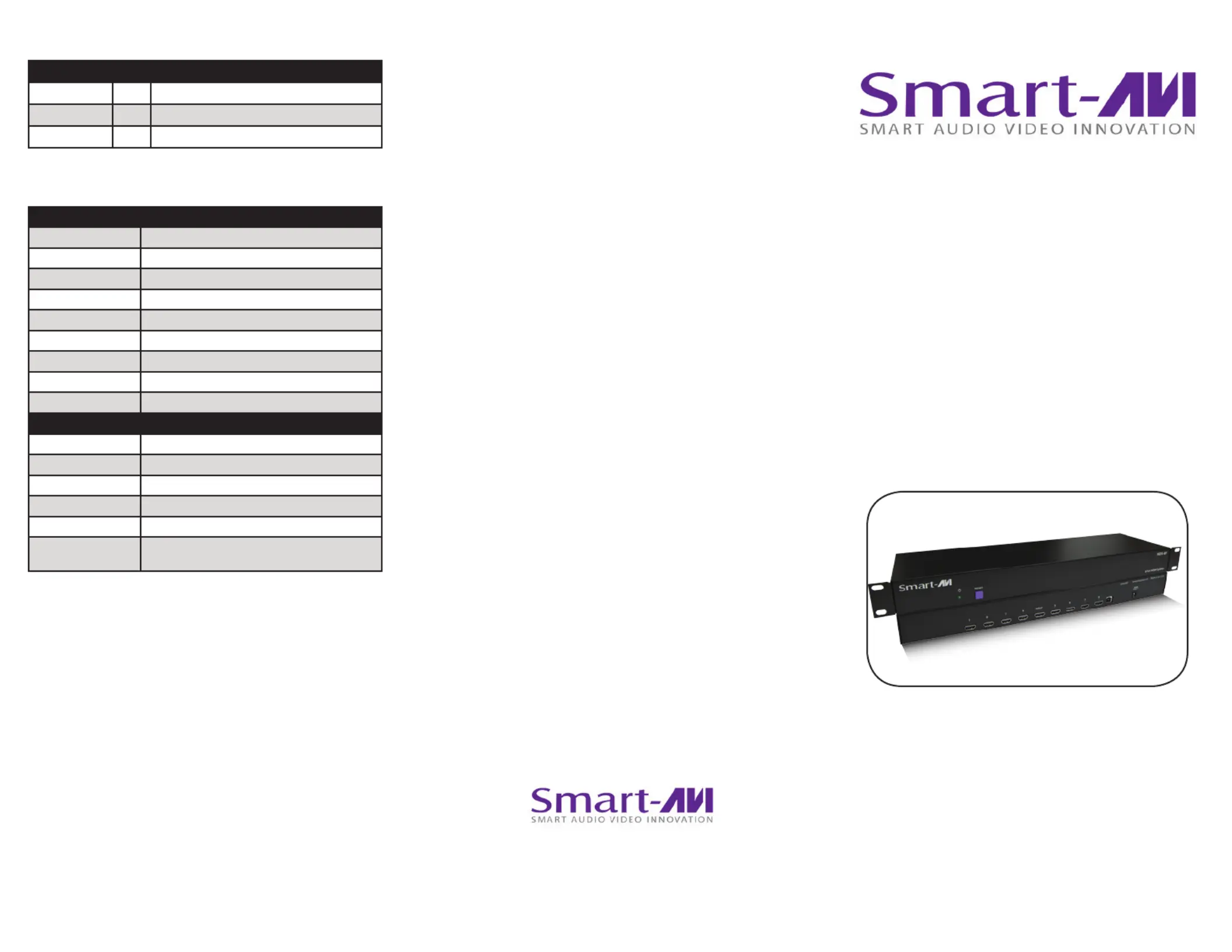

Sida 1/2
© Copyright 2011 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m at i o n c o nt a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
Connect One HDMI/HDTV
Component to Eight Displays
HDS- P8
8-Port HDMI Splitter
www.smartavi.com
Installation
Manual
Technical Specications
What’s in the Box?
PART NO. QTY DESCRIPTION
HDS-8PS 1 HDMI 8-Port Splitter
Power Supply 1 PS5VDC4A
User Manual 1
OTHER
DDC Signal 5 Volts [peak-to-peak], TTL
TDMS Signal 1.2 Volts[peak-to-peak], TTL
Power External 5VDC4A
Dimensions 17”W x 1.75”H x 5”D
Weight 2 lbs.
Approvals Device: CE, ROHS
Power Supply: C-UL US, CE
VIDEO
Format HDMI 1.3b [Deep Color, xvYcc color space supported]
DVI Compliance Single-link DVI-D 1.1
HDCP Compliance 1.0/1.1
Video Bandwidth Single-link 340MHz [10.2Gbps]
Resolution 480i,480p,720i,720p,1080i,1080p
Input Interface (1) HDMI[7.1ch audio & video]
Output Interface (8) HDMI[7.1ch audio & video]
Connector Type A[19-pin female]
Maximum Distance 25 ft.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Introduction
The HDMI Splitter allows set-top boxes, DVD players,
HDMI game console, and other HDTV devices with a
HDMI output to be connected to eight HDTV displays.
Supports HDTV’s 480i/480p/720i/720p/1080i/1080p
& PC’s WUXGA/1900x1200 and works with at panel,
plasma screen, projector, switch, splitter, computer
video display, HDTV/HDCP, set-top boxes, DTV and
DVD.
HDMI can output up to 20 feet from an HDMI device
to the HDMI splitter, and then 20 feet from the HDMI
splitter to the displays.
Features
• HDMI 1.3c and DVI 1.0 compliant
• HDCP 1.2 compliant
• Wide Frequency Range: 25MHz~225MHz
• Video bandwidth: 6.7GBPS
• Resolution up to 1080p or WUXGA
• Supports CEC (not bypassing)
• Supports Dolby Digital, DTS-HD
and Dolby True HD audio
• Easy installation
Applications
• Home Theater Integration
• Restaurants and Bars
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

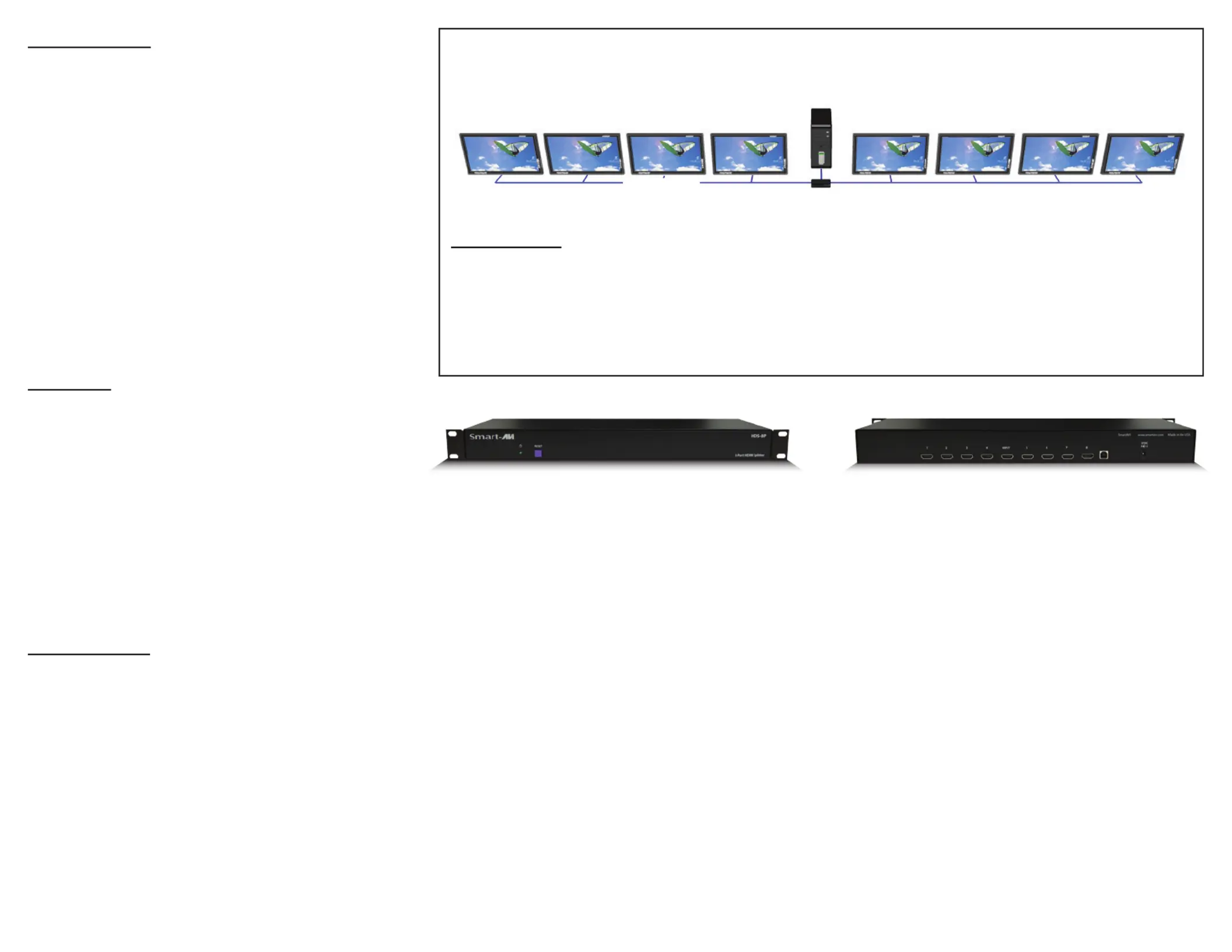

Product - Installation Diagram
Installation
1. Turn o the HDMI device and the displays.
2. Connect an HDMI cable from the HDMI output device to the input port on the HDS-8P.
3. Connect the displays to the HDMI outputs on the HDS-8P.
4. Connect the power cord to the HDS-8P.
5. Power on the HDMI device and the displays.
HDS-8P Front HDS- P Rear8
20 ft. over HDMI
HDS-8P
COMPUTER / PLAYER
