1 IN 8 OUT DVI Splitter
THE DVI-I 8 PORT SPLITTER
ALLOWS YOU TO USE
A SINGLE PC/MAC TO DISPLAY
IDENTICAL IMAGES ON
MULTIPLE MONITORS.
Quick Start Guide
VIDEO
Format DVI-I Female
Video Resolution Up to 2048 x 1536
Video Bandwidth 165 MHz
Input Interface (TX) (1) DVI-I Female
Output Interface (RX) (1) DVI-I Female
Max. data rate 6.75 Gbps (2.25 Gbps Per Lane)
Compliance HDCP Compatible
Max distance Up to 10 m
OTHER
Power External 100-240 VAC/5VDC4A
@ 20 W
Dimensions 3.5” W x 1.6” H x 9.8” D
Weight 2.1 lbs
Operating Temp. 0-50 °C (32-122°F)
Storage Temp. -20-60 °C (-4-140 °F)
Humidity Up to 95%
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
DVS-8P
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
DVS-8P 1 1 IN 8 OUT DVI Splitter
PS5VD4A 1 PS5VD4A Power Supply
Quick Start Guide 1
FEATURES
EDID LEARNING
• Supports high-resolution dislplay up to UXGA
(25-165MHz)
• Can be cascaded
• Compliant with the specication of DVI 1.0
• Resolution up to 1920 x 1200
• No degradation of video quality
• External pwer supply
• Automatic EDID learning for the support of any DVI
monitor.
The Display Data Channel (DDC) is a digital connection
between a computer display and a graphics adapter that
allows the display to communicate its specications to the
adapter.
The Extended Display Identication Data (EDID) is a data
structure provided by a computer display over the DDC to
describe its capabilities to a graphics card.
On power-up the DVS-8P reads and stores the EDID of the
DVI monitor connected output 1.
There are 3 modes for EDID:
Mode 1 - Selects the Minimum Resolution of the Output
Mode 2 - Selects the EDID of the Latest monitor connected
Mode 3 - Selects the EDID of the Monitor connected to
Output 8
Pressing the button next to the “Power” LED can be used
to see the current EDID mode, the LED of #8 will ash
according the mode.
If the current mode is Mode 1, LED 8 will ash one time
If the current mode is Mode 2, LED 8 will ash two times
If the current mode is Mode 3, LED 8 will ash three times
Pressing the button a second time will change to the next
mode.
1. Turn off computer and monitor
2. Connect DVI male extension cable between the PC and the “video in” port of splitter
3. Connect all the monitors to the DVS 8P
4. Connect the power cord and turn on the splitter
5. Turn on PC and monitors
DVS-8P FRONT
DVS-8P FRONT

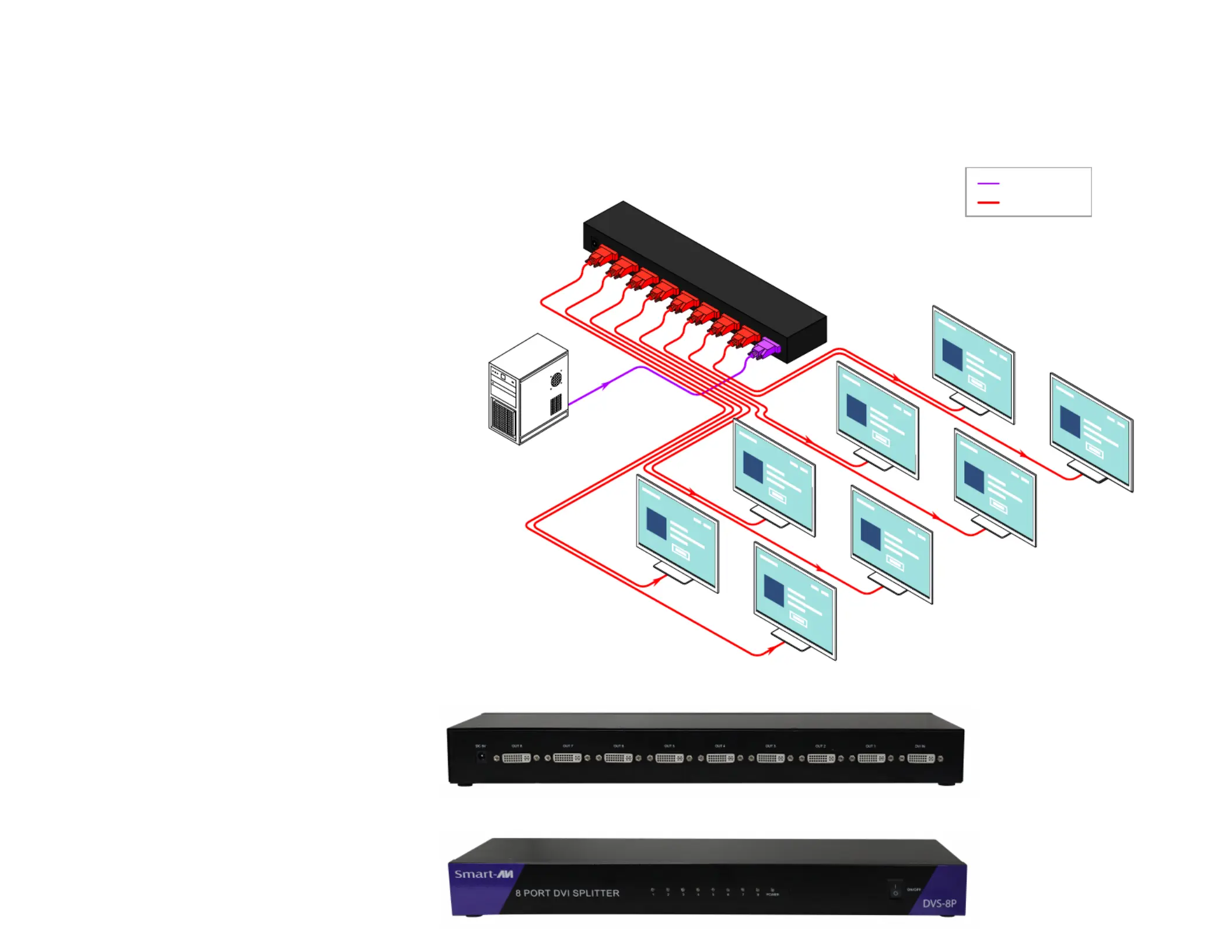

HARDWARE INSTALLATION
DVI IN
DVI OUT
DVS-8P
DC 5V DVI 8 DVI 7 DVI 6 DVI 5 DVI 4 DVI 3 DVI 2 DVI 1 DVI IN
OPERATION FOR CASCADE
If you need to add more monitors, you need to attach an
additional splitter box.
Connect a DVI male/male extension cable between a Video
OUT port or the primary splitter (the splitter connected to
the computer) and the Video IN port on the cascade splitter.
NOTE: Even though you can cascade the splitter, the
image might become unstable if you cascade too many
tiersof splitter.
