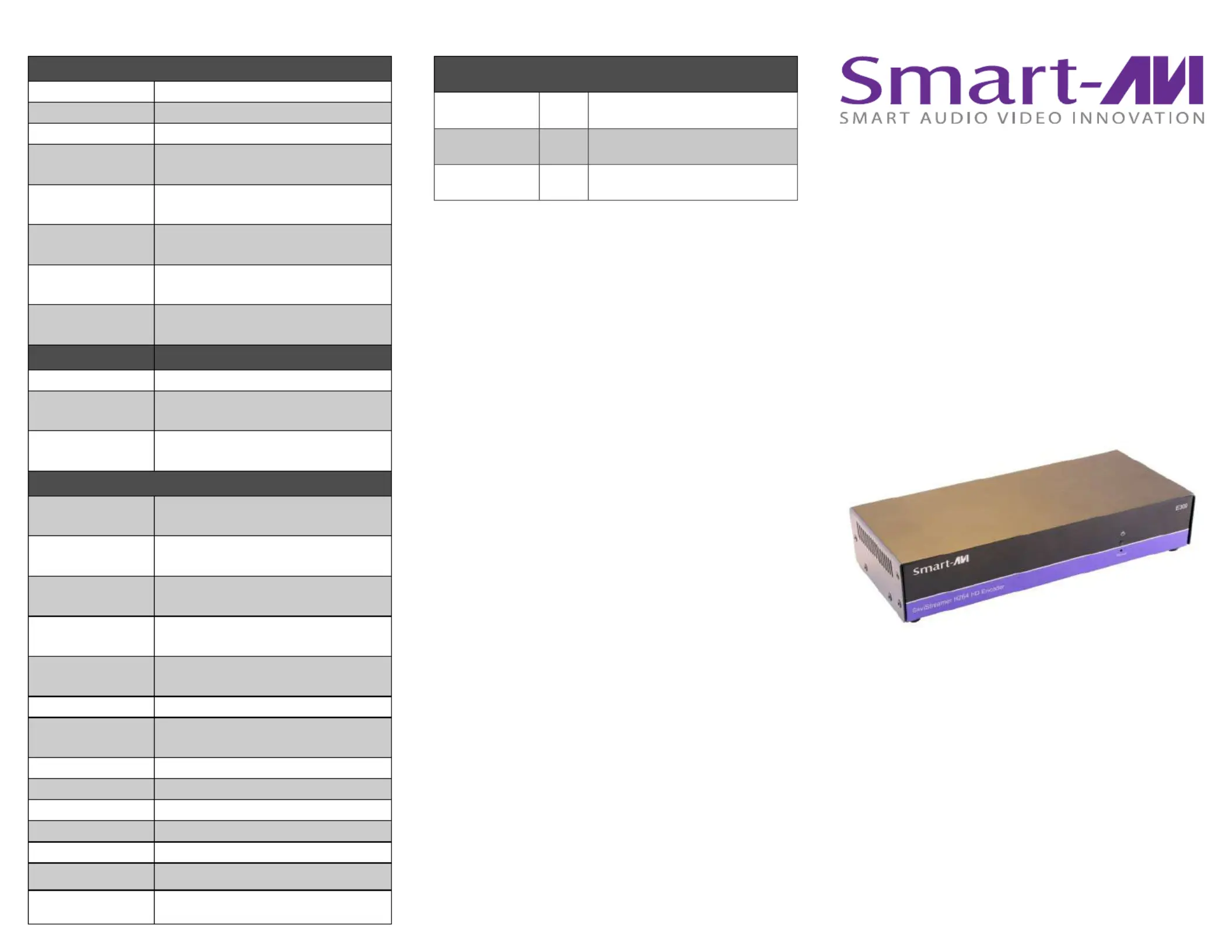

SaviStreamer E300
Encoder
Quick Star
Quick Star
Quick Star
Quick StarQuick Start Guide
t Guide
t Guide
t Guide t Guide
800.AVI.2131
Tel: (818) 503- Fax: (818) 503- 6200 |
|
|
|| 6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
NOTICE
The information contained in this document is subject
to change without notice. SmartAVI makes no
warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained herein
or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20170525
Capture and stream or record high-
definition A/V signals from a media
source and create a seamless
extension over IP to one or more
decoder units
Full HD, Low-Bandwidth
1080p Streaming Encoder
TECHNICAL SPECIFICATIONS
VIDEO
Format HDMI 1.4 / VGA
DVI Compliance Single-link DVI-D 1.1 w/ adaptor
HDCP Compliance 1.0/1.1
Resolution Up to 3840 x 2160 @30Hz
Outputs (1) HDMI Local loop with Digital L-
PCM Audio, (1) VGA HD15 Analog
Inputs (1) HDMI with Digital L-PCM Audio,
DVI with HDMI to DVI adapter
Maximum Cable
Length HDMI 20 ft.
Video Stream
Output MPEG-4 Part 10 / AVC (H.264)
AUDIO
Audio Input (1) 3.5 mm, analog stereo
Audio Output (1) 3.5 mm local loop, analog ste-
reo
Audio Stream
Support MPEG4-GENERIC, MPEG4-LATM
OTHER
Network
Connector (1) RJ- 45
Streaming
Protocols RTP, RTSP, RTCP, UDP
Command
Protocols TCP/IP, UPnP, HTTPS
USB (1) Type B Female, Firmware up-
date only
RS- 232 (1) DB9 Female, Function forth-
coming
Compression H.264/Mpeg4 Part 10 (AVC)
4 Pin-Din
Connector Power, Do not use.
Power Adapter PS5VDC4A
Dimensions 9” W x 4” D x 1.8” H
Weight .75 lbs.
Working Temp. 32 to 113°F (0 to 45 °C )
Working Humidity 20 to 80% RH (no condensation)
Storage Temp. -40 to 131°F (-40 to 55 °C )
Storage Humidity 5 to 95% RH (no condensation)
WHAT’S IN THE BOX
PART NO. QTY DESCRIPTION
SAVI- -E300 1 ST 1080p H.264 Streaming
Encoder
PS5VDC4A 1 Power Adapter
1 Quick Start Guide
HARDWARE INSTALLATION
1. Position the E300 conveniently and keep it unplugged.
2. Connect the E300 HDMI IN connector to an HDMI Source.
3. Optionally connect a VGA or HDMI display to the E300 VGA or HDMI OUT connector for local
monitoring of the streaming video signal and power on the display.
4. Connect the RJ45 LAN port on the E300 to your network.
5. Power on the E300 Encoder and wait a few seconds for the unit to initialize.
6. Use IP scanner software to identify the IP address of the E300 and make a note of it.
7. Power off the E300.
8. See the D300 decoder documentation to set up the decoder at this point. When the D300 is
ready continue with the next step.
9. Power on the E300 Encoder and wait a few seconds for the unit to initialize.
10. Power on the connected video source and start streaming to the E300.
11. If needed power cycle or reboot the D300 decoder to start displaying the video stream.
INTRODUCTION
The E300 video distribution over IP solution consists
of an E300 encoder and decoders that can extend or
record Up to 3840 x 2160 @30Hz video and audio
over a standard network at user-defined low bit rates
for excellent quality and minimal network bandwidth
consumption. The E300 encoder streams or records
high-quality video and audio and uses the H.264
video compression standard. It can stream to D300
decoders or any device or PC that supports the re-
quired network protocols. It can also record to a
shared network or NAS drive.
FEATURES
Extend/record Up to 3840 x 2160 @30Hz video and
audio
H.264 compression for high-quality, low-bandwidth
AV-over- IP
Support for wide-screen & standard aspect ratios
and many resolutions
Scale streams before distribution for lower band-
width consumption
HDMI or analog audio support
Record up to 1080p@60Hz/1920x1200 to a shared
network drive
Recorded user-defined file name includes timestamp
for easy file management
Operates on standard 100/1000Mb Ethernet net-
works
Network bit-rate control (100 Kbps 25 Mbps) –
Fine-tune encode/decode parameters and adjust bit
rates
Reliable, solid-state, energy-efficient design
Local real-time pass-through and confidence preview
on encoder
User access from secured PC
APPLICATIONS
Retail Store Displays
Business Lobbies
Restaurants
Digital Signage
Airports & Transportation Hubs
Hospitals
Schools & Universities Figure 1
