USB 2.0 Extender over Fiber
EXTENDS USB 2.0
UP TO 10 KM
OVER FIBER CABLE
IN SINGLE MODE
Quick Start Guide
USB
Signal Type USB 2.0
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
Power External 100-240 VAC/5VDC3A
Dimensions 4.3” W x 1.1” H x 2.5” D
Weight 1.5 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95% (non-condensing)
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
(888)-994-7427, (702)-800-0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
USB2FX
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
USB2FX-TX 1 USB 2.0 over Fiber Transmitter
USB2FX-RX 1 USB 2.0 over Fiber Receiver
PS5VD3A 2 5V 3A Power Supply
Quick Start
Guide 1
OVEVIEW
SmartAVI’s extends standard USB (Universal Serial Bus)
2.0 signals up to 10 km (6.2 miles) in Single mode and
500 ft in Multimode using a single ber cable. The USB2FX
supports all USB 2.0 high-speed devices, from keyboards
to digital cameras, and will operate on Windows®, Mac®
and Linux® operating systems. An integrated four-port hub
allows for multiple devices to be connected to the USB2FX
at once. Additional USB hubs can be added, increasing the
number of devices that can be plugged into the USB2FX.
FEATURES
• Extend USB2.0 up to 10 km in Single mode
and 500 in Mulmode
• Supports All USB 2.0 and 1.1 Devices Transparently
(Flash Drives, Printers, Cameras, Scanners, etc.)
• Supports USB 1.1 Keyboard and Mouse
• Works on Windows, Mac
and Linux Operang Systems
• Integrated Four-Port Hub
• How-swappable SFP module
• Power Adapter for Remote Unit
• Plug-and-Play
USB2FX-TX Transmitter
1. Power off all devices.
2. Connect the KM source device (computer) to the USB2FX-TX with a USB cable using the USB-B input port.
3. Insert an SFP transceiver into the SFP uplink port on the USB2FX-TX transmitter.
4. Install a ber-optic cable into the SFP transceiver attached to the USB2FX-TX transmitter.
5. Connect a power supply to the USB2FX-TX.
USB2FX-RX Receiver
1. Insert an SFP transceiver into the SFP uplink port on the USB2FX-RX receiver.
2. Install the ber-optic cable into the SFP transceiver attached to the USB2FX-RX receiver.
3. Connect the USB2FX-RX to the desired peripherals using the USB-A output ports.
4. Connect a power supply to the USB2FX-RX.
5. Power on all devices.
HARDWARE INSTALLATION
< • • • >
USB2FX
Receiver
USB2FX
Transmitter
< • • • >
Up to 10 km
USB IN
USB OUT
FIBER

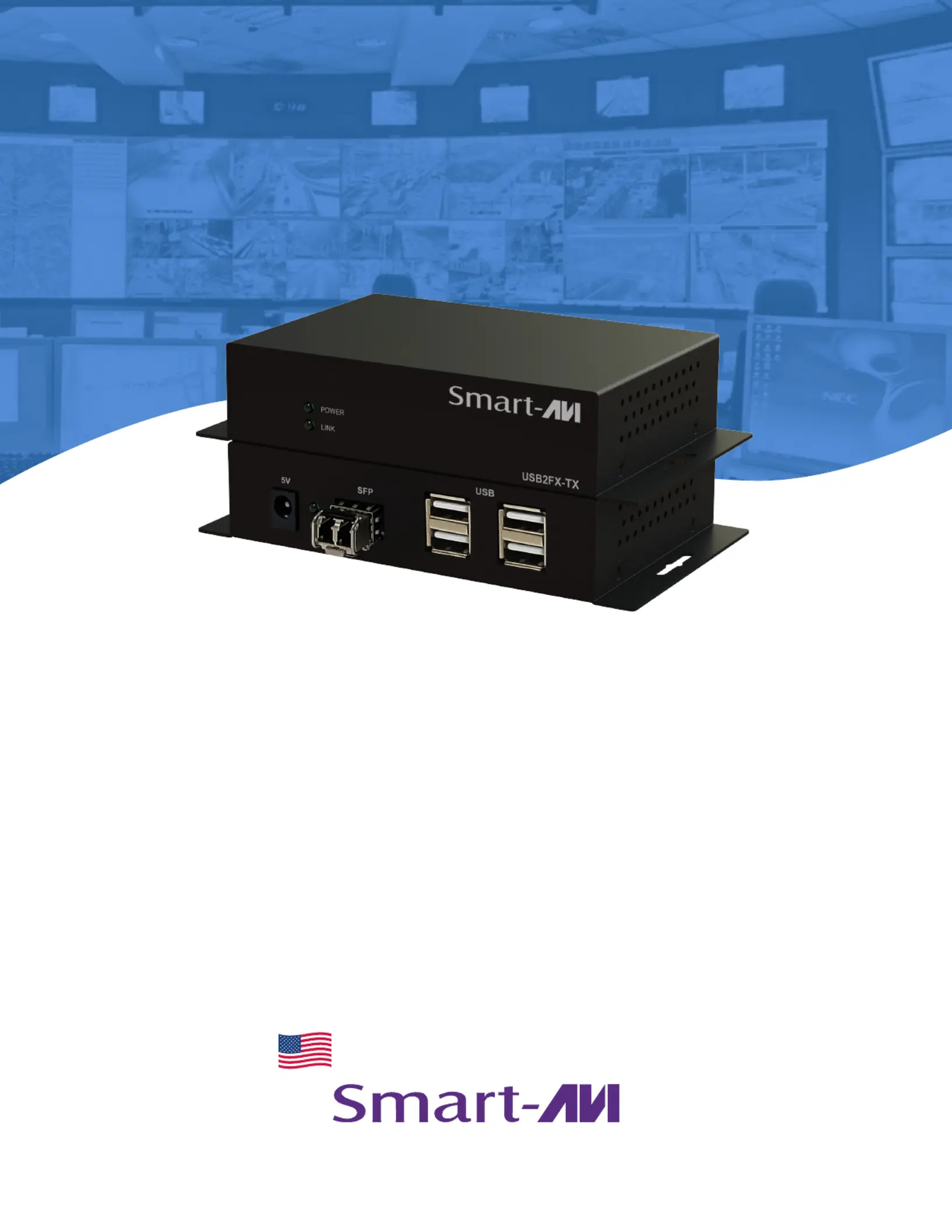

USB2FX-TX Front panel
USB2FX-RX Front panel
USB2FX-RX Back panel
USB2FX-TX Back panel
