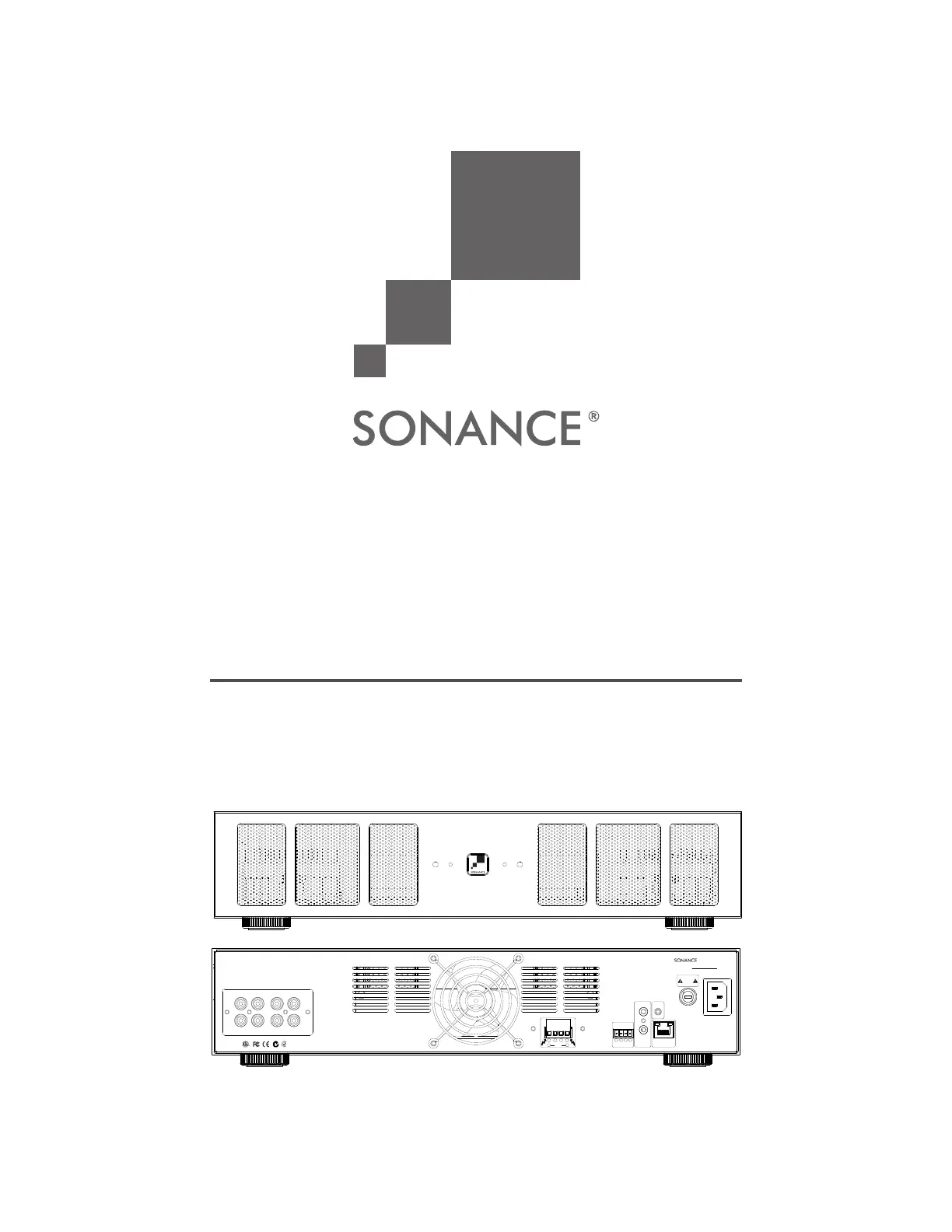

SONAMP MULTI-CHANNEL POWER

AMPLIFIER WITH S ARC V2on

I N S T R U C T I O N M A N U A L

DSP 2-750 MKII

TABLE OF CONTENTS

Safety 2

Introduction/Box Contents 3

Front Panel/Rear Panel 4

Amplier Power Requirements 6

Connections & Volume Level Controls 7

Protection Circuitry & LEDs/Stacking 8

Network Connection Instructions 9

Basic Setup 9

Advanced Setup 10

Specications 15

Appendix A & B 16

Troubleshooting 17

Warranty 19

IMPORTANT SAFETY INFORMATION

1. Read Instructions — All these safety and operating

instructions should be read before you operate the unit.

2. Retain Instructions — These safety and operating

instructions should be retained for future reference.

3. Heed Warnings — All warnings on the unit and in the

operating instructions should be adhered to.

4. Follow Instructions — All operating and use instructions

should be followed.

5. Water and Moisture — The unit should not be used near

water — for example, near a bathtub, washbowl, kitchen

sink, in a wet basement, or near a swimming pool, etc.

6. Carts and Stands — The unit should be

used only with a cart or stand that is

recommended by the manufacturer.

A unit and cart combination should be

moved with care. Quick stops, excessive

force, and uneven surfaces may cause

the unit and cart combination to overturn.

7. CAUTION: To prevent electric shock, do not use the

subwoofer’s polarized plug with an extension cord,

receptacle, or other outlets unless the blades can be

fully inserted to prevent blade exposure.

8. Ventilation — The unit should be situated so that its

location or position does not interfere with its proper

ventilation. For example, the unit should not be placed in a

built-in installation, such as a bookcase or cabinet, that may

  impedetheowofairoverthebackplate.

9. Heat — The unit should be situated away from heat

sources such as radiators, heat registers, stoves, or other

appliances (including other audio components) that

produce heat.

IMPORTANT: READ ALL OF THESE INSTRUCTIONS BEFORE YOU

INSTALL OR OPERATE YOUR SUBWOOFER AND SAVE THESE

INSTRUCTIONS FOR LATER USE.

The lightning flash with arrowhead

symbol, within an equilateral

triangle, is intended to alert the

user to the presence of uninsulated

dangerous voltage within the

product s enclosure that may be of ’

sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within

an equilateral triangle is

intended to alert the user to the

presence of important operat-

ing and maintenance

(servicing) instructions in the

literature accompanying the

appliance.

10. Power Sources — The unit should be connected to a

power supply only of the type described in the operating

instructions or as marked on the unit.

11. Accessories and Attachments — Only use accessories

  andattachmentsspeciedbythemanufacturer.

12. Grounding or Polarization — Precautions should be

taken so that the grounding or polarization means of the

unit is not defeated.

13. Power Cord Protection — Power cords should be routed

so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular

attention to cords at plugs, convenience receptacles, and

the point where they exit from the controller.

14. Cleaning — The unit should be cleaned only as

recommended by the manufacturer.

15. Non-Use Periods — The power cord of the unit should be

unplugged from the outlet when left unused for a long

period of time.

16. Object and Liquid Entry — Care should be taken so that

objects do not fall and liquids are not spilled into the

enclosure through openings.

17. Damage Requiring Service — The unit should be

 servicedbyqualiedservicepersonnelwhen:

• The power cord or the plug has been damaged.

• Objects have fallen or liquid has been spilled into the unit.

• The unit has been exposed to rain.

• The unit does not appear to operate normally or exhibits

a marked change in performance.

• The unit has been dropped or the enclosure damaged.

18. Servicing — The user should not attempt to service the

unit beyond that described in the operating instructions.

  Allotherservicingshouldbereferredtoqualied

service personnel.

This device complies with part 15 of the FCC Rules.

Operationissubjecttothefollowingtwoconditions:

(1) This device may not cause harmful interference

(2) This device must accept any interference received,

including interference that may cause

undesired operation.

InaccordancewiththeEuropeanUnionWEEE(WasteElectricalandElectronicEquipment)directiveeective

August 13, 2005, we would like to notify you that this product may contain regulated materials which upon

disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason

Sonance has arranged with our distributors in European Union member nations to collect and recycle this

productatnocosttoyou.Tondyourlocaldistributorpleasecontactthedealerfromwhomyoupurchased

this product. Please note, only this product itself falls under the WEEE directive. When disposing of packaging

and other related shipping materials we encourage you to recycle these items through the normal channels.

DSP 2-150 MKII

Amplier

Tested to comply

with FCC Standards for

homeoroceuseonly.
