Sida 1/68

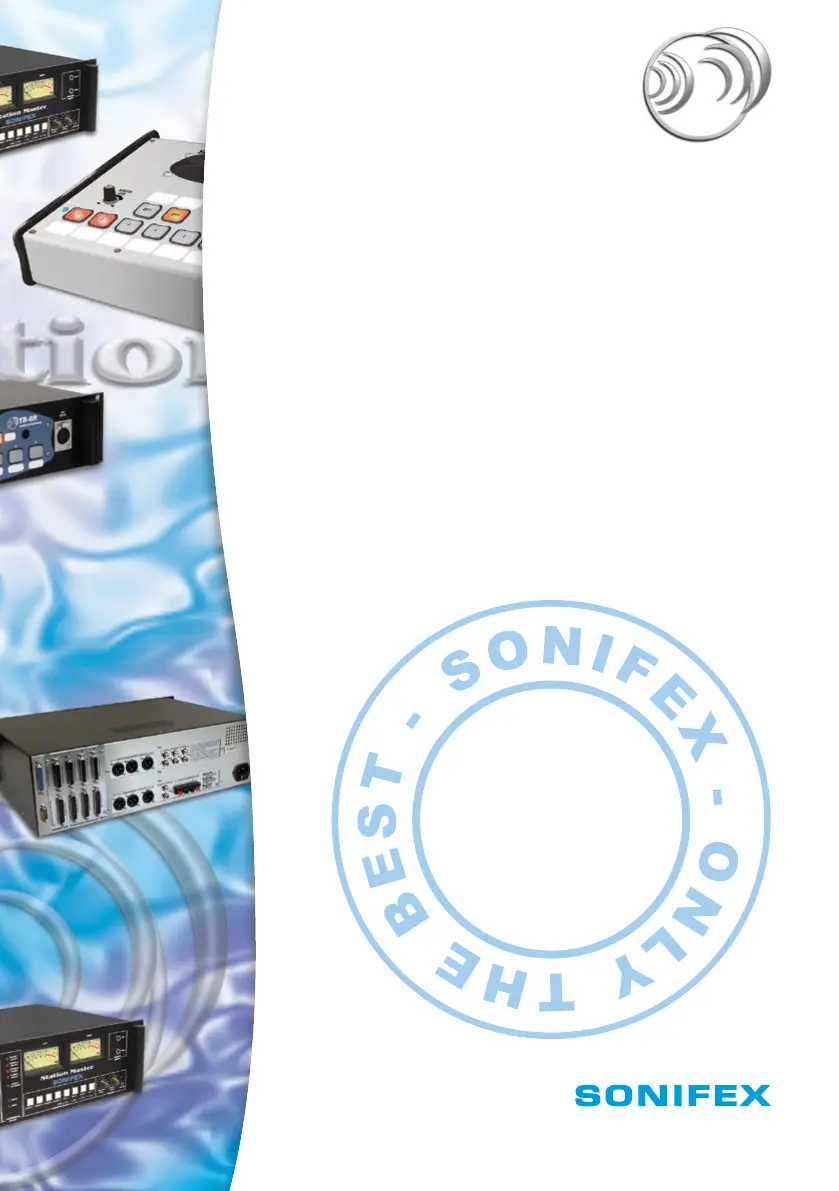

Station Master &
Talkback Intercoms
User Handbook
Station Master & Talkback Intercoms Handbook
This handbook covers the following product stock codes:
SM-24 Station Master for 2 studios (PPM and VU)
SM-44 Station Master for 4 studios (PPM and VU)
SM2 Add on card to upgrade from an SM24 to SM44
TB-6D Talkback Intercom 6 Way, desktop free standing
TB-6R Talkback Intercom 6 Way, 19 inch rack mounted
TB-SD Talkback Intercom Station Master, desktop free standing
TB-SR Talkback Intercom Station Master, 19 inch rack mounted
Revision 2.04 February 2020
©Sonifex Ltd, 2000-20
All Rights Reserved
Sonifex Ltd, 61, Station Road, Irthlingborough,
Northants, NN9 5QE, England.
Tel : +44 (0)1933 650 700
Fax : +44 (0)1933 650 726
Email : sales@sonifex.co.uk or technical.support@sonifex.co.uk
Web : http://www.sonifex.co.uk
Information in this document is subject to change without notice and does not represent
a commitment on the part of Sonifex Ltd. Sonifex Ltd shall not be liable for any loss or
damage whatsoever arising form the use of information or any error contained in this
manual.
No part of this manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying, recording, or information storage and
retrieval systems, for any purpose other than the purchaser’s personal use, without the
express written permission of Sonifex Ltd.
Unless otherwise noted, all names of companies, products and persons contained herein are
part of a completely ctitious adaptation and are designed solely to document the use of
Sonifex products.
Station Master & Talkback Intercoms Handbook
CONTEN TS
CONTEN TS
Warranty & Safety Information i
Warranty and Liability i
Returning the Warranty Card iii
Unpacking the Station Master/Talkback Intercom iii
Safety of Mains Operated Equipment iv
Fuse Rating iv
Power Cable and Connection iv
WEEE & RoHS Directives - Sonifex Statement v
Reporting Faults vi
1 Station Master Introduction 1
Introduction 1
Studio Switching 1
Delay Control 1
Monitoring 2
Audio Distribution 2
Talkback 2
Logging 2
Power Failure 2
Installation Notes 2
Atmosphere 2
Electromagnetic Radiation 2
Connectors and Cabling 3
XLR 3 Pin Connectors 3
¼” ‘A’ Gauge Stereo Jack Plugs 3
D-Type Connectors 4
2 Operation 5
Conguration Flowchart 5
Studio Feeds, Transmission Outputs and Logging Outputs 6
Studio Feeds 6
Transmission Outputs 6
Logging Outputs 6
Logging O-Air instead of Pre-Transmission 6
Monitoring 7
Monitoring Options 8
Enabling Talkback Over the Monitors 8
Mixing or Ducking the Normal Monitor Output During Talkback 9
Fixing the Monitor Output Level for the Phono Connectors 9
Oer and Accept Switching 10
Talkback 11
Delay and Dump Control 13
External Inputs 13
Routing Of External Inputs 13
Altering the External Input Levels 14
3 Connection Details 15
Audio Connections 15
Audio In/Out 1 - 4 16
Studio Controls 17
Controls In/Out 1 & 2 17
Controls In/Out 3 & 4 18
Transmission Outputs 19
Logging Outputs 19
Balanced Logging Outputs 19
Unbalanced Logging Outputs 19
Other Connectors 20
