Sida 1/30

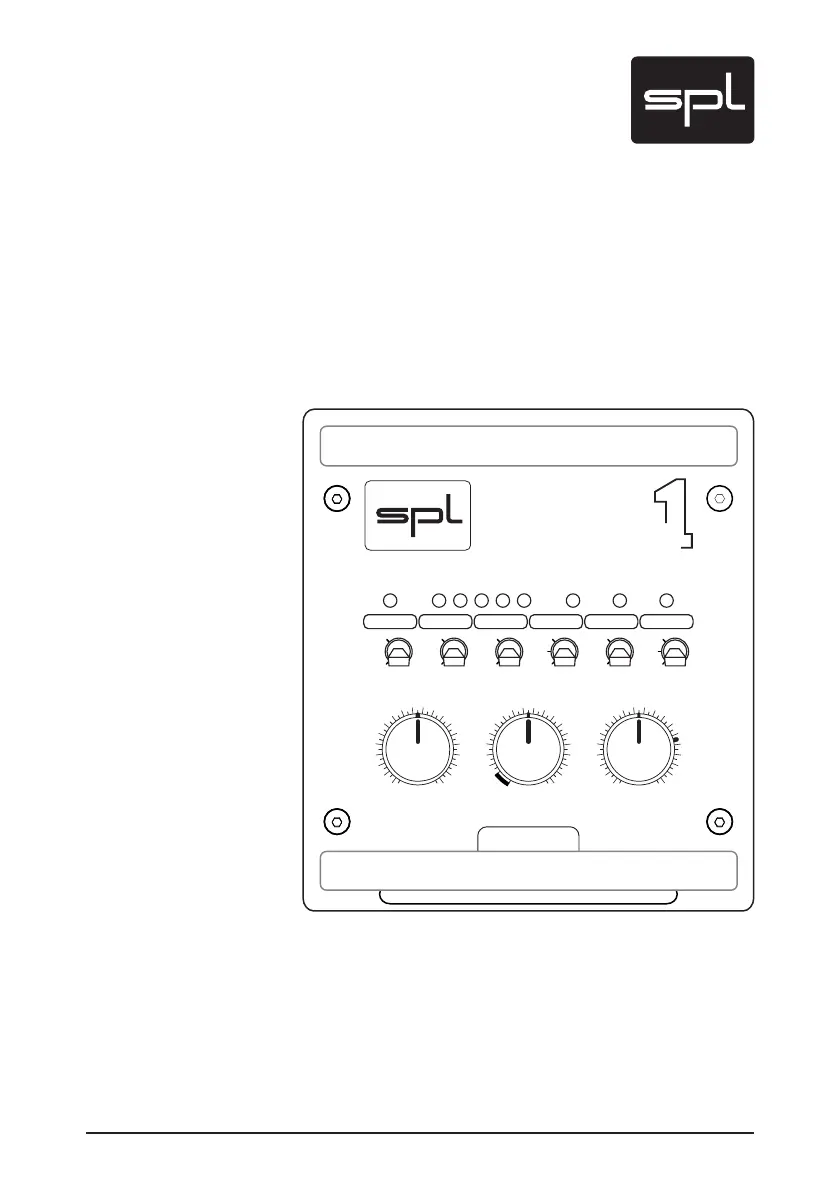

Models 2272, 2273
User’s Guide
GainStation 1
Single channel microphone and instrument preamplifier
N
I
A
G
E
B
U
T
N
I
A
G
N
A
E
L
C
T
u
b
e
+
F
e
t
O
f
f
Gain
Station
10
21
19
18
15
16
14
13
12
11
22 2426 29
32
35
38
41
46
54
63
dB dB
L
E
V
E
L
T
U
P
T
U
O
-26 6
-10
-12
-14
-18
-16
-20
-22
-24
-25
-9 -8 -6-5
-2.5
0
2
3.5
5
5.5
dB
16
12
9
6
7.5
4
2.5
1
18 202122
23
24
24.5
25
25.5
25.8
26
Clip
Hi Z
Mic
SOURCE
Off
50
Hz
HI PASS
Off
+Fet
LIMITER
Peak
Nor.
PHASE
Rev. On
PHANTOM
-30 0 dB 9
18
1.2k
200
IMPED. Ω
10k
Off
Power Limit
48V
AD OVL
Mic dB : +7
w/transformer
Class A
Class A
Class A
Class A
Class A Class A
Discrete High-Gain Preamplifier / Model 2272
4GainStation 1
Introduction
Input makes all the difference.
Modern audio production relies increasingly on digital systems
for recording and mixing processes (DAW‘s, digital consoles
etc.). The advantages of digital audio are manifold and include
affordable storage, comfortable editing, recall capabilities and
automation. On the downside, digital systems still do not
offer the same audio qualities and sound characteristics of
high-end analog equipment. Especially digital equalizers and
other aspects of the mixing domain cannot compete with the
open, transparent sound of the best analog gear. So today
more than ever, your input signal has to sound as good as
possible—the quality of your original tracks will largely define
the end result. Lifeless or dynamically lacking signals are often
over-processed with EQ, compression and other effects in an
attempt to compensate—often an extremely tedious process
in the digital domain that doesn‘t always produce the desired
results.
Attacking this problem on the preamplification front, with the
goal of noticeably improving a signal and sending it along its
path with a healthy foundation, requires a great deal of thought
and engineering effort. To this end, the GainStation 1 employs
technologies that not only satisfy test equipment, but also—and
most importantly—the user. Components and circuits were care-
fully chosen and designed on the basis of extensive measure-
ments and listening tests. In short, developing the GainStation 1
was a major undertaking that required immense amounts of
time and experience.
Another important goal in designing the GainStation 1 was that
the case itself should optimally adapt itself to modern produc-
tion environments. It was to be as compact as possible, allo-
wing easy transport and ergonomic placement in virtually any
situation. A free-standing case which does not need to be rack-
mounted has several advantages: not only are the inputs and
outputs always easily accessible, but the unit can also easily be
placed on top of an amp, outboard rack or even some keyboards,
on your desk next to your laptop, or in direct proximity to
a microphone to allow for maximum operational comfort and
minimum cable lengths.
GainStation 1 5
Introduction
To accommodate portability, the optionally available SPL
GainBag ensures safe transport of the GainStation 1 and offers
additional storage for cables and an average-sized micro-
phone.
For more permanent installations, up to four GainStation 1‘s can
be rack-mounted in one optionally available 3-unit rack space
mounting frame.
Main technical features of the GainStation 1
• Custom-designed and built, fully discrete, class A op-amps (no
off-the-shelf stuff here). The GainStation‘s op-amps feature
60-Volt operating voltage—twice as high as most common
op-amps—for an incredible dynamic range.
• An extremely high amplifier slew rate of 200 V/microsecond,
ensuring clean transmission of high-frequency signal portions
and rapid transients with virtually no cut-off.
• An almost entirely DC-coupled signal path, making signal-
degenerating condensers unnecessary.
• An optimized layout guarantees the shortest possible signal
paths, while generously proportioned grounding surfaces
ensure low impedance and maximum shielding.
• All switching functions are handled by encapsulated relays
with gold-plated contacts.
• All resistors are within 0.1% tolerance and were selected after
extensive listening tests.
• A no-compromise power supply with extensive additional
shielding and seven separately wound and regulated voltages.
The power supply is of primary importance to audio quality;
its importance should not be underestimated.
• A tube stage utilizing premium MKP foil condensers and a
select 12 AX7 LPS tube for clear, dynamic audio.
