SPL Phonitor e Bruksanvisning
Läs nedan 📖 manual på svenska för SPL Phonitor e (26 sidor) i kategorin mottagare. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/26
Professional Fidelity
Mastering Grade Listening
VOLTAiR
120V DC Audio Rail
SOURCE
DigitalRCA
XLR
DIGITAL
Coaxial Balance d IR Standard
Optical
USB

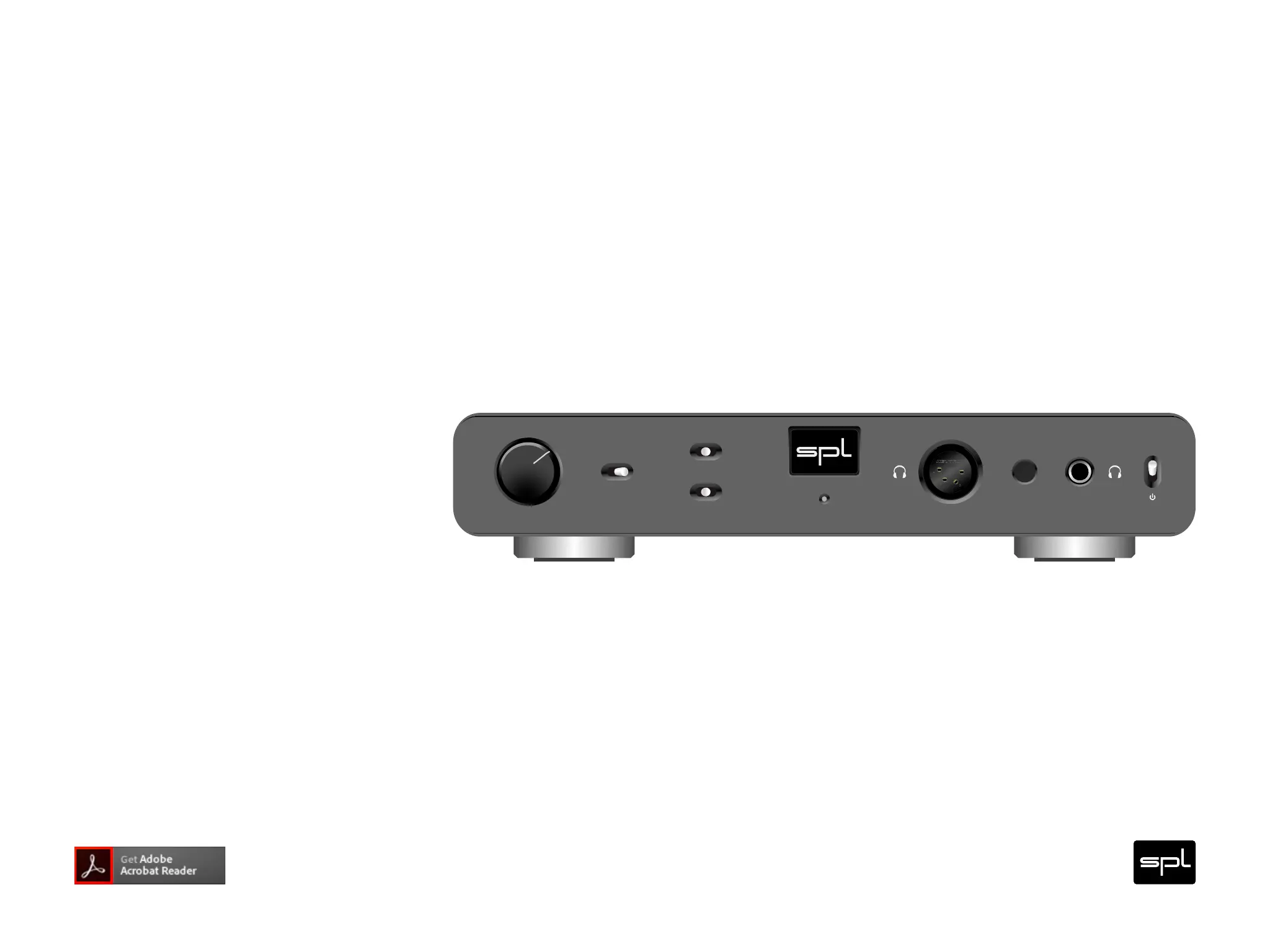

Phonitor e
Headphone Amplifier
C1 C2
Off
MATRI X
V
O
L
U
M
E
ON
Phonitor e – User Manual
Headphone Amplier
This User Manual is optimized for
Acrobat Reader.
Interactive buttons may not
appear in other applications.
2
Welcome
and thank you for purchasing the Phonitor e.
The Phonitor e is the ultimate headphone amplifier. It offers connections for headphones operated both balanced
and unbalanced. With up to . W output power the Phonitor e delivers an impressive performance.
Up to five input sources can be connected. The Phonitor e features two analog stereo inputs (XLR and RCA) and
optionally three digital audio sources (USB, coaxial, optical).
VOLTAiR technology is what we also call the SPL V Rail Technology within the Professional Fidelity series. This
makes the Phonitore an outstandig device in terms of dynamic range, signal-to-noise ratio and headroom delivering
an exceptional sound experience with invincible serenity, transparancy and realness.
VO L T A iR
120V DC Au dio Rail
SOUR CE
DigitalRCA
XLR
DIGITAL
Coaxial Balanced IR Standard
Optical
USB
Phonitor e
Headphone Amplifier
C1 C2
Off
MATRIX
V
O
L
U
M
E
ON Phonitor e
Serial
Number
Voltage Selection:
1. Remove Fuse Holder
2. Exchange Fuses
3. Flip Over
4. Reinstall
Fuses:
230 V: T 500 mA L 250V
115 V: T 1 A L 250V
~115 V AC/~230 V AC,
50 Hz/60 Hz, P ma x. 30 W
Mad e in Germany ON BOT TOM SIDE:
DIP SW ITCHES
1 ON: Output +22dBu
2 ON: RC A -10dB V to 0dBu
RISK OF E LECTRIC SHOCK
D O NO T O PE N
CA U T I ON
RISQUE DE CHOC ÉLECT RIQUE
N E PA S O UV R IR
AT T EN T IO N
ANALOG SOURCES DIGITAL SOURCES
LR
USB
OPTICAL
COAX
PGM
VOLUME
Refer to
Manual
IR
Pin 2 +
L
R
I
F
R
B
Content
Getting started 4
Front view 5
Rearview 6
Bottom view 7
DIP switches 7
VOLTAiR – V Rail Technology 120 8
Comparisons 9
Phonitor Matrix 11
Basics of stereo listening 11
Stereo listening with an “traditional“ headphone preamplifier 12
How does the Phonitor Matrix work? 13
Angle 14
Crossfeed 15
Phonitor Matrix presets 16
Source selection 17
Headphone outputs 18
IR Remote control 19
DIP switches 21
Level increase of the headphone output 21
RCA input – HiFi level / Studio level 21
Specifications 22
Inputs 22
Outputs 23
Internal operating voltages 25
Power supply 25
Dimensions (incl. feet) 25
Weight 25
Important Notes 26
Declaration of CE Conformity 26
I
F
R
B
