Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: December 23, 2020

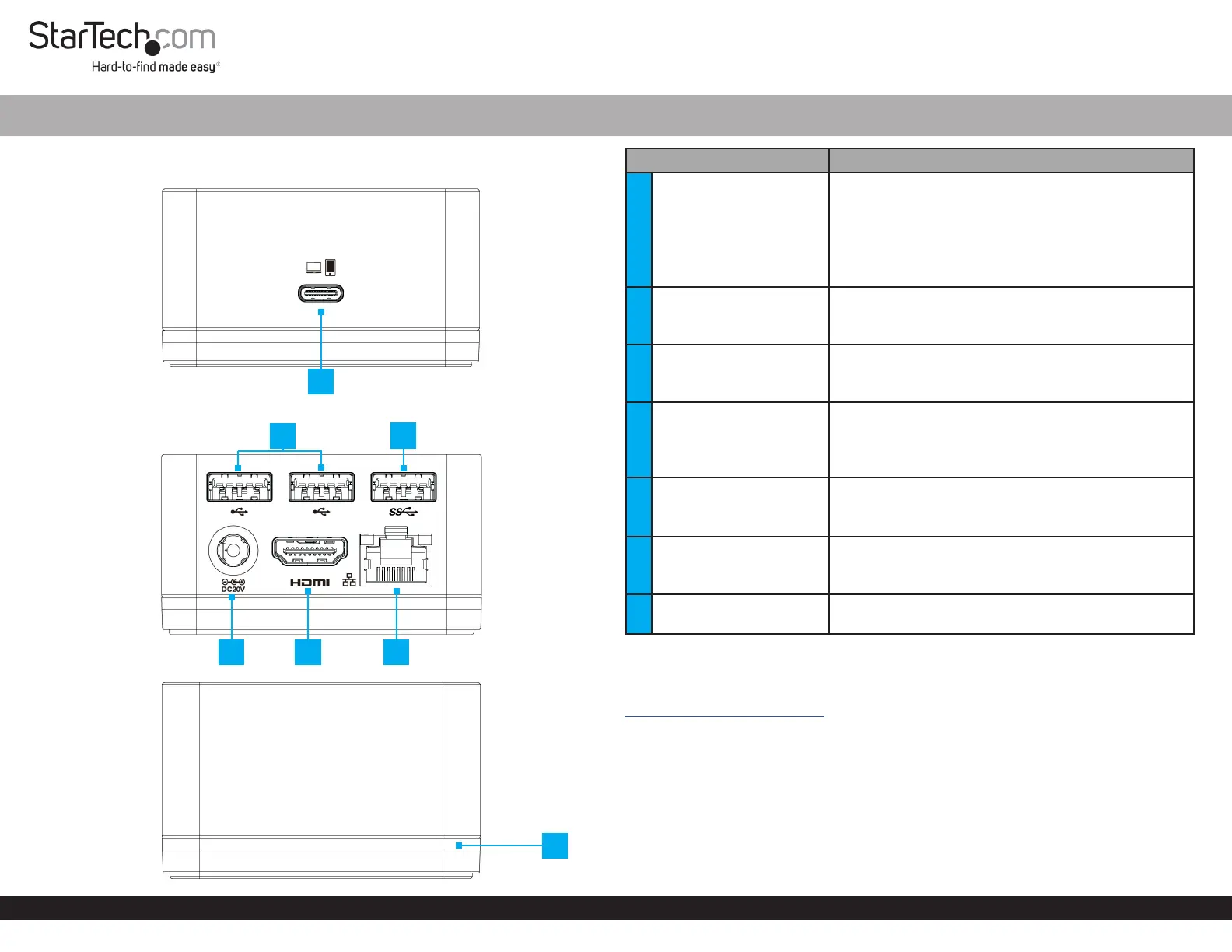

Product Diagram (DK30CHPH)

Front View

Rear View

Side View

USB-C™ HDMI Tablet and Smartphone Docking Station - iPad Pro & Android - HDMI

Port Function

1USB-C Host Port

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• DP 1.2 Alt Mode

• Charge the while using the Host Device Docking

Station

• PD3.0 5/9/12/15V

• Connect to a or a Phone Tablet

2USB 2.0 Ports

• USB 2.0

• Connect a (e.g. ash drive), USB-A Storage Device

or a USB-A Peripheral Device

3SuperSpeed USB Port

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Connect a (e.g. ash drive), USB-A Storage Device

or a USB-A Peripheral Device

4DC Power Input Port

• Type-N barrel connector

• 45W (20V 2.25A)

• Connect the to supply Universal Power Adapter

power to the Docking Station

5HDMI Output Port

• HDMI 2.0b

• 4K @ 30Hz

• Connect an HDMI Display Device

6RJ45 Port

• 10/100/1000 Mbps

• Connect a to establish a network Network Cable

connection

7LED Indicator • Green Host Device Power indicates the and

Source are connected

Requirements

For the latest requirements and to view the full manual, please visit:

www.startech.com/DK30CHPH.

• Host Computer with USB-C Port

• DP-Alt Mode Compatible

• USB PD Support

4 5 6

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

iPad Pro® is a trademark of Apple Inc., registered in the U.S. and other countries.

Warranty Information

This product is backed by a three-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto p2-ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: fr.startech.com

DE: de.startech.com

ES: es.startech.com

NL: nl.startech.com

IT: it.startech.com

JP: jp.startech.com

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

- and/or -

• Connect a to the SuperSpeed USB 5Gbps (USB 3.2 Gen 1) Peripheral SuperSpeed

USB Port Docking Stationon the rear of the .

Connect a Display

• Connect an to the on the HDMI M/M Cable HDMI Output Port Docking Station

and to the on the rear of the .HDMI Input Port HDMI Display Device

Connect to a Network

• Connect a to the on the rear of the and Network Cable RJ45 Port Docking Station

to the .Network Device

Connect a Power Source

• Connect the to the on the rear of Universal Power Adapter DC Power Input Port

the and to an .Docking Station AC Electrical Outlet

Operation

RJ45 Port LED Indicators

LED Color Status Indication

Green Solid • Link speed is either 1000 Mbps (1 GbE), 100 Mbps,

or 10 Mbps

O • No connection established

Amber Flashing • Network trac detected

On • Link detected

Installation

Notes: Installation is automatic for all modern Operating Systems.

Shutting down the (not sleep mode or restart) and leaving it iPad Pro®

connected to the before powering it back on, may result Docking Station

in no HDMI video output. If this happens, disconnect and reconnect the 1M

USB-C Cable USB-C Host Port Docking (included) from the on the front of the

Station.

Windows 7 (and earlier) Driver Installation

1. If the dialog box appears on the screen, close the dialog box Found New Hardware

or click . Cancel

Note: Once the Docking Station is connected to the , and if no existing Host Device

Drivers Docking Station CD-ROM Device are found, the will load a that contains an

executable le that can be used to install the .Driver

2. After the nishes loading, run the .CD-ROM Device Installation File

3. Complete the on-screen instructions to nish the installation.

Note: Download the latest software from the StarTech.com website,

www.StarTech.com/DK30CHPH.

Connect a Host Device

• Connect the (included) to the on the front of the 1M USB-C Cable USB-C Host Port

Docking Station USB-C Port Laptop Computer Phone, Tabletand to the on a , , or a .

Connect USB Peripherals

• Connect up to two to the on the rear of the USB 2.0 Peripherals USB 2.0 Ports

Docking Station.
