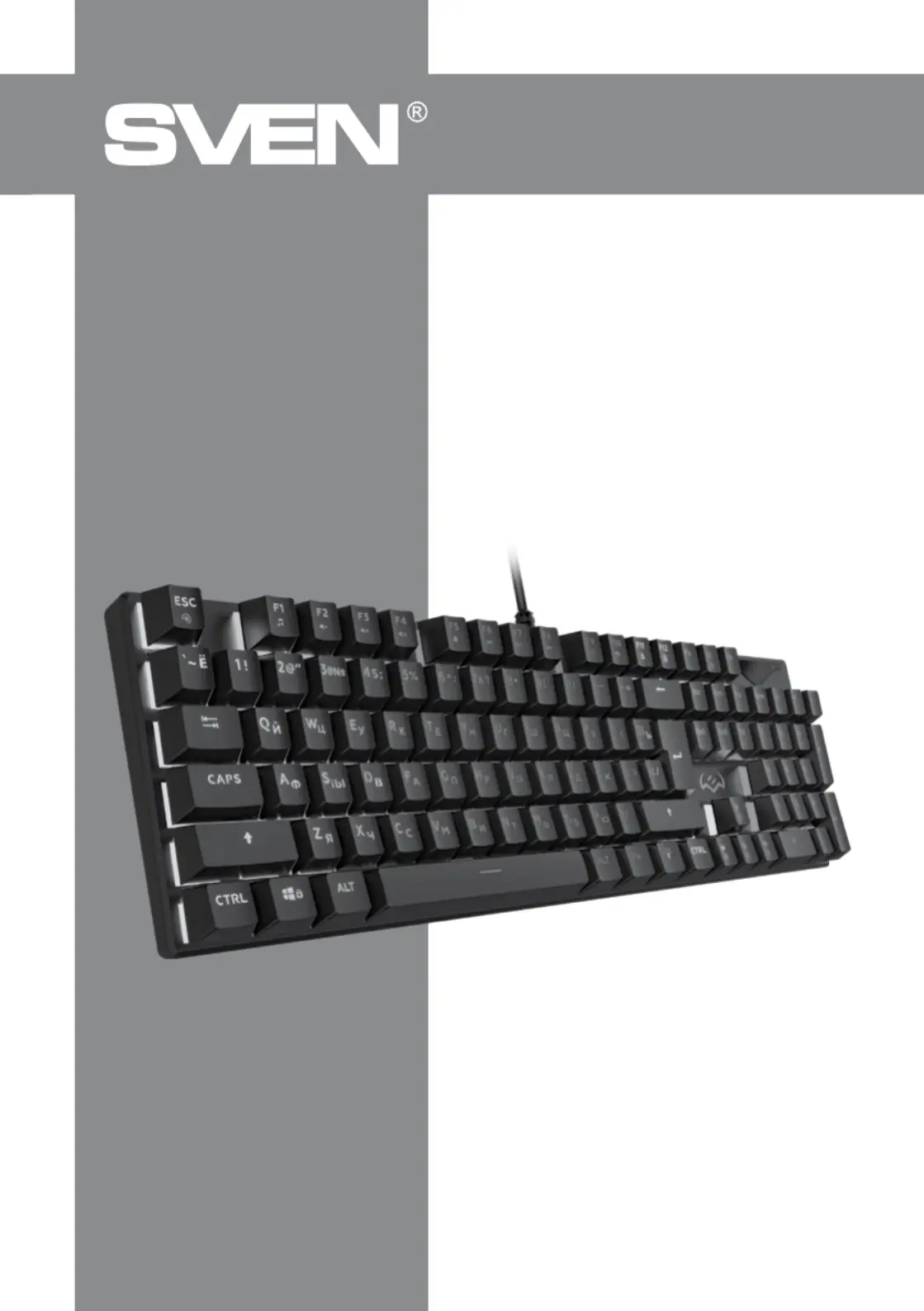

USER MANUAL
Gaming Keyboard
www.sven.fi
KB-G9300
ENG
2
Gaming Keyboard
Congratulations on the purchase of Sven keyboard!
Please read this User’s Manual before using the unit and retain this User’s Manual in safe place
for future reference.
COPYRIGHT
© SVEN PTE. LTD. Version 1.0 (24.11.2021).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted eorts to make this Manual more exact, some discrepancies may occur.
Theinformation of this Manual is given on “as is” terms. The author and the publisher donotbear
any liability to a person or an organization for loss or damages which have arisen from the infor-
mation contained in the given Manual.
UNPACKING
• Unpack the device carefully. Make sure there are no accessories left in the box. Check up
the device for damage; if the product was damaged during transportation, address the firm
which carried out the delivery; if the product functions incorrectly, address the dealer at once.
• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• -Dispose of in accordance with regulations for the disposal of household and computer equip
ment.
APPLICATION
KB-G9300 keyboard is an input device. It is designed to enter information into the computer,
aswell as controll the operation of the computer.
PACKAGE CONTENTS
• Keyboard — 1 pc
• User’s Manual — 1 pc
• Warranty card — 1 pc
SPECIAL FEATURES
• 20 additional (Fn) functions.
• WIN key lock.
• Blue switches.
• 25 anti-ghosting keys.
• Keyboard brightness backlight control.
• Foldable feet.
• High strength braided cable.
SYSTEM REQUIREMENTS
• ОС Windows.
• Free USB port.
INSTALLATION
• Connect the keyboard to an available USB port of your PC.
• Installation of keyboard is automatic after its connection to USB port of PC.
ENG
3
KB-G9300
User Manual
DESCRIPTION OF QUICK ACCESS KEYS FUNCTION
Fn + F1 Start media player
Fn + F2 Volume down
Fn + F3 Volume up
Fn + F4 Mute/Unmute
Fn + F5 Stop playing
Fn + F6 Play previous track
Fn + F7 Play/Pause
Fn + F8 Play next track
Fn + F9 Start e-mail app
Fn + F10 Open homepage
Fn + F11 Lock keyboard
Note. Press the shortcut keys while holding the Fn key.
TROUBLESHOOTING
Problem Solution
Кeyboard
is not
working.
1. Disconnect keyboard from PC and check connector pins for possible dam-
age. If there is no external damage found and connector pins are OK, connect
keyboard to PC again.
2. We recommend to address the nearest authorized service center.
TECHNICAL SPECIFICATIONS
Parameter, measurment unit Value
Q-ty of keyboard keys, pcs 104
Q-ty of keyboard shortcut keys, pcs 20 (Fn)
Keyboard layout Eng/Rus/Ukr
OS compatibility Windows
Interface USB
Dimensions, mm 425 × 120 × 35 (45)
Weight клавиатуры, g 660
Notes. Technical specifications given in this table are supplemental information andcannotgive
occasion to claims. Technical specifications are subject to change without notice due to im-
provement of SVEN production.
Fn + F12 Start calculator
Fn + WIN WIN key lock
Fn + Increase backlight brightness level
Fn + Decrease backlight brightness level
Fn + Increase backlight flashing speed
Fn + Decrease backlight flashing speed
Change backlight mode
Fn + (Scroll Lock) Turn ON/OFF backlit
Fn + W Switch WASD keys
to arrows and back
Fn + Esc Backlight mode reset
