DUAL VOLTAGE PROCESSOR - MODEL 257t
Eurorack 200 series
Model 257 Dual Control Voltage Processor consists
of two identical sections, each of which permits
several applied control voltages to define a single
output voltage according to the equation:
(Va * K) + ((Vb * (1-M)) + (Vc * M)) + Voset = V_out
The algebraic manipulations possible with this
module include addition, subtraction, scaling,
inversion, and multiplication. Also incorporated is the
capability of using one control voltage (M) to transfer
control from one applied voltage (V_b) to another
(V_c).
Functions
- Attenuverter
Va is the voltage input for attenuverter (left jack on the panel)a
K V knob can scale the incoming a voltage either positively or negatively
- Crossfader
Vb is the voltage input for the left side of the crossfader (second jack from the left)b
+.5 5 V switch adds volts to the input of b
V cc is the voltage input for the right side of the crossfader (fourth jack from the left)
M V scales b from to based on the position of knob1 0 M
M V scales c from to based on the position of knob0 1 M
The middle input at can crossfade between CV M/M Vb c and V(third jack from the left)
The knob and added together to control crossfade positionM M CV
- Oset
Voset a b c Adds volts to any combination of 0 - 10 V + V + V
- Output
Vout is the combined voltage of the attenuverter, crossfader and oset (right jack on the panel)
BUCHLA & TIPTOP AUDIO
-1 +1 0 1 0 1
. 5 . 5
-1 +1 0 1 0 1
. 5 . 5

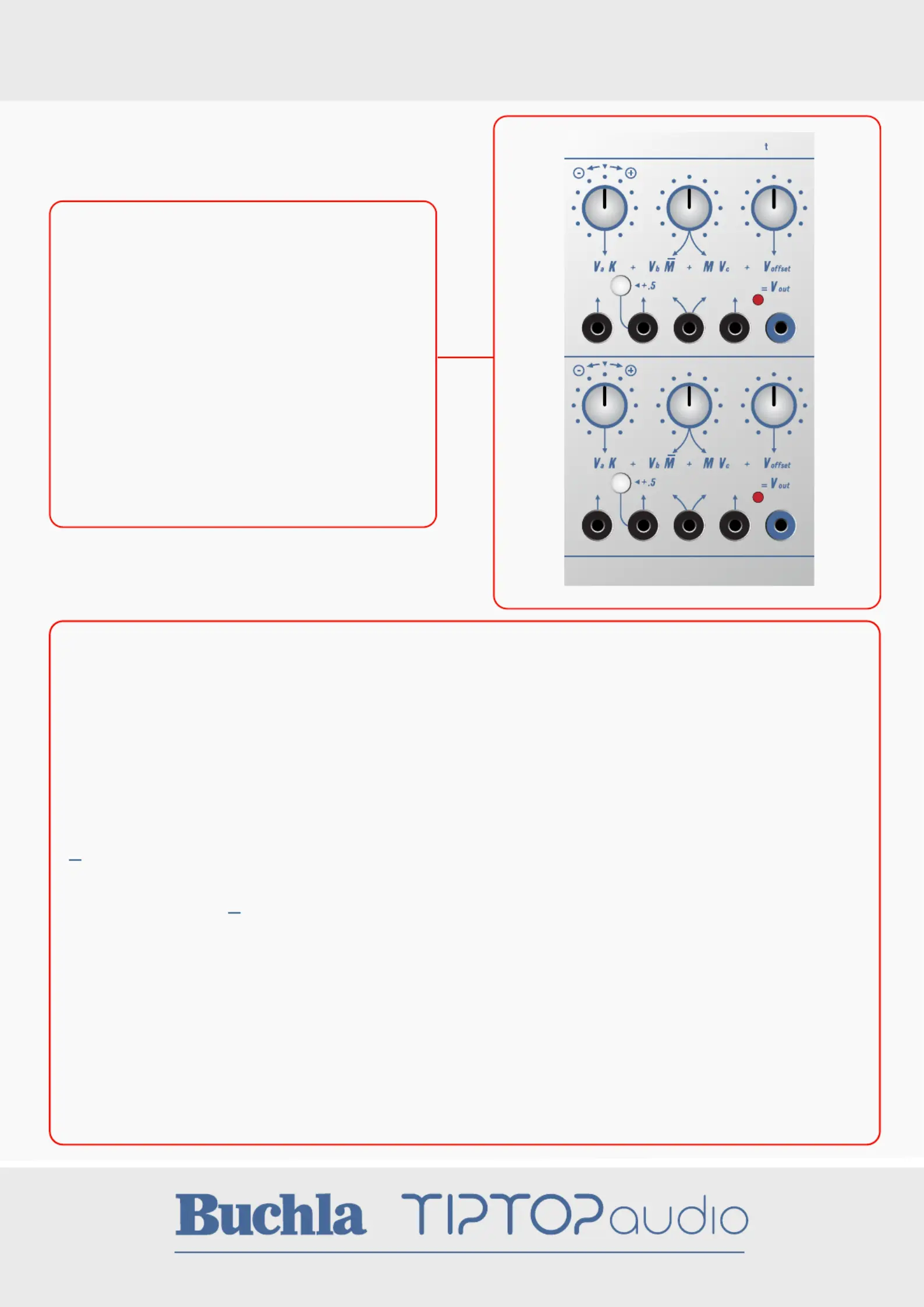

VOLTAGE PROCESSOR MODEL 257
DUAL VOLTAGE PROCESSOR - MODEL 257t
Eurorack 200 series
Size: 14HP - Depth: 25mm
Power: +12V 45mA / -12V 22mA
