Sida 1/8

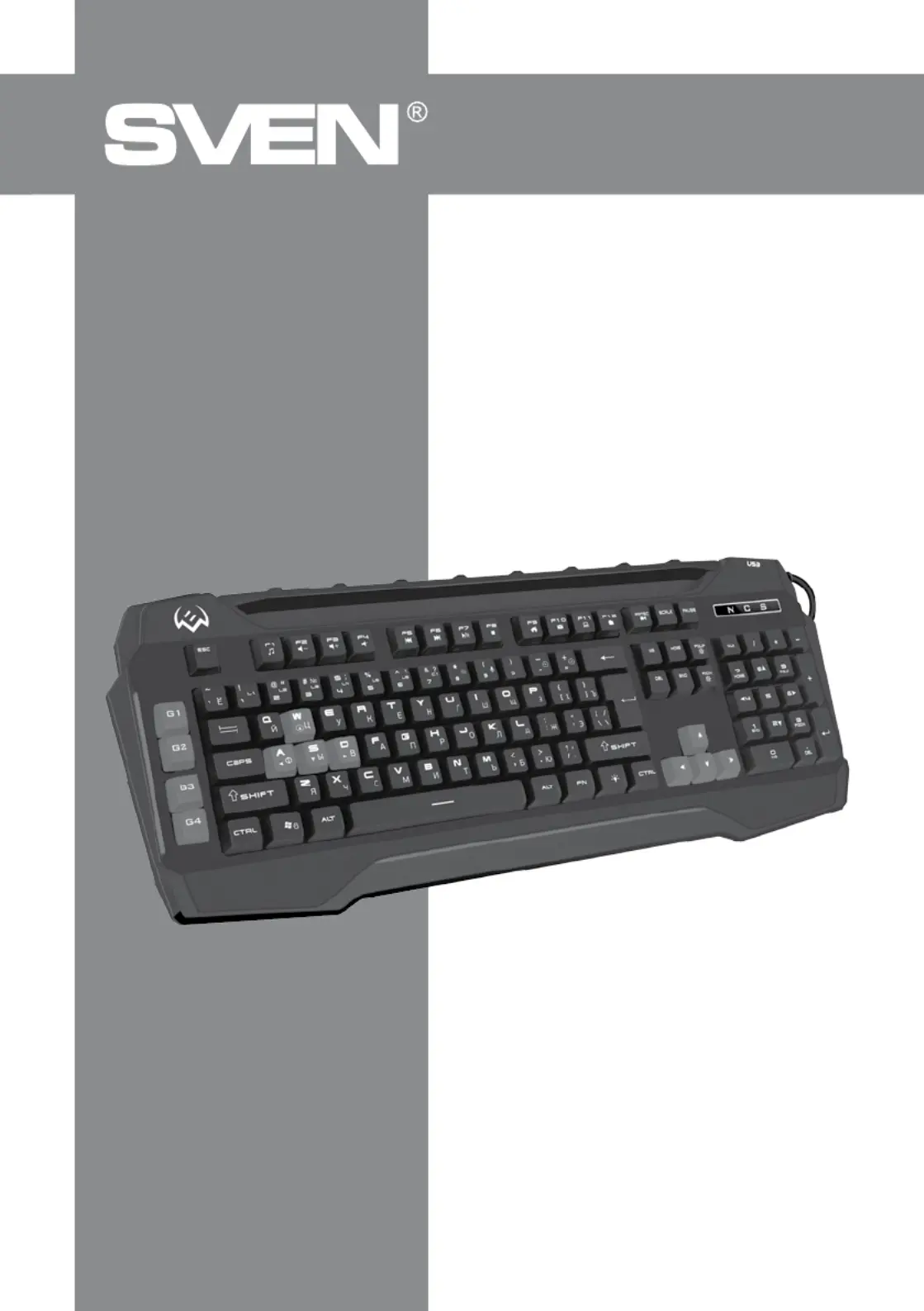

www.sven.fi
USER MANUAL
Gaming Keyboard
KB-G8800
ENG
2
Gaming Keyboard
Congratulations on the purchase of Sven keyboard!
Please read this User Manual before using the unit and retain this User Manual in safe place
for future reference.
COPYRIGHT
© SVEN PTE. LTD. Version 1.0 (22.09.2022).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted eorts to make this Manual more exact, some discrepancies may occur.
Theinformation of this Manual is given on “as is” terms. The author and the publisher donotbear
any liability to a person or an organization for loss or damages which have arisen from the infor-
mation contained in the given Manual.
UNPACKING
• Unpack the device carefully. Make sure there are no accessories left in the box. Check up thede-
vice for damage; if the product was damaged during transportation, address the firm which car-
ried out the delivery; if the product functions incorrectly, address the dealer at once.
• Shipping and transportation equipment is permitted only in the original container.
• Does not require special conditions for realization.
• Dispose of in accordance with regulations for the disposal of household and computer equip-
ment.
• The date of manufacture of the product is indicated on the box.
APPLICATION
KB-G8800 keyboard is an input device. It is designed to enter information into the computer,
aswell as controll the operation of the computer.
PACKAGE CONTENTS
• Keyboard — 1 pc
• Keycap puller — 1 pc
• Extra keycaps — 8 pcs
• User manual — 1 pc
• Warranty card — 1 pc
SPECIAL FEATURES
• Programmable keys.
• USB Port.
• Sound indication.
• Tray for smartphone.
• 12 multimedia (Fn) keys.
• WIN key lock.
• Adjustable RGB-backlighting.
• 26 Anti-ghosting keys.
• Durable braided cable.
SYSTEM REQUIREMENTS
• ОС Windows.
• Free USB port.
ENG
3
KB-G8800
User Manual
INSTALLATION
• Connect the keyboard to an available USB port of your PC.
Installation of keyboard is automatic after its connection to USB port of PC.
DESCRIPTION OF QUICK ACCESS KEYS FUNCTION
Fn + F1 Start media player
Fn + F2 Volume down
Fn + F3 Volume up
Fn + F4 Mute/Unmute
Fn + F5 Play previous track
Fn + F6 Play next track
Fn + F7 Play/Pause
Fn + F8 Stop playing
Fn + F9 Open homepage
Fn + F10 Start e-mail app
Note. Press the shortcut keys while holding the Fn key.
Backlight modes can be changed with the following keys combinations:
• FN + 1–9.
• Combination FN + 5 changes backlighting colors after each pressing this combination.
• Combination FN + 7 allows to customize backlighting areas. Press FN + 7 twice, the white back-
lighting ashes twice, indicating that you have entered the custom editing state. Press FN+up
anddown arrows to select the color of the current zone. Press FN + left and right arrows formov-
ing to another area.
• Combination FN + 9 activates sound indication. The backlight starts reacting to keys pressing,
tapping on the housing and loud noise around the keyboard.
Macrodenitionsettings
• Press “FN + Print Screen” to start macro recording. The “S” (Scroll) indicator ashes to indicate
that during recording.
• Enter the keys one by one (up to 16 characters).
• Press one of the keys G1–G4, where the macro will be saved. Indicator will stop ashing.
Itmeans that the key has been recorded.
• Clear the macro: press “FN + Print Screen”, the “S” (Scroll) indicator ashes to indicate that it is
in the process of clearing. Press one of the keys G1–G4 and “S” (Scroll) indicator stops ashing,
that means, it is cleared.
TROUBLESHOOTING
Problem Solution
Кeyboard
is not working.
1. Disconnect keyboard from PC and check connector pins for possible
damage. If there is no external damage found and connector pins are OK,
connect keyboard to PC again.
2. We recommend to address the nearest authorized service center.
Fn + F11 Open "My computer"
Fn + F12 Open Favorites
Fn + WIN WIN key lock
Fn + Increase backlighting brightness level
Fn + Decrease backlighting brightness level
Fn + “-” Increase backlighting ashing speed
Fn + “+” Decrease backlighting ashing speed
Fn + Ins Change backlighting mode
Fn + W Switch WASD keys to arrows and back
