Sida 1/15



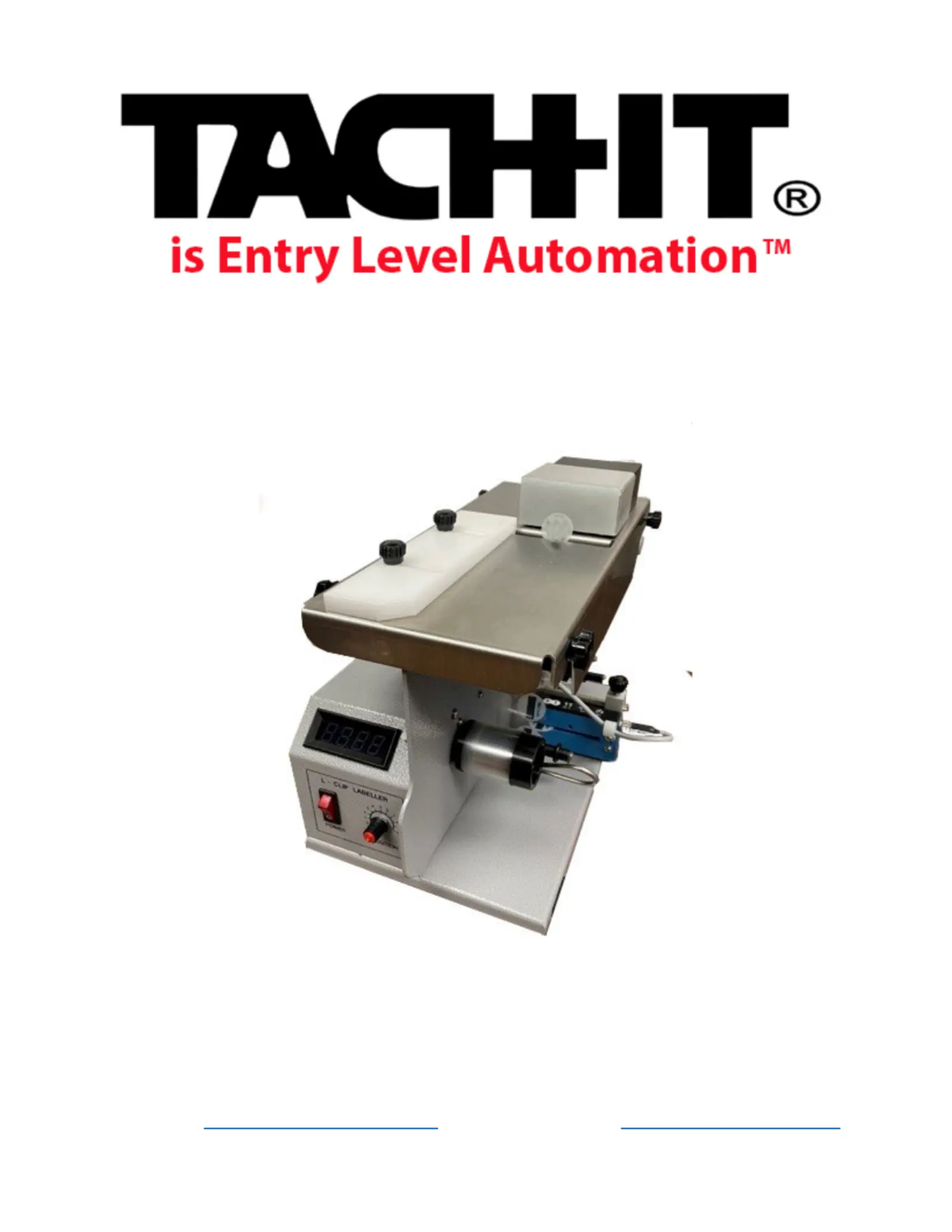

Setup forandInstructionManual Tach‐It

Model#6510‐TL Clip ‐L  Label Applicator



 



BenClementsandSons,Inc.

50 South JerseyRutaCourt, Hackensack,New 07606USA

Tel:201‐440 5500 800 222 5540‐ or ‐ ‐ 

Email:sales@tach‐it.comWebsite:www.tach‐it.com

AllInformationin isthismanual thepropertyofBenClementsandSons,Inc.

BenClementsand andSons, areInc. ‐Tach It, is ‐Tach It EntryLevelAutomaton all trademarks ofBenClements Sons,   Inc. Dec. 2022





Cautions:

 Before        operating this machine make sure to read and understandthe manual.completeinstruction 



 Never                   have the power cord of this machine plugged into an outlet when any covers or the top of this

machinehavebeenremoved.



 Install            and operate this machine only on a flat, level and dry surface.



 Use         only the specified electrical power input with this machine.



 Always      turn the power off and unplug thismachinepriortoclearinganylabelorlabeljamsfromthe

machine,particularlyinthefeedpathandmechanisms.



 Always             keep hand, clothing, jewelry and hair away from all moving parts of this machine.



 Never                   put hands or any other part of the body or any other item into the working mechanisms of this

machine,unlessthe machine the isoffand powerhasbeenunplugged.



 Never operate this        machine with any of the safety covers removed.



 Never operate this       machine after drinking or taking medication or drugsthatcancausedrowsinessand

or orreduceanyphysical mentalfunction.



 Keep        this machine clean and dry at all times.



 Serviceonthismachineshouldonlybeperformedbyfactorytrainedauthorizedservicepersonnel.



 Never         use this machine for other than its intended purpose of     feeding and cutting pressure sensitive

tapes.Useofthismachineforotherthanitsintendedpurposescan cause harm to theoperator,the

machineand to the the product and and warranties.willvoidallactual implied Pleasecontact 

manufacturer thisifthereareanyquestionsas to whether machinecanbeusedfor a particular

application.



 



OverviewofTach‐ItModel #6510 ‐TL:



TheTach‐ItModel#6510‐TLis a tabletop ‐L Clip Once labels appliedLabelApplicator. loadedwiththe tobe to

the the the theproduct,anoperatorsimplyplaces boxtobesealedonto topplatemovingit againstforward  

PressurePlate the the to theforActuation.This action applies labelfrom side  bottomof a box.



Utilizing the the a state‐of‐ ‐artnon‐contactLabelSensor, Tach TL‐ItModel # 6510‐ detects   the gap between

labels.Asthe the thegapisrequired, labels must be  die‐cut.Thenormalgapis 3mm or of1/8”.Because  

sensorbeingused,unlikeother printedmachines,our notModel#6510‐TLdoes blacklines on  the liner.



Easyto thesetupanduse, Tach‐ItModel#6510‐TLwillsecurelysealchipboard,tuckandmanyothertypesof

boxes.Labels roundcanbe and typeclear(this oflabelisoftencalled a waferseal)orothershapes and

materialsoflabels.TheLabelSensorcandetectalltypesoftransparent and opaque  labels.



Specifications:

MachineSize:Length:19.75 (502 (203 (279inch mm) x Width:8inch mm) x Height:9.5inch mm)

Weight:20Lbs(9Kgs(

LabelSize:MaximumWidth:1 ½ x 1 ½ inch(40mm) MaximumLength:  inch(40 mm)

  Minimum          Width:¾ inch (20 mm) x Minimum Length:¾ inch (20 mm)

  Labels   ‐       must be die cut and at least 2 mil thick

LabelRollDiameter:  9 ¾ inch(250mm)

Power:110volt volt(220 available)



11”

19.75”

8”
