Toyotomi TAD-2226E Bruksanvisning

Toyotomi Luftkonditionering TAD-2226E

Läs nedan 📖 manual på svenska för Toyotomi TAD-2226E (1 sidor) i kategorin Luftkonditionering. Denna guide var användbar för 6 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF
Sida 1/1

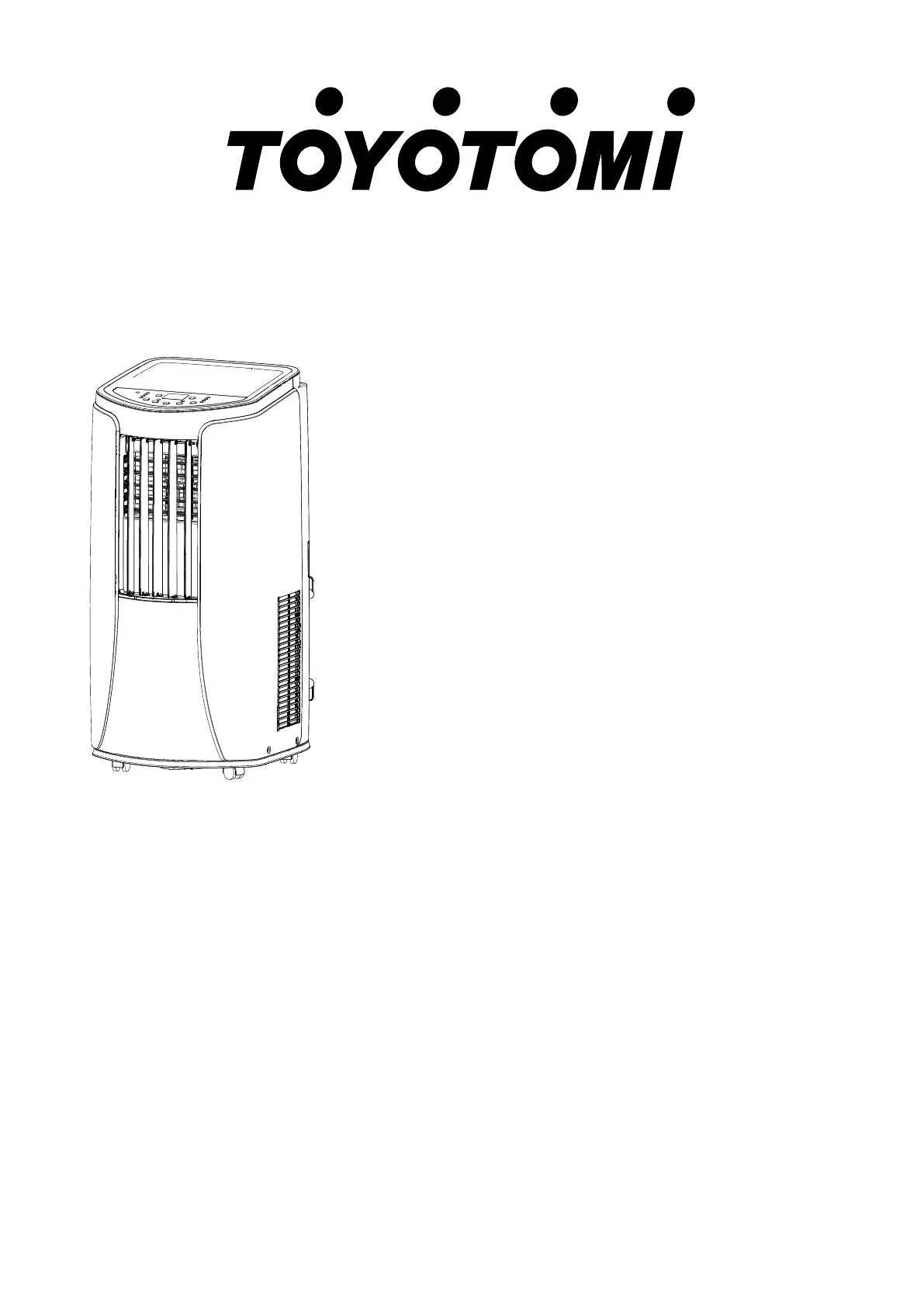

Local air conditioner
TAD-2226 E
Local air conditioner
EAN code 4963505830335
ENERG
Y
IE
IJ A
IA
EE R
A
B
C
D
kW EER
kWh/60min*
2,9
64
626/ 2011
dB
3,1
1,0
EN ERG IA EN ERG IJAEH EP EN EP EI A EN ERG Y EN ERG IE EN ERG I
*M Hy
Tperca
A
++ +
A
++
A
+A+
TAD-2229E
Colour Silver/White
Capacity 2.6 kW / 8.871 Btu/hr
Power consumption 1.000 kW
Current 4.50 A
Tension 220-240/50 V / Hz
Air Flow 320/290/260 m3 / hr
Dehumidication max.* 34 L/24hr
Volume 65 – 90 m3
Refrigerant R-290 / 180 gr
Set Temperature Range 16 ~ 30 °C
Unit Protection IP X0
Sound pressure - power level 53/51/49 – 63/62/61 dB(A)
Dimension unit / carton 395 x 770 x 315 (W x D x H mm) 460 x 355 x 866 (W x D x H mm)
Weight (net. / gross) 25.5 Kg / 29.0 Kg
Toyotomi Europe Sales B.V.
Huygensweg 10, 5466 AN Veghel
The Netherlands
Tel: +31 (0)413 82 02 95
www.toyotomi.eu • info@toyotomi.eu
3-Speed Fan
Select the desired speed of the fan: low, medium or high. The display
shows the selected speed.
Dehumidication
When the air conditioner (primarily) is used as a dehumidier, you can
opt for not using the exhaust hose to keep the warm air in the room.
A xed water outlet (continous drainage) will be necessary and more
convenient. Maximum dehumidication capacity is 34 L per 24 hours.
Cool-down System
The exhaust hose will not only extract warm air from the room, but, at
the same time, also will extract the water. The water is condensed and
poured directly over the condensor, so water and hot air will be removed
from the room through the exhaust hose. Thus, this cool-down system is
more convenient and more economical.
ErP- Directive 2009/125/EG
The device complies with the ErP Directive 2009/125 / EC (the European
Ecodesign Directive).
Anti-Dust Filter
The anti-dust lter absorbs the dust, which the indoor unit extracts from
the room.
Environment friendly refrigerant
This device uses a natural refrigerant, environmentally friendly R290.
The overall performance of this refrigerant especially developed for
cooling applications proved to be a better alternative with respect to
energy eciency and greenhouse impact as a replacement to R410 / R 32
refrigerant used in the past.
WIFI control + Remote Control
The unit is equipped with a remote control but can also be remotely
controlled via mobile phone and other related mobile devices.
LED Display + 24 Hour-Timer
Operating time of the device can be set up to 24 hours. The device switches
o or turns on automatically when the set time has elapsed.
Wide swing air outlet
ensures a large air ow rate of 320 m3 / h (max), enabling to cool volumes
up to 65-90 m³, giving a pleasant feeling of well-being.
R
290
WiFi 3
*Dehumidication at 32 °C, 80% RH

Produktspecifikationer

Varumärke: Toyotomi
Kategori: Luftkonditionering
Modell: TAD-2226E
