Sida 1/24
TRT-BA-PBGS10-120-TC220311TTRT01-001-EN

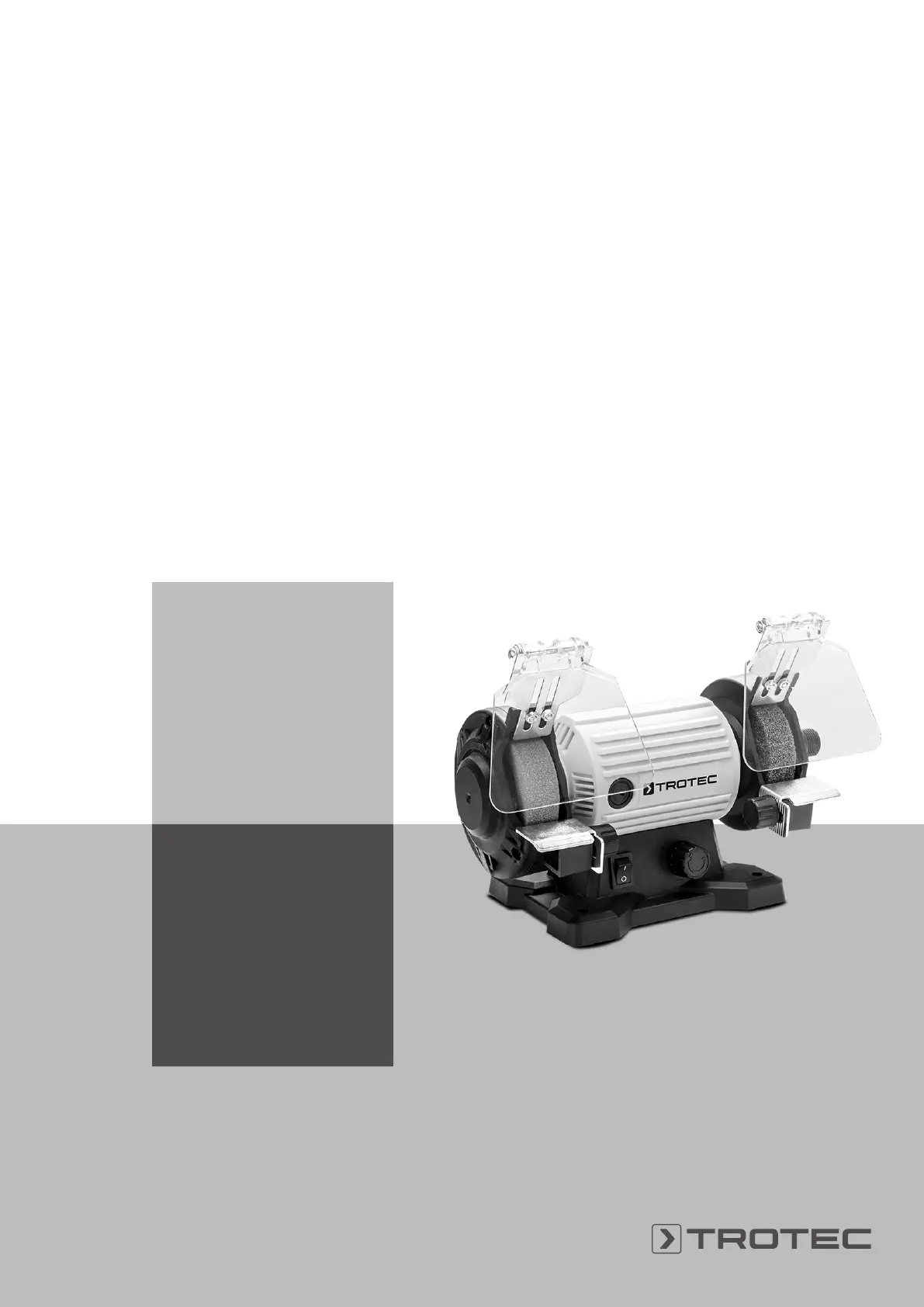

PBGS 10-120
EN
ORIGINAL INSTRUCTIONS
BENCH GRINDING MACHINE
2 EN
bench grinding machine PBGS 10-120
Table of contents
Notes regarding the instructions ..........................................2
Safety .....................................................................................3
Information about the device..............................................10
Transport and storage.........................................................12
Start-up................................................................................13
Operation .............................................................................19
Errors and faults..................................................................20
Maintenance ........................................................................21
Disposal ...............................................................................23
Declaration of conformity ...................................................23
Notes regarding the instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of sharp object
This symbol indicates dangers to the life and health of
persons due to pointed objects.
Warning of hand injuries
This symbol indicates dangers to the health of persons
due to hand injuries.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
Wear hearing protection
Information marked with this symbol indicates that you
should wear hearing protection.
Wear safety glasses
Information marked with this symbol indicates that you
should wear eye protection.
Wear a protective mask
Information marked with this symbol indicates that you
should wear a protective mask.
Wear protective clothing
Information marked with this symbol indicates that you
should wear protective clothing.
Wear protective gloves
Information marked with this symbol indicates that you
should wear protective gloves.
Warning of defective sanding discs!
Information marked with this symbol indicates that
defective sanding discs must not be used.
You can download the current version of the instructions via the
following link:
PBGS 10-120
https://hub.trotec.com/?id=46396
EN 3
bench grinding machine PBGS 10-120
Safety
General Power Tool Safety Warnings
Warning
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term in the warnings refers to your mains-power tool
operated (corded) power tool or battery-operated (cordless)
power tool.
General Power Tool Safety Warnings– Work area
safety
• Clutter or dark areasKeep work area clean and well lit.
invite accidents.
•Do not operate power tools in explosive atmosphere,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
•Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
General Power Tool Safety Warnings– Electrical
safety
•Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
•Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
•Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
•Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
•If operating a power tool in a damp location is
unavoidable, use a residual current device(RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
General Power Tool Safety Warnings– Personal
safety
•Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal
injury.
•Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask,
non-skid safety shoes, hard hat or hearing protection used
for appropriate conditions will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
•Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
•Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
•Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
•Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool
safety principles. A careless action can cause severe
injury within a fraction of a second.
