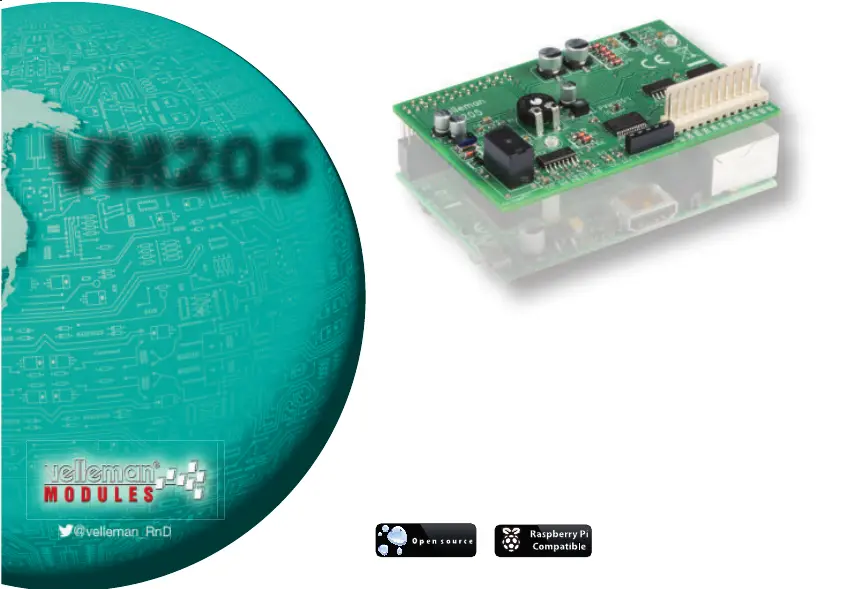

Sida 1/80
All standard oscilloscope features are available and the application.
Source code is supplied, so you can develop your own application.
VM205
VM205
VM205
VM205
VM205
Oscilloscope and
Oscilloscope and
Oscilloscope and
Oscilloscope and
Oscilloscope and
Logic Analyzer Shield
Logic Analyzer Shield
Logic Analyzer Shield
Logic Analyzer Shield
Logic Analyzer Shield
for Raspber
for Raspber
for Raspber
for Raspberr
r
r
ry Pi
y Pi
y Pi
y Pi
for Raspberry Pi
Oscilloscope:
maximum sample rate : 1MS/s
input ampli er bandwidth : 200kHz (-3dB)
measurements up to: 100kHz
input impedance : 100kohm // 20pF
maximum input voltage: 30Vp (AC + DC)
input coupling: AC+DC
AD resolution: 8 bit
record length: 800 samples
run modes: Run, Single
trigger level adjustable: in 254 steps
timebase range: in 15 steps 5 s to 200ms/div.μ
input sensitivity range : in 6 steps, 100mV/div. to 5V/div.
input sensitivity: 3mV display resolution
time and Voltage markers readout
frequency readout (through markers)
Logic analyzer:
number of channels: 10
record length: 10x800 samples
maximum sample rate: 1MS/s
max. input voltage: 5VDC
