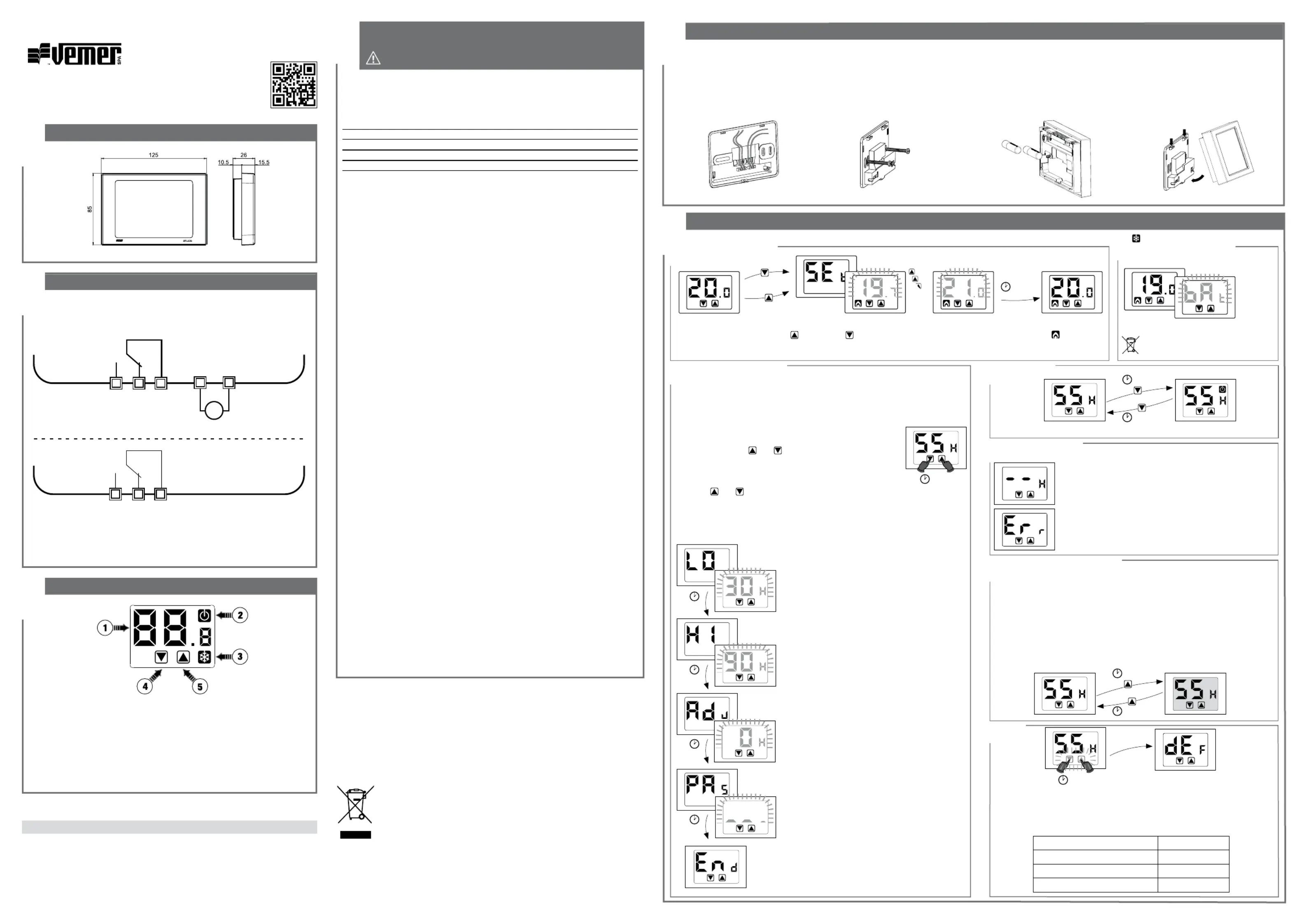

1User Manual

ELECTRONIC TOUCH SCREEN HUMIDISTATS

Read all instructions carefully

DIMENSIONS

4LEGEND

① “Environment humidity” Field

② “Off” Field

③ “Load activation” Field

④ Key “▼” decreases the selected field

⑤ Key “▲” increases the selected field

Attention: the keys are active only if the instrument is installed on wall-mounted base.

3WIRING DIAGRAMS

COM

NA NC

230V~

Akuos 230

Akuos

COM

NA NC

COM

NA NC

Serie of wall mounting touch screen humidistats for humidity control which

perform actions of type 1B and are intended for operating in environments

Pollution Degree 2 and Overvoltage Category III (EN60730-1).

Code Model Descriptin Power supply

VE476800 Akuos 230 Bianco Wall-mounting Touch screen electronic humidistats 230 Vac

VE477600 Akuos 230 Nero Wall-mounting Touch screen electronic humidistats 230 Vac

VE791200 Akuos Bianco Wall-mounting Touch screen electronic humidistats Batteries

VE791300 Akuos Nero Wall-mounting Touch screen electronic humidistats Batteries

SAFETY WARNINGS

During product installation and operation it is necessary to observe the

following instructions:

1) The instrument must be installed by a qualified person, in strict compliance

with the connection diagrams.

2) Do not power or connect the instrument if any part of it is damaged.

3) After installation, inaccessibility to the connection terminals without appropriate

tools must be guaranteed.

4) The instrument must be installed and activated in compliance with current

electric systems standards.

5) Before accessing the connection terminals, verify that the leads are not live.

6) In the electrical system of the building where the instrument must be installed,

a switch and a protection device from the overcurrents must be present.

TECHNICAL SPECIFICATIONS

• Power supply Akuos 230:

– 230Vac (-15% - +10%) 50/60Hz

– Max absorption: 6VA/230Vac

• Power supply Akuos Batteria:

– 2 alkaline battery 1.5V (AAA type)

– Battery life: 1 year

– Battery charge level indication

• Wall mounting or to coverage three-module in built box

• Terminals Akuos 230:

– 3 terminals for 1.5 mm2 cable section for bistable output relay 5A/250Vac

– 2 terminals for 1.5 mm2 cable section for power supply

• Terminals Akuos Batteria:

– 3 terminals for 1.5 mm2 cable section for bistable output relay 5A/250Vac

• Regulation type:

– On/Off with fixed differential ±2.5% RH

–

Possibility of compensation +/- 10% RH through settable parameter

• Display of measured humidity: 10% – 90% RH

• Accuracy Measure humidity: +/- 5% RH

• Resolution Measure humidity: 1% RH

• Setable setpoint range: 30% – 90% RH

• Password protected lock keypad

• Operating temperature: 0°C – 50°C

• Storage temperature: -10°C – +65°C

• Operating humidity: 20 – 90% not condensing

• Degree og protection: IP40

• Isulation: reinforced among accessible parts (frontal) and all other terminals

V3IS00743-011

Vemer S.p.A.

I - 32032 Feltre (BL) • Via Camp Lonc, 16

e-mail: info@vemer.it - web site: www.vemer.it

Mod. AKUOS 5INSTALLATION

• Akuos series humidistats are designed for wall mounting installation. Alternatively, they can be installed to cover the three-module in built box.

• Install the humidistats at a height of about 1.5 m above the floor, away from direct sunlight, away from doors, windows, heat sources, locations with excess or total lack of

ventilation.

① Connect the wires to the terminal block

on back of the base, as shown in the

“wiring diagrams”.

② Fix the base on the wall using the

screws supplied.

③ For battery power supply model only: insert the

batteries into the battery compartment on the back

of the , respecting the indicated polarity.humidistat

④ Attach the to the base, humidistat

at first mating teeth on the higher

side.

information to users pursuant to art. 14 of the directive

2012/19 / EU of the european parliament and of the council

of 4 july 2012 on waste electrical and electronic equipment (WEEE)

If the crossed-out bin symbol appears on the equipment or packaging,

this means the product must not be included with other general waste

at the end of its working life.

The user must take the worn product to a sorted waste center,

or return it to the retailer when purchasing a new one.

Products for disposal can be consigned free of charge (without any new purchase obligation)

to retailers with a sales area of at least 400 m

2, if they measure less than 25 cm.

An efficient sorted waste collection for the environmentally friendly disposal of the used device, or its

subsequent recycling, helps avoid the potential negative effects on the environment and people’s health,

and encourages the re-use and/or recycling of the construction materials.

6OPERATION

Backlighting management

During normal operation the display is on and backlit with blue light (only 230V

model). If not desired the backlighting function can be disabled (for example

in bedrooms). Then the humidistat continues its standard operation and the

backlight is enabled entering menu: setpoint modification, advanced programming,

pin enter.

In battery-powered models, the blue backlighting is activated when the

programming menus are entered or if any key is pressed. In normal operating

conditions, the backlight is off (behavior cannot be changed).

3 sec.

Akuos

Switch off

Note: In OFF mode it’s not possible to access the setpoint modification.

Akuos

3 sec.

Akuos

Error messages

Occurs in case of probe failure.

Occurs for the following values of measured humidity:

humidity < 10% RH

humidity > 90% RH

Akuos

Reset

Unhook and re-hook the thermostat from the base (battery models) or remove

and restore power (230V models). Press simultaneously the keys during the

flashing until the display shows def

Default values

Setpoint 50% RH

Minimum settable setpoint - L0 30% RH

Maximum settable setpoint - Xi 90% RH

Password - - - (desabled)

3 sec.

Akuos Akuos

Akuos

Advanced programming

Minimum settable setpoint - L0

It’s the minimum value settable as setpoint.

Settable values: 30% RH ÷ KI

Maximum settable setpoint - KI

It’s the maximum value settable as setpoint.

Settable values: ÷ 90% RHL0

Correction of humidity measurement % RH

ADJ

Possibility to enter a humidity compensation value.

Available range from -10% RH to + 10% RH.

Resolution 1% RH

Password for keypad lock - PAS

Set a value between 001 and 999 to activate the

keypad lock. Set to disable the lock.“ ”---

If the keypad lock is active, pressing one key during

normal operation appears and the password is LoC

required. If it’s properly inserted the keyboard

is unlocked and stays until 30 seconds after the last

press of a key.

Possible operations:

• Limit the upper and lower settable range of the set point values

• Set a password to lock the keyboard (useful to prevent changes by unauthorized

persons)

Access to programming:

• Press and hold the and keys simultaneously until

appearsPR

• Display of the various menu items in automatic succession

after 3 seconds without any key pressure

• Use the and keys to modify the displayed parameter

values

• When programming is finished, the message , is displayed,END

the humidistat returns to normal operation, saving the changes

made

3 sec.

Akuos

Setpoint modification

Depleted batteries signal

Normal operations Modification of the desired temperature (setpoint),

to increase to decrease

Normal operation

load on ( ) Replace the batteries as soon as possible!

Dispose of the batteries in the

appropriate recycling containers.

19.8

19.9

... 3 sec.

3 sec.

Akuos

3 sec.

Akuos

3 sec.

Akuos

During the standard operation humidistat displays the detected humidity value and the relay status is identified by the symbol

switching on.

REFERENCE STANDARDS

Compliance with Community Directives

2014/35/EU (LVD) and 2014/30/EU (EMCD)

is declared with reference to the following harmonized standards:

• CEI EN 60730-2-13

05-2022
