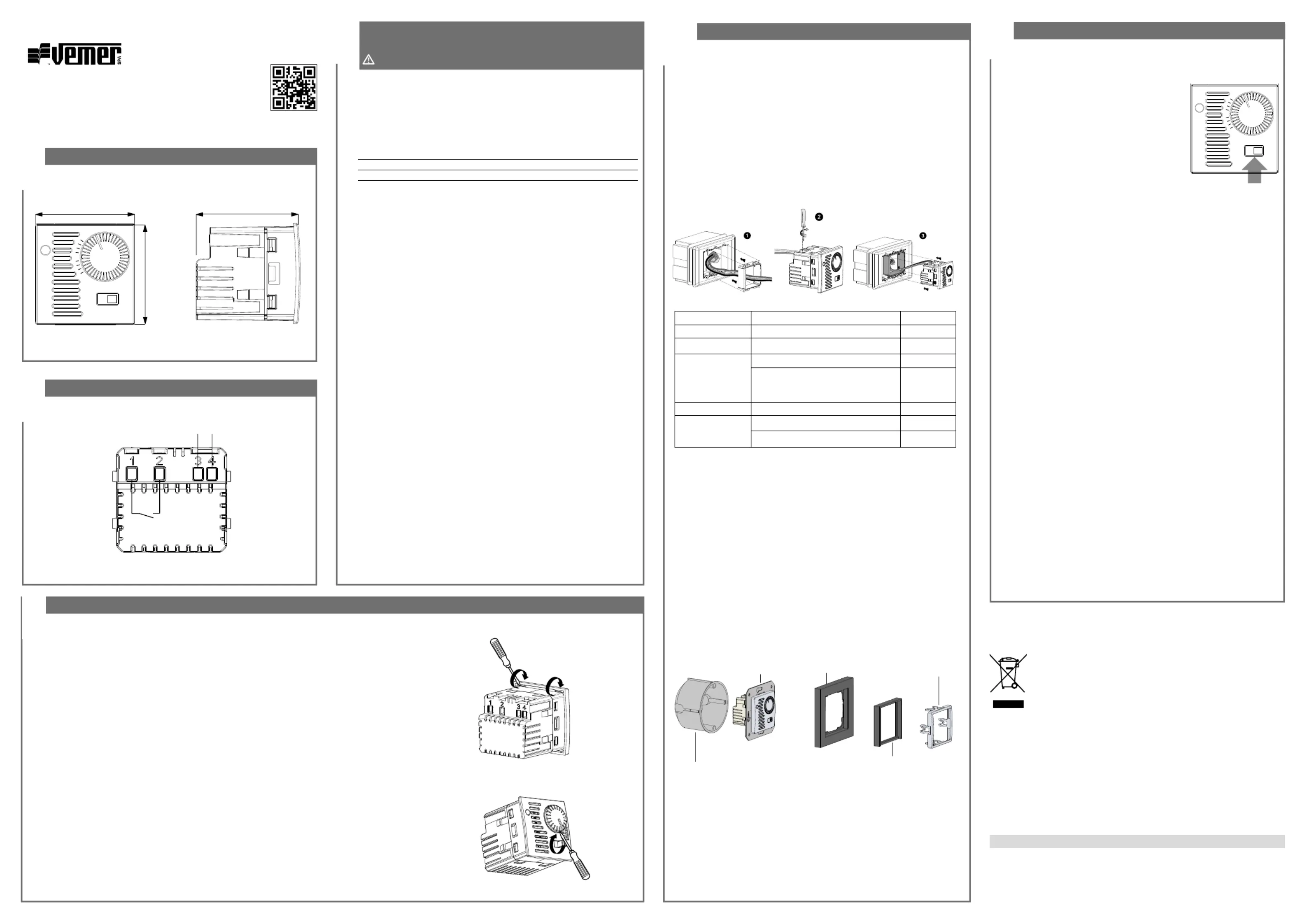

1User Manual
FLUSH-MOUNTING ELECTRONIC THERMOSTAT
Read all instructions carefully
DIMENSIONS
2
3WIRING DIAGRAM
40 42
40
30 %RH
40
50
60
70
80 90
L N
5A/250V~
Built-in 2-module electronic humidistat suitable for regulating humidity during
dehumidification. The device performs actions of type 1B
and is intended to operate in environments with pollution degree 2
and overvoltage category III (EN 60730-1).
Code Model Description
VE789000 HYGROS Built-in humidistat 2 modules 230 VAC
VE789001 HYGROS-INT Built-in humidistat 2 modules 230 VAC
SAFETY WARNINGS
During product installation and operation it is necessary to observe the
following instructions:
1) The device must be installed by a qualified person, in strict compliance
with the connection diagrams.
2) Do not power or connect the device if any part of it is damaged
3) After installation, inacessibility to the connection terminals without
appropriate tools must be guaranteed.
4) The device must be installed and activated in compliance with current electric
systems standards.
5) Before accessing the connection terminals, verify that the leads are not live.
6) A protection device against overcurrents should be installed in the electrical
system, upstream of the device.
TECHNICAL SPECIFICATIONS
• Power supply:
– 230Vac (-15% ÷ +10%) 50/60Hz
– max absorption: 4 VA / 230Vac
• Installation on flush-mounting box with 45 mm height
• Terminal block: for cables with a maximum section of 1.5 mm
2
• Output: bistable relay 5A / 250 Vac
• Dehumidification operating mode
• Type of regulation: on / off with fixed differential of ± 2.5% RH
• Setpoint range: 30% ± 90% RH
• 2-position selector: Off / dehumidification
• Operating temperature: 0 °C ÷ +50 °C
• Storage temperature: -10 °C ÷ +65 °C
• Operating humidity: 20÷90% non condensing
• Protection degree: IP40
• Insulation: reinforced among accessible parts (frontal) and all other terminals
REFERENCE STANDARDS
Compliance with Community Directives
2014/35/EU (LVD) and 2014/30/EU (EMCD)
is declared with reference to the following harmonized standards:
• CEI EN 60730-2-13
information to users pursuant to art. 14 of the directive
2012/19 / EU of the european parliament and of the council
of 4 july 2012 on waste electrical and electronic equipment (WEEE)
If the crossed-out bin symbol appears on the equipment or packaging,
this means the product must not be included with other general
waste at the end of its working life.
The user must take the worn product to a sorted waste center,
or return it to the retailer when purchasing a new one.
Products for disposal can be consigned free of charge (without any new purchase obligation)
to retailers with a sales area of at least 400 m
2, if they measure less than 25 cm.
An efficient sorted waste collection for the environmentally friendly disposal of the used device
or its subsequent recycling, helps avoid the potential negative effects on the environment
and people’s health, and encourages the re-use and/or
recycling of the construction materials.
V3IS01086-010 Mod. HYGROS
Vemer S.p.A.
I - 32032 Feltre (BL) • Via Camp Lonc, 16
e-mail: info@vemer.it - web site: www.vemer.it
11-2021
5MOUNTING
• CELO mounting (code VE789000)
It is recommended to install the device at a height of 1.5 meters from the floor,
in an area that reflects as much as possible the average humidity conditions
of the room.
Avoid installation near doors or windows, in niches, behind doors and curtains
or in locations with excess or total lack of ventilation.
① Apply the adapter corresponding to the plate of the civil series to be mounted
(see table)
② Connect the load and the power supply (see connection diagram)
③ Insert the device into the adapter
DEVICE
WITH METALLIC FRAME
Flush-mounting box
Intermediate panel
(not supplied)
Cover plate
(not supplied)
DEVICE
CLOSING FRAME
(WHITE / GREY)
The device can be adapted to the cover plates of Berker, Busch-Jaeger, Gira,
Jung and Merten.
The complete list of compatible cover plates is available on the website
www.vemer.it on the product page.
• HYGROS-INT mounting (code VE789001)
It is recommended to install the device at a height of 1.5 meters from the floor, in an
area that reflects as much as possible the average humidity conditions of the room.
Avoid installation near doors or windows, in niches, behind doors and curtains or in
locations with excess or total lack of ventilation.
① Connect the load and power supply (see connection diagram)
② Fasten the device with the metal frame to the flush mounting box
③ Apply the cover plate and the 50x50mm intermediate panel
④ Finally insert the closing frame
Brand Series Adapter
ABB Mylos AM
AVE S44 A4
BTICINO Axolute, Axolute AIR BA
Light, Living International, LivingLight,
LivingLight AIR
BL
GEWISS Chorus GC
VIMAR Arkè, Eikon, Eikon Evo VE
Plana VP
For information on the possibility of adapting the device with plates different
from those shown, contact the Technical Assistance Service.
4FRONT PANEL AND KNOB REPLACEMENT
The device is supplied fully assembled in the anthracite grey version; to transform it into the white version
it is necessary to replace the front panel and the humidity adjustment knob.
Proceed as follows:
DISASSEMBLY
1. turn the knob counterclockwise until the internal mechanical lock prevents further rotation
(the knob indicator must be at 30%)
2. insert the tip of a screwdriver in the part indicated in fig. 1 making a slight lever so as to release
the locking teeth of the front panel
3. leverage with the tip of a screwdriver under the knob as shown in fig. 2 until it is completely extracted.
ASSEMBLY
1. place the front panel on the device, first hooking the teeth in the lower part
and then those in the upper part, paying attention to the selector on the right
2. insert the knob pin into the central hole of the thermostat, making sure that
the indicator on the knob is at 30%
3. check that the knob rotates completely and smoothly from the minimum value
to the maximum value and that the selector moves without jamming from right to left.
Fig. 1
Fig. 2
OPERATION
How to choose the operating mode
The position of the selector indicated in the figure
determines the operating mode:
•
(O symbol) OFF mode
Place the selector in this position
when the system must remain off.
Regulation is disabled and the relay is open.
•
(Symbol I) Dehumidification mode:
Place the selectorin this position for control
the dehumidification system.
The regulation is enabled and the relay is closed when the humidity
is higher than the set value.
How to set the humidity
Turn the knob to set the desired humidity value.
It’s possible to set values between 30% RH and 90% RH.
When the humidity value present in the room exceeds the set value,
the red led lights up and the relay switches between contacts 1-2.
Note: In order to preserve the life of the system, the minimum time between a
relay switching and the next one is 1 minute. However, the led status updating is
immediate. Therefore, after using the regulation knob, it is possible to find a discre-
pancy between what is indicated by the led and the actual status of the relay. This
condition lasts for up to 1 minute.
Value out of range signal
When the device is in dehumidification mode they can occur
the following conditions:
• Relative humidity below 5% RH.
This condition is signaled by the flashing of the red LED
and normal operation is restored when the humidity returns
at values above 10% RH.
• Relative humidity above 95% RH.
This condition is signaled by the flashing of the red LED
and normal operation is restored when the humidity returns
at values below 90% RH.
30 %RH
40
50
60
70
80 90
6
