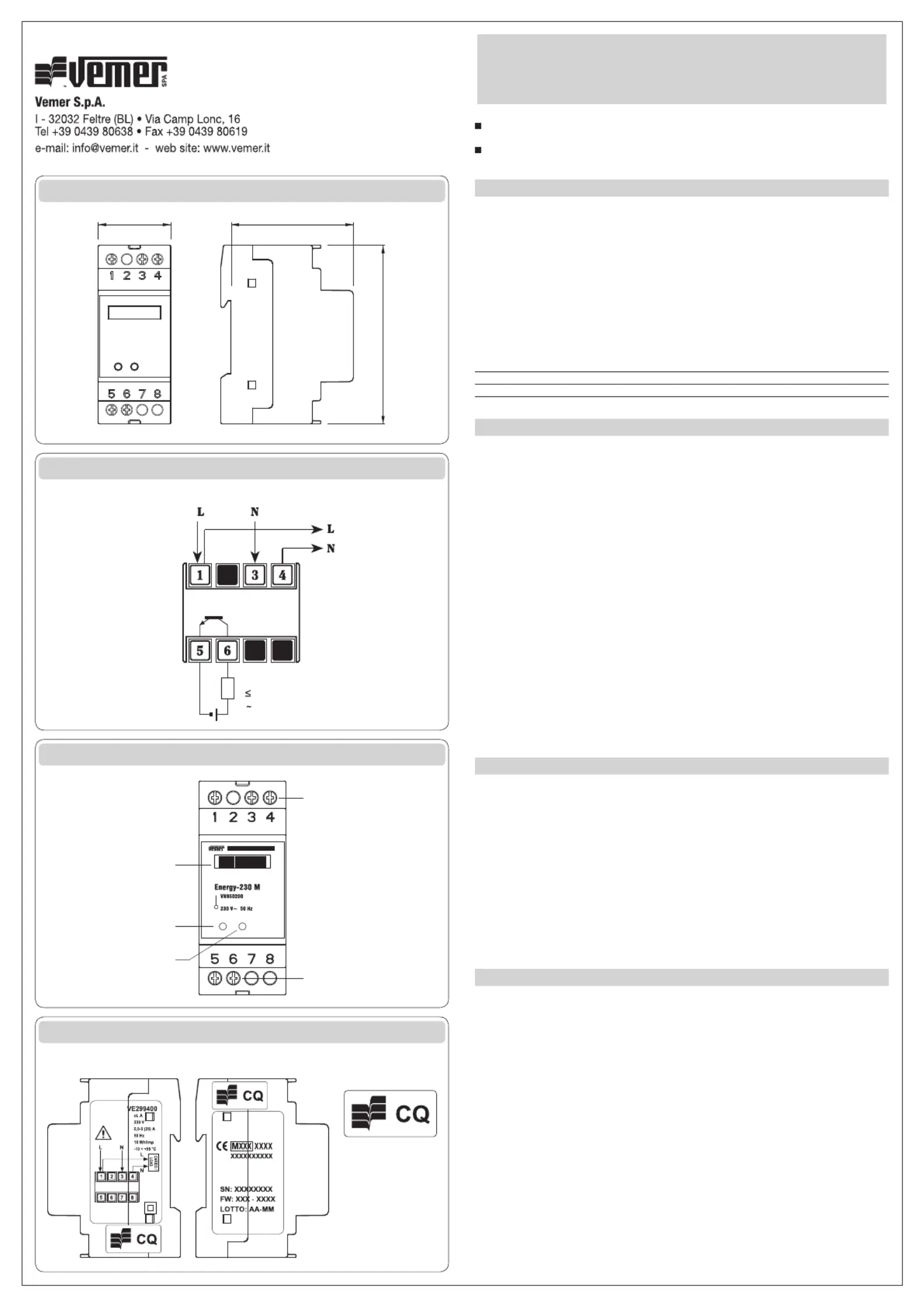

User Manual
SINGLE-PHASE ACTIVE ENERGY METER
Read all the instructions carefully
 The Energy-230 Mseriesarestaticenergymeterstoreadactiveenergyinsingle-phase230V
systems for indoor application
Energy-230 MenergymeterscomplywithMID directive (2004/22/CE) and are intended for
typeM1andtypeE2mechanicalandelectromagneticenvironment
SAFETY WARNINGS
To guarantee correct installation, proceed as follows:
1) The appliance should be installed by a competent operator
2) The appliance should be installed in a panel in such a way as to guarantee that the
terminals are inaccessible after fitting
3) The appliance should be installed in a panel in such a way as to guarantee a degree of
protection IP51 according to EN 60529
4) A protection device against over-currents should be installed in the electrical system,
upstream of the energy meter
5) Connect the instrument as shown in the alongside diagrams
6) Before touching the connector terminals make sure that the wires to be connected or
already connected to the instrument are not live
7) Do not power or connect the instrument if any part of it is damaged
Model Type Description
VE299400 Energy-230 M LC Single-phaseMIDactiveenergymeter
VN950200 Energy-230 M Single-phaseMIDactiveenergymeterwithpulseoutput
TECHNICAL SPECIFICATIONS
• Ratedvoltage:230VCA(-15%/+10%),50Hz
• Maximumpowerconsumption:4VA
• Startingcurrent:Ist=20mA
• Minimumcurrent:I
min =0,25A
• Referencecurrent:Iref=5A
• Maximumcurrent:Imax
=25A
• Currentcircuitconsumption:<4VA
• Classindex:A
• Operatingtemperature:-10÷+55°C
• Storagetemperature:-25÷+70°C
• Relativehumidity:10%÷90%non-condensing
• Connectiontype:directforcurrentconductors
• Signalingleds: green=poweron
  red=ashingat10Wh
• Meterconstant:10Wh/pulse
• Display:6-digitmechanicalcounter
• Readingresolution:0,1kWh(fullscale:99999,9kWh)
• Housing:2DIN,grayRAL7035
• Protectiondegree:IP20/IP51onthefront
• Optoinsulatedpulseoutput(onlyVN950200model)forenergyconsumption
remote-monitoring(0,1kWh/pulse)
• Pulsespecications: duration=100ms±15%
  voltage=9÷24VCC(±10%)
  switchableoutputcurrent=20mAmax
OPERATION
• Innormaloperation,thegreen the led is on and redledashesinproportiontothe
activepower(ashingat10Wh)
 Themetercountstheconsumptionofactivepowerwitharesolutionof0,1kWh.
PHASE ERROR
• Whentheenergymeteristurnedon,aconnectioncheck-upisautomaticallycarriedout
todetectanyconnectionerrors:incaseofimproperconnection,thered green and leds
ashalternateandthemeterislocked
Warning: to restore correct meter operation after an error reading has been
showed, switch the meter off, invert connections of voltage or current
and turn on again.
REFERENCE STANDARS
ConformitytoEUdirective:
2004/22/CE (MID)
isdeclaredwithreferencetothefollowingharmonisedstandards:
EN 50470-1 EN 50470-3and
Dimensions
Connection
Description
Marking
+
35.6 60
87.5
kWh
ON 10Wh/imp
,
4
16000
0,25-5 (25) A cl. A
V3IS00505-011
Energy-230 M LC
Energy-230 M
MARKING OF METER METROLOGY
SEAL
