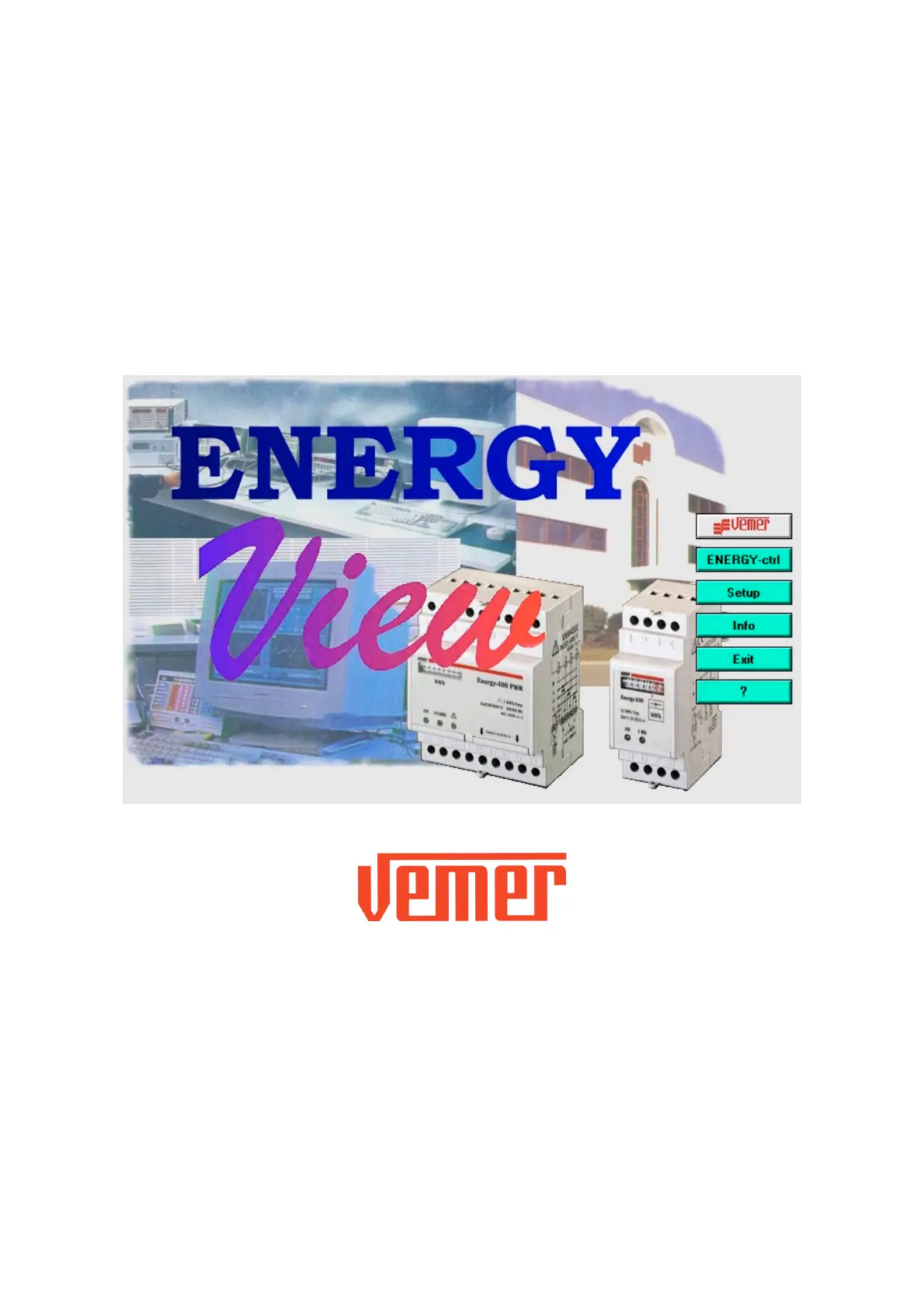

MKT - AC 1

ENERGY – View

Software for Energy Meters

Software System

MKT - AC 2

ENERGY-VIEW – PRESENTATION AND CONTENT

Software for the monitoring of the Vemer Energy range of energy meters. These instruments are

connected to CLIP-485 concentrator modules, which are in turn connected to the monitoring PC by

means of a RS-485 serial line. The CLIP-485 concentrator modules are interrogated by the PC, and send

it the data gathered on the energy consumed and the time lapsed. The ENERGY-View program then

collects the data, validates it and presents it to the user in a number of ways – on the screen, in printed

format, on file in a format that can be easily consulted using an electronic spreadsheet such as Microsoft

Excel, or with other applications capable of handling text files.

The following are supplied:

- 1 CD-ROM for the complete installation of the ENERGY-View software

- 1 RS485/232 interface device for connection to a COM serial port of the PC

- 1 instruction, installation and user manual

MKT - AC 3

AUTHORISATION TO USE

User licence

The ENERGY-view software and its accompanying documentation are the property of VEMER S.p.A.

VEMER S.p.A. grants the user the right to make use of a copy of the ENERGY-view software in any

single computer, provided it is installed in the permanent memory – fixed or hard disk – of that computer.

VEMER S.p.A.

recommends

using the software as specifically described in this manual

declines

all responsibility in the event of tampering with or alteration to the non-accessible program files. The

responsibility for loss or damage of any kind and for any reason (including, but not limited to, damage

through loss of earnings, stoppage of operations and loss of information) as a consequence of or in

relation to the use of the product – including the energy charge rates – is strictly linked to the sum paid for

the licence to use the product, in accordance with the terms of the legislation in force.

prohibits

any kind of modification, copy, translation, adaptation or creation of applications based on the software in

question without the prior written consent of the company.

reserves the right

To modify the software and its instructions when changes are made to its features or to the legislation in

force.
