FLUSH-MOUNTING THERMOSTATS

• Power supply:

- 230 Vac 50/60 Hz for model Keo-A

- 2 x 1.5V (AAA type) for model Keo-B

• Regulation mode summer/winter/o

• Temperature regulation

- ON/OFF with xed dierential at 0.3°C

- proportional with band 0.8°C and 8 minutes time base

- Proportional with band 1.5°C and 15 minutes time base

• O function with regulation on antifreeze temperature

• Bistable output relay contact 5A / 250 Vac

• Possibility to limit the settable setpoint values

• Input for clean contact for the reduction of the setpoint of 3°C (Keo-B only)

Code Model Description Colour Power supply

VN171500 Keo-A Electronic thermostat with knob White/Grey 230 V~

VN170700 Keo-B White/Grey BatteriesElectronic thermostat with knob

VE602900 Fr.Keo-A Silver cover and knob for Keo-A Argento

VE763100 Fr.Keo-B Silver cover and knob for Keo-B Argento

VE470100 AIR Mount for the use of the plate Bticino Livinglight Air series

* by mount you can buy on request

For information about the possibility to use dierent plates

contact the technical assistance

KEOElectronic thermostats

1 Installation in ush-mounting 3 modules box (503 type)

2 Supports to adapt the instrument to the plates of the main

civil series

3 Terminals on the back of the instrument for the connection of

the output relay, of the power supply (for Keo-A only)

and of the external contact (for Keo-B only)

4 Interchangeable cover available in white and anthracite grey

colours (included in the package) and silver (you can buy

separately)

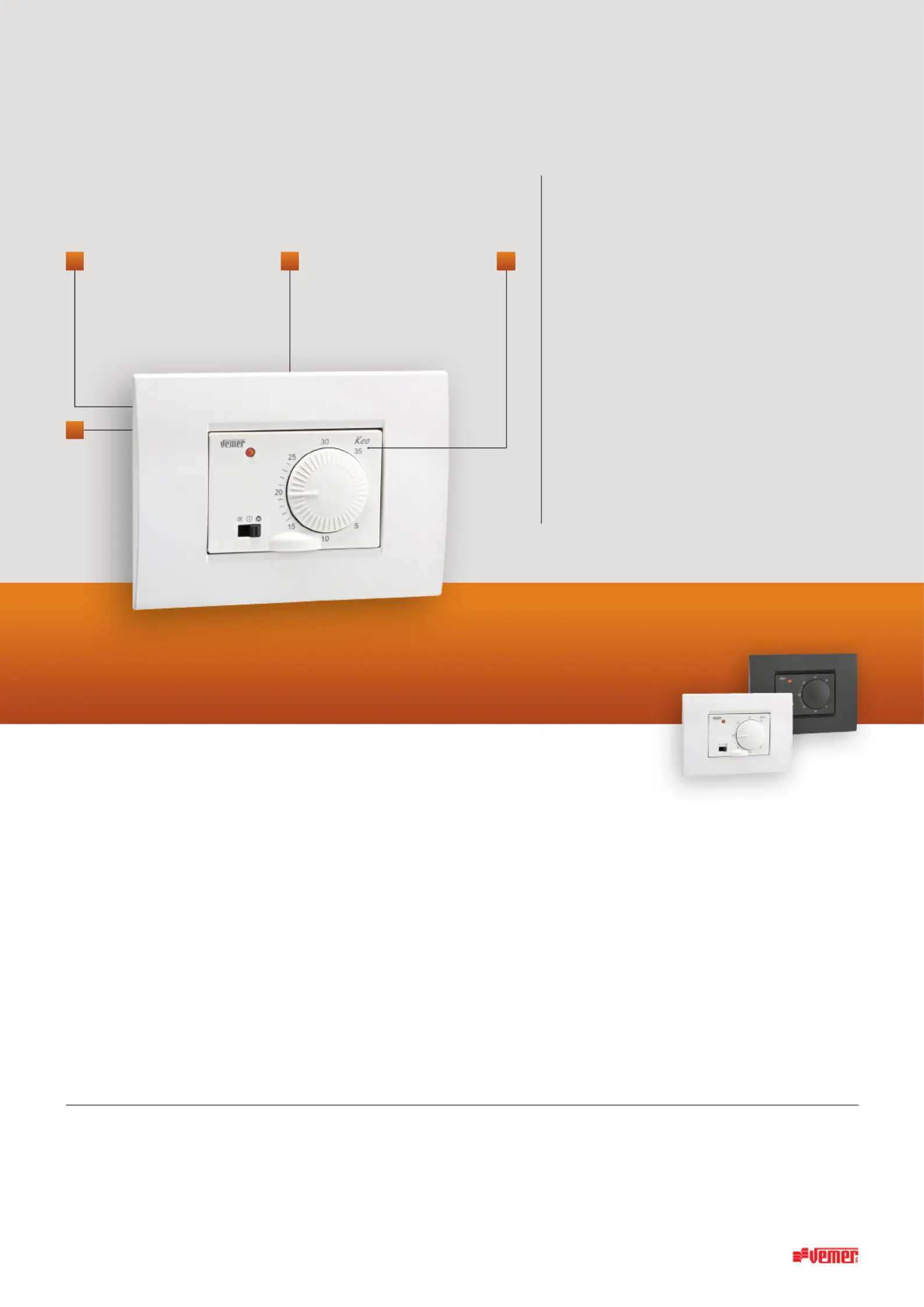

Series of electronic thermostats with ush-mounting on 3 modules box designed to control the environment

temperature both in heating and cooling, available both with AC power supply and battery supply.

Placche adattabili

ABB Chiara series

ABB Mylos series

Ave S44 series

Bticino Axolute series

Bticino Light series

Bticino Light tech series

Bticino Living series

Bticino Livinglight series

Bticino Livinglight Air series*

Bticino Matix series

Gewiss Chorus series

Vimar Eikon series

Vimar Eikon Evo series

Vimar Idea series

Vimar Plana series

Vimar Arké series

CLIMATE CONTROL TIME MANAGEMENT GAS AND SAFETY MEASUREMENT

AND CONTROL

HEAT REGULATION INSULATORS AND

BUSBAR SUPPORTS

ACCESSORIES

69 51

72 53

5050

Keo-A

Keo-B

Keo-A

Keo-B

CLIMATE CONTROL

GENERAL CHARACTERISTICS

TECHNICAL INFORMATION

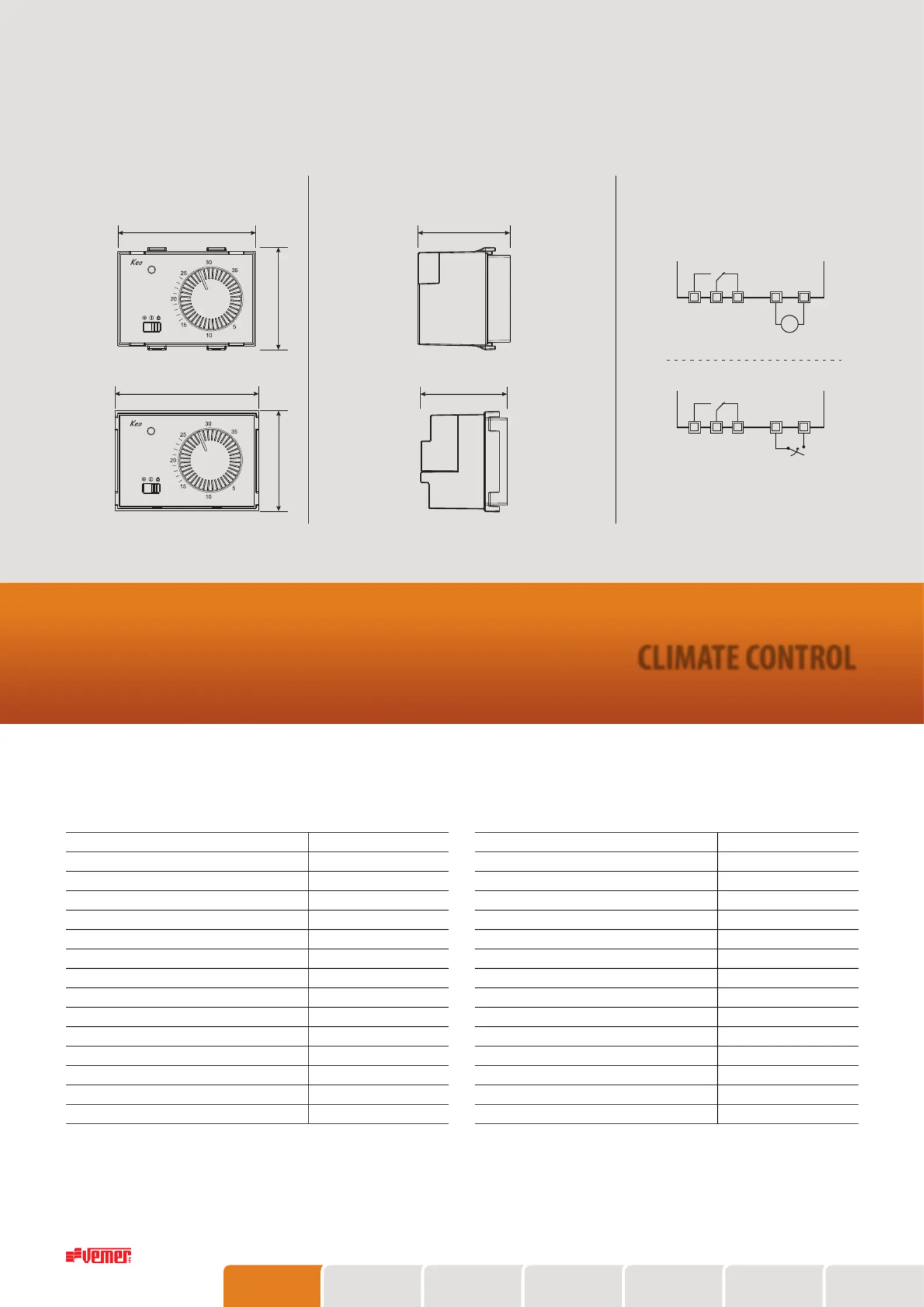

CONNECTION DIAGRAMDIMENSIONS (mm)

Front view Side view Diagram

Keo-B

Alkaline batteries power supply 2 x 1.5V (AAA)

Battery life months 12

Mounting ush

Maximum cables section mm21.5

Output relay capacity

5A / 250 V

Digital input for setpoint reduction

Operating mode summer/winter/o

Setpoint range 5 ÷ 35°C

Dierential (xed) °C 0.3

Measurement precision °C 0.5

Antifreeze temperature (xed) °C 2

Operating temperature 0 ÷ 50°C

Storage temperature -10 ÷ 65°C

Operating humidity 20% ÷ 90% non condensingRH

Protection degree IP40

Keo-A

Power supply 230 (-15% ÷ +10%)V AC

Frequency 50/60Hz

Mounting ush

Maximum cables section mm21.5

Output relay capacity 5A / 250 V

Digital input -

Operating mode summer/winter /o

Setpoint range 5 ÷ 35°C

Dierential (xed) °C 0.3

Measurement precision °C 0.5

Antifreeze temperature (xed) °C 2

Operating temperature 0 ÷ 50°C

Storage temperature -10 ÷ 65°C

Operating humidity 20% ÷ 90% non condensing RH

Protection degree IP40

REFERENCE STANDARDS

Compliance with Community Directives: 2014/35/EU (LVD) 2014/30/EU (EMCD)

is declared with reference to the following standards: • EN 60730-2-9

COM

230V~

COM

1 2 3 4 5

EXTERNAL

CONTACT

With external contact closed:

Setpoint = - 3°C programmed setpoint
