Sida 1/22

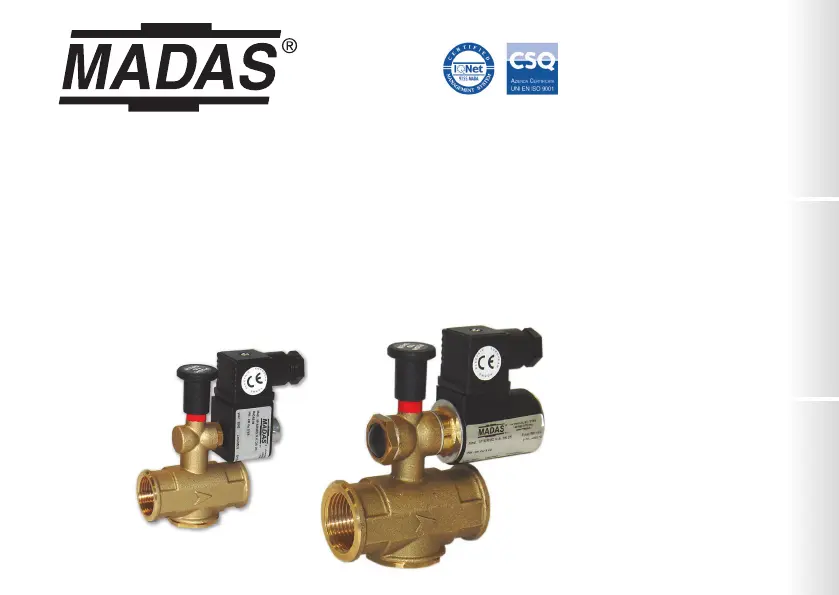

ELETTROVALVOLA A RIARMO MANUALE NORM. APERTA PER GAS
NORMALLY OPEN MANUAL RESET SOLENOID VALVE FOR GAS
ELECTROVÁLVULA CON REARME MANUAL NORMALMENTE ABIERTA PARA GAS
MADE IN ITALY
M16/RMO N.A. - M16/RMOC N.A.
MBA/RMO N.A.
DN 15 - DN 20 - DN 25 (P.max: 0.5 bar)
IT EN ES
2
ITENES
INDICE - INDEX - ÍNDICE
pag.
Italiano ........................................................................................................................................................ 3
English ........................................................................................................................................................ 14
Español........................................................................................................................................................ 25
Disegni - Drawings - Diseños .......................................................................................................................... 36
Dimensioni (tabella 1) - Dimensions (table 1) - Dimensiones (tabla 1) .................................................................. 39
Bobine e connettori di ricambio (tabella 2a - 2b - 2c) ......................................................................................... 40
Spare coils and connectors (table 2a - 2b - 2c) ..................................................................................................
Bobinas y conectores de recambio (tabla 2a - 2b - 2c) ........................................................................................
Diagramma - Diagram - Diagrama ∆p ................................................................................................................ 43
14
IT
EN
ES
1.0 - GENERAL INFORMATION
This manual shows you how to safely install, operate and use the device.
The instructions for use ALWAYS need to be available in the facility where the device is installed.
ATTENTION: installation/wiring/maintenance need to be carried out by qualified staff (as explained
in section 1.3) using appropriate personal protective equipment (PPE).
For any information pertaining to installation/wiring/maintenance or in any case problems that cannot be resolved with the use
of the instructions, it is possible to contact the manufacturer from the address and phone numbers provided on the last page.
1.1 - DESCRIPTION
Normally open, manual reset solenoid valves for gas, suitable to shut-off gas and signal danger sent by gas detectors (methane,
LPG, carbon monoxide and similar), safety thermostats, etc.
They can only be reset manually and only when they are not electrically powered.
They are fitted with a VPI (Visual Position Indicator) for visual indication of the valve plunger’s position. When the valve is closed,
the red band, which is usually hidden by the reset knob ( ), is visible. 1
M16/RMOC N.A. versions are equipped with a push button ( ) that allows to close manually the gas substituting the manual 13
tap of the gas line allowing also to test at intervals the good working of the solenoid valve.
1.2 - KEY OF SYMBOLS
ATTENTION: Attention
is drawn to the technical
details intended for
qualified staff.
DANGER:
In the event of
inobservance, may be caused damages
to tangible goods, to people and/or pets.
DANGER: In the event
of inobservance, may
be caused damages to
tangible goods.
