Sida 1/8
(1) (Turn clockwise to increase and anti clockwise to decrease.) Rotary Control
(2) Main Button
(3) control (only used during programming) Program Slide
(4) control Mode Slide
(5) Reset Button
(6) Replaceable CR2032 battery

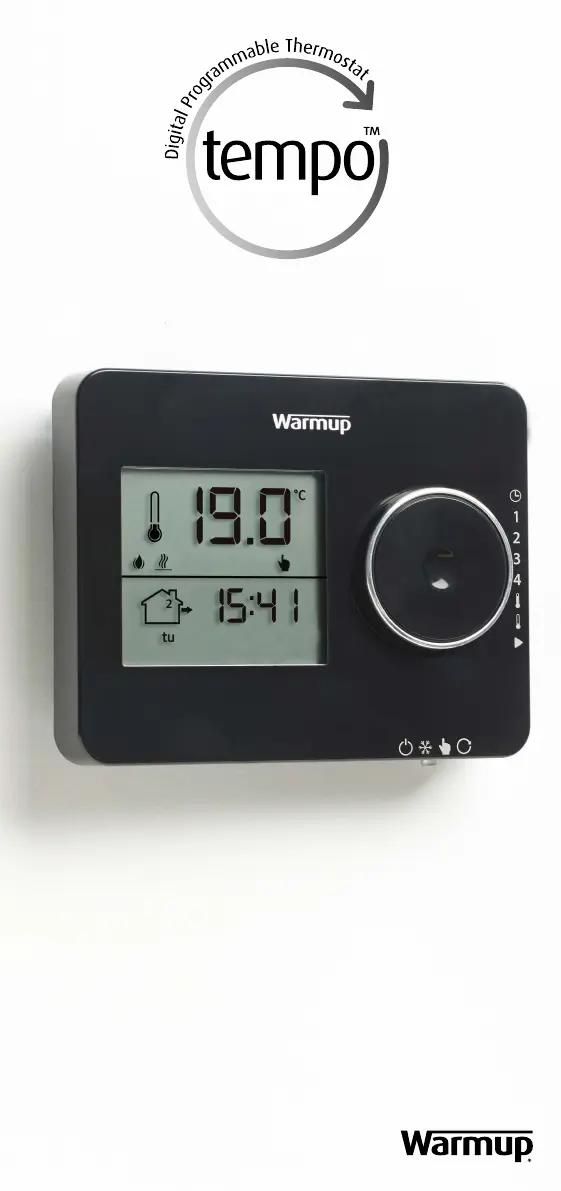

Operating Guide:
for the Warmup Digital Programmable Thermostattempo
Part of the Element Series
1.
Normally shows the current temperature in the room. This can be either the oor temperature or the air temperature. (See icon
4). When you are setting a program or manual temperature this icon will temporarily show the set temperature.
2. During programmed operation this thermometer will show whether the thermostat is at “Comfort” or “Setback” temperature.
The icon will be displayed when “Comfort -1/ -2 is the target temperature. (Only used with the Fil Pilote)
3.
This icon is displayed when the heating is on.
4. These icons show the type of temperature regulation being used.
Floor Sensor Air Sensor
Regulator (This mode should only be used in special situations, please contact Warmup for additional information).
1
2
3
4
tempo
element
series TM
exclusively from
The has been designed with simplicity in mind and is highly intuitive in its programming. The sliders and simple rotary control tempo
make the setting of the thermostat quick and easy.
8
Introduction
ELT-01-XX-01 - Operating guide V1.0 © Warmup plc - 2013
5. These icons show the mode in which your thermostat is being used:
6. These icons show which time of day is being programmed.
7. This area shows the current time and day of the week.
8. These are error icons (see trouble shooting section) or special command icons:
Program mode will run the scheduled program
Manual mode will hold a xed temperature
Frost Protection will not allow the temperature to fall below 5°C
Standby mode
NOTE: When the thermostat displays both the manual and comfort icon the thermostat is in a manual override
and will hold a xed temperature until the next scheduled program period.
Morning
Fil Pilote
Floor sensor error
Overheat limit has been reached
There is no mains power
Battery is low
Getting started
In order to program the thermostat all you need to do is slide the control from the top position to the bottom tempo Program Slide
position, customising the program along the way.
If you make a mistake, return the control to the previous position and start again. In order to change a setting value, Program Slide
turn the . Pressing the Rotary Control Main Button will accept the value and move you on to the next value that needs setting.
The thermostat has a number of “Installer Settings”. If your thermostat has been installed correctly and is working then it is tempo
unlikely that you will need to change these again. For additional details see “ ” section.Installer settings
Your thermostat can be set so that the programming is done for “all days the same”, “weekday and weekend” or “7 day”. To change
this setting, see the section. “set time/day”
ELT-01-XX-01 - Operating guide V1.0 © Warmup plc - 2013
Day Evening Night
Programming the thermostat
To program your thermostat all you need to do is move the control on the right hand side of your thermostat from top to Program Slide
bottom. The table below will explain what you can do at each step.
Set Time /Day Turn the to change the current clock time. Once the clock Rotary Control
time has been set, press the , you will now be able to set the Main Button
day of the week. Turn the to select the correct day.Rotary Control
Your thermostat will by default allow you to set a weekday and weekend
program (5-2d). If you would like to set “all days the same” (1d) or “7 day”
programs (7d) then hold the for 5 seconds whilst in the set Main Button
time/day slide position. Once in this mode, turning the will Rotary Control
allow you change this setting. Push the or move the Main Button Program
Slide to accept the value.
Once you have set the time and day, move the Program Slide to the next
position to accept the value.
Set Timing
1
2
3
4
When in any of these positions you can set the start time for “morning” (1),
”day” (2), ”evening” (3) and “night “ (4) periods.
The “morning” and “evening” periods will follow the comfort temperature,
“day” and “night” periods will follow the setback temperature.
Using the select the start time and press the Rotary Control, Main Button
to move to the next day.
If you hold the for 3 seconds it will copy the start time to the Main Button
next day.
Tip - If you want to set the thermostat so that it is keeping the comfort
temperature all day and only setback at night, then just set the “day” start
time equal to the “evening” start time.
Set Temperatures
Here you can set the temperature which will be used for the comfort and
setback temperatures.
Done Move the control to the lowest position in order to start your Program Slide
thermostat. Heating will not occur if the control is not in this Program Slide
position.
Your thermostat can be set to run a program, hold a xed temperature, efciently protect your home from freezing or standby. You can
select these modes by moving the control on the bottom of your thermostat. Mode Slide
Standby The thermostat will not come on.
NOTE: The thermostat is still connected to the mains electricity supply
and your heating system is not isolated. Always isolate from the mains
before undertaking any maintenance.
Frost Protection
The thermostat will not let the temperature fall below 5°C.
Manual
The thermostat will hold a xed temperature. Just turn the Rotary Control
to change the temperature.
Auto In this position your thermostat will run the program you have set.
If you would like to temporarily adjust the temperature, just turn the Rotary
Control. At the start of the next heating period, your thermostat will
automatically resume your programming schedule.
ELT-01-XX-01 - Operating guide V1.0 © Warmup plc - 2013
Selecting your mode
