www.wavtech-usa.com

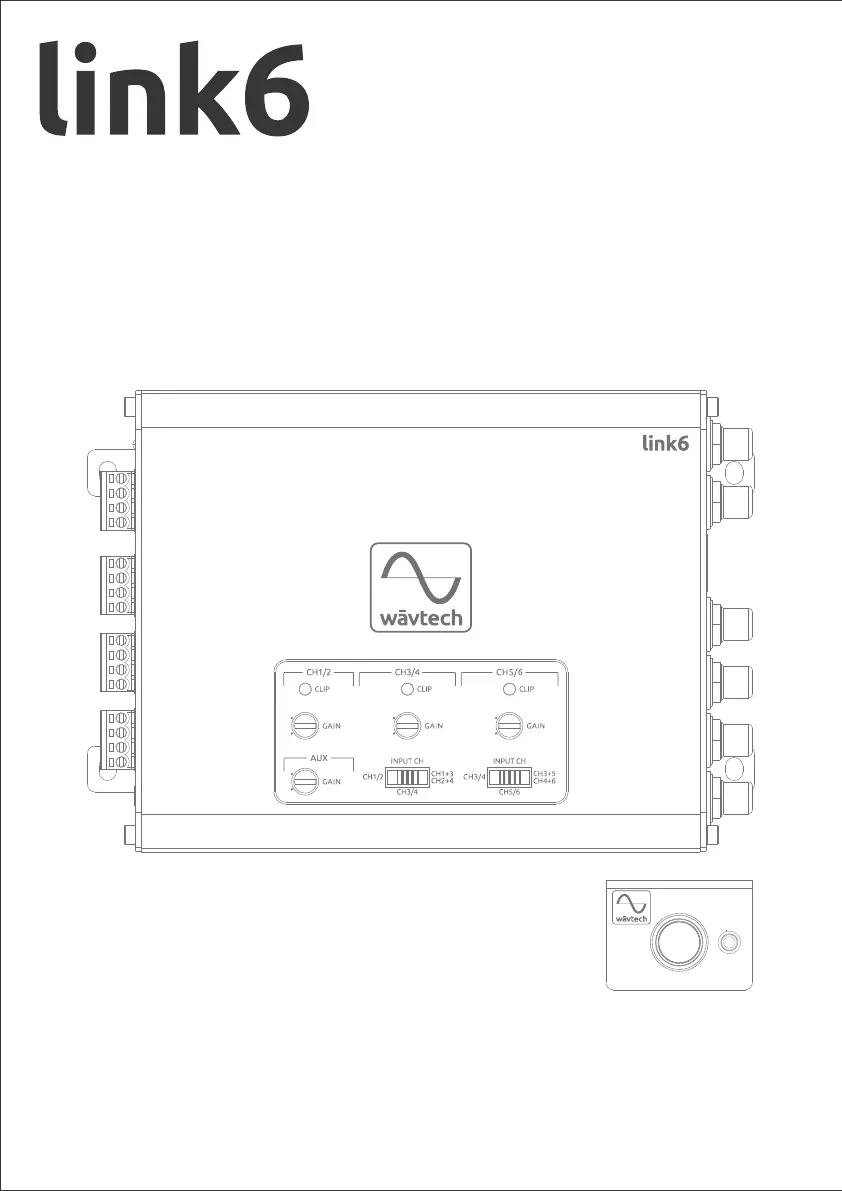

Owner’s Manual

6-Channel Line Output Converter

Summing ŸAUX Input ŸMulti-Function Remote

• Any function that requires your prolonged attention should not be performed DO NOT DRIVE WHILE DISTRACTED.

while driving. Always stop the vehicle in a safe location before performing any such function. Failure to do so may

result in an accident.

• KEEP THE VOLUME AT MODERATE LEVELS WHILE DRIVING. Excess volume levels can obscure sounds such as

emergency vehicle sirens or road warning signals and may result in an accident. Continuous exposure to high sound

pressure levels may cause permanent hearing loss. Use common sense and practice safe sound.

• FOR USE WITH 12V NEGATIVE GROUND VEHICLE APPLICATIONS ONLY. Using this product other than in its

designed application may result in ﬁre, injury or product damage.

•MAKE THE CORRECT WIRING CONNECTIONS AND USE PROPER FUSE PROTECTION. Failure to connect wiring

correctly or use appropriate fuse protection may result in ﬁre, injury or product damage . Ensure proper fusing of all

system power wiring and install a 1-ampere in-line fuse (not included) with the +12V lead to the unit’s power supply

connector.

• DISCONNECT THE NEGATIVE BATTERY TERMINAL BEFORE INSTALLATION. Failure to do so may result in ﬁre,

injury or damage to the unit.

• D O NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS. Arrange wiring and cables to

prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as steering wheel, brake

pedals, etc. can be extremely hazardous.

• DO NOT DAMAGE VEHICLE SYSTEMS OR WIRING WHEN DRILLING HOLES. When drilling holes in the chassis for

installation, take precautions so as not to contact, puncture or obstruct brake lines, fuel lines, fuel tanks, electrical

wiring, etc. Failure to take such precautions may result in ﬁre or an accident.

• DO NOT UTILIZE OR CONNECT TO ANY PART OF VEHICLE SAFETY SYSTEMS. Bolts, nuts or wires used in the

brake, airbag, steering or any other safety-related systems or fuel tanks should NEVER be used for mounting, power or

ground connections. Using such parts may disable control of the vehicle or result in ﬁre.

WARNING

WARNING This symbol means important instructions.

Failure to heed them can result in serious injury or death.

CAUTION This symbol means important instructions.

Failure to heed them can result in injury or property damages.

• STOP USE IMMEDIATELY IF A PROBLEM OCCURS. Failure to do so may result in personal injury or damage to the

product. Return it to your authorized Wāvtech dealer.

• HAVE AN EXPERT DO THE WIRING AND INSTALLATION. This unit requires special technical skill and experience for

wiring and installation. To insure safety and proper function, always contact the authorized dealer where you

purchased the product to have it done professionally.

• INSTALL THE UNIT SECURELY WITH SPECIFIED PARTS. Be sure to use only the included parts and speciﬁed

installation accessories (not included). Use of other than designated parts may damage this unit. Install the unit

securely so that it will not come loose during a collision or sudden jolt.

• ROUTE WIRING AWAY FROM SHARP EDGES AND MOVING PARTS. Arrange cables and wiring away from sharp or

pointed edges and avoid moving parts such as seat hinges or rails to prevent pinching or wear. Use loom protection

where appropriate and always use a grommet for any wiring routed through metal.

• NEVER RUN SYSTEM WIRING OUTSIDE OR UNDERNEATH THE VEHICLE. All wiring must be routed, secured and

protected inside the vehicle. Failure to do so may result in ﬁre, injury or property damage.

• INSTALL THE UNIT IN A DRY AND VENTILATED LOCATION. Avoid mounting locations where the unit will likely be

exposed to high moisture or heat without adequate ventilation. Moisture penetration or heat buildup may result in

product failure.

• REDUCE GAIN AND SOURCE VOLUME TO MINIMUM LEVELS FOR INITIAL SYSTEM TUNING AND BEFORE

CONNECTION TO AN AMPLIFIER. Ensure ampliﬁer power is oﬀ before connecting RCA cables and follow proper

system gain setting procedures. Failure to do so may result in damage to the ampliﬁer and/or connected components.

CAUTION

Package Contents:

Main Unit Terminals

Accessories Required for

Installation :(not included)

Mounting Tabs

(detachable)

ŸRCA Interconnects

Ÿ18AWG Wire

ŸIn-line Fuse Holder w/1A fuse

ŸBattery Ring Terminal

ŸWire Crimp Connectors

ŸGrommets and Loom

ŸCable Ties

ŸMounting Screws

Multi-Function Remote

Remote Cable

(16.4ft / 5m)

PWR/SPK GND

Introduction

Welcome to Wāvtech, exceptional mobile audio integration products for audiophiles. Our products are

engineered to provide a truly remarkable listening experience. Built for the professional installer, our

OEM integration and signal processor models are simply the best solution available for unlimited sound

system upgrades while retaining the factory receiver.

Œ Power Indicator: This red LED indicates

when the link6 is powered on. Once

illuminated, there will be a short delay

before audio signal output is enabled.

During initial power connection, the

LED may illuminate for a brief period.

Auto Turn-On Detect Jumpers: By

default, the link6 is set to detect

both DC-oﬀset and audio signal for

turning itself on/oﬀ automatically.

These jumpers allow either mode to

be independently defeated for cases

where only one turn-on mode is

preferred or to bypass both modes

when a switched +12V trigger is available and connected to the REM IN terminal.

ŽPower Supply Terminal: For +12V battery, chassis ground, remote input and remote output wire

connections. A minimum of 18AWG wire is recommended for power and ground connections. Always

protect the +12V power wire with a 1-amp fuse.

Speaker Level Input Terminals: For up to six channels of speaker level input connections to the source.

Input signals ranging from 2Vrms to 20Vrms will produce up to 10Vrms RCA output from maximum to

minimum gain. For factory ampliﬁers with more than 20Vrms signal or if the link6’s output is too high

for the connected aftermarket ampliﬁer(s) with all gains at minimum, internal jumpers are available to

reduce the input sensitivity range by half (-6dB) for 4Vrms up to 40Vrms.

Auxiliary Input Jack: This 3.5mm stereo AUX input is for the connection of a portable device such as a

smartphone or MP3 player, but may also be used for other low level (a.k.a line level) sources using a

3.5mm adapter. AUX may be selected as a separate source via the multi-function remote, or

programmed as the primary source for stand-alone systems where the speaker level inputs are not

used (see pg4). Input signals ranging from 0.5Vrms to 5Vrms will produce up to 10Vrms RCA output at

maximum to minimum gain setting. This input is diﬀerential but may be set to unbalanced via internal

jumpers (labeled BAL/UNBAL) if required for a particular source.

‘CH1/2 Output Select: This switch allows CH1/2’s output to be selected between 1/2 for direct input

pass-through (default) or 5/6 to copy signal from CH5/6 internally after its summing stage. The latter

is particularly useful when summing 3-way systems for retaining remote level control over CH5/6

while also providing a separate summed full-range output from CH1/2.

’RCA Output Jacks: These six channels of RCA outputs are for signal connection to your s

ampliﬁer(s). For a speaker level source, output from CH3/4 and CH5/6 will depend upon their

respective INPUT CH settings (see pg3), while CH1/2 is set by its output select switch (see above). ‘

For an AUX source, left/right stereo signals will be routed to all output pairs. Use quality

interconnects to ensure stable connections and minimize the possibility for induced noise.

“Remote Level Control Jack: This RJ45 jack is for connecting the multi-function remote to the main

unit with the supplied cable. A standard ethernet cable may also be used.

”Mounting Tabs: These mounting tabs are for securing the link6 during installation with screws or

cable ties. They are removable if the unit can be safely secured by another method.

Connections & Functions

Ÿ 6-Channel Line Output Converter

Ÿ6-Channel Summing Processor

ŸMulti-Function Remote

Master Volume

AUX Volume

Independent CH5/6 Level

Source/Function Select

ŸAUX 3.5mm Input

ŸDiﬀerential Balanced Inputs

Ÿ Low Impedance Outputs

ŸVariable Gain Adjustments w/Clip LEDs

Ÿ2/4/6-Channel Input Select

Ÿ2/3-Way Summing w/Retained CH5/6 Level Control

ŸNever-Zero CH5/6 Output with Front & Rear Inputs

ŸSelectable DC-Oﬀset and/or Audio Detect Auto Turn-On

ŸGenerated +12V Remote Output

ŸOEM Load Detect Compatible

ŸLocking Detachable Power/Speaker Terminals

ŸPanel Mount RCA Jacks

ŸCompact Aluminum Chassis w/Detachable Mounting Tabs

Features

’

“

”

‘



Ž


