www.wavtech-usa.com
Owner’s Manual
8-Channel Line Output Converter
Summing ŸAUX Input ŸMulti-Function Remote
• Any function that requires your prolonged attention should not be performed DO NOT DRIVE WHILE DISTRACTED.
while driving. Always stop the vehicle in a safe location before performing any such function. Failure to do so may
result in an accident.
• KEEP THE VOLUME AT MODERATE LEVELS WHILE DRIVING. Excess volume levels can obscure sounds such as
emergency vehicle sirens or road warning signals and may result in an accident. Continuous exposure to high sound
pressure levels may cause permanent hearing loss. Use common sense and practice safe sound.
• FOR USE WITH 12V NEGATIVE GROUND VEHICLE APPLICATIONS ONLY. Using this product other than in its
designed application may result in fire, injury or product damage.
• MAKE THE CORRECT WIRING CONNECTIONS AND USE PROPER FUSE PROTECTION. Failure to connect wiring
correctly or use appropriate fuse protection may result in fire, injury or product damage . Ensure proper fusing of all
system power wiring and install a 1-ampere in-line fuse (not included) with the +12V lead to the unit’s power supply
connector.
• DISCONNECT THE NEGATIVE BATTERY TERMINAL BEFORE INSTALLATION. Failure to do so may result in fire,
injury or damage to the unit.
• D O NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS. Arrange wiring and cables to
prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as steering wheel, brake
pedals, etc. can be extremely hazardous.
• DO NOT DAMAGE VEHICLE SYSTEMS OR WIRING WHEN DRILLING HOLES. When drilling holes in the chassis for
installation, take precautions so as not to contact, puncture or obstruct brake lines, fuel lines, fuel tanks, electrical
wiring, etc. Failure to take such precautions may result in fire or an accident.
• DO NOT UTILIZE OR CONNECT TO ANY PART OF VEHICLE SAFETY SYSTEMS. Bolts, nuts or wires used in the
brake, airbag, steering or any other safety-related systems or fuel tanks should NEVER be used for mounting, power or
ground connections. Using such parts may disable control of the vehicle or result in fire.
WARNING
WARNING This symbol means important instructions.
Failure to heed them can result in serious injury or death.
CAUTION This symbol means important instructions.
Failure to heed them can result in injury or property damages.
• STOP USE IMMEDIATELY IF A PROBLEM OCCURS. Failure to do so may result in personal injury or damage to the
product. Return it to your authorized Wāvtech dealer.
• HAVE AN EXPERT DO THE WIRING AND INSTALLATION. This unit requires special technical skill and experience for
wiring and installation. To insure safety and proper function, always contact the authorized dealer where you
purchased the product to have it done professionally.
• INSTALL THE UNIT SECURELY WITH SPECIFIED PARTS. Be sure to use only the included parts and specified
installation accessories (not included). Use of other than designated parts may damage this unit. Install the unit
securely so that it will not come loose during a collision or sudden jolt.
• ROUTE WIRING AWAY FROM SHARP EDGES AND MOVING PARTS. Arrange cables and wiring away from sharp or
pointed edges and avoid moving parts such as seat hinges or rails to prevent pinching or wear. Use loom protection
where appropriate and always use a grommet for any wiring routed through metal.
• NEVER RUN SYSTEM WIRING OUTSIDE OR UNDERNEATH THE VEHICLE. All wiring must be routed, secured and
protected inside the vehicle. Failure to do so may result in fire, injury or property damage.
• INSTALL THE UNIT IN A DRY AND VENTILATED LOCATION. Avoid mounting locations where the unit will likely be
exposed to high moisture or heat without adequate ventilation. Moisture penetration or heat buildup may result in
product failure.
• REDUCE GAIN AND SOURCE VOLUME TO MINIMUM LEVELS FOR INITIAL SYSTEM TUNING AND BEFORE
CONNECTION TO AN AMPLIFIER. Ensure amplifier power is off before connecting RCA cables and follow proper
system gain setting procedures. Failure to do so may result in damage to the amplifier and/or connected components.
CAUTION
Package Contents:
Main Unit Terminals
(5pcs, detachable)
Accessories Required for
Installation :(not included)
Mounting Tabs
(4pcs, detachable)
ŸRCA Interconnects
Ÿ18AWG Wire
ŸIn-line Fuse Holder w/1A fuse
ŸBattery Ring Terminal
ŸGround Terminal
ŸWire Crimp Connectors
ŸGrommets and Loom
ŸCable Ties
ŸMounting Screws
1
Multi-Function Remote
Remote Cable
(16.4ft / 5m)
Introduction
Welcome to Wāvtech, exceptional mobile audio integration products for audiophiles. Our products are
engineered to provide a truly remarkable listening experience. Built for the professional installer, our
OEM integration and signal processor models are simply the best solution available for unlimited sound
system upgrades while retaining the factory receiver.

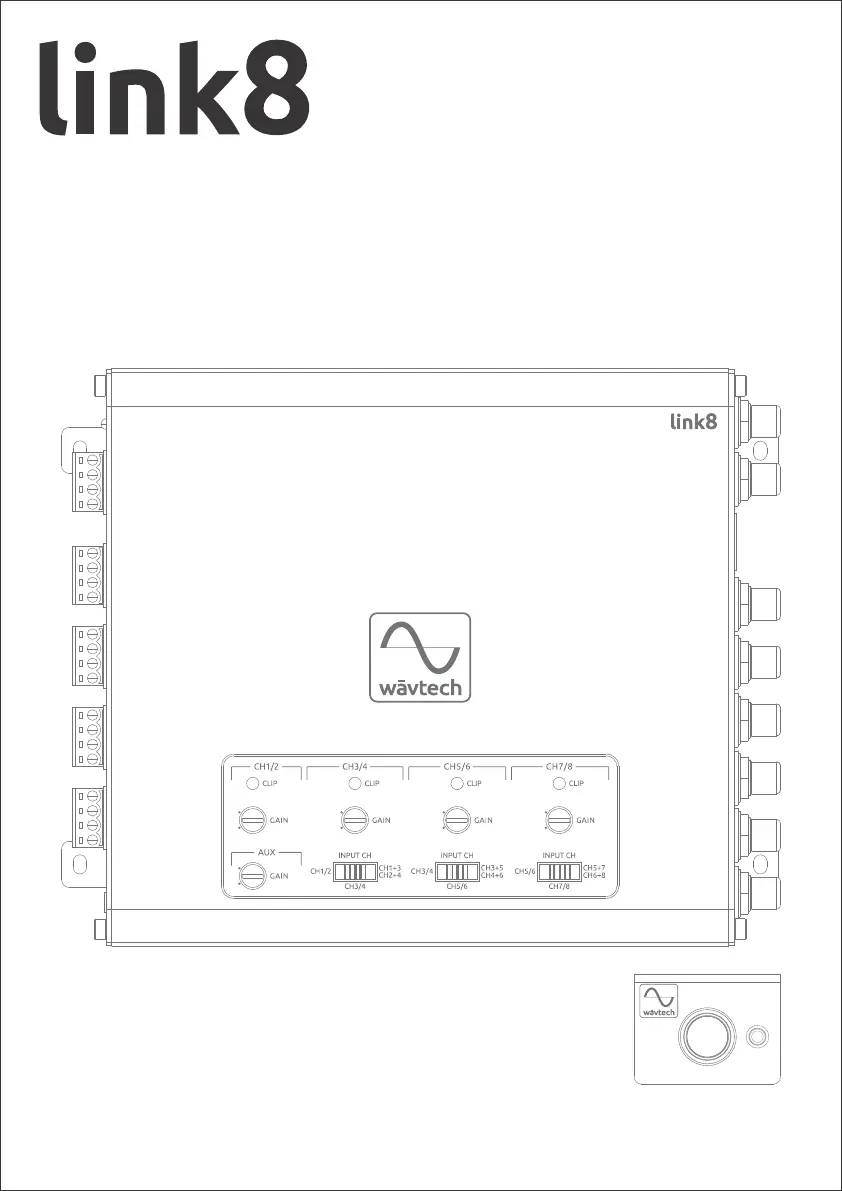

ΠPower Indicator: This red LED indicates when the link8 is powered on. Once illuminated, there will be
a short delay before audio signal output is enabled. During initial power connection, the LED may
illuminate for a brief period.
Ground Jumper: For selecting between chassis, isolation or 200Ω for the internal audio signal ground.
Chassis ground is the default setting and is ideal for most applications due to the differential input
stage. In the rare case there is system noise present after all other installation countermeasures,
changing this jumper to ISO or 200Ω may reduce or eliminate the noise.
ŽPower Supply Terminal: For +12V battery, chassis ground, remote input and remote output wire
connections. A minimum of 18AWG wire is recommended for power and ground connections. Always
protect the +12V power wire with a 1-amp fuse.
Speaker Level Input Terminals: For up to eight channels of speaker level (a.k.a. high level) input
connections to the source. Input signals ranging from 2Vrms to 20Vrms will produce up to 10Vrms
RCA output at maximum to minimum gain setting. Dynamic music signal peaks are allowable up to
40Vrms, but will be clipped.
Auxiliary Input Jack: This 3.5mm stereo AUX input is for the connection of a portable device such as a
smartphone or MP3 player, but may also be used for other low level (a.k.a line level) sources using a
3.5mm adapter. AUX may be selected as a separate source via the multi-function remote, or
programmed as the primary source for stand-alone systems where the speaker level inputs are not
used (see pg4). Input signals ranging from 0.5Vrms to 5Vrms will produce up to 10Vrms RCA output at
maximum to minimum gain setting.
‘RCA Output Jacks: These eight channels of RCA line level outputs are for signal connection to your
amplifier(s). CH3/4, CH5/6 and CH7/8’s output will depend upon which INPUT CH setting is selected
for each pair (see pg3), while CH1/2 will always pass through its input signal directly. When selected,
the AUX input will supply left/right stereo signals to all four pairs of outputs. Use quality
interconnects to ensure stable connections and minimize the possibility for induced noise.
’Remote Level Control Jack: This RJ45 jack is for connecting the supplied cable to the external multi-
function remote controller. A standard ethernet cable may also be used.
“Mounting Tabs: These mounting tabs are for securing the link8 during installation with screws or
cable ties. They are removable if the unit can be safely secured by another method.
Connections & Functions
Features
Ÿ8-Channel Line Output Converter
Ÿ8-Channel Summing Processor
ŸMulti-Function Remote (patent pending)
Master Volume Control
AUX Volume Control
Independent CH7/8 Level
Source/Function Select
ŸAUX 3.5mm Input
ŸDifferential Balanced Inputs
Ÿ Low Impedance Outputs
2
ŸIndependent Variable Gains with Clip LEDs
Ÿ2ch/4ch/6ch/8ch Input Select
Ÿ2/3/4-Way Summing
ŸNever-Zero Ch7/8 Output with Front & Rear Input
ŸAuto Turn-On via DC-Offset or Audio Signal Detect
ŸGenerated +12V Remote Output
ŸOEM Load Detect Compatible
ŸSelectable Ground Isolation
ŸDetachable Power and Speaker Input Terminals
ŸProfessional Grade Panel Mount RCA Output Jacks
ŸAluminum Chassis w/Detachable Mounting Tabs
Œ
Ž
‘
’
“
