In the Box
1x SP-0102-H2 Splitter
1x 12V DC 0.5A Power Supply
2x Mounting Brackets
1x Quickstart Guide (This Document)

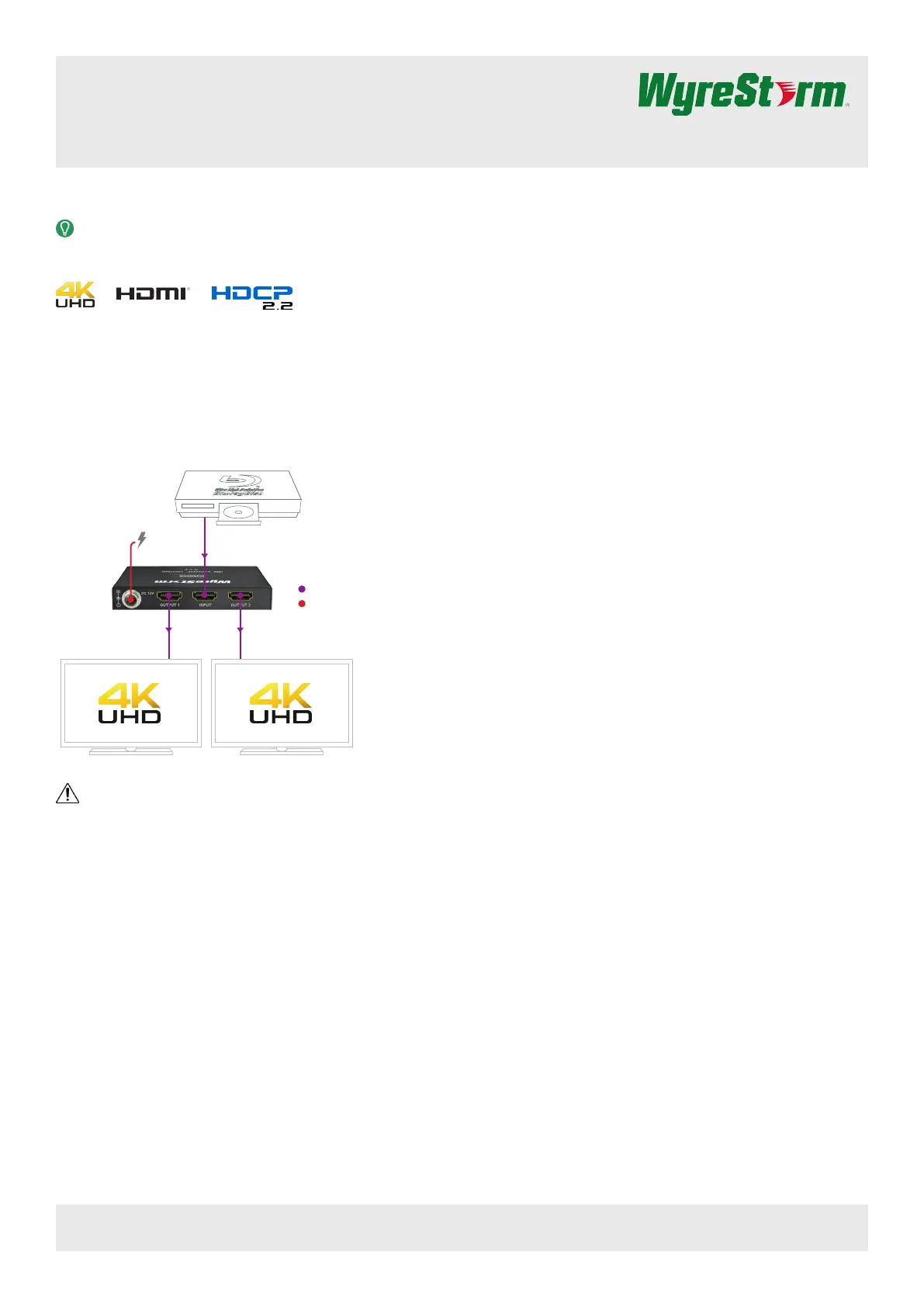

Basic Wiring Diagram
KEY
HDMI
Power
12V DC 0.5A
Power Supply
UHD Display
HDMI to
display
HDMI to
display
UHD Source
UHD Display
IMPORTANT!
Disconnecting and connecting (hot plugging) HDMI or HDBaseT while devices
are powered on may cause damage. WyreStorm recommends powering off
devices before disconnecting these connections.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Refer to the Installation Guide and other documentation on the
product page for additional information.
Before Beginning
• WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about the product.
• Verify that all items are included in the packaging per the In the Box list.
Installation
1. Connect an HDMI source to the on the splitter using an HDMI HDMI In
cable from a high quality brand such as WyreStorm Express.
2. Connect HDTV displays to using an HDMI cable from a high Output 1
quality brand such as WyreStorm Express.
3. Repeat step 2 for additional displays or additional splitters.
4. Connect the included 12V DC 0.5A power supply to the jack.DC 12V
Copyright © 2016 WyreStorm Technologies | wyrestorm.com
SP-0102-H2 Quickstart Guide | 170117
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation
process.
Pure HDMI 1x2 splitter switch with support for full 4K resolutions and HDCP 2.2.
1x2 4K HDMI Splitter with HDCP 2.2 Encryption
SP-0102-H2 Quickstart Guide
Front Panel
Rear Panel
Input LED Solid: HDMI source is connected and powered On.
Off: HDMI source is not connected or is powered Off.
Output LEDs Solid: Display is connected and powered On.
Off: Display is not connected or is powered Off.
Power LED Solid: The splitter is powered On
Off: The splitter is powered Off
Power In 5.5mm Male Barrel Jack
Connect to the included 12V DC 0.5A Power Supply.
HDMI Outputs 19-pin type A HDMI female:
Supports HDMI and DVI/D (requires adapter-not included). Limited to 600MHz pixel clock.
Input 19-pin type A HDMI female:
Supports HDMI and DVI/D (requires adapter-not included). Limited to 600MHz pixel clock.
Copyright © 2016 WyreStorm Technologies | wyrestorm.com
SP-0102-H2 Quickstart Guide | 170117
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
support@wyrestorm.com
2 of 4
HDMI Wiring
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables,
and electrical or environmental interference can have an adverse effect
on HDMI transmission limiting performance. Steps should be taken to
minimize these factors (or remove completely) during installation for best
results.
• WyreStorm recommends using HDMI cables from a high quality brand
such as WyreStorm Express.
• Active HDMI cables or extenders must be used for distances greater than
10m between the splitter and connected devices in order to maintain the
highest level of video performance.
EDID Settings
EDIDs can be congured to resolve issues with video output on displays that
may not accept the maximum resolution available from the source.
1. Connect the lowest resolution display to Output
2. Power on the Display.
3. Power on the Splitter.
The EDID from the display on Output 1 will be used for the source to allow for
output on all displays.
Copyright © 2016 WyreStorm Technologies | wyrestorm.com
SP-0102-H2 Quickstart Guide | 170117
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
support@wyrestorm.com
3 of 4
