Aguilar OBP-1 Bruksanvisning
Läs nedan 📖 manual på svenska för Aguilar OBP-1 (5 sidor) i kategorin mottagare. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/5
Value depends on pickup. Use value recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-1.
Pots shown rear view.
GND

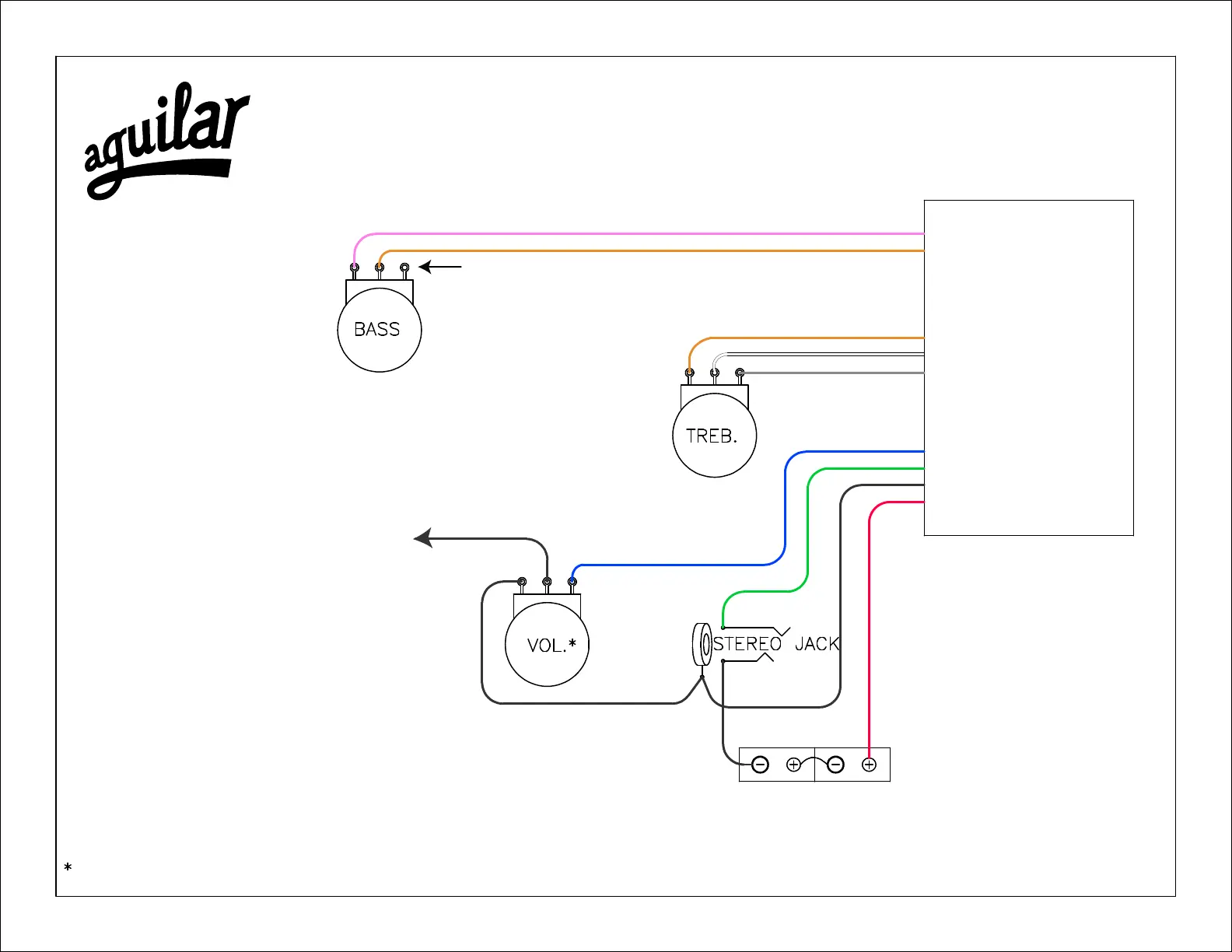

AGUILAR OBP-1 WIRING DIAGRAM
WITH VOLUME CONTROL
25K AUDIO
25K AUDIO
NO CONNECTION
OBP-1 MODULE
VIOLET
ORANGE
ORANGE
WHITE
GREY
BLUE
GREEN
BLACK
RED
9V BATTERY (X 2)
®
The two orange wires are interchangable.
TO SINGLE PICKUP
PAGE 1
Value depends on pickup. Use value recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-1.
Pots shown rear view.
GND

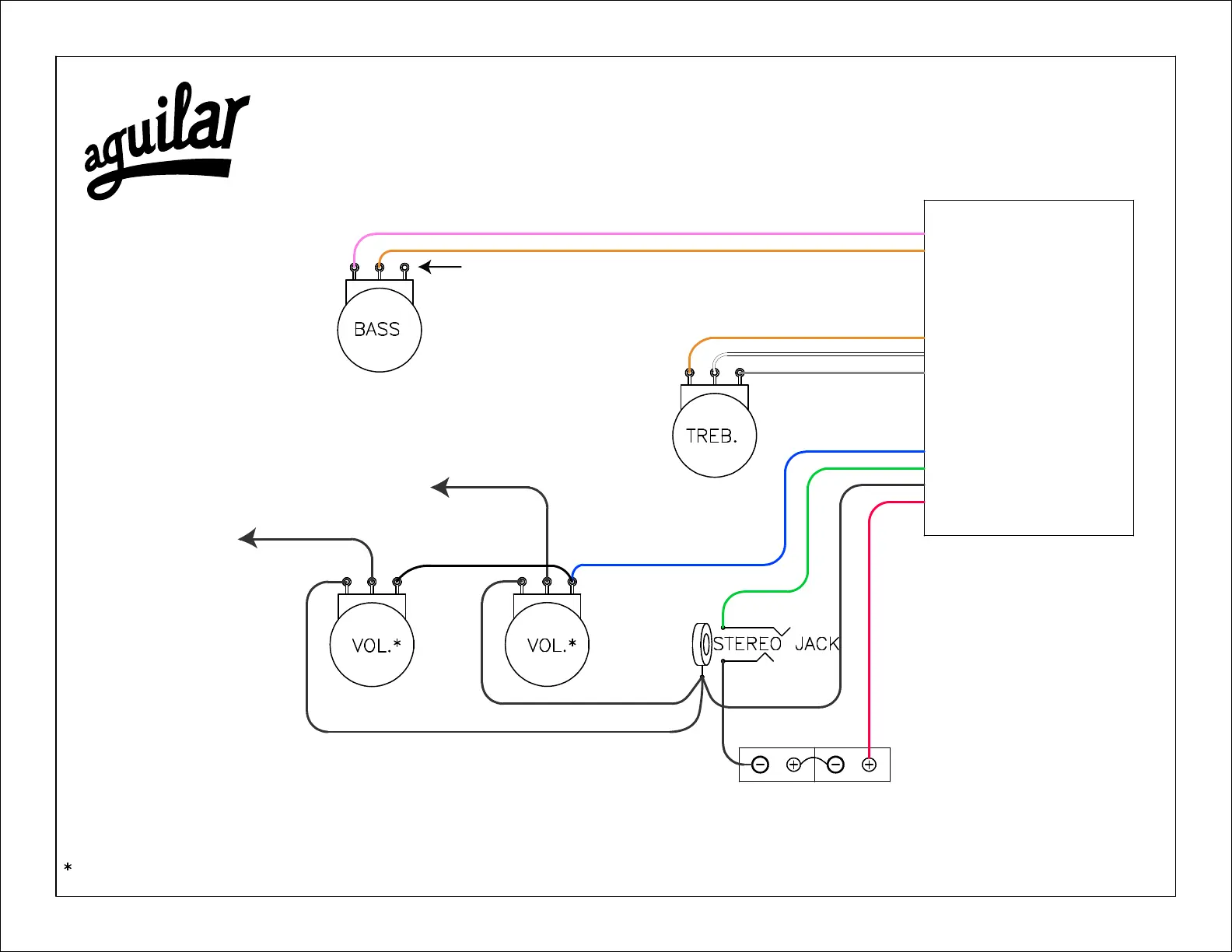

AGUILAR OBP-1 WIRING DIAGRAM
WITH TWO VOLUME CONTROLS
25K AUDIO
25K AUDIO
NO CONNECTION
OBP-1 MODULE
VIOLET
ORANGE
ORANGE
WHITE
GREY
BLUE
GREEN
BLACK
RED
9V BATTERY (X 2)
®
The two orange wires are interchangable.
TO BRIDGE PICKUP
TO NECK PICKUP
PAGE 2
Value depends on pickup. Use value recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-1.
Pots shown rear view.
GND

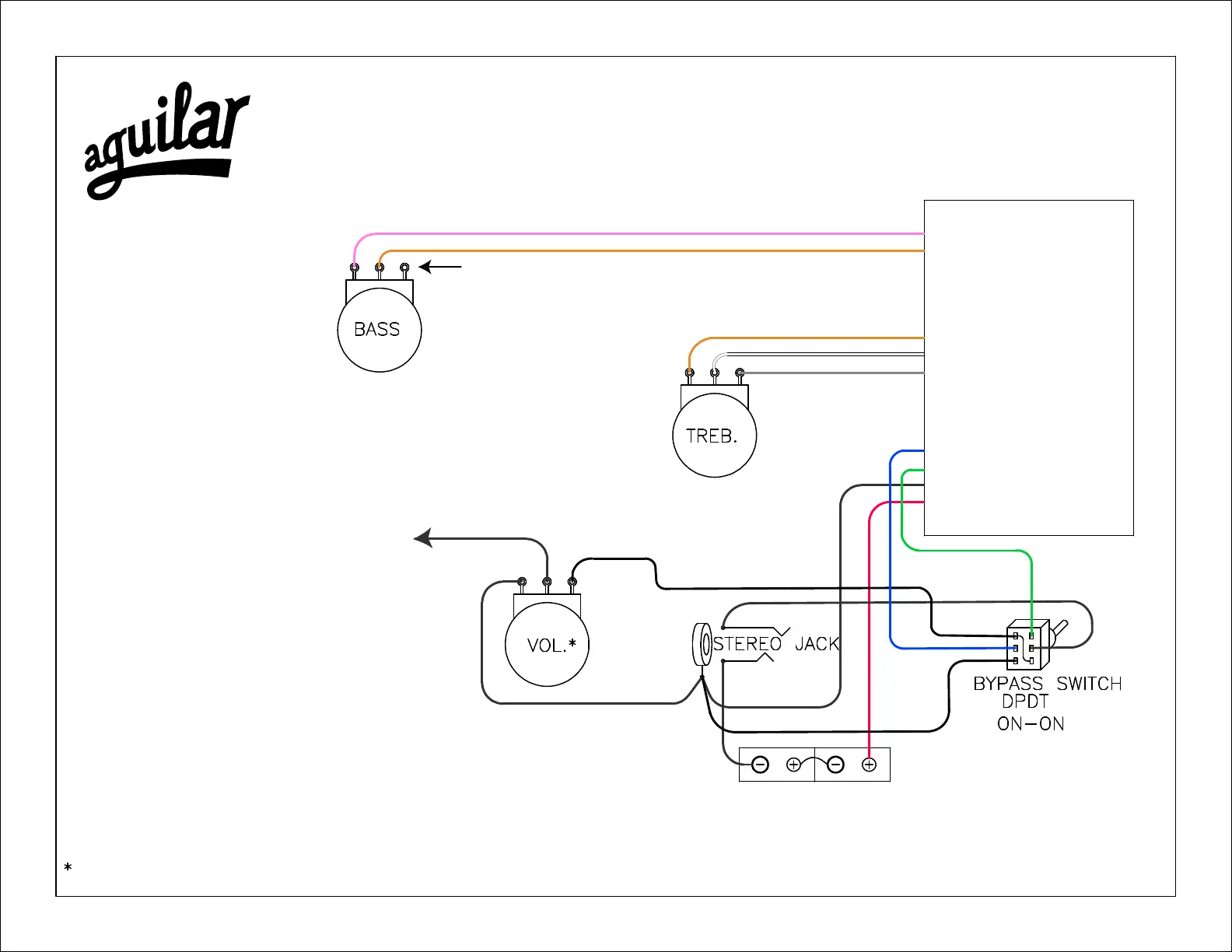

AGUILAR OBP-1 WIRING DIAGRAM
WITH VOLUME CONTROL AND BYPASS SWITCH
25K AUDIO
25K AUDIO
NO CONNECTION
OBP-1 MODULE
VIOLET
ORANGE
ORANGE
WHITE
GREY
BLUE
GREEN
BLACK
RED
9V BATTERY (X 2)
®
The two orange wires are interchangable.
TO SINGLE PICKUP
PAGE 3
