Aguilar OBP-2 Bruksanvisning
Läs nedan 📖 manual på svenska för Aguilar OBP-2 (5 sidor) i kategorin mottagare. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/5

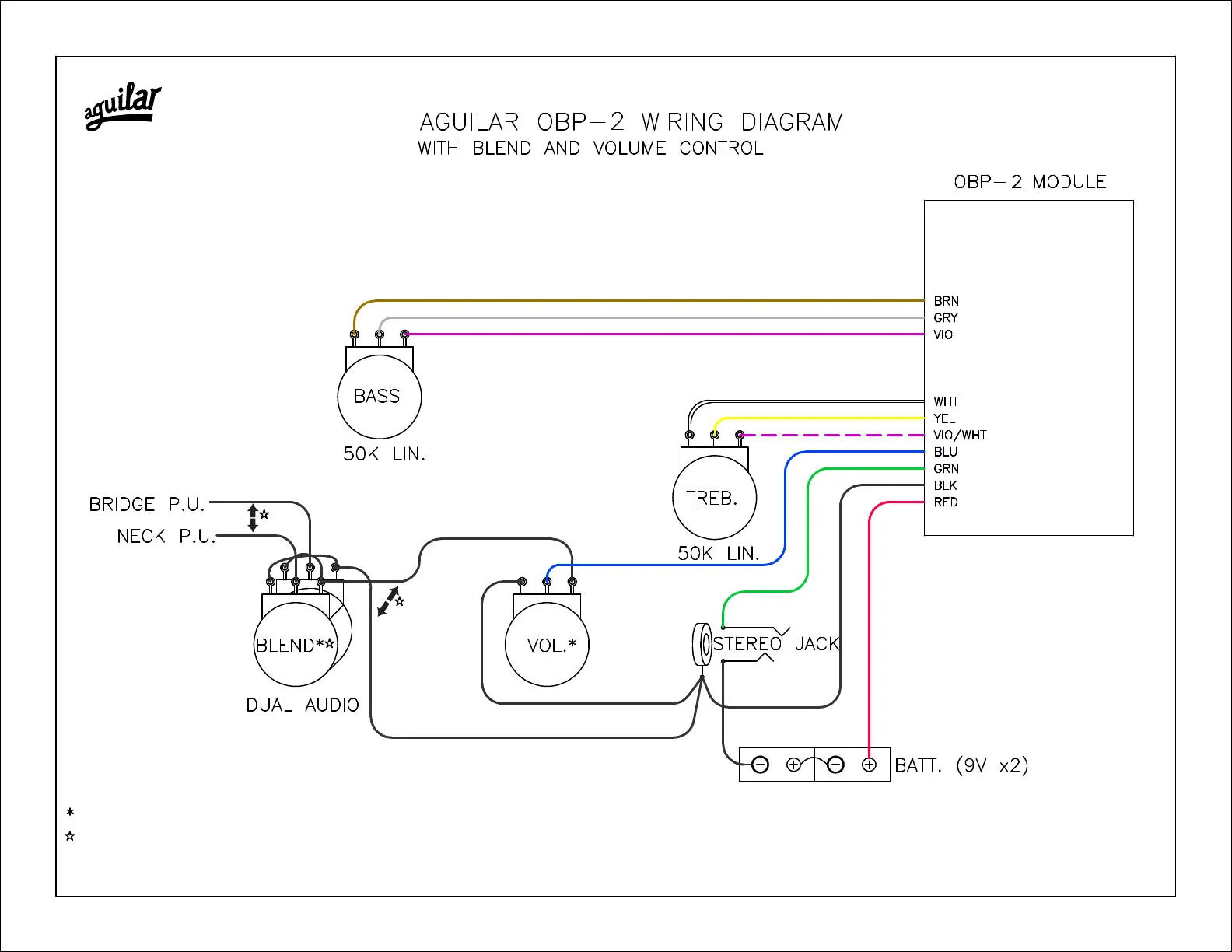

To wire MN (1Z2Z) taper potentiometer, swap positions of the following wires: Bridge P.U. and Neck P.U.; Volume jumper and GND.
Value depends on pickups. Use values recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-2.
Pots shown rear view.
For single pickup, eliminate blend pot - wire pickup directly to volume pot.
GND

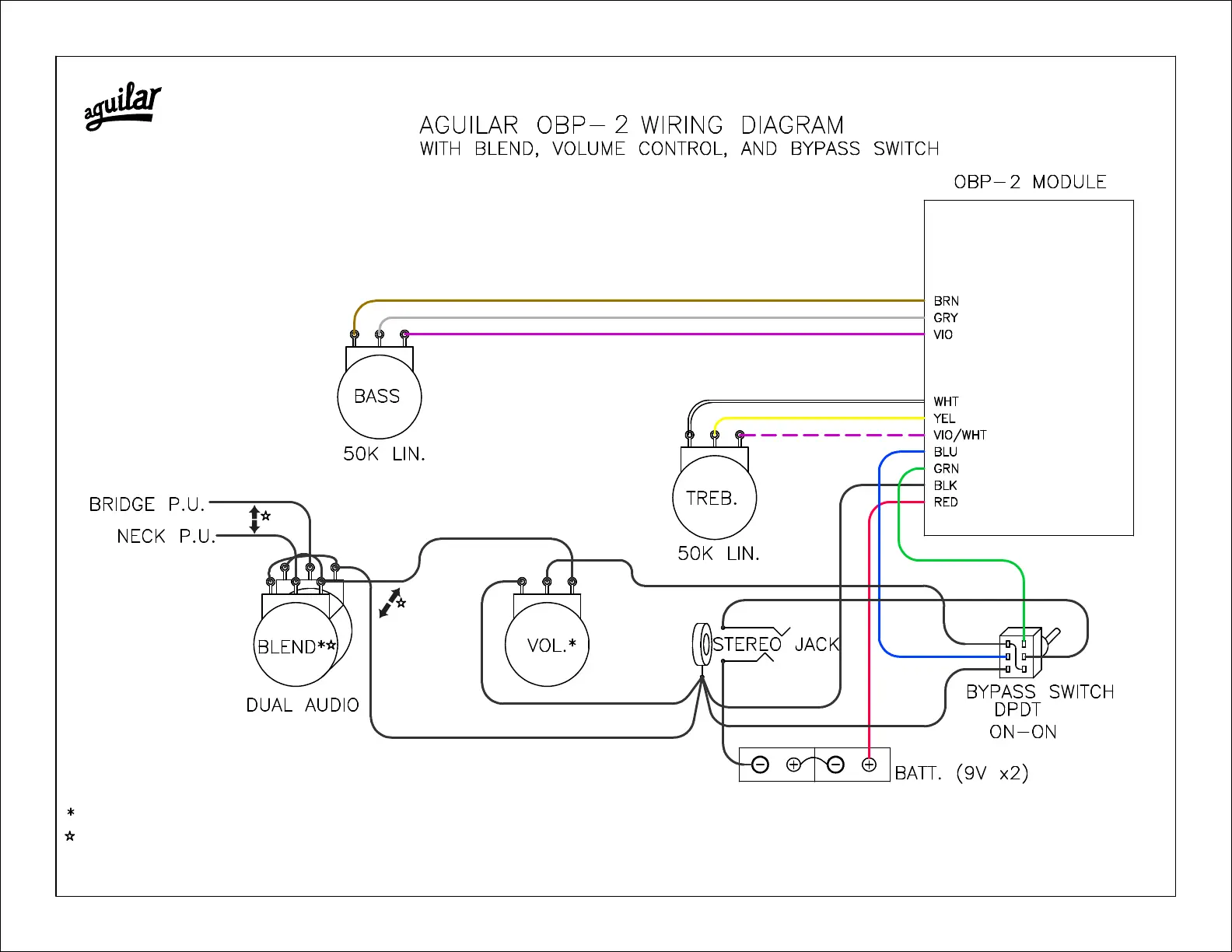

To wire MN (1Z2Z) taper potentiometer, swap positions of the following wires: Bridge P.U. and Neck P.U.; Volume jumper and GND.
Value depends on pickups. Use values recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-2.
Pots shown rear view.
For single pickup, eliminate blend pot - wire pickup directly to volume pot.
GND
GND

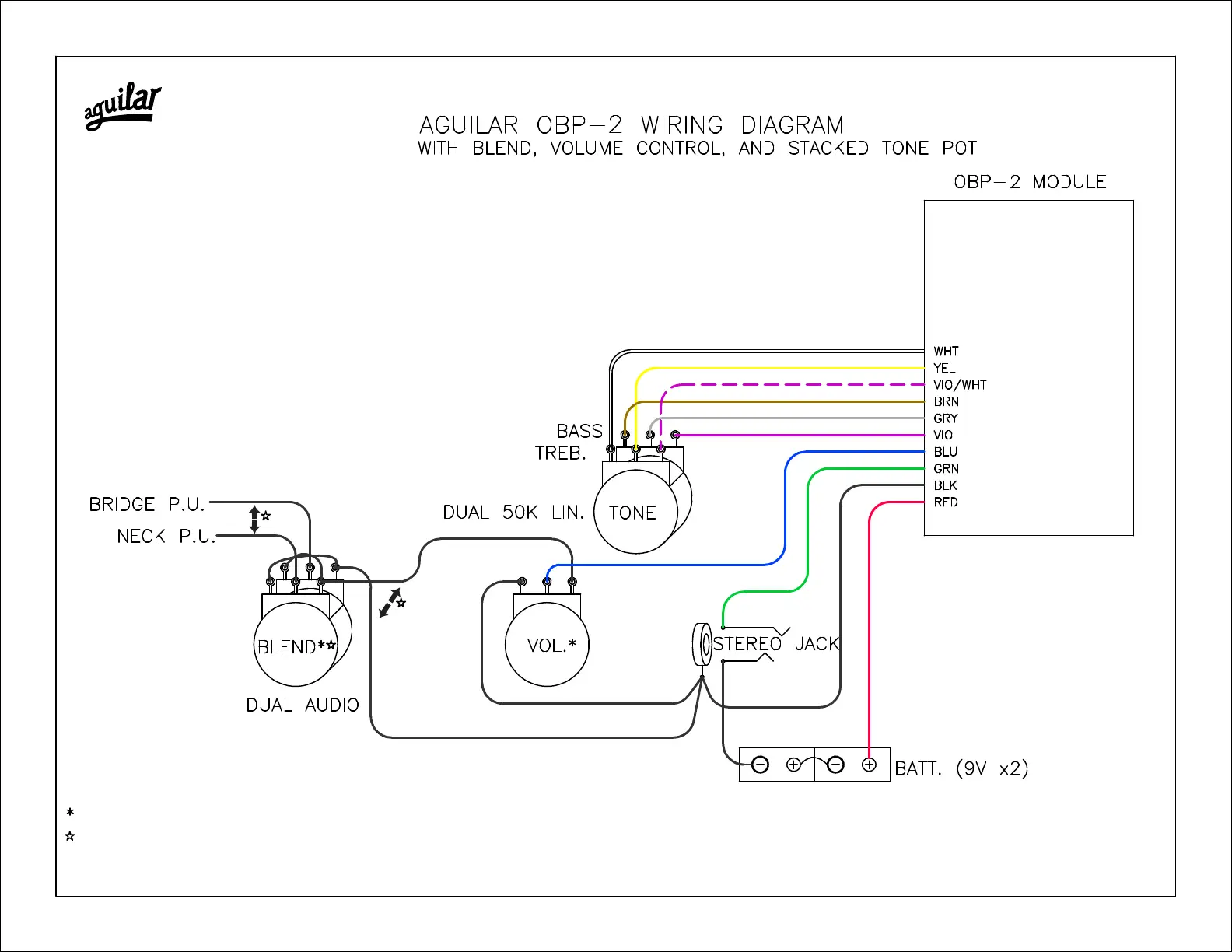

To wire MN (1Z2Z) taper potentiometer, swap positions of the following wires: Bridge P.U. and Neck P.U.; Volume jumper and GND.
Value depends on pickups. Use values recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-2.
Pots shown rear view.
For single pickup, eliminate blend pot - wire pickup directly to volume pot.
Produktspecifikationer
| Varumärke: | Aguilar |
| Kategori: | mottagare |
| Modell: | OBP-2 |
