Sida 1/8
1

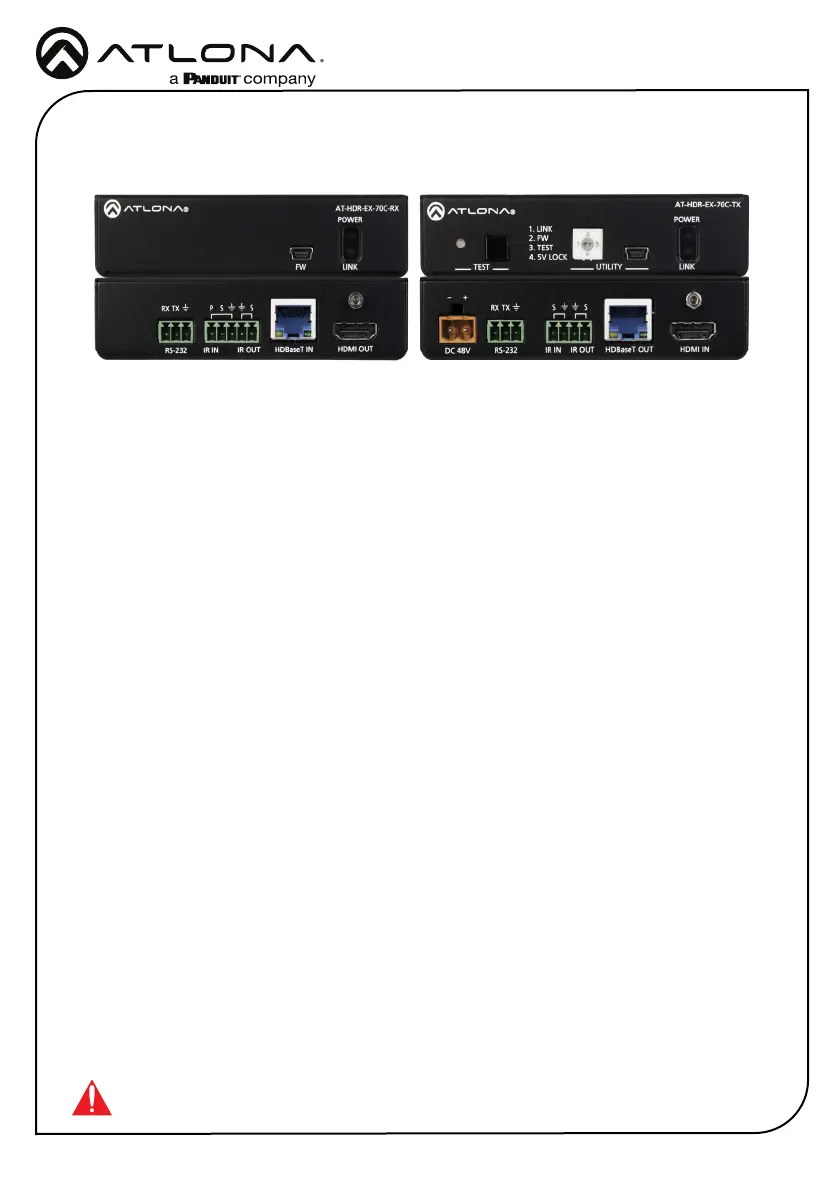

AT-HDR-EX-70C-KIT
4K HDR HDMI Over HDBaseT TX/RX Kit
AT-HDR-EX-70C-KIT
The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range
(HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4
chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70C-KIT provides
transmission of HDMI, as well as bidirectional IR and RS-232 control signals up to 230 feet
(70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable.
This extender kit features visually lossless compression with no latency to enable HDR and
4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the
transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-70C-
KIT delivers a cost-eective solution for HDMI and control signal extension, and includes surface
mounting hardware for discrete installation.
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-70C-KIT for the latest
rmware updates and Installation Guide.
1 x AT-HDR-EX-70C-TX
1 x AT-HDR-EX-70C-RX
4 x Mounting brackets
8 x Mounting screws
1 x 48V DC power supply
1 x IR emitter
1 x 2-pin captive screw connector
2 x 3-pin captive screw connector
1 x 4-pin captive screw connector
1 x 5-pin captive screw connector
1 x Installation Guide
Package Contents
Installation Guide
2
AT-HDR-EX-70C-KIT
AT-HDR-EX-70C-RX
POWER
LINKFW
RS-232
RX TX SSP
HDBaseT IN HDMI OUTIR OUTIR IN
DC 48V
-
+
RS-232
RX T X SS
HDBaseT OUT HDMI INIR OUTIR IN
AT-HDR-EX-70C-TX
POWER
LINKTEST UTILITY
1. LINK
2. FW
3. TEST
4. 5V LOCK

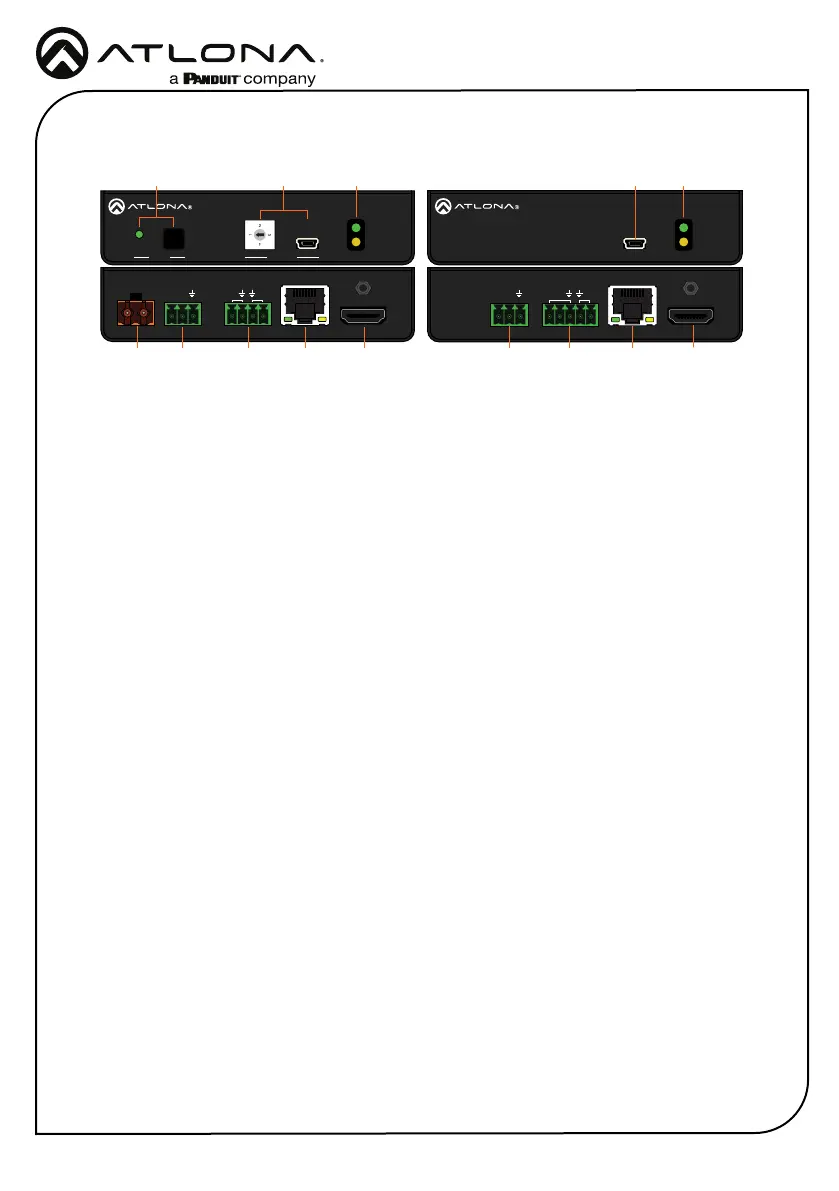

Panel Descriptions
1 TEST
Quick and easy test for cables. Use the
button to start the test and the LED to
determine pass or fail.
2 UTILITY
Connect a mini-USB to USB-A cable from
this port to a computer for updating and
testing. Rotate the dial to set the unit into
dierent modes.
3 POWER and LINK LEDs
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
4 DC 48V
Connect the included power supply to this
port.
5 RS-232
Bidirectional control port, used for pass
through of commands to or from the
receiver.
6 IR
Connect a 3rd party controller to the IR IN
port or an IR emitter to the IR OUT port.
7 HDBaseT OUT
Connect an HDBaseT cable from this port
to the port on the receiver.HDBaseT IN
8 HDMI IN
Connect an HDMI cable from a source to
this port. e.g. HDR BluRay Player
9 FW
Connect a mini-USB to USB-A type cable
from this port to a computer, to update
the rmware.
10 POWER and LINK LEDs
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
11 RS-232
Bidirectional control port, used for pass
through of commands to or from the
transmitter.
12 IR
Connect an IR receiver to the IR IN port or
an IR emitter to the IR OUT port.
13 HDBaseT IN
Connect an HDBaseT cable from this
port to the port on the HDBaseT OUT
transmitter.
14 HDMI OUT
Connect an HDMI cable from this port to
an HDMI display.
115 6 7 8 12 14134
103 921
Installation Guide
3
AT-HDR-EX-70C-KIT

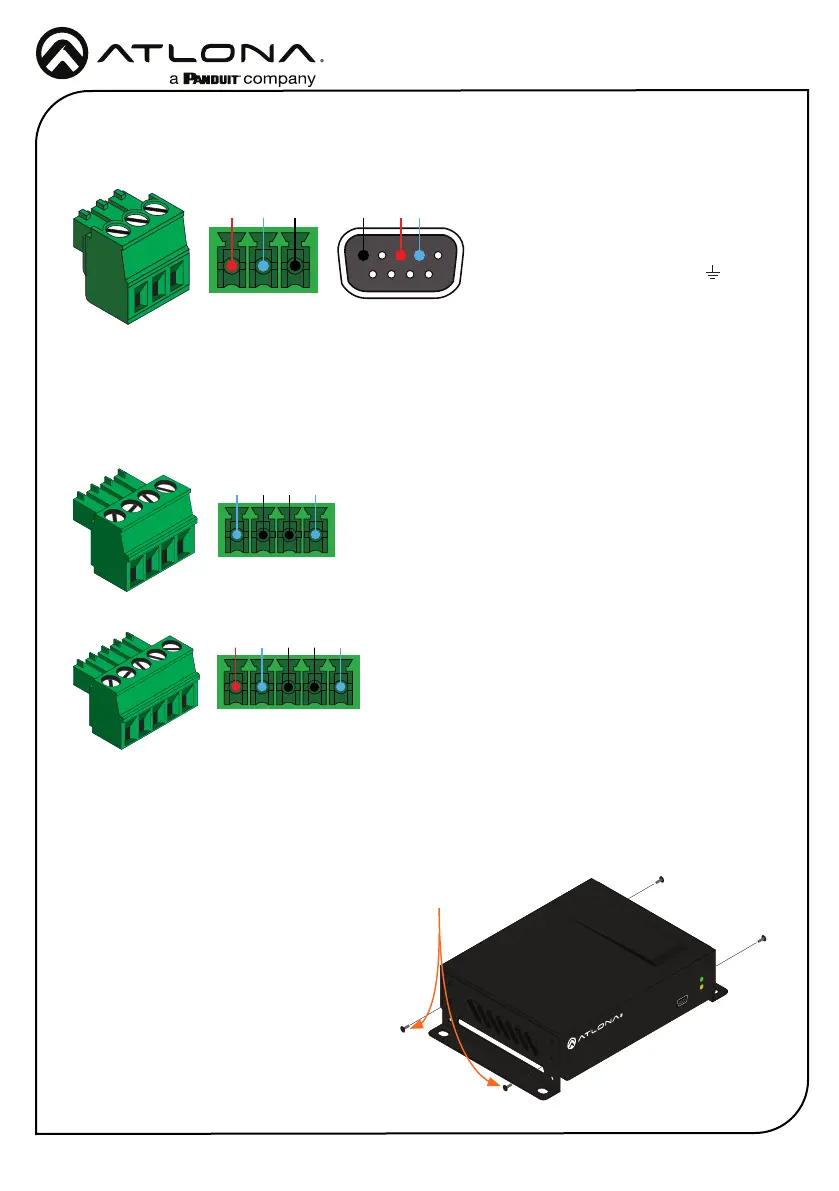

Pin out will be determined by the
RS-232 cable and connect as
RX (receive), TX (transmit) and
(Ground).
A 3-pin captive screw connector for RS-232 has been included.
Two captive screw connectors for IR have been included. A 4-pin connector for the transmitter
and a 3-pin connector for the receiver.
IR IN is connected by a power, ground, and signal
wire. Use a 12V IR receiver with it ( AT-IR-CS-RX e.g.
purchasable through atlona.com).
IR IN is connected by a ground and signal wire. Use
with 3rd party control systems. For easy termination,
Atlona recommends using the 2 meter IR cable AT-LC-
CS-IR-2M (purchasable through atlona.com).
IR OUT is connected by a ground and signal wire.
Use the included IR emitter with this port.
IR OUT is connected by a ground and signal wire.
Use the included IR emitter with this port.
RS-232
IR
IR IN IR OUT
GND SSP
GND RX TXGNDRX TX
IR IN IR OUT
GND SS
The AT-HDR-EX-70C-KIT includes two mounting brackets and four mounting screws each, which
can be used to attach the units to any at surface.
1. Position one of the mounting brackets,
as shown below, aligning the holes on
the side of the enclosure with one set of
holes on the mounting bracket.
2. Use the enclosure screws to secure the
mounting bracket to the enclosure.
3. Repeat the above steps to attach
the second mounting bracket to the
opposite side of the unit.
Mounting Instructions
FW
AT -HDR-EX- 70C-RX
POWER
LINK
Included screws
Installation Guide
