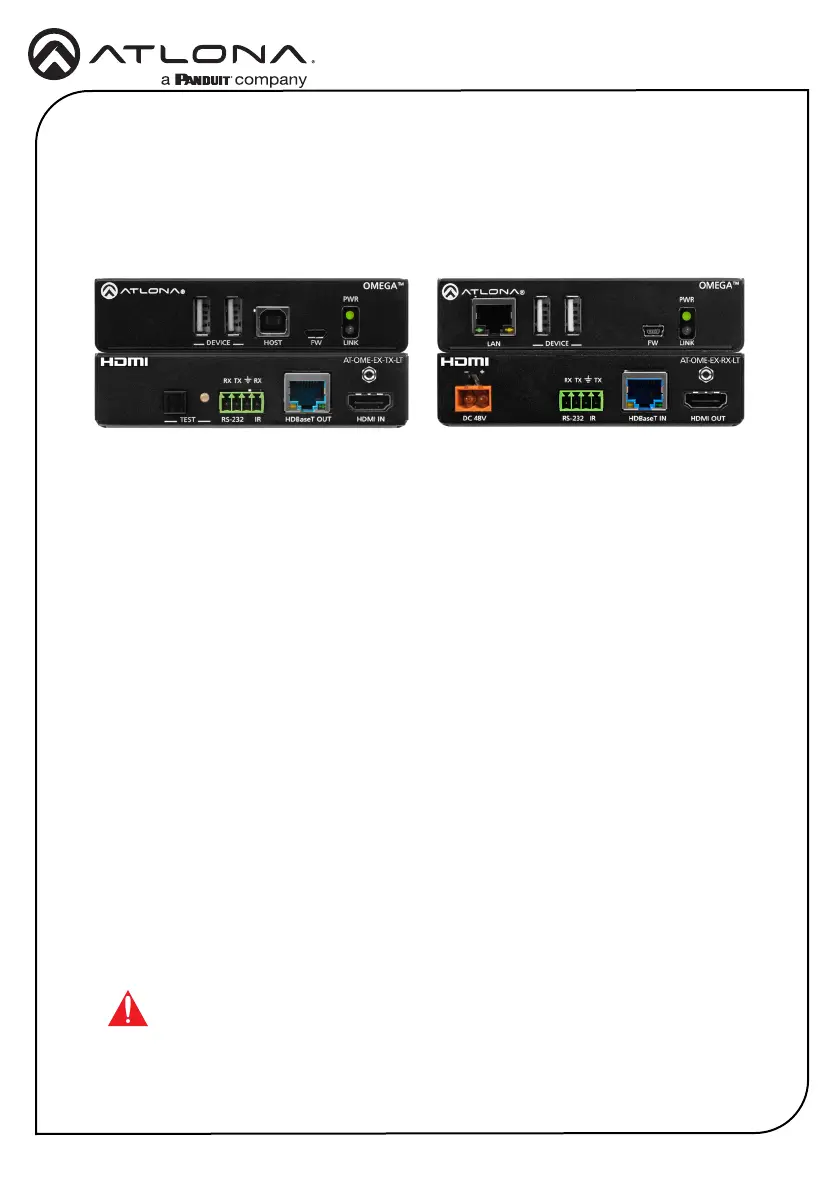

Installation Guide

AT-OME-EX-KIT-LT

Omega™ 4K/UHD

HDMI Over HDBaseT TX/RX with USB

AT-OME-EX-KIT-LT

The Atlona AT-OME-EX-KIT-LT is an HDBaseT extender for video up to 4K/60 4:2:0, plus

embedded audio, control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and up

to 230 feet (70 meters) for 1080p/60 video. Part of the Omega™ Series of integration products for

modern AV communications and collaboration, the OME-EX-KIT-LT is HDCP 2.2 compliant and

extends IR and RS-232 control signals. The integrated USB extension addresses the challenge

of connecting between USB devices at remote locations, and is ideal for software video

conferencing and touch or interactive displays. The transmitter includes a USB 2.0 host interface

for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and

mouse. The receiver provides two USB interfaces for devices such as a camera, soundbar, or

display.*

* Both the AT-OME-EX-TX-LT and AT-OME-EX-RX-LT are not compatible with the AT-UHD-

HDVS-300 system for extending USB.

IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-KIT-LT for the

latest rmware updates.

1 x AT-OME-EX-TX-LT

1 x AT-OME-EX-RX-LT

2 x Captive screw connectors, 4-pin

1 x Captive screw connector, 2-pin

1 x AT-IR-CS-TX

4 x Mounting plates

8 x Mounting screws

1 x 48 V DC power supply

1 x Installation Guide

Package Contents

Installation Guide

AT-OME-EX-KIT-LT

FWHOST

OMEGATM

DEVICE

PWR

LINK

HDMI INHDBaseT OUT

RX RXTX

RS-232 IRTEST

AT-OME-EX-TX-LT

1 DEVICE

Connect up to two USB devices (e.g. mouse, keyboard, etc.) to these ports. These ports

provide 2.5 W per USB device interface.

2 HOST

Connect a USB cable from this port to the host computer.

3 FW

Connect a micro-USB to USB-A cable from this port, to a computer, to update the rmware.

Refer to for more information.Updating the Firmware (page 10)

4 PWR / LINK

The LED indicator will glow green when the AT-OME-EX-TX-LT is powered. The AT-PWR

OME-EX-RX-LT supplies power to the AT-OME-EX-TX-LT over HDBaseT. The LED LINK

indicator glows yellow when a solid link is established between the AT-OME-EX-TX-LT and

AT-OME-EX-RX-LT. Refer to for more information.LED Indicators (page 6)

5 TEST

Press and release this button to test the integrity of the HDBaseT connection, between

the transmitter and the receiver. If the connection is good, then the TEST LED indicator

will glow bright green. Refer to Testing the HDBaseT Connection (page 7) for more

information.

6 RS-232 / IR

Connect the included 4-pin captive screw block to this receptacle. Refer to RS-232 and IR

(page 4) for more information.

7 HDBaseT OUT

Connect a category cable from this port to the port of the AT-OME-EX-RX-LT HDBaseT IN

or other PoE-compatible receiver.

8 HDMI IN

Connect an HDMI cable from this port to the source device.

Front

Rear

65 7

12 3 4

AT-OME-EX-TX-LT

Installation Guide

AT-OME-EX-KIT-LT

OMEGATM

DEVICE

PWR

LINK

HDMI OUTHDBaseT IN

RX TXT X

RS-232 IR

AT-OME-EX-RX-LT

DC 48VDC 48V

1 DEVICE

Connect up to two USB 2.0 devices (e.g. mouse, keyboard, etc.) to these ports.

These ports provide 2.5 W per USB device.

2 FW

Connect a micro-USB to USB-A cable from this port, to a computer, to update the rmware.

Refer to for more information.Updating the Firmware (page 10)

3 PWR / LINK

The LED indicator will glow green when the AT-OME-EX-RX-LT is powered. The PWR LINK

LED indicator glows yellow when a solid link is established between the AT-OME-EX-TX-LT

and AT-OME-EX-RX-LT. Refer to for more information.LED Indicators (page 6)

4 DC 48V

Connect the included 2-pin captive screw block from this receptacle to the power supply.

This connection supplies power to the AT-OME-EX-TX-LT. Refer to Power (page 4) for

more information.

5 RS-232 / IR

Connect the included 4-pin captive screw block to this receptacle. Refer to RS-232 and IR

(page 4) for more information.

6 HDBaseT IN

Connect a category cable from this port to the port of the AT-OME-EX-TX-HDBaseT OUT

LT. The AT-OME-EX-TX-LT is powered by the AT-OME-EX-RX-LT over HDBaseT.

7 HDMI OUT

Connect an HDMI cable from this port to the display (sink) device.

AT-OME-EX-RX-LT

Front

Rear

54 6

12 3
