SIX CHANNEL LINE OUTPUT CONVERTER WITH ACCUBASS®

Quick Start Guide

Features

• Six channels of active speaker level inputs (up to 40V input

handling)

• Variable outputs with discrete level controls

• AccuBASS® processing for correction of bass roll-oﬀ

• Internal channel summing

• Load Selection Switch

• GTOTM Signal Sensing

• Audio Sense turn-on

• Ground Isolation Switch

• ACR-1 dash remote included

• Sounds great bro

Quick Start Guide

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not submerge this apparatus in water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as muﬄers, silencers, exhaust

pipes, or other apparatus (including ampliﬁers) that produce heat.

9. WARNING: Improper installation may lead to permanent injury or death.

Installation of the apparatus must be done with great care by qualiﬁed

personnel, to prevent damage to fuel lines, power and other electrical

wiring, hydraulic brake lines, and other systems, that might compromise

vehicle safety.

10. Provide +12V and ground wiring of suﬃcient size to ensure adequate

current to the device. For the LC7i PRO, this means 16-14 gauge wire.

11. Use rubber grommets to protect wiring whenever passing wires through

metal openings or bulkheads.

12. Only use attachments/accessories speciﬁed by the manufacturer.

13. Refer all servicing to qualiﬁed service personnel. Servicing is required

when the apparatus has been damaged in any way, such as the power

input terminals are damaged, objects have fallen into the apparatus,

does not operate normally, or has been dropped.

14. A 2 amp fuse is recommended on the +12V power wire.

15. Not tested for use in outer space.

16. Exposure to high sound pressure levels may lead to permanent hearing

loss. Take every precaution to protect your hearing.

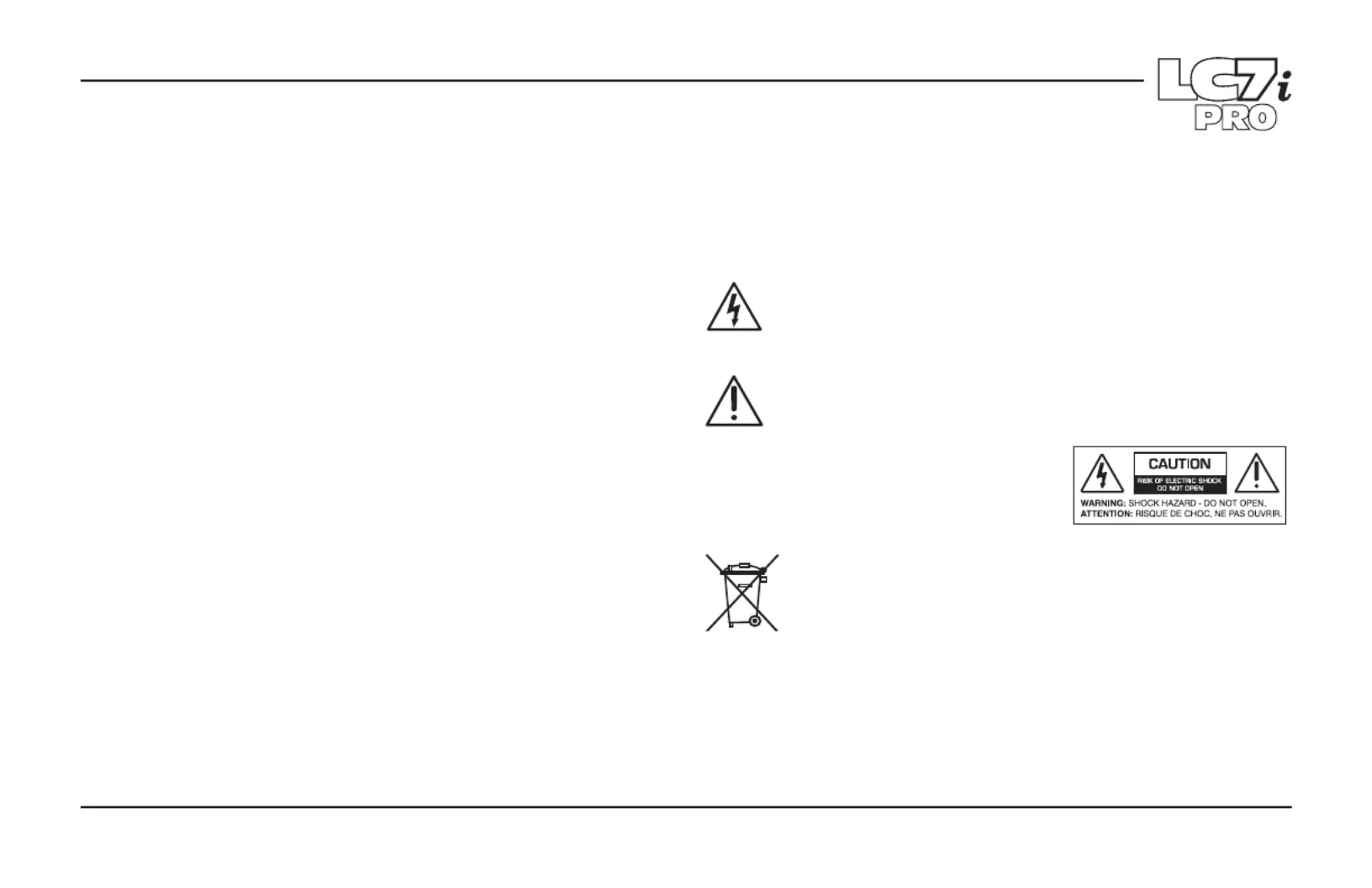

The lightning ﬂash with arrowhead symbol within an equilateral

triangle is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure, that may be of

suﬃcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user of the presence of important operating and mainte-

nance (servicing) instructions in the literature accompanying the

appliance.

Caution: to reduce the risk of electric shock, do

not disassemble the apparatus. There are no

user-serviceable parts inside. Refer servicing to

qualiﬁed personnel.

Recycling notice: If the time comes and this apparatus has fulﬁlled

its destiny, do not throw it out into the trash. It has to be carefully

recycled for the good of mankind, by a facility specially equipped

for the safe recycling of electronic apparatii. Please contact your

local or state recycling leaders for assistance in locating a suitable

nearby recycling facility. Or, contact us and we might be able to

repair it for you.

Important Safety Instructions

Quick Start

Since some of you over-caﬀeinated enthusiasts will want to install your LC7i

PRO on your own, here are a few general steps to get you up and running.

You should also refer to the additional sections of this manual for more

information and installation examples.

1. LC7i PRO is active and REQUIRES CONSTANT +12V POWER

2. Pick a suitable mounting location that will provide access to the controls

and connections. Protect the LC7i PRO from heat, moisture, and dirt.

3. Use the integrated mounting brackets to mount the LC7i PRO.

4. Before drilling holes, take every precaution to prevent damage to fuel

lines, power and other electrical wiring, hydraulic brake lines, and other

systems that might compromise vehicle safety.

5. When making connections, designate red RCA plugs as right, and

designate white, black, or gray plugs as left.

6. Connect the +12V input terminal of the unit to the +12V terminal on the

vehicle battery (or distribution block) using 16 to 14 AWG.

7. Connect the Ground terminal of the unit to the Ground/Negative

terminal of the battery (or distribution block) using the same gauge wire

as the +12V power wire.

8. For +12V remote turn on the Trigger Mode switch must be set to “Rmt In”.

Connect the Remote In (Rmt In) terminal of the unit to a remote turn-on

switch. Alternately, use GTO™ Signal Sense or Audio Sense to trigger the

unit on without a remote wire.

9. Connect the speaker outputs of your factory head unit or ampliﬁer to the

Speaker Level Inputs on the LC7i PRO.

10. Run the ACR-1 remote wire to the front of your vehicle.

11. Connect the Channel Output RCAs to your aftermarket ampliﬁer.

12. Connect the Remote Out (Rmt Out) to your aftermarket ampliﬁer.

13. Adjust the input gain using the Output Level knobs.

14. Adjust AccuBASS using the AccuBASS Threshold and Level knobs.

15. Enjoy the drive!
