Audiovox ANT3038XR Bruksanvisning
Läs nedan 📖 manual på svenska för Audiovox ANT3038XR (8 sidor) i kategorin TV-antenn. Denna guide var användbar för 5 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/8
ANT3038XR
Outdoor Antenna
User’s Guide
Para obtener instrucciones en español,
consulte la página 9.
Mast
(Not Included)
Reflector
Booms
Front Boom
Boom Brace
Large Boom
Rear Boom
Step 1: Unpack
Remove all three sections of the antenna and the hardware bag from package.
Make sure the following parts are in the package:
• (3) Antenna sections (rear, large/middle, and front booms)
• (1) Boom brace • (2) Refl ector booms
• (1) Hardware bag
The hardware bag contains the following pieces:
(2) U-Bolts (4) 1/4” Flange nuts
(2) Mast clamp inserts (5) End caps
(10) #10 Flange nuts (4) #10 Screws
(8) #10 Washers (1) Matching transformer
BEFORE YOU START!!!
Please read the IMPORTANT SAFETY INFORMATION sheet included in this
package.
Assembling the ANT3038XR

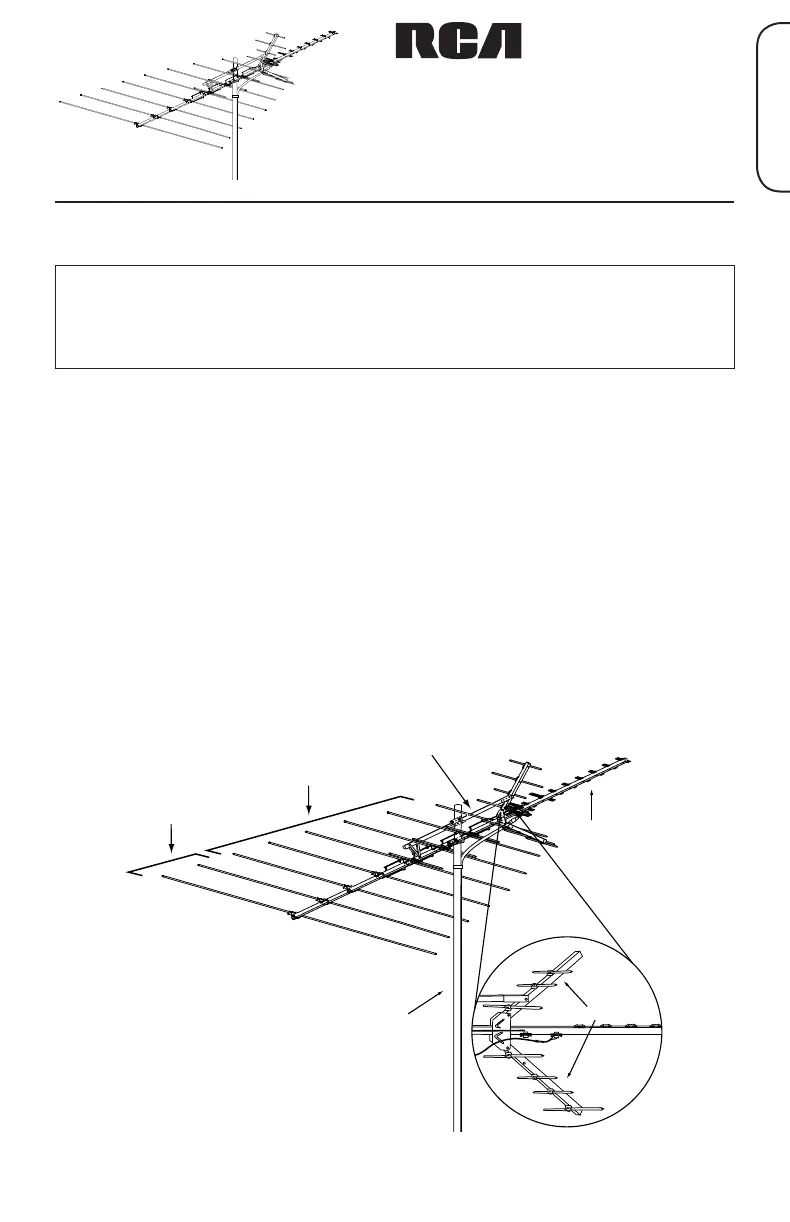

Fig.1: ANT3038XR fully assembled
(mast not inclued)
English
2
IMPORTANT: Unfold the elements on each end of
the refl ector boom so that the front of their locking
tabs face towards each other. The remaining
locking tabs can be unfolded in either direction.
Make sure that all of the elements are perpendicular
to the refl ector boom.
Connect the two refl ector booms to the front boom
using two of the provided #10 nuts and screws.
The refl ector booms should be parallel to the
smaller boom at this point. (See Fig. 1.)
Fig. 2
Step 2: Connect the refl ector booms to the front
(small) boom
Find the two refl ector booms and the front (or small)
boom. The two smaller elements on the refl ector
booms face away from the small main boom.
Fig. 1
Step 3: Unfold the rest of the antenna
Unfold all the other elements on the antenna until they lock into place ensuring
that they are fl at and parallel to each other. (See Fig. 3.)
Fig. 3
Fig. 2A
FRONT Locking Tab
Main Boom
Paso 12: Acople el cone
3
Step 4: Connect the middle (large) section to the
front (small) section
Find the middle (large) section. Locate the end of the middle section that
matches fi gure 4.
Remove the nut and screw in
the center. Slide the narrow
boom of the front (small)
section into the middle (large)
section. Make sure the
phasing lines are on the top
side of the small boom and the
black plastic element holders
are also on this same side.
This is the top of the antenna.
(See fi gure 5.)
Tap lightly with a rubber mallet
on the end of the small boom
aligning the holes for the
screw. (See fi gure 4.)
Re-install the screw and nut;
be sure to tighten securely.
Fig. 4
Front
section
Middle
section
Phasing Lines
Fig. 5
Step 5: Connect the phasing lines
Place the phasing lines from the front section over the studs. Secure them to
the studs with #10 fl ange nuts and washers. Tighten securely.
English
Produktspecifikationer
| Varumärke: | Audiovox |
| Kategori: | TV-antenn |
| Modell: | ANT3038XR |
