Technical Specifications
1
Instruction Manual

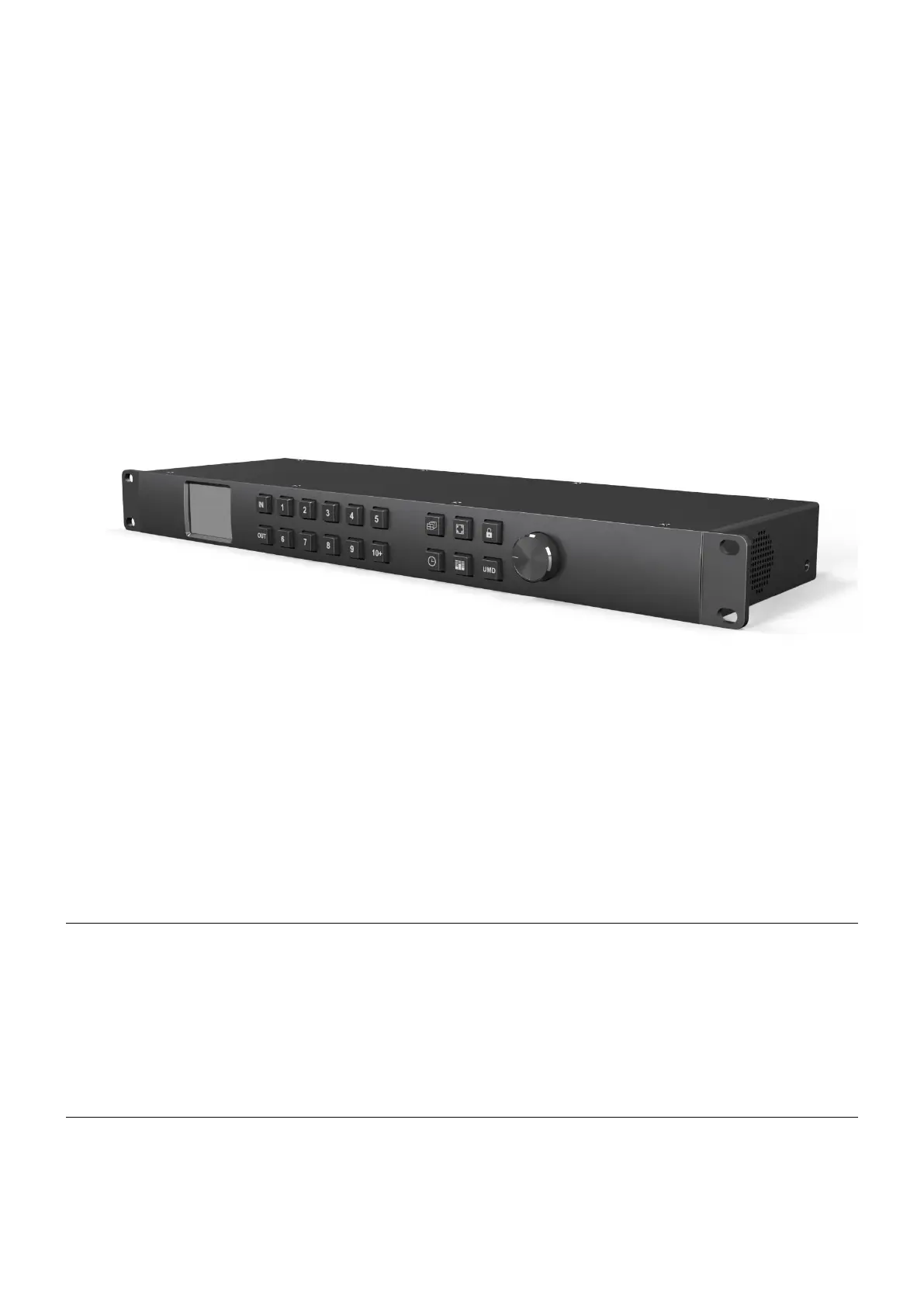

Compact 1RU 16 Channel 3G-SDI Multiviewer
with 16 16 3G-SDI Matrix Switcher×
This device is the perfect solution for a large broadcast project. One machine supports two modes, 16 channel SDI
multiviewer mode and 16x16 SDI matrix switcher. The input signal detects SD, HD and 3G-SDI automatically. The video
format of multiview outputs can be selected from total 9 formats from 720p to 1080p. There are 20 preset layouts
including 16/12/11/10/9/8/6/4 for choices. You can even SOLO any input signal in full screen through the shortcut key.
MMV16310 also supports UMD, audio meter, signal status and time code overlay. All functions can be quickly controlled
by the PC software or front panel button & knob.
Technical Specifications
2

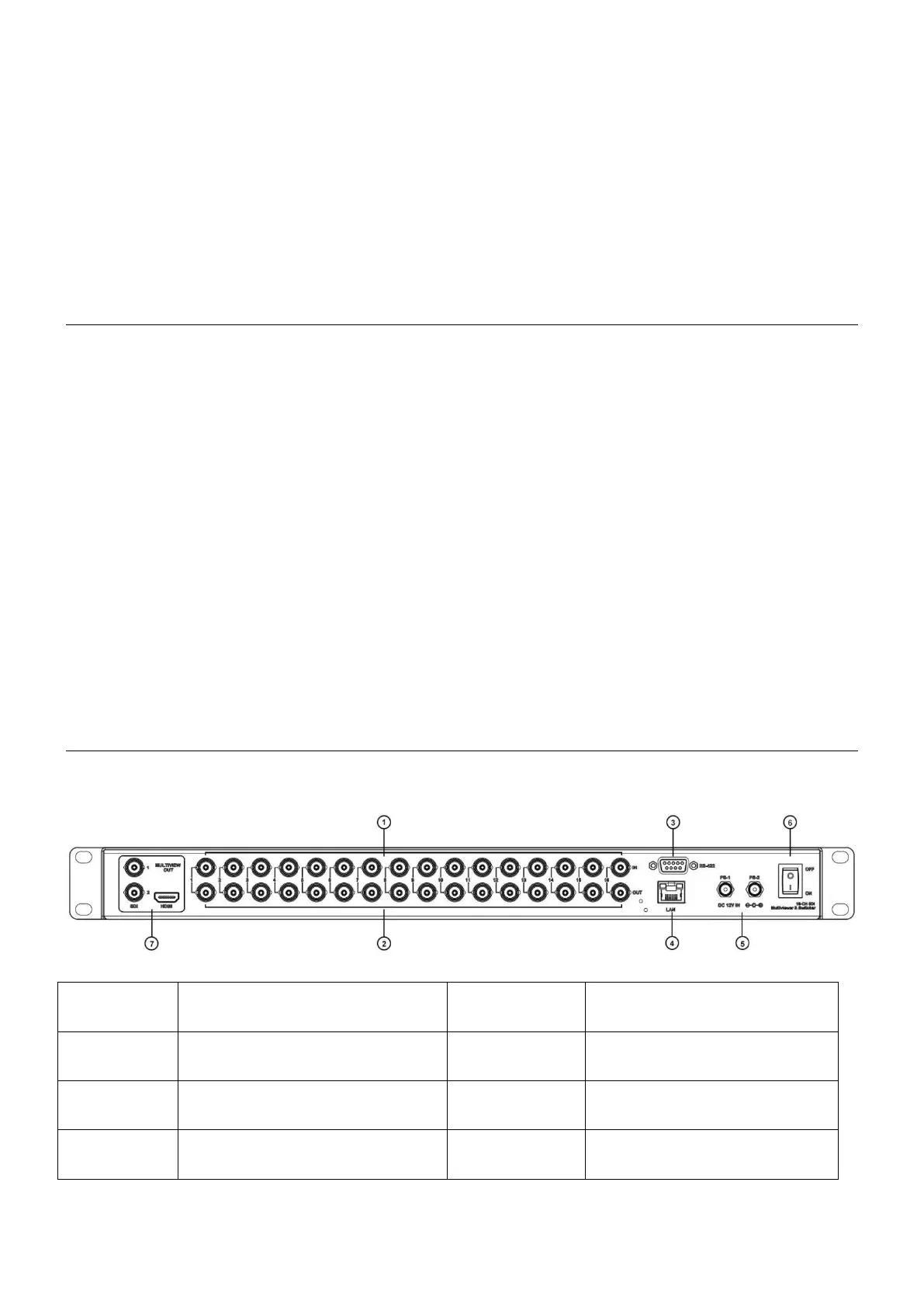

Default Mode: Multiviewer Mode
Connections
Standards
Interfaces
①Inputs
SDI inputs 1-16
②Loop Outputs
SDI loop outputs 1-16
③RS-422
Software control
④LAN
Software control and update
⑤Power
Dual power connectors PS-1 & PS-2,
for power redundancy
⑥Power Switch
To turn on or off the device
⑦Outputs
Multiview outputs, SDI 2 & HDMI 1× ×
SDI Inputs Format Support
(HD) 1920×1080p 60/59.94/50/30/29.97/25/24/23.98
(HD) 1920×1080PsF 30/29.97/25/24/23.98
(HD) 1920×1080i 60/59.94/50
(HD) 1280×720p 60/59.94/50
(HD) 1280×720p 30/29.97/25/24/23.98
(SD) 625i 50
(SD) 525i 59.94
SDI & HDMI Outputs Format Support
1080p 60/50/30/25/24
1080i 60/50
720p 60/50
SDI Auto Switching
Automatically detects SD, HD and
3G-SDI on inputs
SDI Video Rate
SD/HD/3G-SDI
SDI Compliance
SMPTE 292M, SMPTE 259M,
SMPTE 424M, SMPTE 352M,
SMPTE 296M
SDI Color Space and Precision
YUV 4:2:2/4:4:4, RGB 4:4:4 (SDI inputs)
YUV 4:2:2(SDI & HDMI outputs)
SDI Video Input
16×SD/HD/3G-SDI(75Ω BNC)
SDI Video Loop Output
16×SD/HD/3G-SDI(75Ω BNC)
Control
Front panel button,
PC software via LAN/RS-422
SDI Video Output
2×SD/HD/3G-SDI(75Ω BNC)
HDMI Video Output
1×HDMI type A
Technical Specifications
3

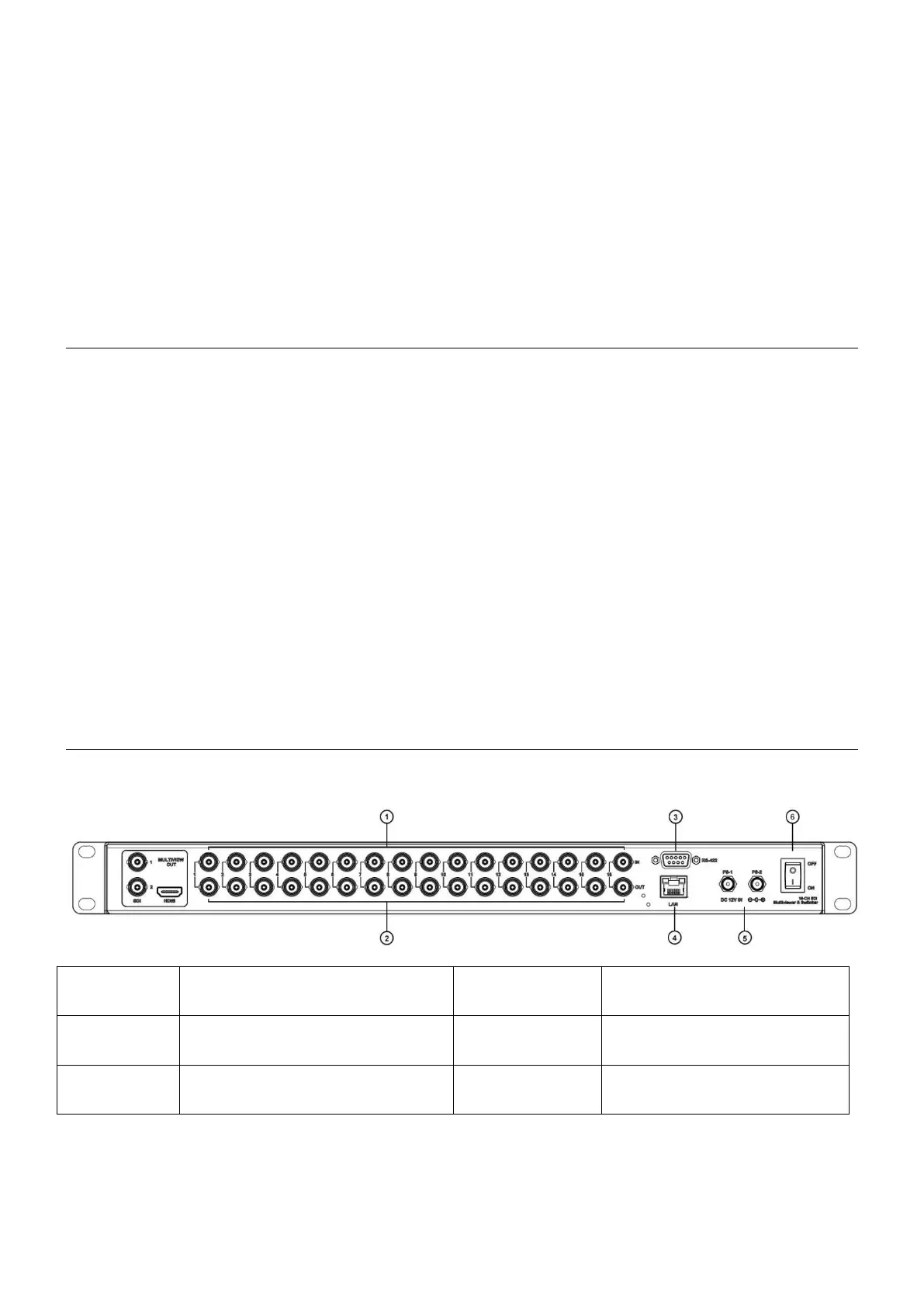

Second Mode: Switcher Mode
Connections
Standards
Interfaces
①Inputs
SDI inputs 1-16
②Outputs
SDI outputs 1-16
③RS-422
PC software control
④LAN
PC software control and update
⑤Power
Dual power connectors PS-1 & PS-2,
for power redundancy
⑥Power Switch
To turn on or off the device
Note: The mode of Multiviewer and Switcher can be switched by PC software or knob menu.
SDI Format Support
(2K) 2048×1080p 30/29.97/25/24/23.98
(2K) 2048×1080PsF 30/29.97/25/24/23.98
(HD) 1920×1080p 60/59.94/50/30/29.97/25/24/23.98
(HD) 1920×1080PsF 30/29.97/25/24/23.98
(HD) 1920×1080i 60/59.94/50
(HD) 1280×720p 60/59.94/50
(HD) 1280×720p 30/29.97/25/24/23.98
(SD) 625i 50
(SD) 525i 59.94
SDI Auto Switching
Automatically detects SD, HD and 3G-SDI
SDI Compliance
SMPTE 372M, SMPTE 259M,
SMPTE 292M, SMPTE 296M,
SMPTE 424M, SMPTE 425M,
DVB-ASI
SDI Color Space and Precision
RGB 4:4:4 10bit/12bit
YUV 4:2:2 10bit/12bit
YUV 4:4:4 10bit/12bit
XYZ 4:4:4 12bit
SDI Video Input
16×SD/HD/3G-SDI/DVI-ASI(75Ω BNC)
SDI Video Output
16×SD/HD/3G-SDI/DVI-ASI(75Ω BNC)
Updates and Configuration
LAN(RJ45)
Control
Front panel button,
PC software via LAN/RS-422
