Sida 1/20

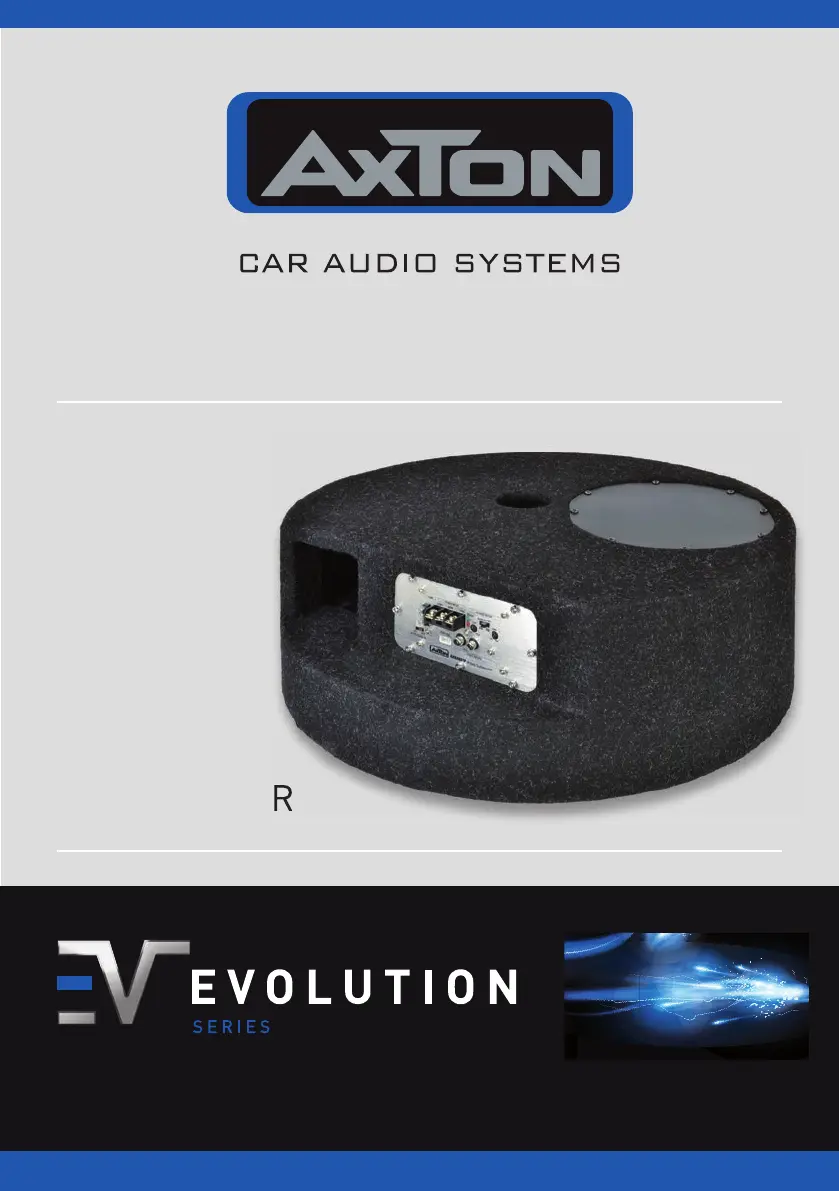

A X B 2 0 ST P

oWNER‘S MANUAL/BEDIENUNGSANLEITUNG

8"/20 CM

ACTIVE

SUBWOOFE

– 2 –

Dear Customer

Thank you and congratulations on your purchase of the AXTON AXB20STP. This active

subwoofer system exclusively uses very high quality parts and components. As with all high-

quality car audio components, professional installation is highly recommended. If you plan on

installing this active subwoofer by yourself, please read the following installation guide care-

fully, before you attempt the installation. You should retain this manual, the packing and the

purchasing receipt for future reference. For any further additional information about mount-

ing, connecting or adjusting this subwoofer system, please contact your AXTON dealer.

UNPACKING THE SYSTEM

Carefully remove all parts from the giftbox and check whether they are in good undamaged

condition, and match with the set contents listed below:

nAXB20STP active subwoofer

nHigh level input plug

nOwner‘s manual

Please contact your authorized AXTON dealer, if the content of this set is incomplete,

or parts of it show signs of transport damage.

SPECIfICATIoNS

n 8” / 20 cm active trunk box subwoofer

n Frequency response: 25 – 100 Hz

n 90 W rms x 1 @ 4 ohms (< 1.0 % THD / 14.4V)

n 110 W max. x 1 @ 4 ohms (< 10 % THD / 14.4V)

n Variable   – / lowpass lter: 50 150Hz 12 dB/oct.

n Switchable Bass-Boost: 0 dB / 6 dB

n RCA, adjustable input sensitivity: 165 mV – 5 V

n High-Level, adjustable input sensitivity: 1.0 V – 10 V

n Signal to noise ratio: > 90 dB

n Dimensions DxH: 500 x 180 mm

n Net Weight: 10.5 kg

– 3 –

DIMENSIoNS

500 mm

180 mm 500 mm
