Sida 1/10

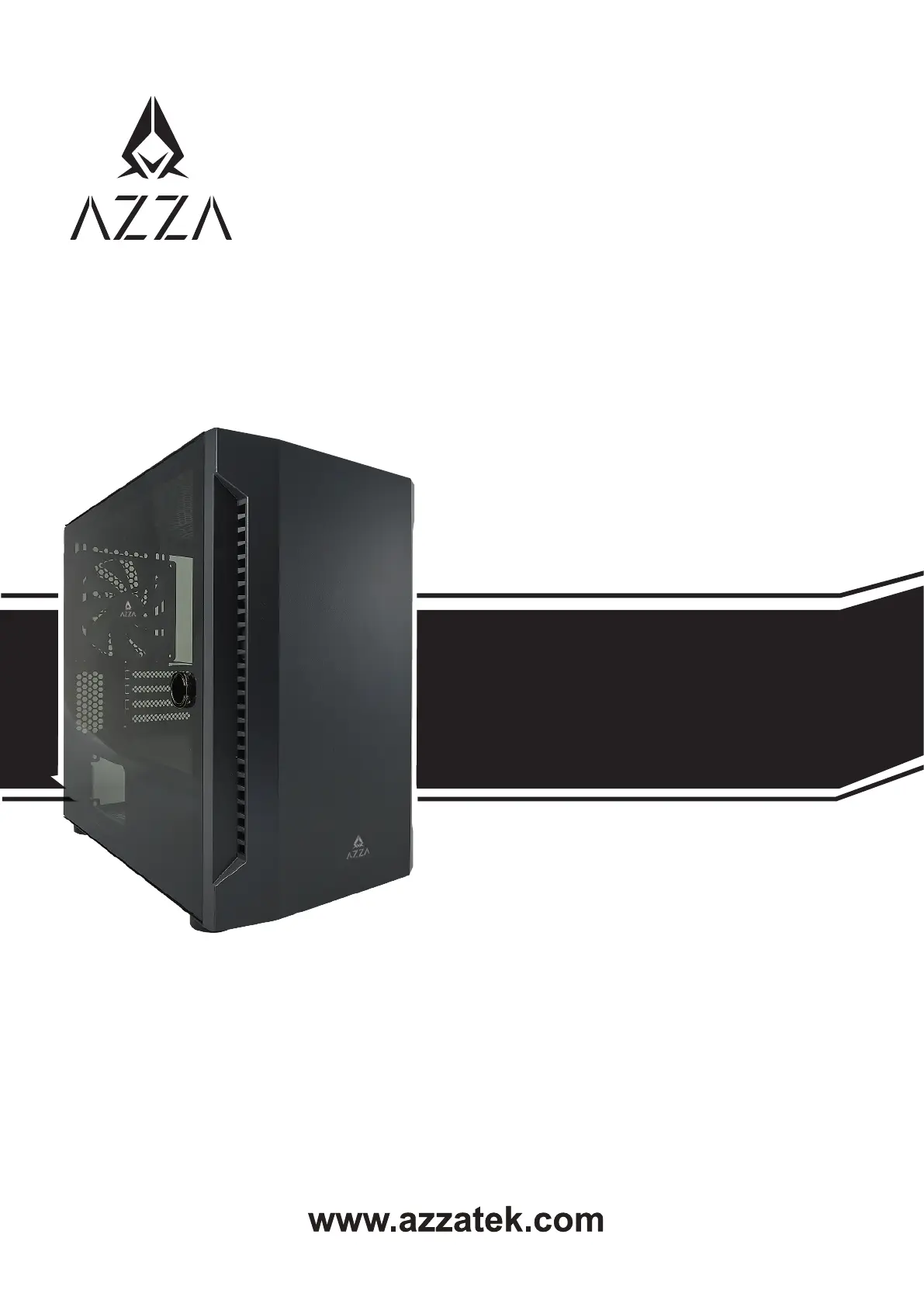

Bastion
USER MANUALUSER MANUAL
Installation Instructions
1. Specifications
2. Chassis Parts
3. Control Panel Functions
4. 3.5”/2.5” HDD/SSD Installation
5. Cooling System Installation
Specifications
Le Side panel: Magne c Tempered Glass Door
Micro ATX ITX、
High-quality tempered glass side window allows for clear visuals to inner components
2x120mm or 2x140mm or 1x200mmFan ports in the front
2x120mm or 2x140mm Fan ports on the top
1x120mm or 1x140mm Fan port in the rear
(1x140mm Fan included for model CSAZ-120)
Supports radiator up to mm in the Front 240/280
Supports radiator up to 240mm on the Top
Removable (magnetic) dustproof net on the top , iron net on bottom of chassis.
Bo om mounted ATX Power Supply
Expansion
Features
Model
Model Name Bastion
Model Number CSAZ-120
Specifications
Type Micro ATX Mid Tower
Color Black/Black(interior)
Side Panel Window
Max CPU Cooler Height UP to 175mm
Max Video Card Length Up to 340mm long video card
Power Supply Not Included
Motherboard Compa bility
External 5.25" Drive Bays 0
Internal 2.5" Drive Bays Up to 4
Internal 3.5" Drive Bays Up to 2
Expansion Slots 4
Top Ports Power bu on, reset bu on,Led bu on, HD Audio, USB 3.0 x 1, USB2.0x2
Physical Specifications
390x230x400mm/15.4x9.1x15.7 inches
Weight 4.2kg /9.26lbs
Tempered Glass Side Window
Available Fan Ports
Water Cooling
Dust Filters
Power Supply Support
Dimensions (HxWxD)
