Sida 1/16
OVER IVEDR
Physical Specifications
Model Name: OVERDRIVE
Name: CSAZ-807
Type:
Color:
Top Panel: Aluminum and tempered glass wing
Max CPU Cooler Height:
Max GPU Length: Up to 400mm long Video card (Horizontal)
Up to 80mm
Max Cooling Tube Reservoir Length: UP to 300mm
Power Supply: ATX
Motherboard Compa bility:<305x280mm E-ATX 、 、 、ATX Micro ATX Mini ITX
External 5.25" Drive Bays:
Internal 2.5" Drive Bays:
Internal 3.5" Drive Bays:
Expansion slots:
Front
Metal Chassis Dimensions (HxWxD)
Weight:
Outer Appearance:
440x570x590mm/17.3x22.4x23.2 inch
23kg /50.7lbs
Ports:
All external panels are made of aluminum with two glass top panel, gull-wing panel
design makes it easy to adjust and clean on usually.
Available Fan Ports:
Water Cooling:
Isolated Chamber:
Easy Installa on Cooler:A pre-cut hole for easy installa on of CPU Cooler,
elimina ng the need to remove the motherboard
Accessories
Model
Specifications
ATX Tower
1.5~2.0mm SPCC+ 2.5mm Aluminum
Expansion
Up to 2
0
Up to 2 (Conver ble with 2.5"SSD x 2 )
3+3
3xUSB 3.0 HD Audio Type C Metal power bu on、 、 、
Features
Front: 1 x 200mm fan port (1x 200mm Addressable RGB fan included )
Top: 6 x 120mm/ 4 x 140mm fan ports
Sides: 6 x 120mm fan ports
Top: Supports radiators up to 280/360mm x 2
Sides: Supports radiators up to 360mm x 2
ATX Power supply inside its own isolated chamber,
preven ng its heat from a ec ng other components
Radiator bracket x 2 - Support 280/360mm on top two sides.
300 mm PCI-e 3.0 Riser Cable
Another 300mm PCI-e 4.0 extension cable version is available
AZZA Hub (RGB+Fan Controller) x1
PCI-e Slot Brackets x2

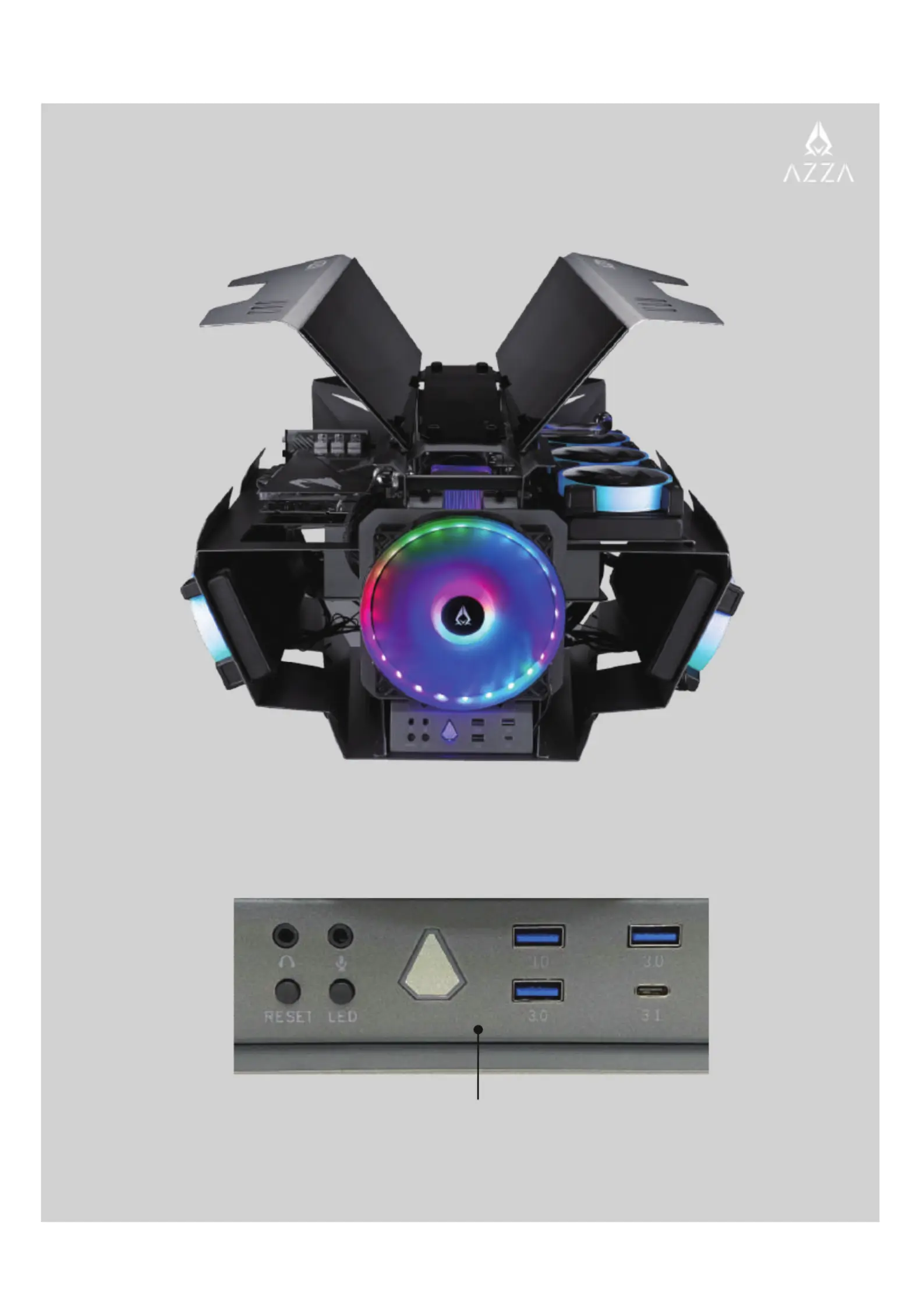

1. Front Panel F ctionality :un
Front I/O:
Reset / LED / A io Mic / USB3.0*3 Type C ud / /
200mm Addressable RGB Fan included
Front Fan:
