HEX70CS-KIT QUICK REFERENCE GUIDE
Quick Reference Guide
HEX70CS-KIT
01
Our HEX70CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™
extender set offers market leading features and outstanding value utilising
CSC technology. The product extends HDMI,Bi-directional IR & RS-232 and
Bi-directional PoH (PoE) up to lengths of 70m (4K 40m).The Transmitter
includes a HDMI loop-out for integrating local displays or cascading to
multiple devices. The Receiver features simultaneous analogue stereo and
digital coax audio breakout.
Introduction
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080P video up to 70m
• Features 1x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Supports bi-directional RS-232 pass through
• Supports bi-directional IR pass through
• Supplied with Blustream 5V IR receiver and emitter
• Advanced EDID management
• HDCP 2.2 Support

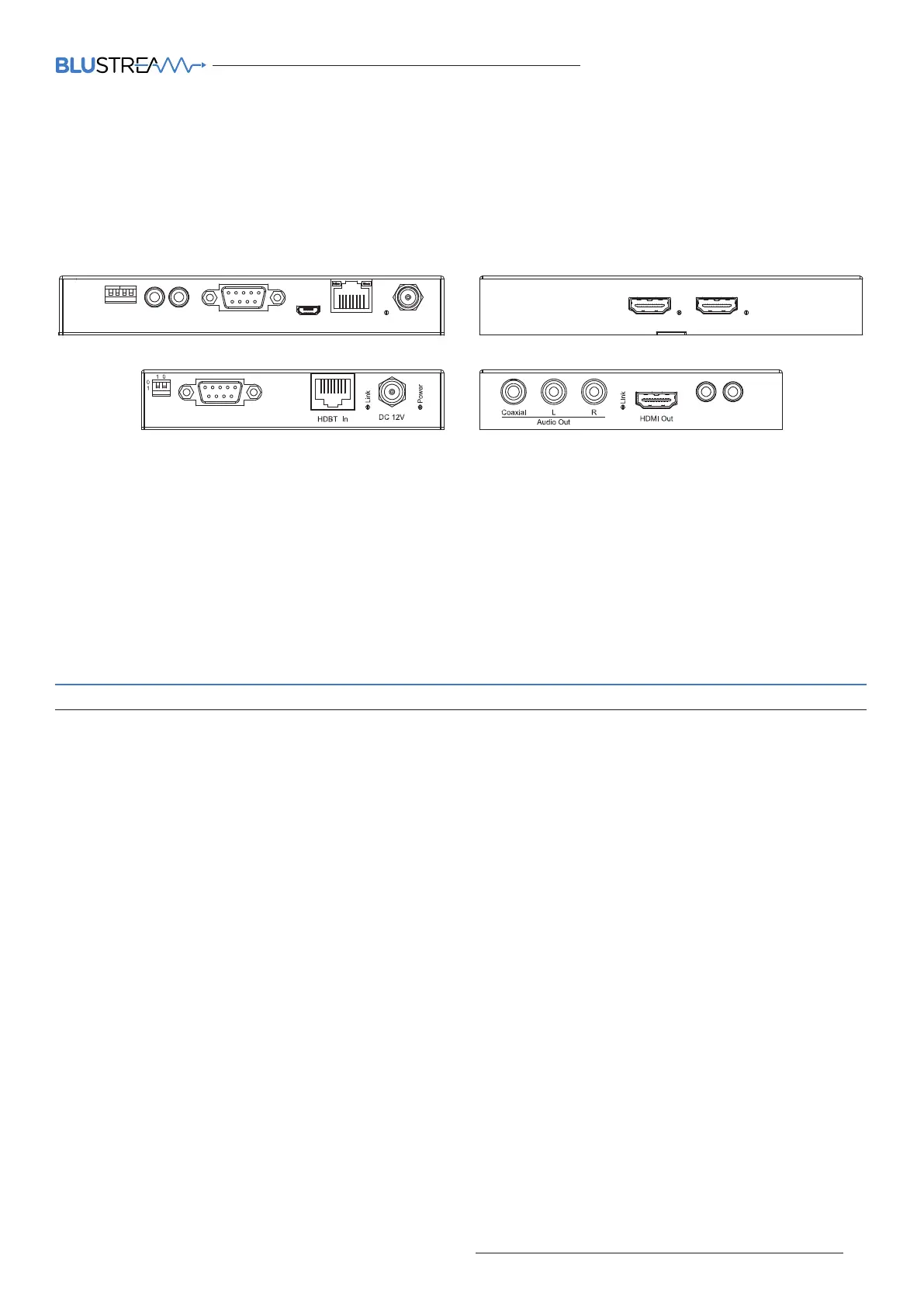

Mo de
RS-232 IR OutIR In
0
RS-232 DC 12V
Po we r
HDB T Out
Upgrade
EDI D
3210
1
IR Out IR In
HDM I In HDMI Out
Li nk
Li nk
HEX70CS-KIT QUICK REFERENCE GUIDE
www.blustream.co.uk
02

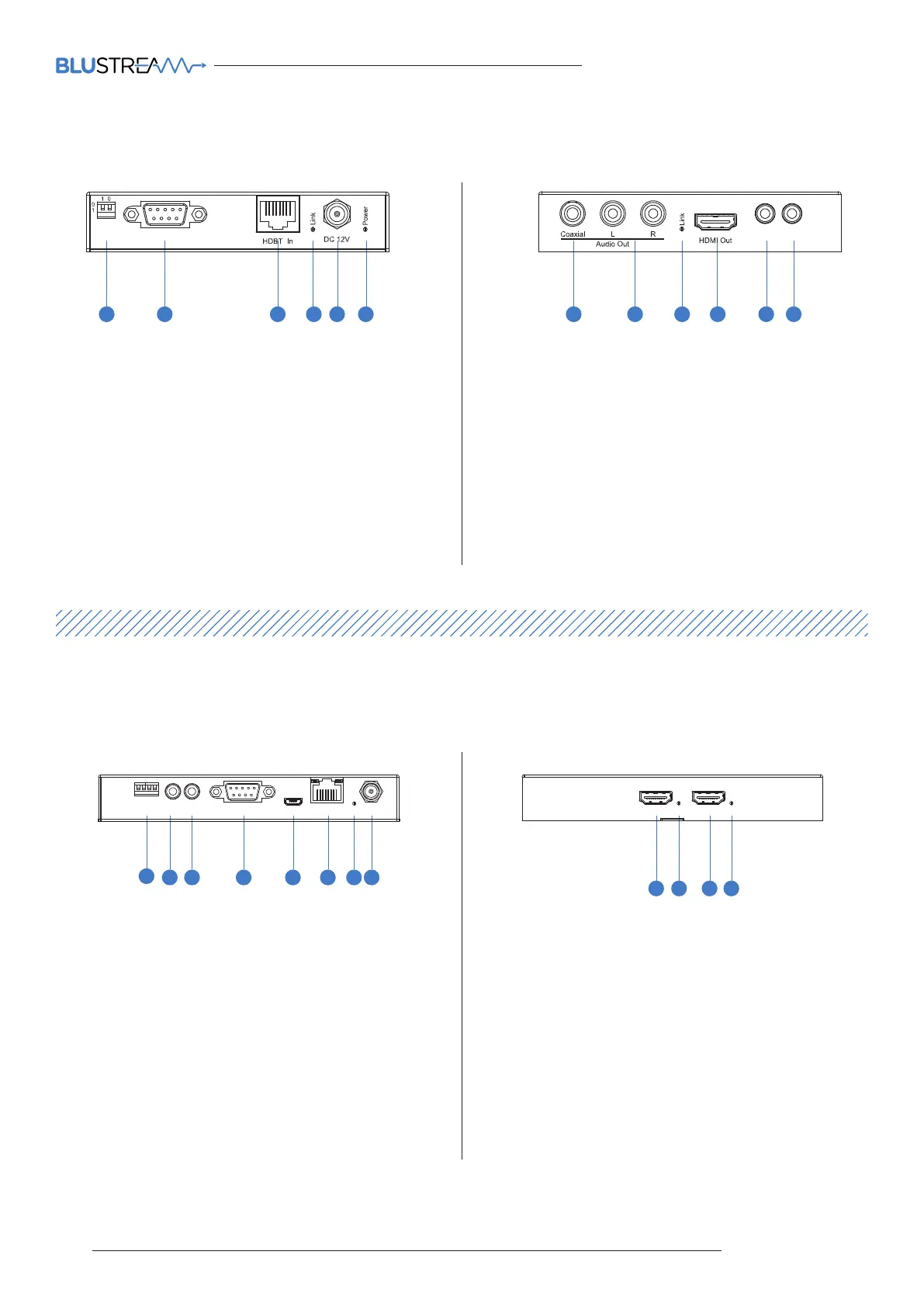

Panel Description HEX70CS-RX
Panel Description HEX70CS-TX
12
1 Mode dip-switch - To switch RS-232 serial port
between pass-through and firmware update mode
2 RS-232 / serial connector
3 HDBaseT input
4 HDBaseT signal link indicator
5 DC 12V screw type connector
6 Power status indicator
9 HDMI input
q HDMI link indicator
w HDMI output
e HDMI link indicator
7 Coaxial digital output - de-embedded from HDMI input
8 Analogue audio Le/Right output (3.5mm stereo jack
de-embedded from HDMI input. Supports stereo
2CH PCM audio only
9 HDMI signal link indicator
q HDMI Output
w IR IN (to Blustream 5V 3.5mm IR receiver)
e IR OUT (to Blustream 5V 3.5mm IR emitter)
3 4 5 6 7
1 EDID DIP switch (UP=0, DOWN=1)
2 IR OUT (to Blustream 5V 3.5mm IR emitter)
3 IR IN (to Blustream 5V 3.5mm IR receiver)
4 RS-232 / Serial connector
5 USB Upgrade port - For future use
6 HDBaseT output
7 Power status indicator
8 DC 12V screw type connector
9 10 11 12
1 2 3 4 5 7 8 9 10 116 12
8
Mode
RS-232 IR OutIR In
0
RS-232 DC 12V
Power
HDBT Out Upgrade
EDID
3210
1
IR Out IR In
HDMI In HDMI Out
Lin k
Lin k
contact support@blustream.co.uk / support@blustream.com.au
HEX70CS-KIT QUICK REFERENCE GUIDE
Understanding the Transmitter/Receiver status lights
03
EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by
the source to find out what audio and video resolutions are supported by the display. By pre-determining the video resolution
and audio format of the source and display device you can reduce the time needed for EDID hand shaking thus making
switching quicker and more reliable.
Configuration of extender EDID settings can be achieved using the product dip-switches on the end of the HEX70CS-TX. EDID
dip-switch settings are shown below.
EDID Control
Global EDID settings
Dip-switch position ‘0’ = O
Dip-switch position ‘1’ = On
The Blustream HEX70CS-KIT extender solutions include status LED indicators on both the Transmitter and Receiver
products to show all connections are active and to help diagnose possible problems.
Receiver:
• The HDMI signal link light will be o when there is no connection with a display/sink
• The HDMI link light will be on when there is an active connection with a display
• The HDBaseT link light will be o when there is no CAT cable/active HDBaseT connection on the RJ45 HDBaseT
input
• The HDBaseT link light will blink if there is an unstable connection between the Transmitter and Receiver
• The HDBaseT link light will be lit when a CAT cable is connected to the HDBaseT RJ45 output on the Transmitter
and an active connection is achieved with the Receiver.
Transmitter:
• The Input HDMI signal link light will be o when there is no connection with a source device
• The Output HDMI signal link light will be o when there is no connection with a display/sink
• The Input HDMI link light will be on when there is an active connection with a source device
• The Output HDMI link light will be on when there is an active connection with a display/sink
• The HDBaseT link light will be o when there is no CAT cable/active HDBaseT connection on the RJ45 HDBaseT
output
• The HDBaseT link light will blink if there is an unstable connection between the Transmitter and Receiver
• The HDBaseT link light will be lit when a CAT cable is connected to the HDBaseT RJ45 output on the Transmitter
and an active connection is achieved with the Receiver/Matrix.
EDID Dip-switches
[DIP]=0000: HDMI 1080p@60Hz, Audio 2ch PCM
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0011: HDMI 1080i@60Hz, Audio 2ch PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0110: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 2ch PCM
[DIP]=0111: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1000: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K@60Hz 4:4:4, Audio 2ch PCM
[DIP]=1010: HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1011: HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1100: DVI 1280x1024@60Hz, Audio None
[DIP]=1101: DVI 1920x1080@60Hz, Audio None
[DIP]=1110: DVI 1920x1200@60Hz, Audio None
[DIP]=1111: Soware Control EDID
0
E DI D
3210
1
IR Out IR In
